Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

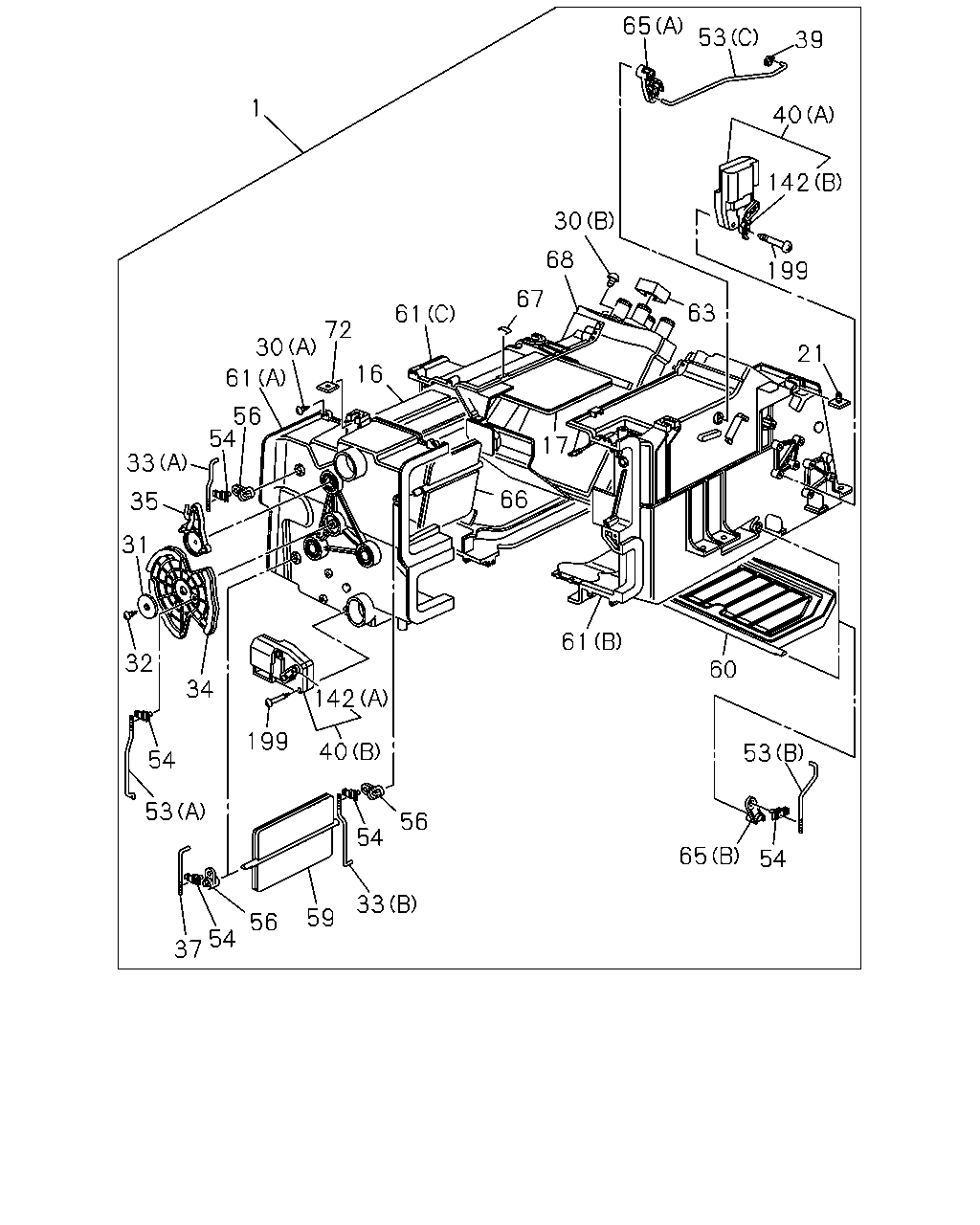

8-60 - HEATER UNIT; FRONT
▶
8-60 — HEATER UNIT; FRONT
(#8246) — 44 parça
Tümü
A - FVM5MF
B - FVR5MF
C - FVZ5MF
D - GVR5MC
65
53
39
1
40
142
30
68
199
67
63
61
72
30
21
16
61
56
54
17
33
66
35
31
61
32
60
34
142
199
40
53
54
53
56
54
65
54
33
59
56
54
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HEATER UNIT
1-83511-129-8
01
1
0005-0109
●
●
●
●
1
HEATER UNIT
1-83511-175-1
01
1
0110-1409
●
●
●
●
1
HEATER UNIT
8-98238-476-0
01
1
1410-
●
●
●
●
16
SHUTTER; HTR UNIT,CENTER UPR
1-83579-625-1
01
1
0005-
●
●
●
●
17
SHUTTER; HTR UNIT,CENTER
1-83579-628-1
01
1
0005-
●
●
●
●
21
BOLT; CASE,HTR UNIT
1-83579-657-2
02
1
0005-
●
●
●
●
30
SCREW; HTR UNIT
(B) M5X20
9-09829-324-1
01
1
0211-1409
●
●
●
●
30
SCREW; HTR UNIT
(B) M5X16
8-94248-820-0
01
1
1410-
●
●
●
●
30
SCREW; HTR UNIT
(A) M4X16
8-94324-850-0
12
1
0005-
●
●
●
●
31
WASHER; HTR UNIT
8-94129-950-0
01
1
0005-
●
●
●
●
32
SCREW; HTR UNIT
M5X20
9-09829-324-1
01
1
0005-1409
●
●
●
●
32
SCREW; HTR UNIT
M5X16
8-94248-820-0
01
1
1410-
●
●
●
●
33
ROD; SHUTTER LEVER
(A)
1-83579-619-0
01
1
0005-
●
●
●
●
33
ROD; SHUTTER LEVER
(B)
1-83579-621-0
01
1
0005-
●
●
●
●
34
LEVER; SHUTTER,HTR UNIT
1-83564-326-0
01
1
0005-
●
●
●
●
35
LEVER; SHUTTER,HTR UNIT
8-94389-502-1
03
1
0005-
●
●
●
●
37
ROD; LEVER
1-83579-620-1
01
1
0005-
●
●
●
●
39
CLIP; HTR UNIT
1-83574-136-0
01
1
0005-
●
●
●
●
40
ACTUATOR; HTR UNIT
(A)
1-83579-649-1
01
1
0005-
●
●
●
●
40
ACTUATOR; HTR UNIT
(B)
1-83579-650-1
01
1
0005-
●
●
●
●
53
ROD; SHUTTER LEVER
(A)
1-83579-622-0
01
1
0005-
●
●
●
●
53
ROD; SHUTTER LEVER
(B)
1-83579-623-0
01
1
0005-
●
●
●
●
53
ROD; SHUTTER LEVER
(C)
1-83579-624-0
01
1
0005-
●
●
●
●
54
CLIP; SHUTTER LEVER
8-94248-794-0
05
1
0005-
●
●
●
●
56
LEVER; SHUTTER,HTR UNIT
1-83564-325-0
03
1
0005-
●
●
●
●
59
SHUTTER; HTR UNIT,SIDE
1-83579-626-2
01
1
0005-
●
●
●
●
60
DOOR; MIX,HTR UNIT
1-83579-629-0
01
1
0005-0109
●
●
●
●
60
DOOR; MIX,HTR UNIT
1-83578-084-0
01
1
0110-
●
●
●
●
61
CASE; HTR UNIT
(C)
1-83564-346-3
01
1
0005-
●
●
●
●
61
CASE; HTR UNIT
(B)
1-83564-401-0
01
1
0005-1409
●
●
●
●
61
CASE; HTR UNIT
(B)
8-98299-713-0
01
1
1410-
●
●
●
●
61
CASE; HTR UNIT
(A)
1-83564-402-0
01
1
0005-1409
●
●
●
●
61
CASE; HTR UNIT
(A)
8-98299-715-0
01
1
1410-
●
●
●
●
63
LINING; HTR UNIT
1-83579-557-0
02
1
0005-
●
●
●
●
65
LEVER; MIX,DOOR
(A)
1-83564-327-0
01
1
0005-
●
●
●
●
65
LEVER; MIX,DOOR
(B)
1-83564-328-1
01
1
0005-
●
●
●
●
66
SHUTTER; HTR UNIT,CENTER LWR
1-83579-627-0
01
1
0005-
●
●
●
●
67
CLIP; HTR UNIT
1-83574-148-0
01
1
0005-
●
●
●
●
68
CORE; HTR UNIT
1-83562-078-1
01
1
0005-1409
●
●
●
●
68
CORE; HTR UNIT
8-98238-475-0
01
1
1410-
●
●
●
●
72
NUT; CASE,HTR UNIT
1-83579-659-4
02
1
0005-
●
●
●
●
142
LEVER; ACTUATOR
(A)
1-83564-345-1
01
1
0005-
●
●
●
●
142
LEVER; ACTUATOR
(B)
1-83564-414-0
01
1
0005-
●
●
●
●
199
SCREW; ACTUATOR
8-94348-809-0
04
1
0005-
●
●
●
●
