9-01 — TOOLS (#8243) — 161 parça

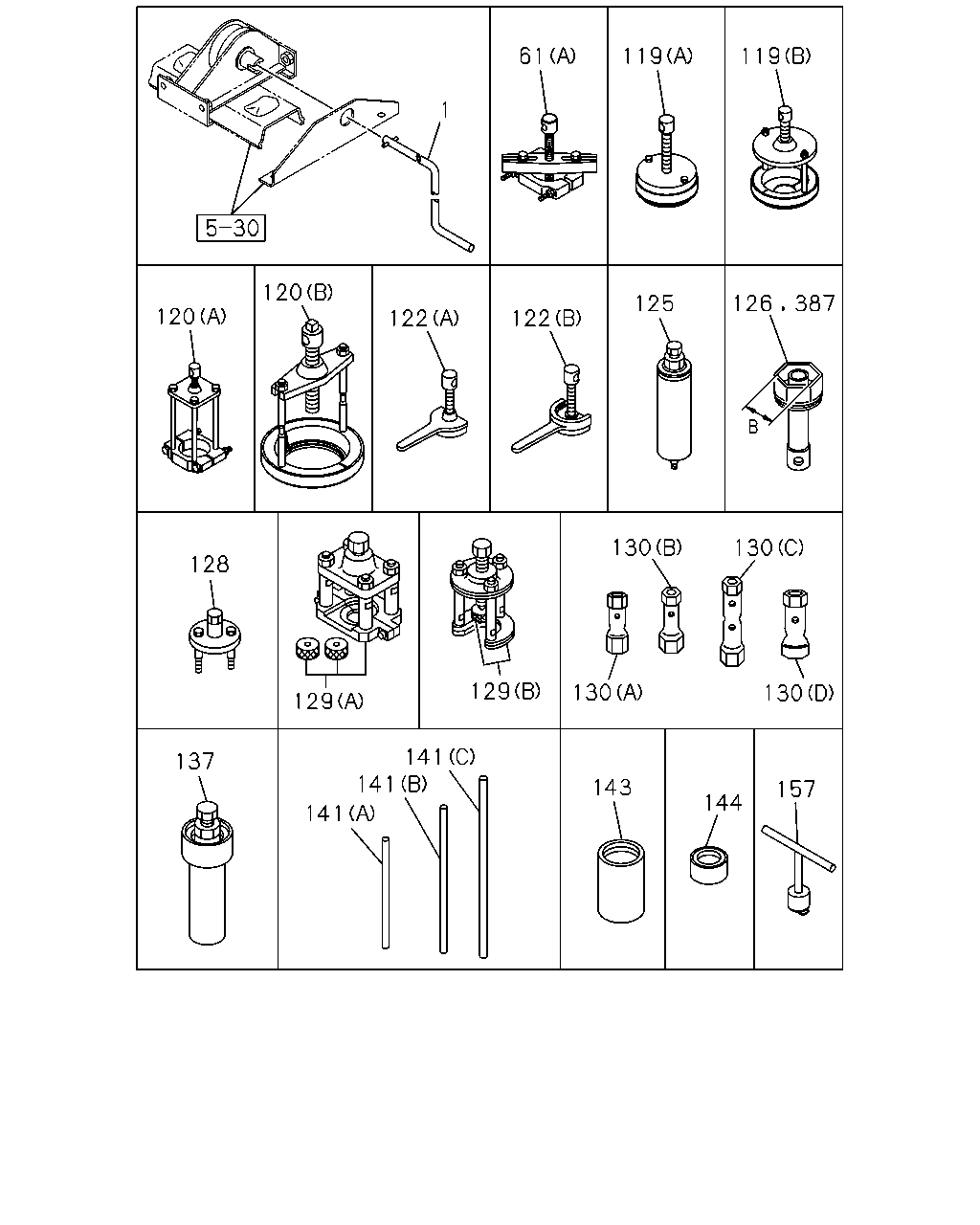

61 119 119 120 120 122 122 125 126 387 128 129 129 130 130 130 130 137 141 143 144 141 141 157 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0005-	●	●	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	0005-	●	●	●	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	0005-0210	●	●	●	●
119	PULLER ASM; TOP GEAR BRG (A)	9-85210-186-0	01	1	0005-0210	●	●
119	PULLER ASM; TOP GEAR BRG MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A)	9-85210-186-0	01	1	0005-0210			●	●
119	PULLER ASM; TOP GEAR BRG MLD7Q M/T(X5K),MLD6D M/T(X5Q) (B)	9-85210-185-0	01	1	0005-0210			●	●
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-169-0	01	1	0005-0210	●	●
120	PULLER ASM; MAIN REAR BRG MBJ5J M/T(Y1Y) (A)	9-85210-169-0	01	1	0005-0210			●	●
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-169-0	01	1	0211-	●	●	●	●
120	PULLER ASM; MAIN REAR BRG MLD7Q M/T(X5K),MLD6D M/T(X5Q) (B)	9-85210-192-0	01	1	0005-0210			●	●
122	PULLER ASM; COUNTER FRT (A)	9-85210-168-0	01	1	0005-0210	●	●
122	PULLER ASM; COUNTER FRT MBJ5J M/T(Y1Y) (A)	9-85210-168-0	01	1	0005-0210			●	●
122	PULLER ASM; COUNTER FRT (A)	9-85210-168-0	01	1	0211-	●	●	●	●
122	PULLER ASM; COUNTER FRT MLD7Q M/T(X5K),MLD6D M/T(X5Q) (B)	9-85210-129-1	01	1	0005-0210			●	●
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	0005-0210	●	●	●	●
126	WRENCH; FRT HUB BRG NUT B=98 L=435	1-85113-027-0	01	1	0005-	●	●	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0005-	●	●	●	●
129	PULLER ASM; PITMAN ARM (A)	9-85210-147-0	01	1	0005-0210	●	●
129	PULLER ASM; PITMAN ARM (B)	1-85210-011-0	01	1	0005-			●	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0005-0210	●	●	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0005-0210	●	●	●	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0005-0210	●	●	●	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0005-0210	●	●	●	●
137	PLIER; SHOE,RETURN SPRING	1-85210-025-0	01	1	0005-0210			●	●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	0005-0210	●	●	●	●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	0211-1409	●	●	●	●
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1410-	●	●	●	●
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	0005-0210	●	●	●	●
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	0005-0210	●	●	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-011-0	01	1	0005-	●	●	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-012-0	01	1	0005-	●	●	●	●
157	REPLACER KIT; RETURN SPR ID=16	1-85237-002-0	01	1	0005-0210			●	●
387	WRENCH; HUB BRG NUT REAR B=98 L=305	9-85113-533-1	01	1	0005-	●	●	●	●

274 271 268 209 280 285 281 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	0005-0708	●	●	●	●
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-	●	●	●	●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	0005-0604	●		●
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●		●
268	SCREW; CLIP M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	0005-		●		●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	0005-0708	●	●	●	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-	●	●	●	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	0005-0604	●		●
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●		●
274	SCREW; CLIP M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	0005-		●		●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-2	01	1	0005-0210	●	●	●	●
280	BOX; TOOL	1-85561-006-3	01	1	0211-	●	●	●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	0005-0210	●	●	●	●
281	BRACKET; TOOL BOX	1-53459-665-2	02	1	0211-	●	●	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●	●	●
282	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●	●	●	●
282	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	0005-0210	●	●	●	●
284	BOLT; TOOL BOX M10X20 FLANGE	0-28681-020-0	04	1	0211-0512	●	●	●	●
284	BOLT; TOOL BOX M10X20 FLANGE	0-28651-020-0	04	1	0601-	●	●	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●	●	●
285	NUT; TOOL BOX M10 FLANGE	0-91150-210-0	04	1	0211-0602	●	●	●	●
285	NUT; TOOL BOX M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●

17 12 13 9 23 22 21 29 20 19 29 29 186 189 115 230 193 237 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	0005-	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-1409	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1410-	●	●	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0005-0208	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●	●	●	●
17	HAMMER	9-85121-406-0	01	1	0005-0208	●	●	●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-	●	●	●	●
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	0005-0208	●	●	●	●
19	WRENCH; 7X8 TOOL B KIT<SL1> 7X8	9-09592-107-0	01	1	0209-	●	●	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0005-0208	●	●	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607	●	●	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●	●	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0005-0208	●	●	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607	●	●	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●	●	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0005-0208	●	●	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607	●	●	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●	●	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0005-0208	●	●	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0304	●	●	●	●
29	DRIVER; SCREW (A) <+> L=205	9-09595-022-0	01	1	0005-0208	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=205	9-09595-022-0	01	1	0209-0304	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0305-	●	●	●	●
29	DRIVER; SCREW (A) <+> L=275	9-09595-023-0	01	1	0005-0208	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=275	9-09595-023-0	01	1	0209-	●	●	●	●
29	DRIVER; SCREW (B) <-> L=205	9-09595-126-0	01	1	0005-0208	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=205	9-09595-126-0	01	1	0209-0304	●	●	●	●
29	DRIVER; SCREW (B) <-> L=325	9-09595-129-0	01	1	0005-0208	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=325	9-09595-129-0	01	1	0209-0304	●	●	●	●
29	DRIVER; SCREW TOOL A KIT<SK9> (C) <+>,<-> L=160	8-94242-798-1	01	1	0209-0304	●	●	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0305-	●	●	●	●
115	PLIER	5-85171-001-0	01	1	0005-0208	●	●	●	●
115	PLIER TOOL B KIT<SL1>	5-85171-001-0	01	1	0209-0212	●	●	●	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0301-	●	●	●	●
186	ADJUSTER; BRAKE	1-85261-001-0	01	1	0005-0208	●	●	●	●
186	ADJUSTER; BRAKE TOOL B KIT<SL1>	1-85261-001-0	01	1	0209-	●	●	●	●
186	ADJUSTER; BRAKE TOOL A KIT<SK9>	1-47165-066-0	01	1	0209-	●	●	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0005-0208	●	●	●	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0209-	●	●	●	●
193	JACK ASM 10TON	1-85510-013-1	01	1	0005-0504	●	●	●	●
193	JACK ASM 10TON	8-97607-599-0	01	1	0505-	●	●	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0005-0105	●	●	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107	●	●	●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●	●	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	0005-0208	●	●	●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-	●	●	●	●
237	BAG; TOOL	8-97130-902-1	01	1	0005-	●	●	●	●

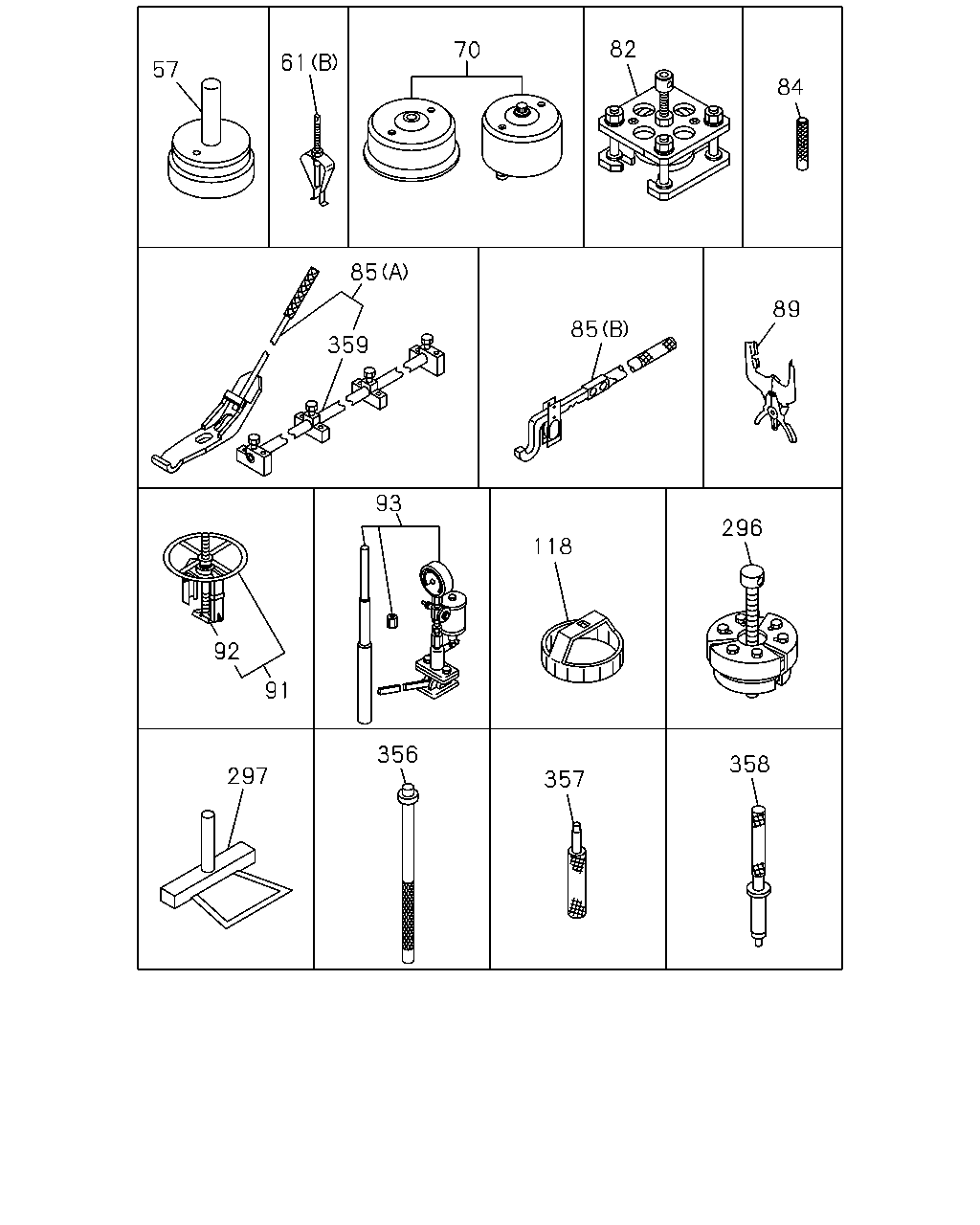

57 61 70 82 84 85 359 85 89 92 91 93 118 296 297 356 357 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	0005-0210	●	●	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	0005-	●	●	●	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	0005-0210	●	●	●	●
70	TOOL; SETTING,OIL SEAL	8-94396-856-0	01	1	0005-0210	●	●	●	●
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	0005-0210	●	●	●	●
84	REPLACER; VALVE SEAL ID=15.9	8-94396-815-0	01	1	0005-0210	●	●	●	●
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	0005-0210	●	●	●	●
85	REPLACER ASM; VALVE SPR (B)	8-94391-528-0	01	1	0211-	●	●	●	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	0005-0210	●	●	●	●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	0005-0210	●	●	●	●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	0005-0210	●	●	●	●
93	SETTING KIT; VALVE GUIDE	1-85220-001-0	01	1	0005-0210	●	●	●	●
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	0005-0210	●	●	●	●
296	REPLACER; SLINGER	8-94396-858-0	01	1	0005-0210	●	●	●	●
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	0005-0210	●	●	●	●
356	TOOL; SETTING,OIL SEAL,CYL HEAD	8-94391-527-0	01	1	0211-	●	●	●	●
357	REPLACER; NOZZLE SLEEVE	8-94391-555-0	01	1	0211-	●	●	●	●
358	PLACER; NOZZLE SLEEVE	8-94391-556-0	01	1	0211-	●	●	●	●
359	PIVOT	8-94396-862-0	01	1	0211-	●	●	●	●

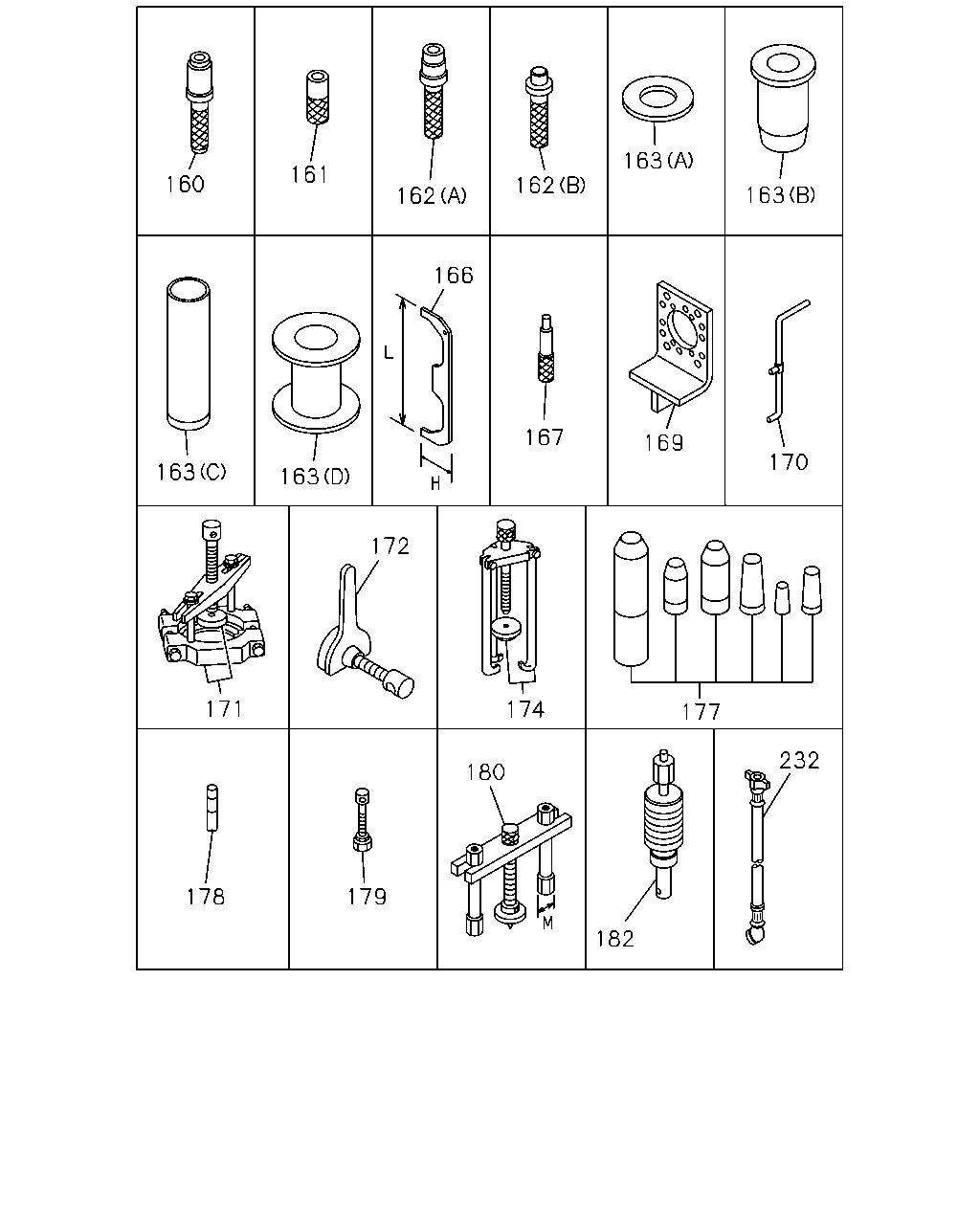

160 161 162 162 163 163 163 163 166 167 169 170 171 172 174 177 178 179 180 182 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
160	REMOVER; NEEDLE BRG L=215	1-85238-007-0	01	1	0005-0210	●	●	●	●
161	REMOVER; TIE ROD ARM	9-85141-603-0	01	1	0005-0210			●	●
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	0005-0210	●	●	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	0005-0210	●	●	●	●
163	TOOL; SETTING (C) OD=120	1-85221-164-0	01	1	0005-0210	●	●
163	TOOL; SETTING MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) OD=120	1-85221-164-0	01	1	0005-0210			●	●
163	TOOL; SETTING (B) L=150	9-85221-248-0	01	1	0005-0210	●	●
163	TOOL; SETTING MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=150	9-85221-248-0	01	1	0005-0210			●	●
163	TOOL; SETTING (D) L=350	9-85221-310-0	01	1	0005-0210	●	●
163	TOOL; SETTING MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (D) L=350	9-85221-310-0	01	1	0005-0210			●	●
163	TOOL; SETTING (A) L=220	9-85221-323-0	01	1	0005-0210	●	●
163	TOOL; SETTING MBJ5J M/T(Y1Y) (A) L=220	9-85221-323-0	01	1	0005-0210			●	●
163	TOOL; SETTING MLD7Q M/T(X5K),MLD6D M/T(X5Q) (B) L=195	1-85221-162-1	01	1	0005-0210			●	●
163	TOOL; SETTING MLD7Q M/T(X5K),MLD6D M/T(X5Q) (C) L=150	1-85221-163-0	01	1	0005-0210			●	●
166	ALIGNER; CLU RELEASE LEVER L=6	1-85253-023-0	01	1	0005-0210	●	●
166	ALIGNER; CLU RELEASE LEVER MBJ5J M/T(Y1Y) L=6	1-85253-023-0	01	1	0005-0210			●	●
166	ALIGNER; CLU RELEASE LEVER MLD7Q M/T(X5K),MLD6D M/T(X5Q) L=9	1-85253-011-0	01	1	0005-0210			●	●
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	0005-0210	●	●	●	●
167	ALIGNER; CLU PILOT L=185	1-85253-012-0	01	1	0211-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0005-0210	●	●	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0005-0210	●	●	●	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	0005-0210	●	●	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	0005-0210	●	●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0005-0210	●	●
174	PULLER ASM; MAIN CLU SHAFT MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	9-85210-148-0	01	1	0005-0210			●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0211-	●	●	●	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	0005-0210	●	●
177	SETTING TOOL KIT MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	9-85220-040-0	01	1	0005-0210			●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0005-	●	●	●	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	0005-0210	●	●
179	PULLER; SPD METER GEAR MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	9-85210-181-0	01	1	0005-0210			●	●
180	PULLER; FRT & RR HUB M24	1-85210-057-0	01	1	0005-0210	●	●	●	●
180	PULLER; FRT & RR HUB M20	9-85210-187-0	01	1	0005-0210	●	●	●	●
182	REMOVER ASM	9-85210-095-0	01	1	0005-0210	●	●
182	REMOVER ASM MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	9-85210-095-0	01	1	0005-0210			●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE(SG4)	1-09360-245-1	01	1	0005-0210	●	●	●	●
232	HOSE; AIR,AIR CHARGE	1-09360-245-1	01	1	0211-	●	●	●	●
