8-45 — HEATER PIPING (#8236) — 25 parça

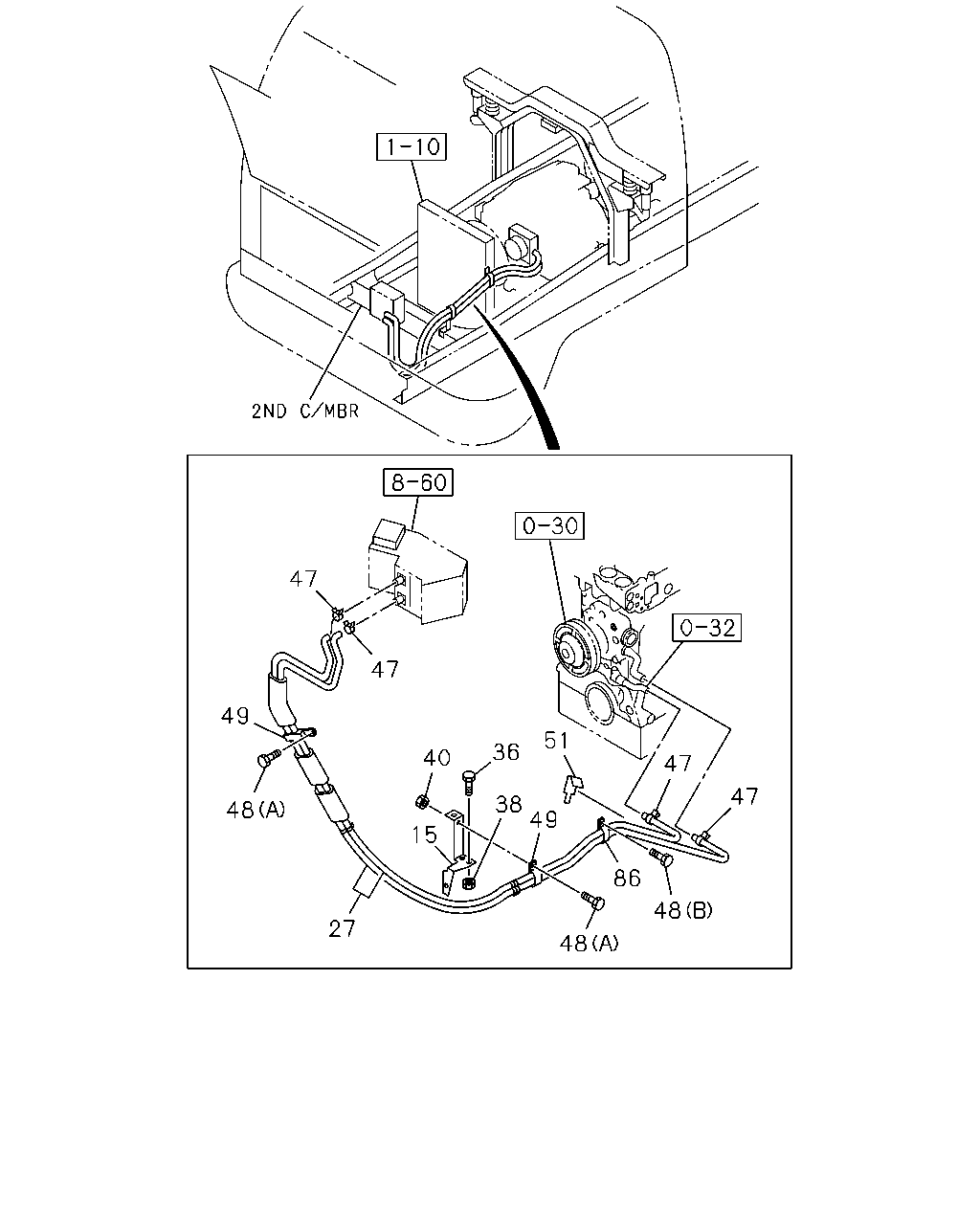

çizim 76867
47 47 49 51 36 47 40 47 38 49 48 15 86 48 27 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 BRACKET; WATER HOSE 1-83571-844-2 01 1 0005-0210 ● ● ● ●
15 BRACKET; WATER HOSE 1-83573-252-0 01 1 0211- ● ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-748-0 01 1 0005-0210 ● ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-790-0 01 1 0211- ● ● ● ●
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0008 ● ● ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0009-0512 ● ● ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ● ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-94382-401-0 04 1 0005-0611 ● ● ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 0612- ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0210 ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ● ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0005- ● ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 01 1 0005-0210 ● ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 04 1 0211- ● ● ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 0005-0210 ● ● ● ●
51 CLIP; WATER HOSE,HTR
L=170 		1-83574-139-0 01 1 0005-0210 ● ● ● ●
51 CLIP; WATER HOSE,HTR
L=170 		1-83574-139-0 02 1 0211-1205 ● ● ● ●
51 CLIP; WATER HOSE,HTR
L=170 		8-98166-021-0 02 1 1206- ● ● ● ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 0005- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
