Isuzu WW
▶
TRUCKS
▶
FSS
▶
10831 - FSS/FTS(AUSTRALIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#8235) — 39 parça
Tümü
A - FSS5MF
B - FSS5WF
C - FTS5MF
D - FTS5WF
◀

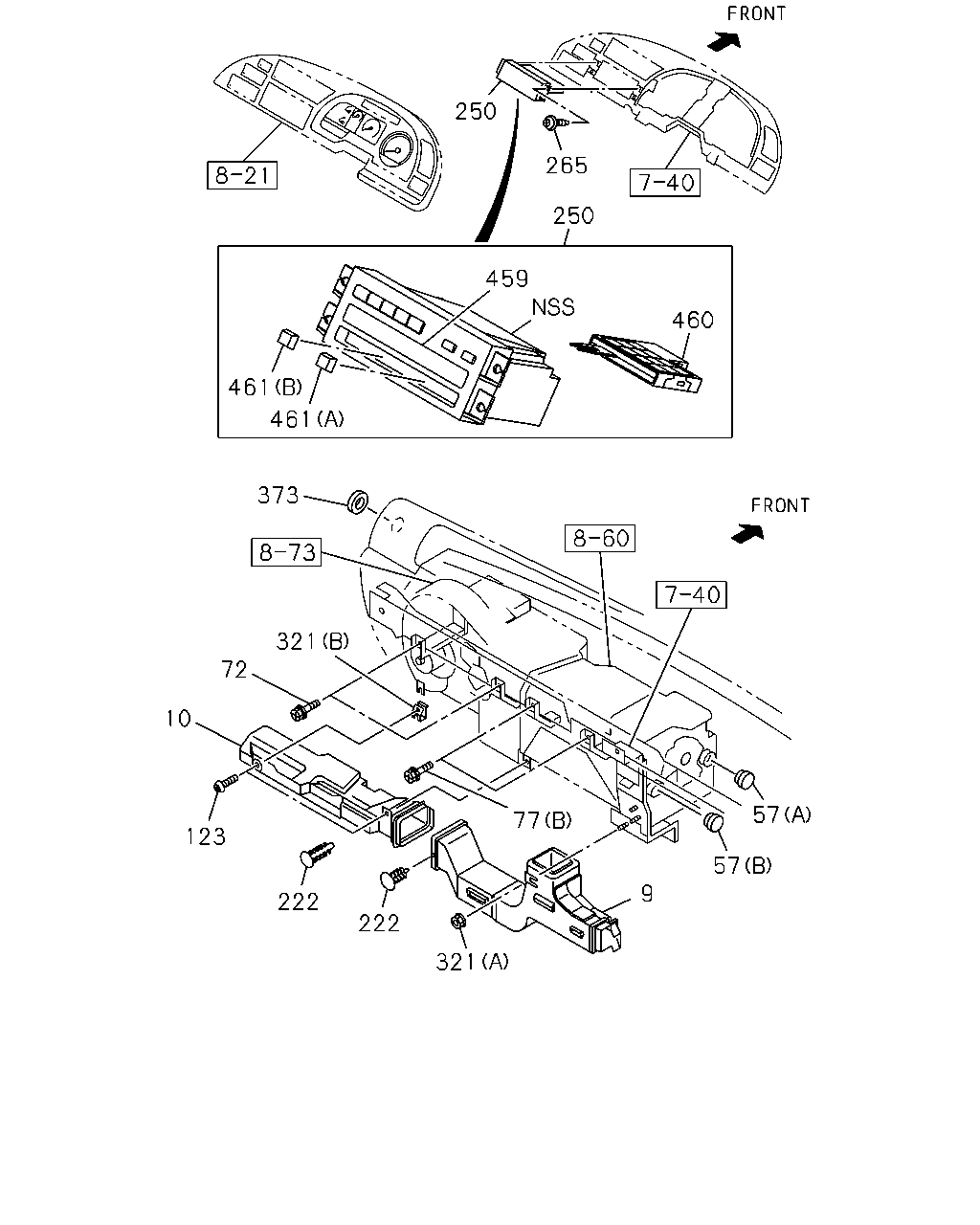

[840A] HEATER DUCT AND A/C CONTROL ASM (23 parça)

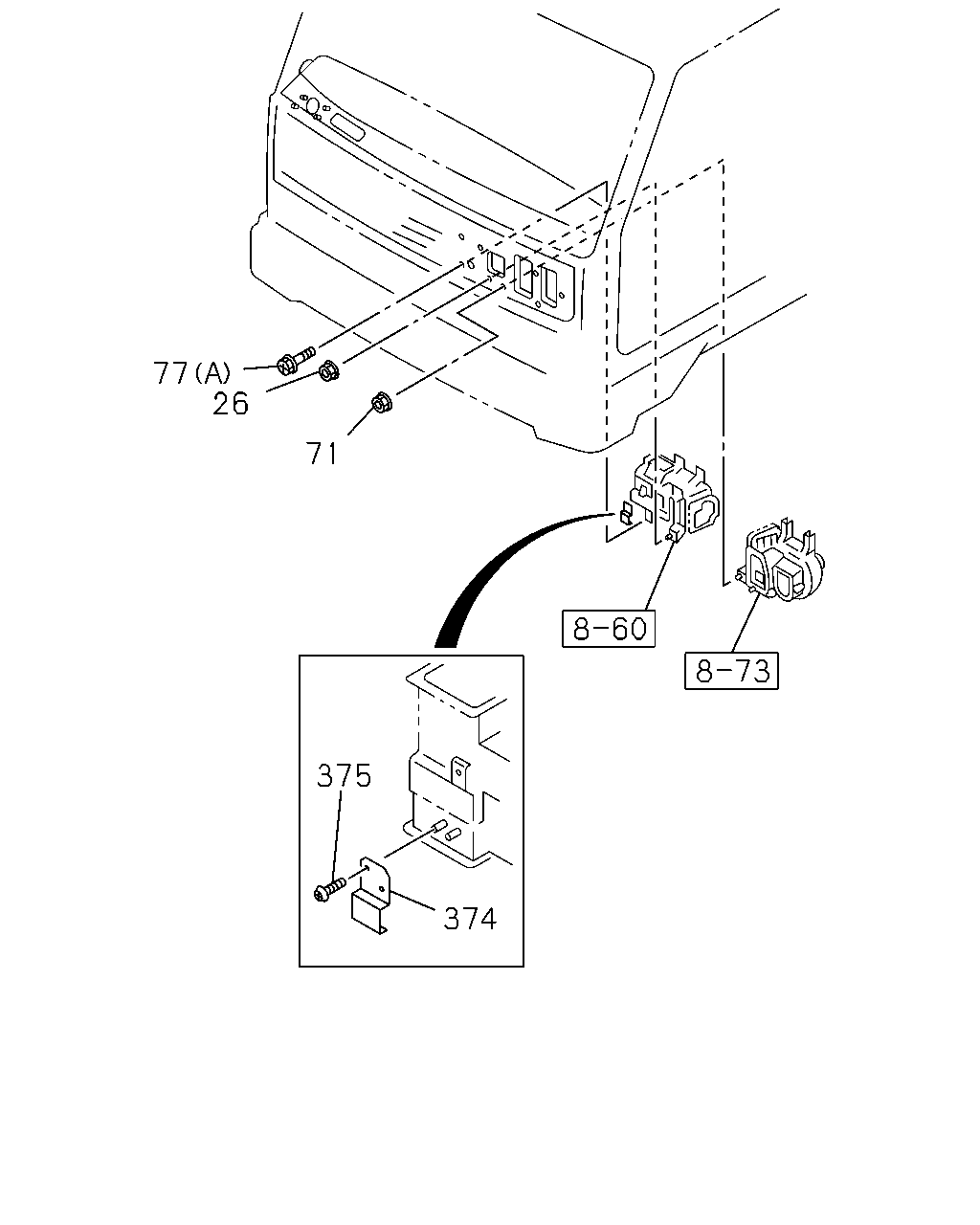

[840A] FIXING;HEATER UNIT (6 parça)

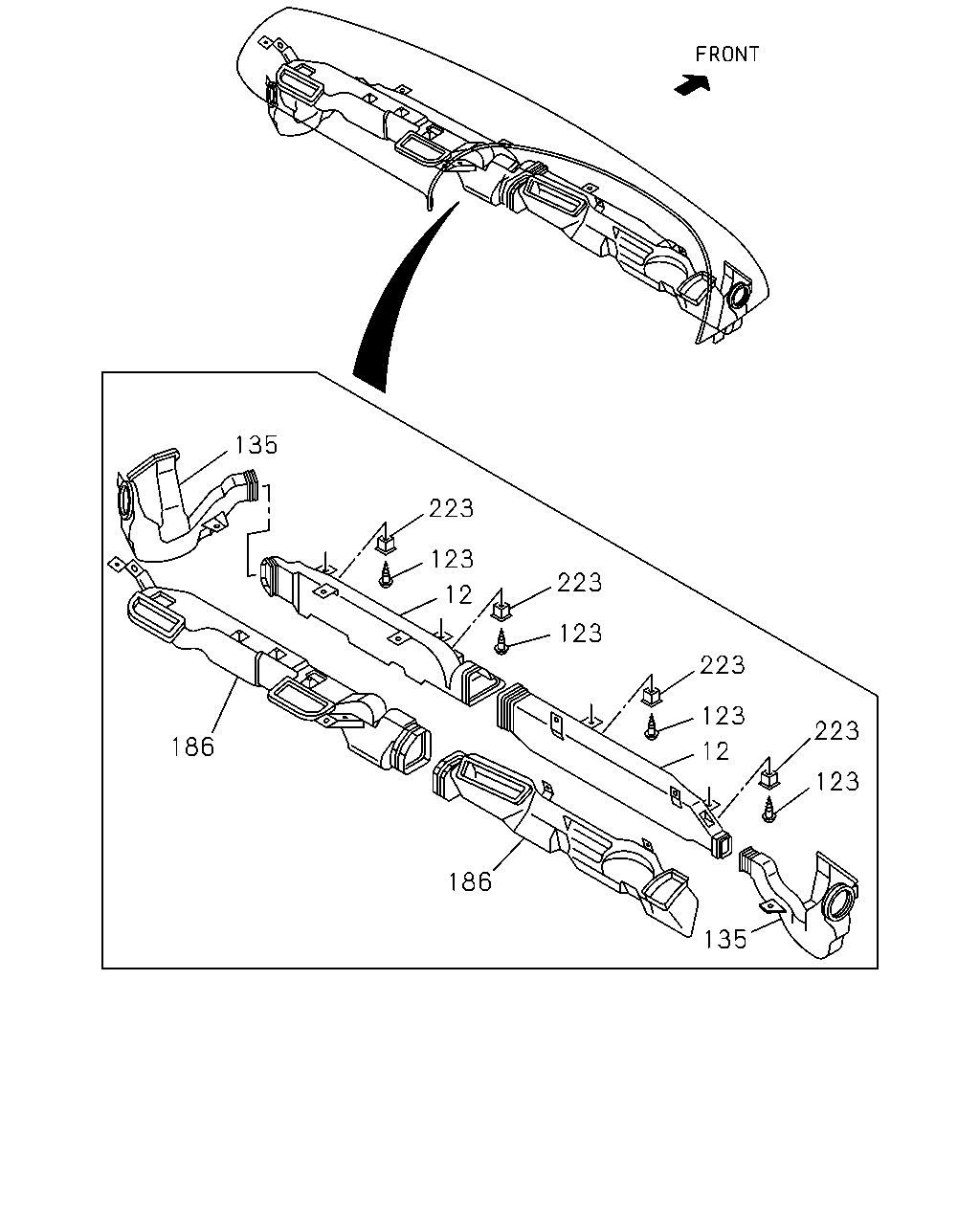

[840A] DEFROSTER NOZZLE AND VENTILATOR DUCT (10 parça)
▶
250
265
250
459
460
461
461
373
321
72
10
57
77
123
57
9
222
222
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
9
DUCT; HTR AIR,FOOT CENTER
1-76378-409-0
01
1
0005-0006
●
●
●
●
9
DUCT; HTR AIR,FOOT CENTER
1-76378-426-2
01
1
0007-
●
●
●
●
10
DUCT; HTR AIR,ASSIST FOOT
1-76378-413-0
01
1
0005-
●
●
●
●
57
COVER; INL DUCT
(A)
1-83579-617-0
02
1
0005-
●
●
●
●
57
COVER; INL DUCT
(B)
1-83579-618-0
01
1
0005-
●
●
●
●
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0005-
●
●
●
●
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0005-
●
●
●
●
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0005-
●
●
●
●
123
SCREW; DUCT
M5X14
8-94279-325-0
02
1
0005-
●
●
●
●
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
0005-
●
●
●
●
222
FASTENER; DUCT
ID=6 OD=16 L=18
8-94178-705-0
01
1
0005-
●
●
●
●
250
CONTROL ASM; A/C
1-83543-050-0
01
1
0005-
●
●
●
●
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74110-620-0
01
1
0005-0604
●
●
●
●
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
01
1
0605-
●
●
●
●
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91150-106-0
01
1
0005-0602
●
●
●
●
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91180-106-0
01
1
0603-
●
●
●
●
321
NUT; DUCT FIX
(B) M5
1-09984-150-0
01
1
0005-0409
●
●
●
●
321
NUT; DUCT FIX
(B) M5
1-09984-196-0
01
1
0410-
●
●
●
●
373
RUBBER; JOINT
1-76378-291-0
02
1
0005-
●
●
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0005-
●
●
●
●
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0005-
●
●
●
●
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
0005-
●
●
●
●
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
0005-
●
●
●
●
77
26
71
375
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0005-
●
●
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0005-
●
●
●
●
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0005-
●
●
●
●
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0005-
●
●
●
●
374
HOLDER; DUCT
1-76398-012-1
01
1
0005-
●
●
●
●
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
0005-
●
●
●
●
135
223
123
223
12
123
223
123
223
186
12
123
186
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
NOZZLE; DEFROSTER
1-76378-321-6
01
1
0005-
●
●
●
●
12
NOZZLE; DEFROSTER
1-76377-172-7
01
1
0005-
●
●
●
●
123
SCREW; DUCT
M5X14
8-94279-325-0
02
1
0005-
●
●
●
●
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
0005-
●
●
●
●
135
HOSE; DEFROSTER
1-76378-253-4
01
1
0005-
●
●
●
●
135
HOSE; DEFROSTER
1-76378-252-7
01
1
0005-
●
●
●
●
186
DUCT; VENTILATOR
1-76378-418-0
01
1
0005-
●
●
●
●
186
DUCT; VENTILATOR
1-76377-173-6
01
1
0005-0710
●
●
●
●
186
DUCT; VENTILATOR
1-76377-246-0
01
1
0711-
●
●
●
●
223
GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0005-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
