Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#8234) — 180 parça

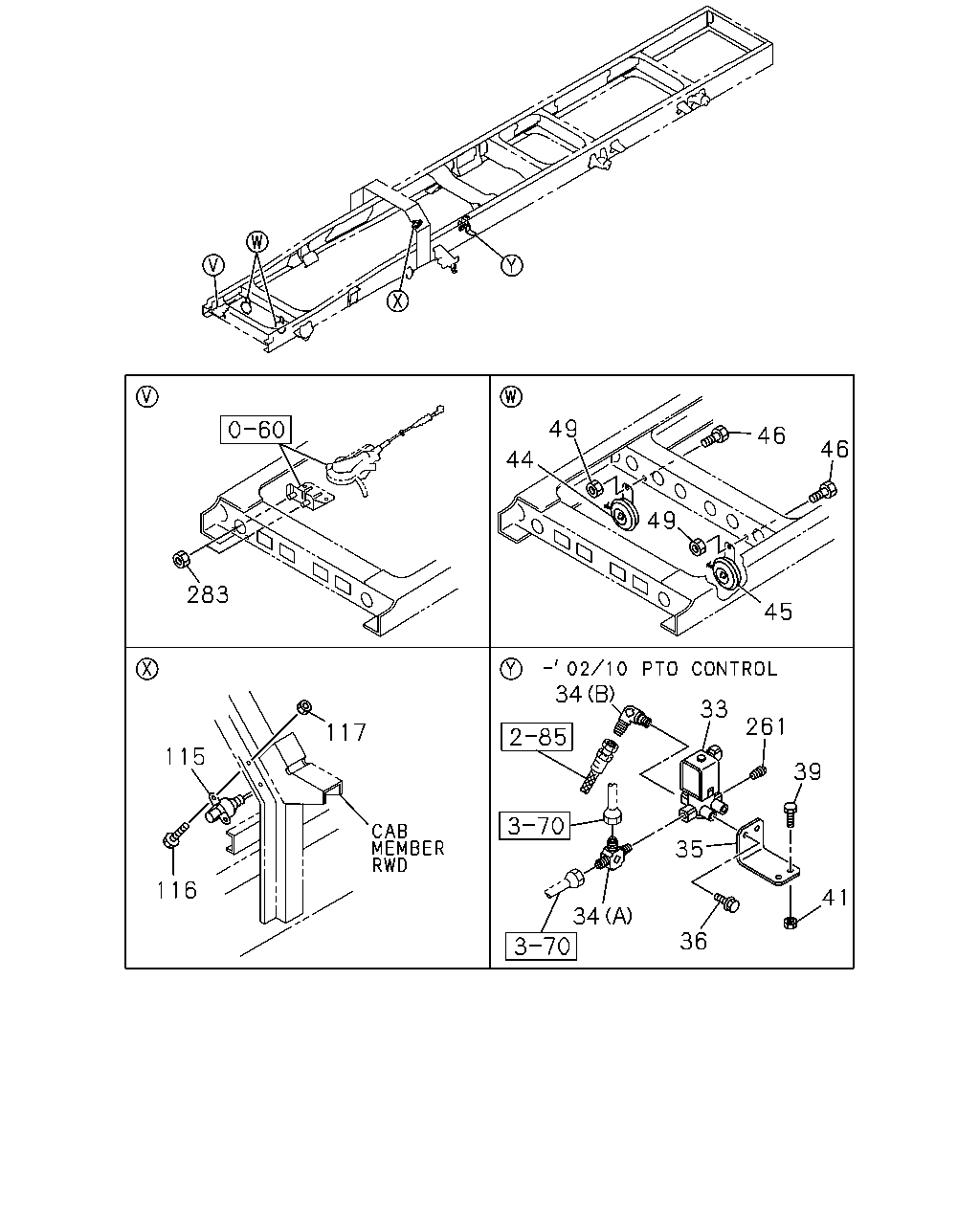

49 46 46 44 49 283 45 34 33 261 117 115 39 35 116 41 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-4	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-267-0	01	1	0005-0210	●	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0005-0210	●	●	●	●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-	●	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0005-0210	●	●	●	●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-063-0	01	1	0005-0006		●		●
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-086-0	01	1	0007-		●		●
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-086-0	01	1	0005-0006		●		●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●		●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0005-0602		●		●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0211-	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0210	●	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0211-			●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●	●

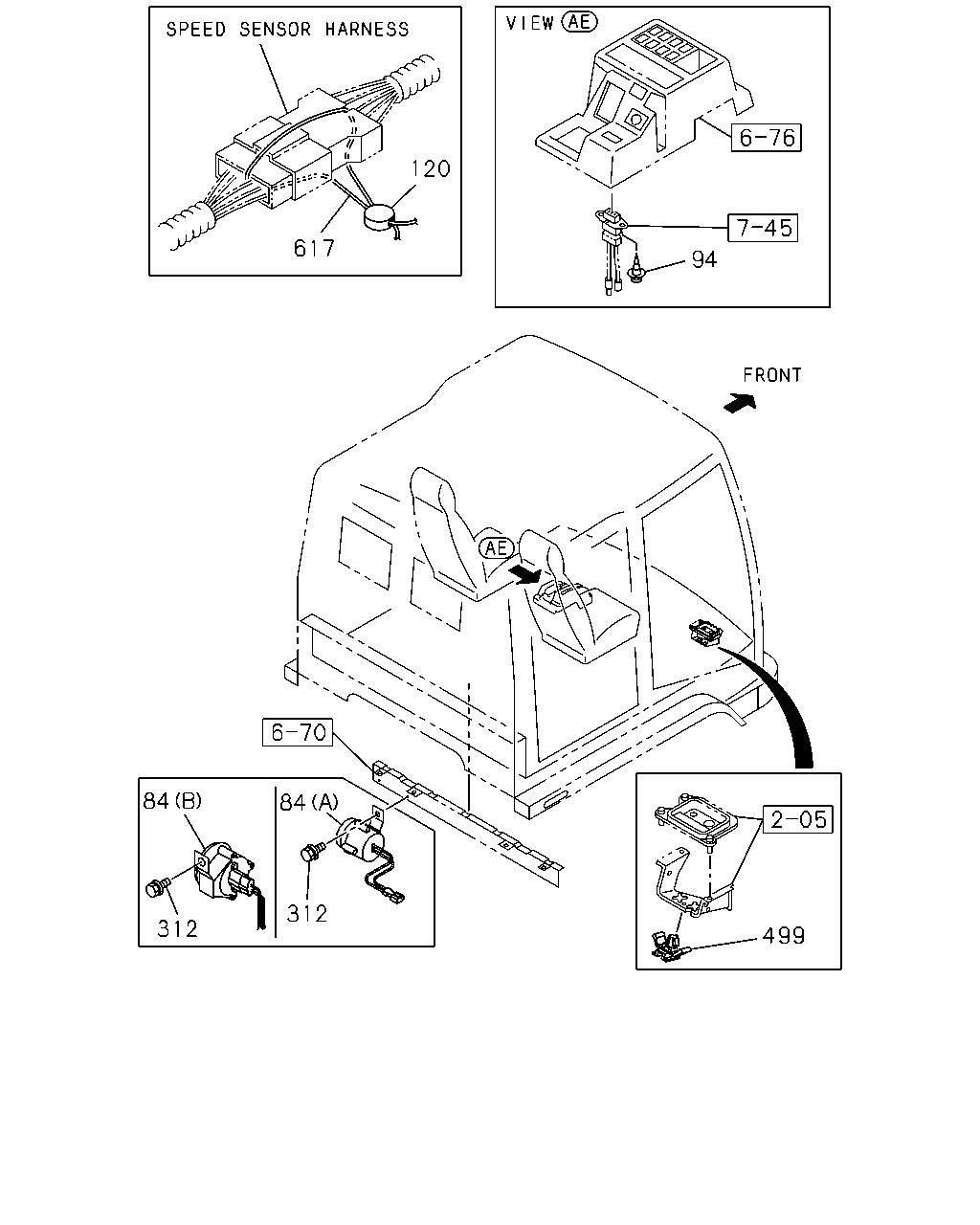

120 617 94 84 84 312 312 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
84	BUZZER; POWER CAB TILT (A) NIKKO	1-83460-054-0	01	1	0005-0006		●		●
84	BUZZER; POWER CAB TILT (B) METRO	1-83460-096-2	01	1	0007-0210		●		●
84	BUZZER; POWER CAB TILT (B) METRO	1-83460-097-0	01	1	0211-0612		●		●
84	BUZZER; POWER CAB TILT (B) METRO	8-98069-860-0	01	1	0701-		●		●
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> (B) METRO	1-83460-096-2	01	1	0005-0006		●		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0005-0310	●	●	●	●
120	SEAL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15739-002-0	01	1	0005-0210			●	●
120	SEAL	1-15739-002-0	01	1	0211-0407			●	●
120	SEAL	1-15739-008-0	01	1	0408-			●	●
312	BOLT; BUZZER M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0104		●		●
312	BOLT; BUZZER M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-0904		●		●
312	BOLT; BUZZER M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-		●		●
499	CLIP; SWITCH OD=9 H=6	1-09709-178-0	01	1	0304-	●	●	●	●
617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0211-			●	●

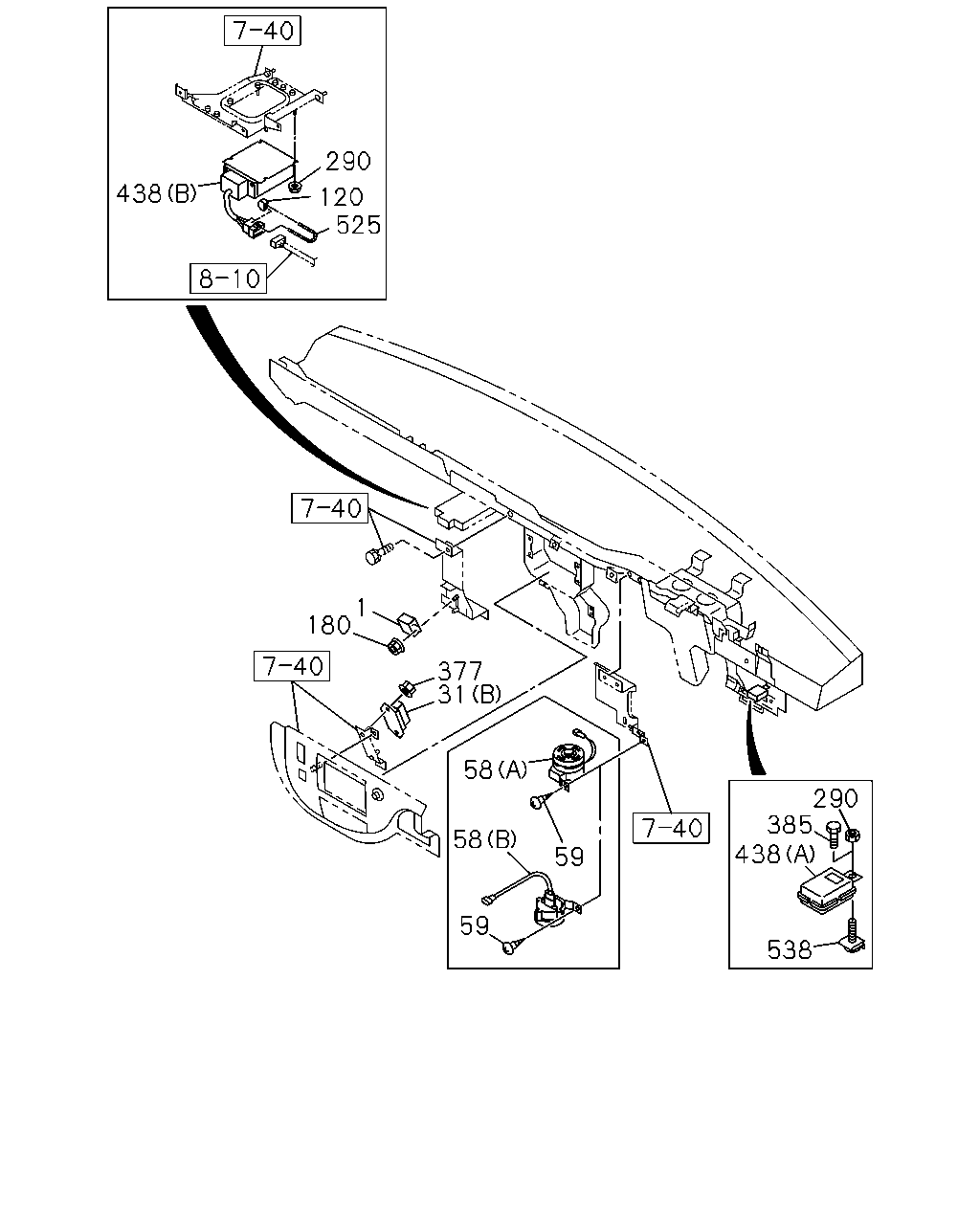

290 438 120 525 1 180 377 31 58 290 385 438 58 59 59 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	UNIT; FLASHER	1-83470-060-1	01	1	0005-	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	0005-0210	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0210	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING (A) NIKKO	1-83460-056-0	01	1	0005-0006	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING (B) METRO	1-83460-074-1	01	1	0007-0210	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING (B) METRO	1-83460-075-0	01	1	0211-0612	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING (B) METRO	8-98069-859-0	01	1	0701-	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> (B) METRO	1-83460-074-1	01	1	0005-0006	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-	●	●	●	●
120	SEAL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15739-002-0	01	1	0005-0210			●	●
120	SEAL	1-15739-002-0	01	1	0211-0407			●	●
120	SEAL	1-15739-008-0	01	1	0408-			●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
290	NUT M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●	●	●
290	NUT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	0005-0210	●	●	●	●
385	BOLT; CONT UNIT SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0005-0210			●	●
438	UNIT; SPD CONTROL (A)	1-82550-271-0	01	1	0005-	●	●	●	●
438	UNIT; SPD CONTROL SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	1-82540-066-0	01	1	0005-0210			●	●
525	WIRE; CONTROL UNIT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-81325-446-0	01	1	0005-0210			●	●
538	CLIP; CONT UNIT	8-97806-845-2	01	1	0005-	●	●	●	●

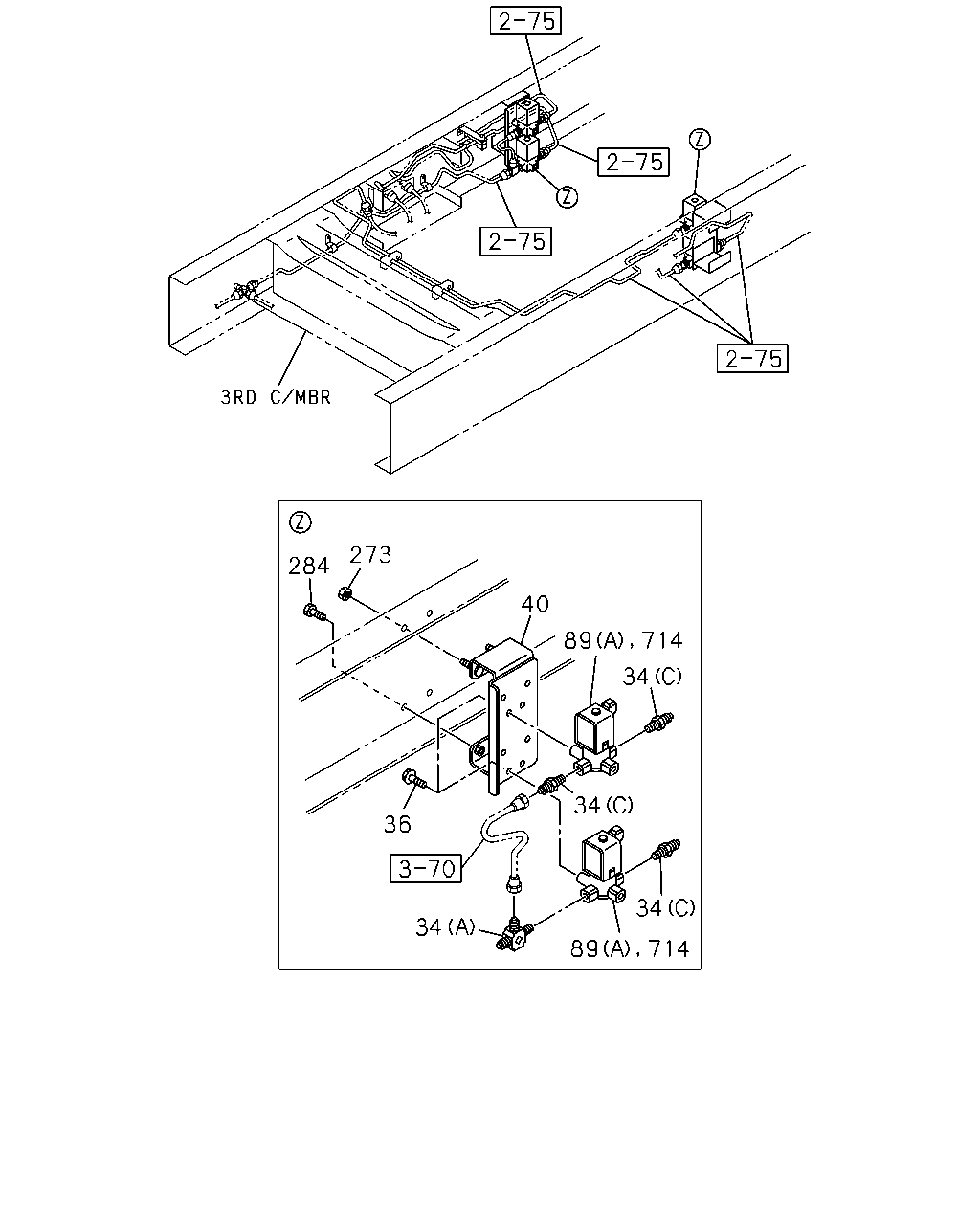

273 284 40 89 714 34 34 36 34 34 89 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0005-0210	●	●	●	●
40	BRACKET; MAG VLV	1-47477-327-2	01	1	0005-0210	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-4	02	1	0005-0210	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-5	01	1	0211-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-600-5	01	1	0211-			●	●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	02	1	0211-			●	●
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-598-4	02	1	0005-0210	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	0211-	●	●

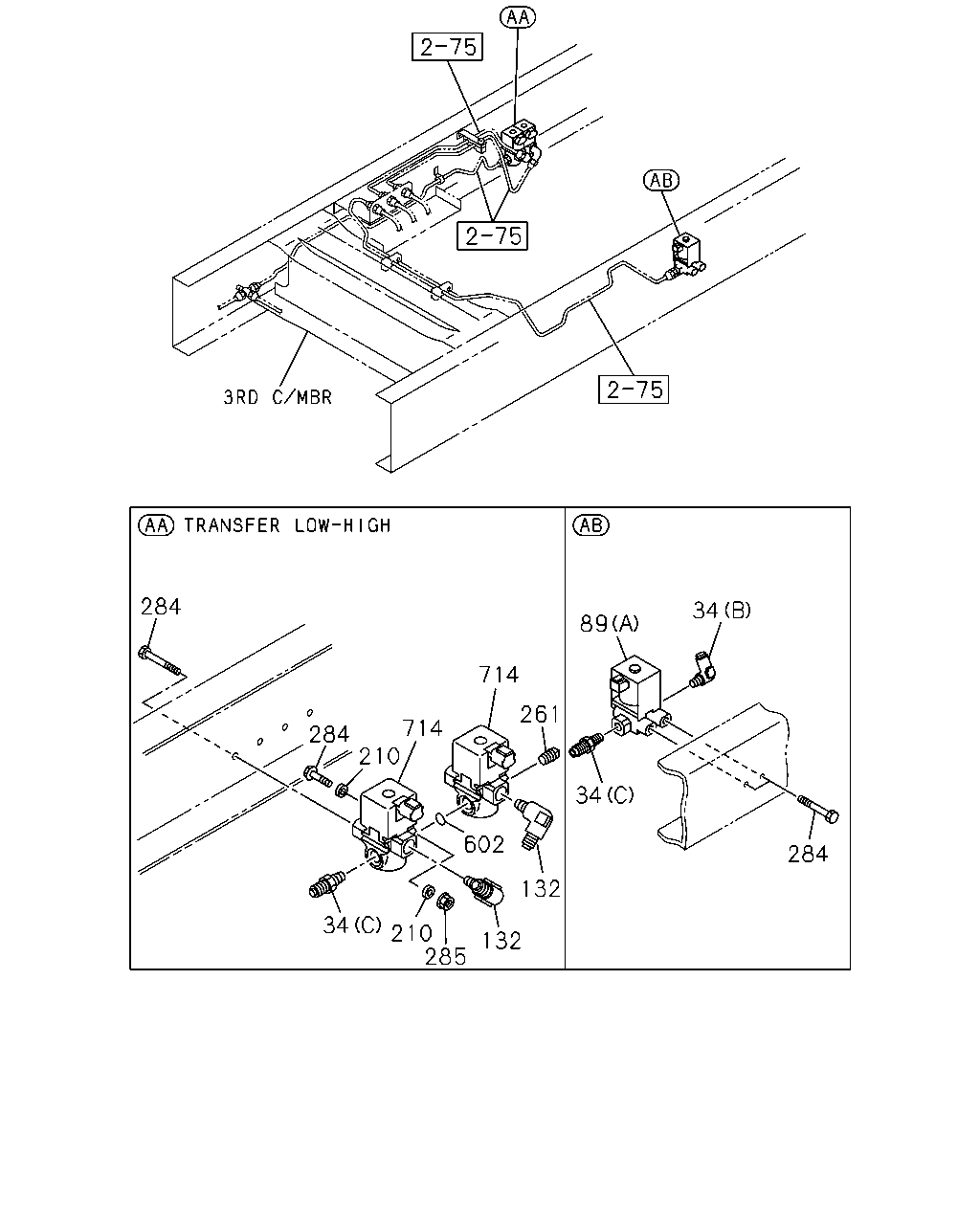

284 34 89 714 261 714 284 210 34 602 284 132 34 210 285 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-4	02	1	0005-0210	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-5	01	1	0211-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-600-5	01	1	0211-			●	●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	02	1	0211-			●	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0211-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0211-	●	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0211-	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0210	●	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0211-			●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●	●	●
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0211-	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-598-4	02	1	0005-0210	●	●	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	0211-	●	●

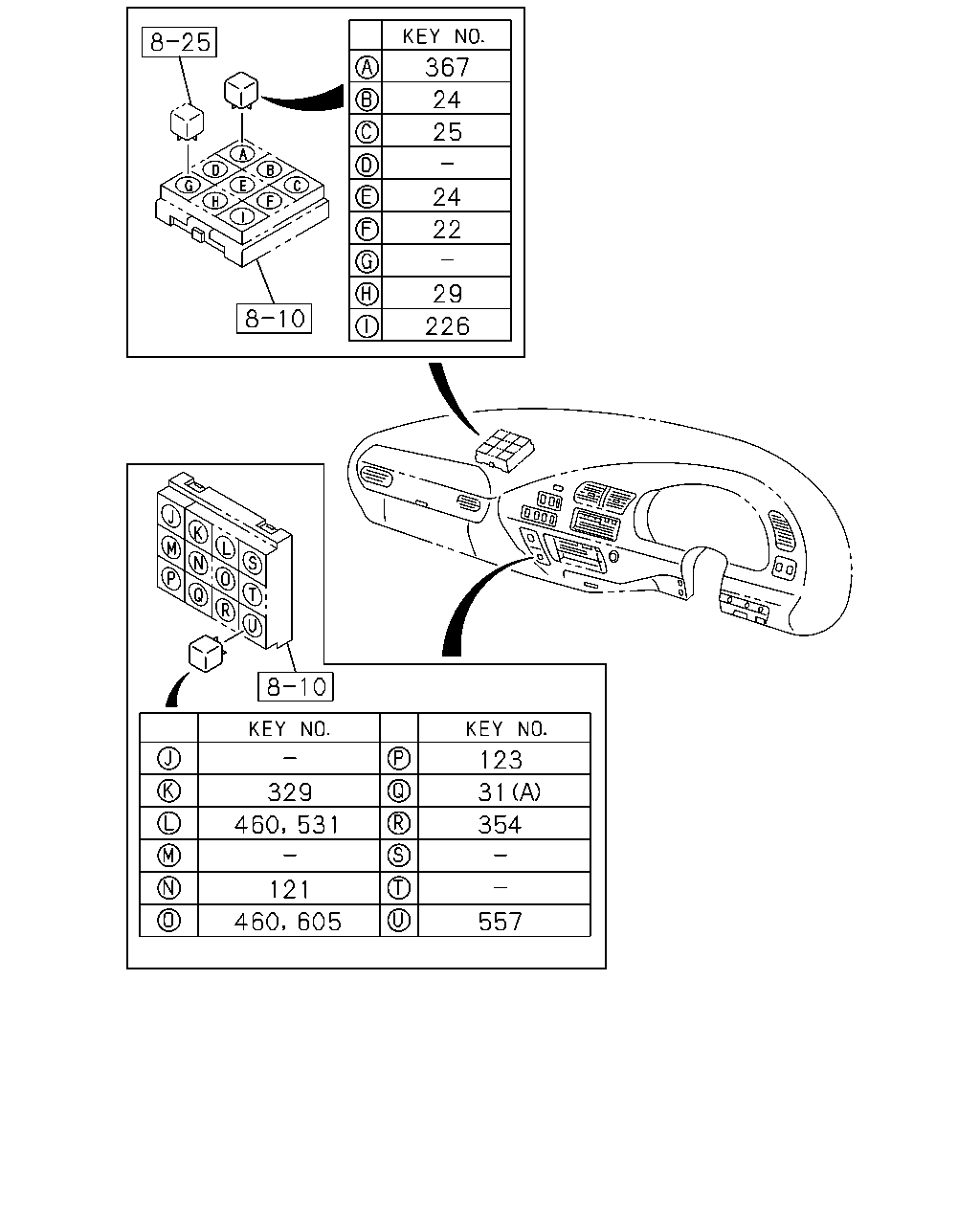

367 24 25 24 22 29 226 123 31 329 460 531 354 121 605 557 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0005-0111	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
29	RELAY; HORN 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
29	RELAY; HORN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	0005-0210	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0210	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
123	RELAY; HTR 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
123	RELAY; HTR 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
329	RELAY; BACK LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0010	●	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A JIDECO	8-97062-815-1	01	1	0005-0111	●	●	●	●
354	RELAY; BRAKE FLUID CHECK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●	●	●
367	RELAY; NEUTRAL 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0211-	●	●	●	●
460	RELAY; IVES 24V 12.5A JIDECO	8-97062-815-1	02	1	0005-0111	●	●	●	●
460	RELAY; IVES 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-0210	●	●	●	●
531	RELAY; MAIN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0211-	●	●	●	●
557	RELAY; WASHER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0211-	●	●	●	●
605	RELAY; PCV 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0211-	●	●	●	●

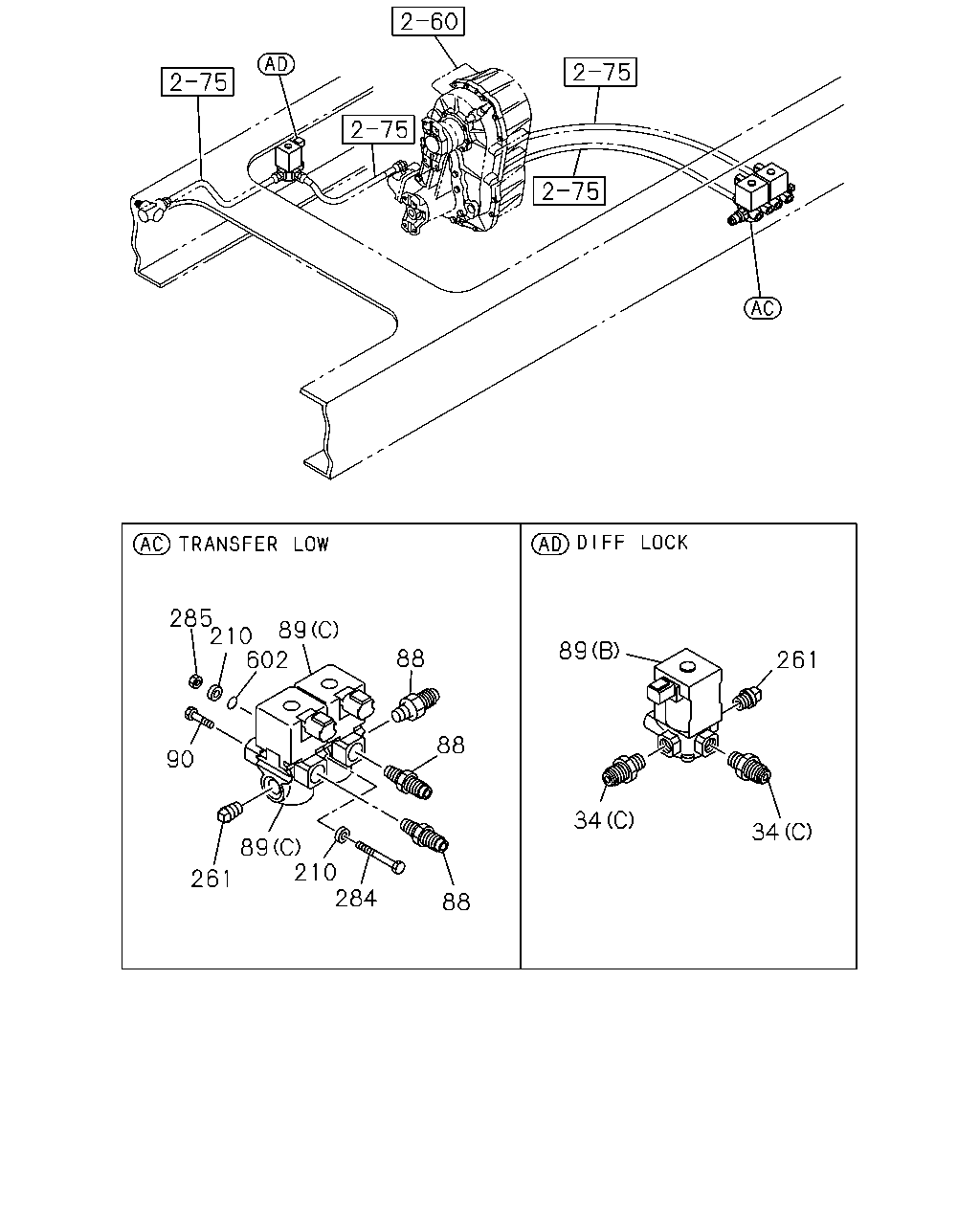

285 210 602 89 89 88 261 88 90 34 34 89 210 284 261 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-	●	●
88	CONNECTOR; MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0211-			●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-4	02	1	0005-0210	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-598-5	01	1	0211-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-600-5	01	1	0211-			●	●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	02	1	0211-			●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	04	1	0211-0512			●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	04	1	0601-			●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0211-	●	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0211-	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0210	●	●	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0211-			●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●	●
284	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●	●	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●	●	●
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0211-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
