8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#8233) — 75 parça

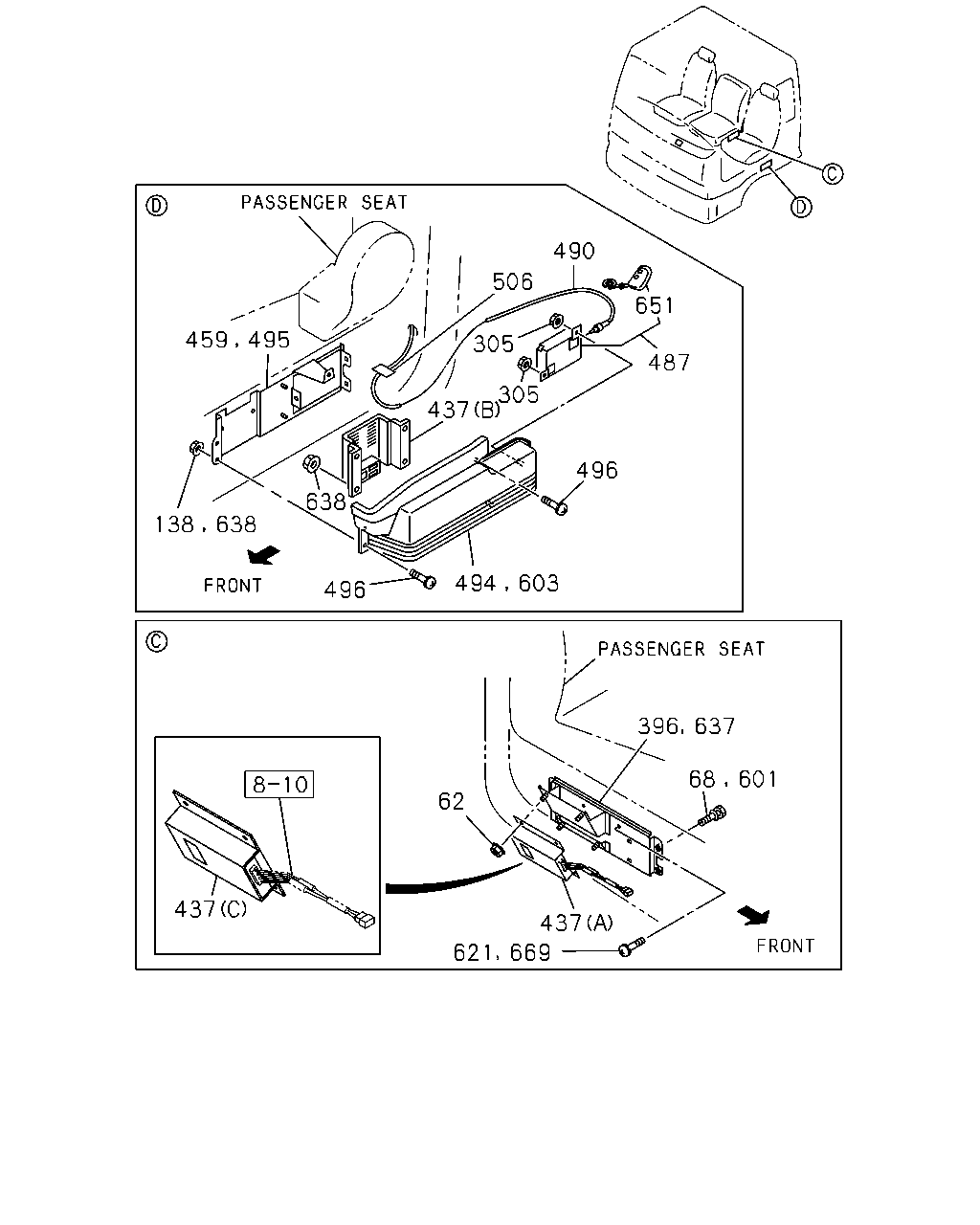

çizim 78590
490 506 651 305 487 305 638 496 138 638 494 603 496 396 637 68 601 62 437 621 669 459 495 437 437
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ● ● ● ●
68 BOLT; BRKT
EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0006 ● ● ● ●
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ●
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ●
396 BRACKET
EXC. NIKKO<Y70> 		1-75557-483-1 01 1 0005-0006 ● ● ● ●
437 CONVERTER; DC
(B) 		1-84122-005-0 01 1 0005-0006 ● ● ● ●
437 CONVERTER; DC
EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 0005-0006 ● ● ● ●
437 CONVERTER; DC
(A) 		1-84122-037-1 01 1 0007-0008 ● ● ● ●
437 CONVERTER; DC
(C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ● ● ● ●
437 CONVERTER; DC
(C) METRO 		8-98046-423-0 01 1 0604- ● ● ● ●
459 BRACKET; CONTROL BOX 1-75558-488-5 01 1 0005-0210 ● ● ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 1-86855-033-2 01 1 0211-0809 ● ●
490 ANTENNA; AUTO REMOTE DOOR LOCK 1-86855-023-1 01 1 0211-0809 ● ●
494 COVER; ELEC BOX 1-72538-160-3 01 1 0211-0810 ● ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 0811- ● ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0211- ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0210 ● ● ● ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0211-0703 ● ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ● ●
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0211-0809 ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0007-0703 ● ● ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ● ● ● ●
603 COVER; CONT UNIT,SEAT STAND 1-72538-160-2 01 1 0005-0210 ● ● ● ●
621 SCREW
EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005-0006 ● ● ● ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0007- ● ● ● ●
638 NUT; DC-DC CONVERTER
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ● ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 1-86860-008-0 01 1 0211-0809 ● ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0007- ● ● ● ●

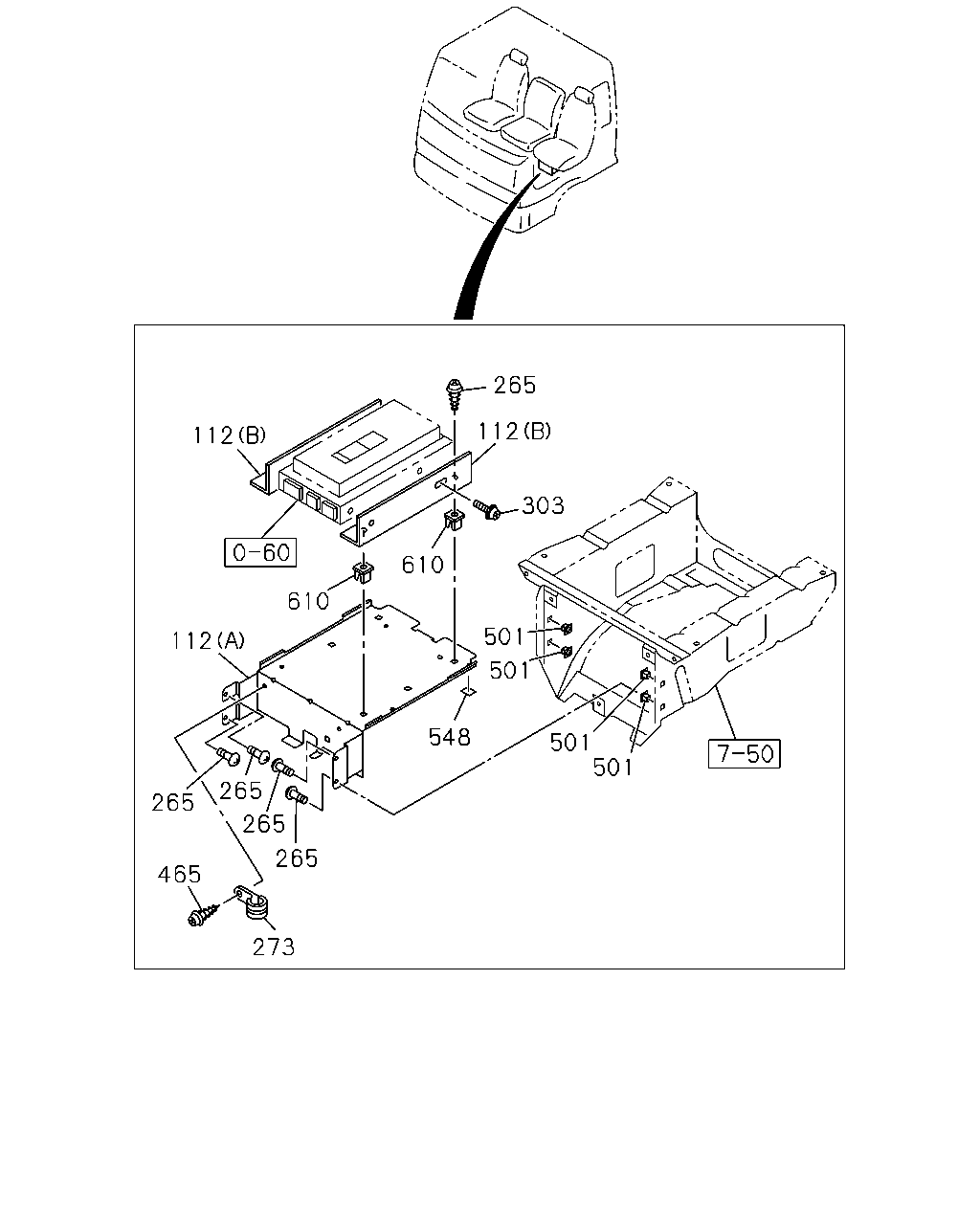

çizim 78719
265 112 112 303 610 610 501 112 501 548 501 501 265 265 265 265 465 273
BalonParca AdiParca NoAdetTipApplied Date A B C D
112 BRACKET; CONT UNIT
(B) 		1-75558-566-0 02 1 0211- ● ● ● ●
112 BRACKET; CONT UNIT
(A) 		1-75558-614-2 01 1 0211- ● ● ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 08 1 0211- ● ● ● ●
273 CLIP; HARNESS
ID=35 L=35 		1-09700-726-0 01 1 0211- ● ● ● ●
303 SCREW; CONT UNIT
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0211-0604 ● ● ● ●
303 SCREW; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ● ● ●
465 BOLT; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0211- ● ● ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0211- ● ● ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0211- ● ● ● ●
548 SEAL; NOISE
30X30 		8-97866-626-0 03 1 0211-0309 ● ● ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0310-0908 ● ● ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ● ● ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ● ● ●
610 GROMMET; SCREW,BRKT ELEC UNIT
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0211- ● ● ● ●

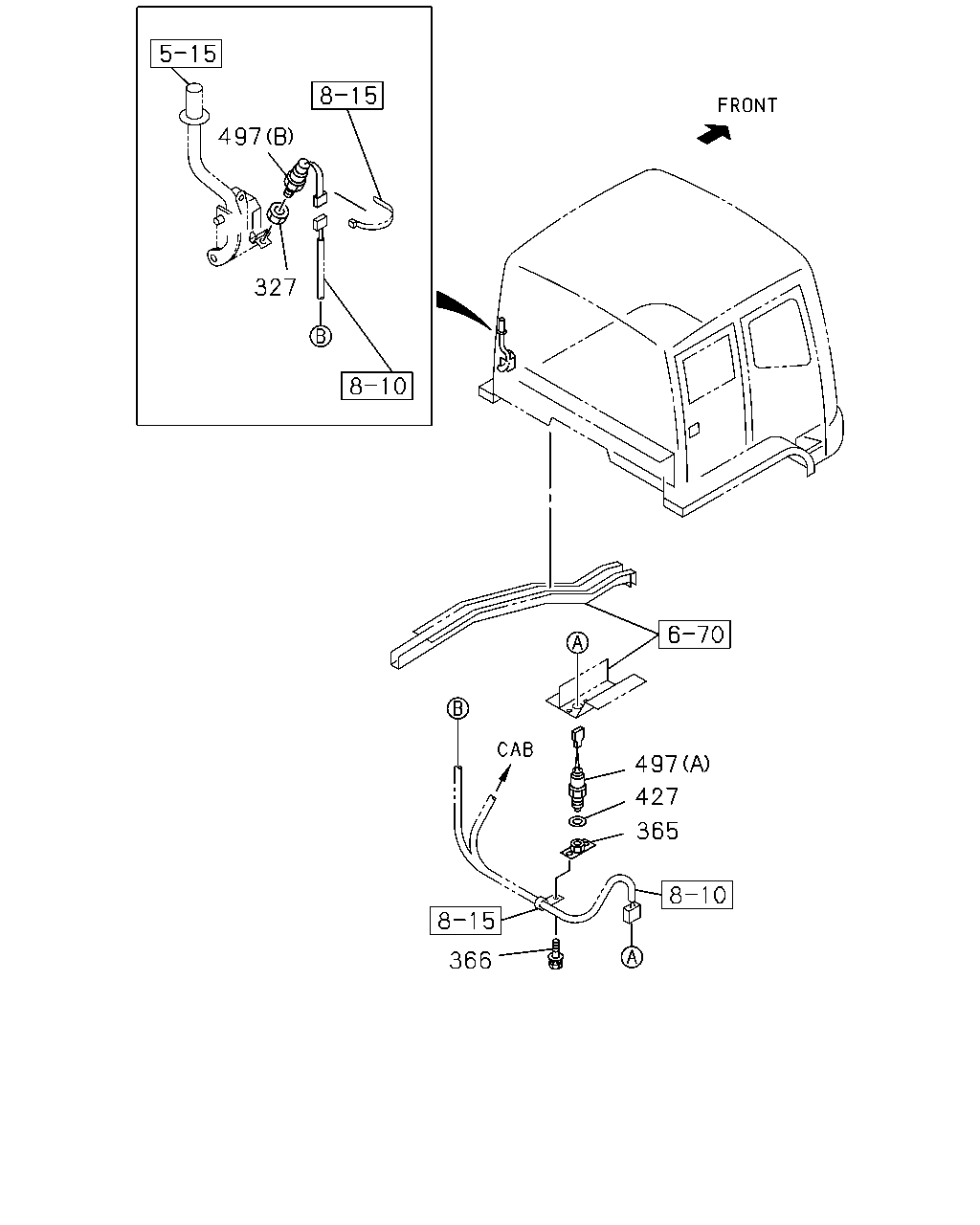

çizim 79080
497 327 497 427 365 366
BalonParca AdiParca NoAdetTipApplied Date A B C D
327 NUT; SWITCH
M16 		9-99111-416-0 02 1 0005-0512 ● ●
327 NUT; SWITCH
M16 		0-91111-516-0 02 1 0601- ● ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 0005- ● ●
366 BOLT; PLATE,SW,CAB TILT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ●
427 WASHER; PL,SWITCH
ID=17 		9-09160-516-0 01 1 0005-0605 ● ●
427 WASHER; PL,SWITCH
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0005- ● ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-126-0 01 1 0005- ● ●

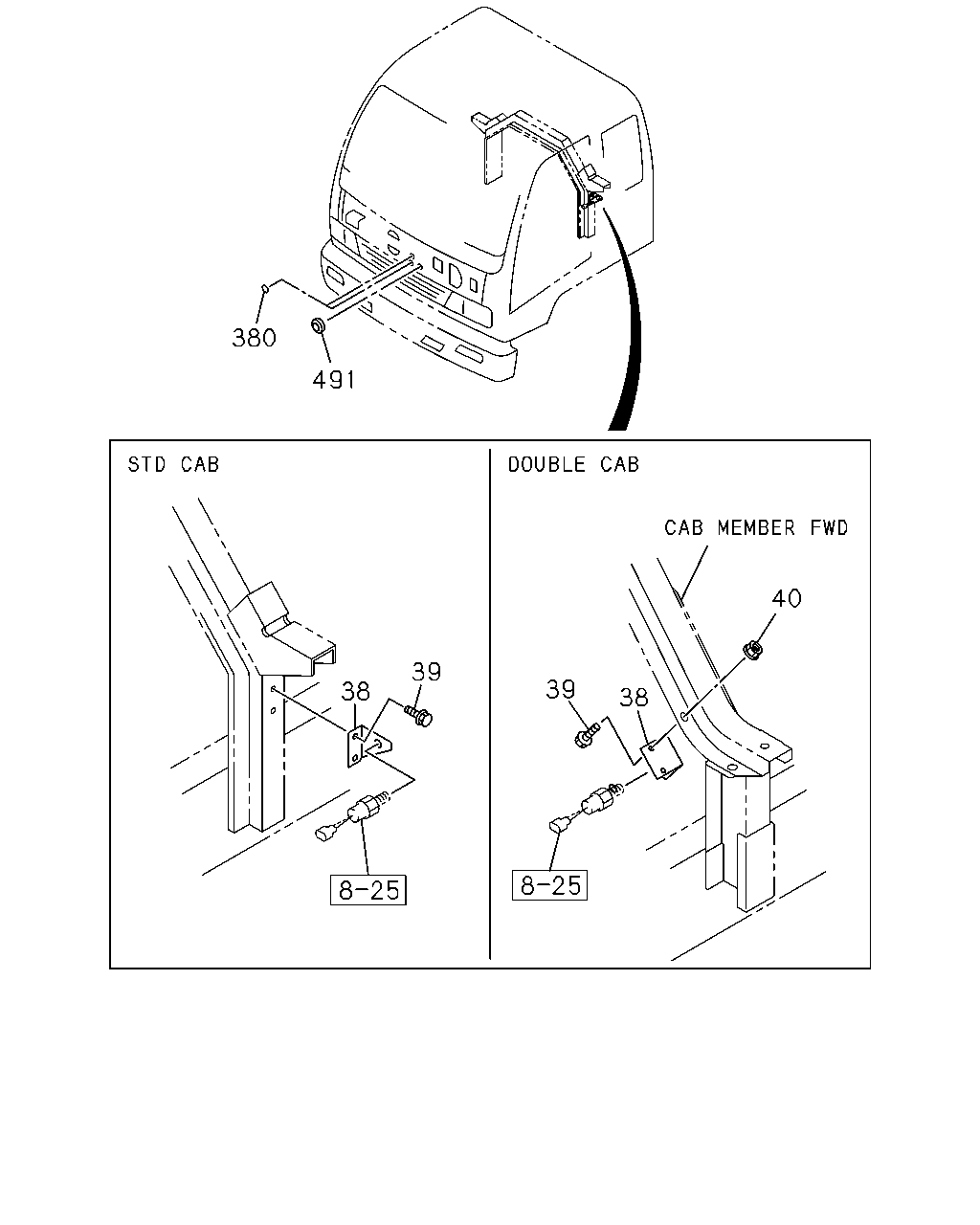

çizim 103395
380 491 40 39 39 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212- ●
38 BRACKET; SW,STARTER SUB 1-82699-370-0 01 1 0005-0211 ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-370-0 01 1 0212- ● ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0201-0210 ● ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0005- ● ● ● ●

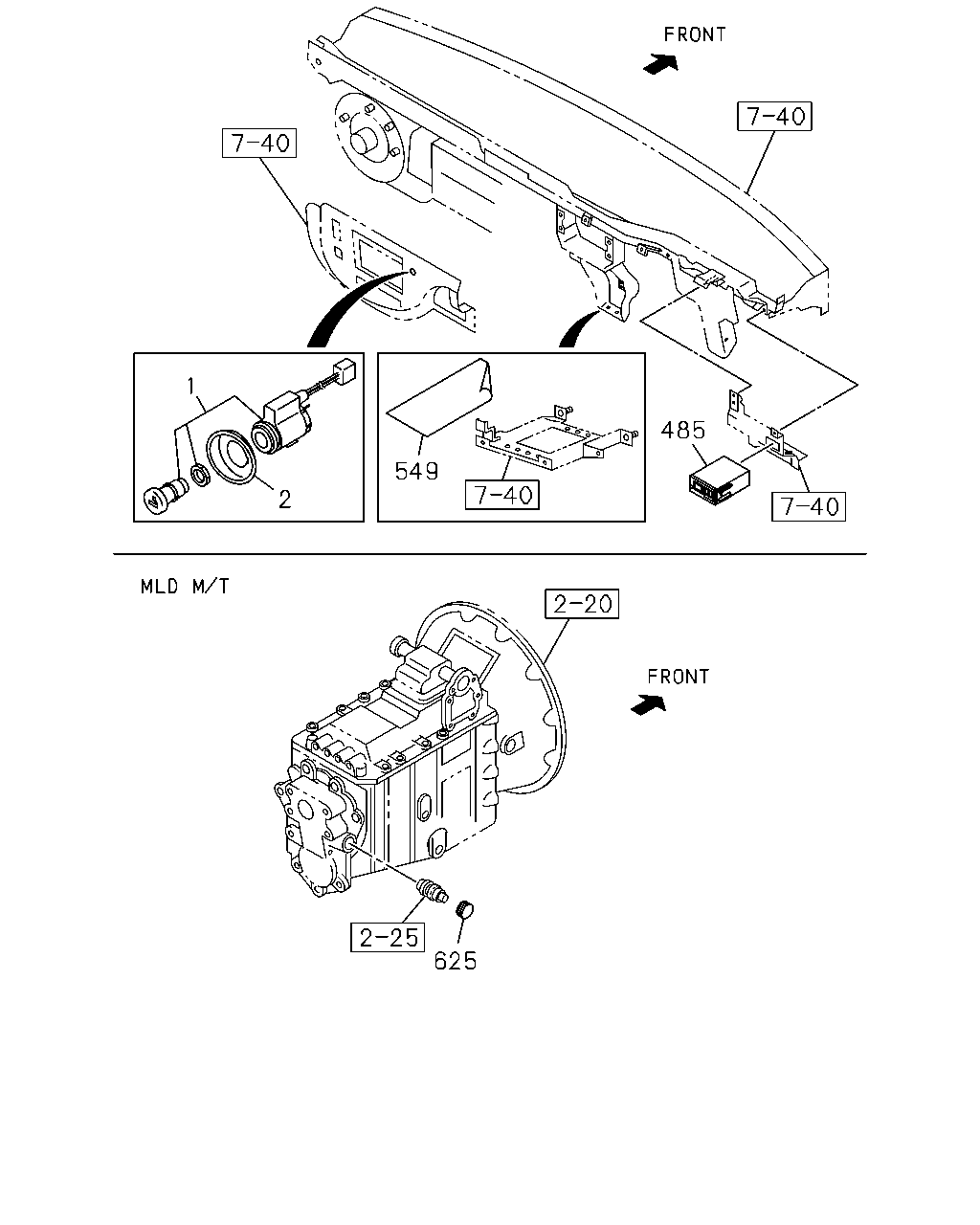

çizim 103432
1 2 549 485 625
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0005-0108 ● ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0005- ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0210 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0211-1008 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ● ● ●
549 SHEET 8-98236-226-0 01 1 1403- ● ● ● ●
625 CAP; SPEED SENSOR
MLD7Q M/T(X5K),MLD6D M/T(X5Q) 		1-83129-133-0 01 1 0005-0210 ● ●
625 CAP; SPEED SENSOR 1-83129-133-0 01 1 0211- ● ● ● ●
