◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#8232) — 67 parça

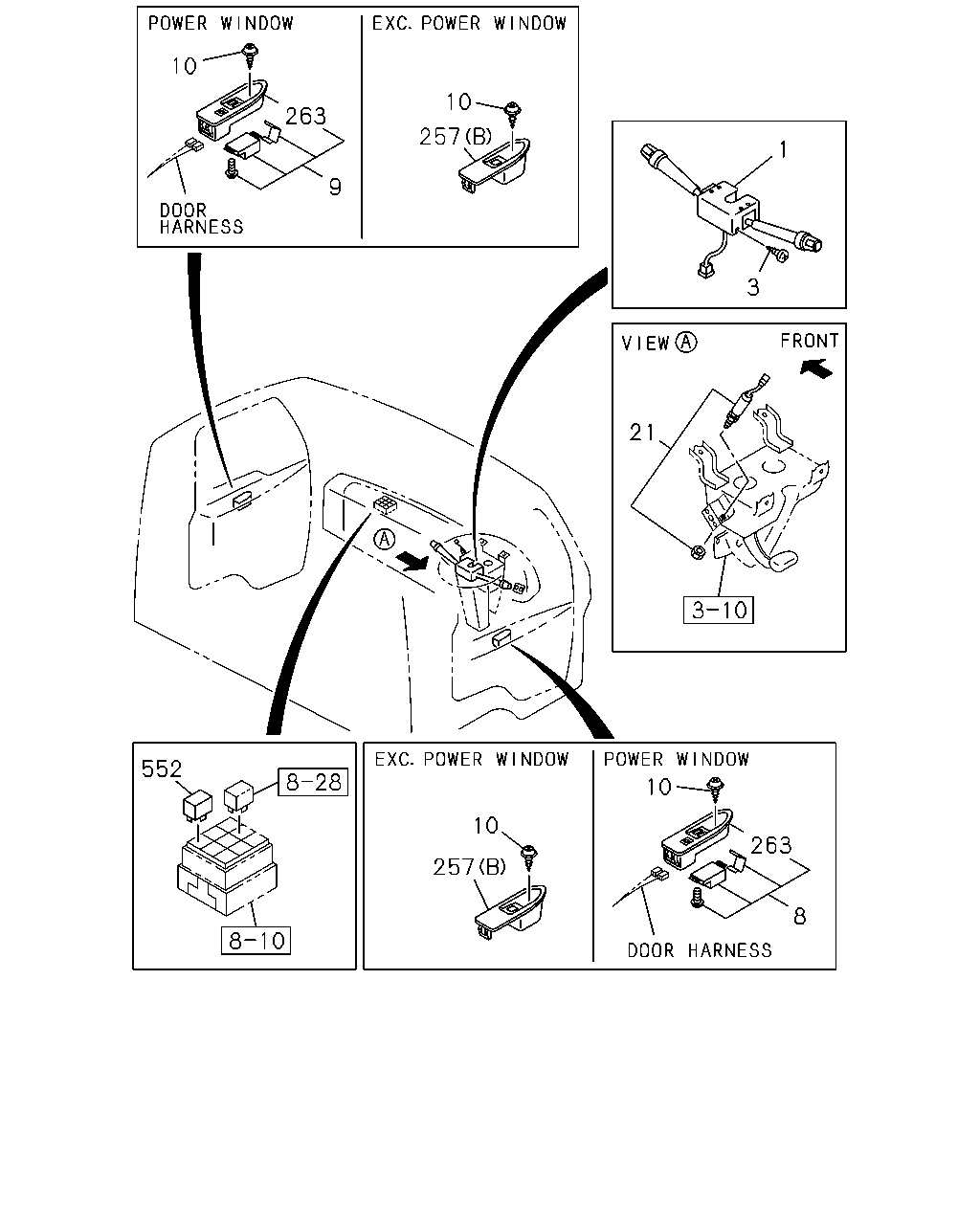

çizim 76515
10 10 263 257 1 9 3 21 552 10 10 263 257 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB 1-82360-403-4 01 1 0005-0103 ● ● ● ●
1 SWITCH; COMB 1-82360-618-0 01 1 0104-0312 ● ● ● ●
1 SWITCH; COMB 1-82360-714-0 01 1 0401- ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0005-0604 ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> 		1-82380-155-3 01 1 0005-0210 ● ●
8 SWITCH; POWER WINDOW 1-82380-155-4 01 1 0211- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> 		1-82380-154-3 01 1 0005-0210 ● ●
9 SWITCH; POWER WINDOW 1-82380-154-3 01 1 0211- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005-0604 ● ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ● ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 0005-0210 ● ● ● ●
21 SWITCH; CLU 1-82440-116-1 01 1 0211-0608 ● ● ● ●
21 SWITCH; CLU 1-82440-126-1 01 1 0609- ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 0005-0210 ● ●
263 COVER; SW 1-82385-006-3 01 1 0211- ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 0005-0210 ● ●
263 COVER; SW 1-82385-005-2 01 1 0211- ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ● ● ●

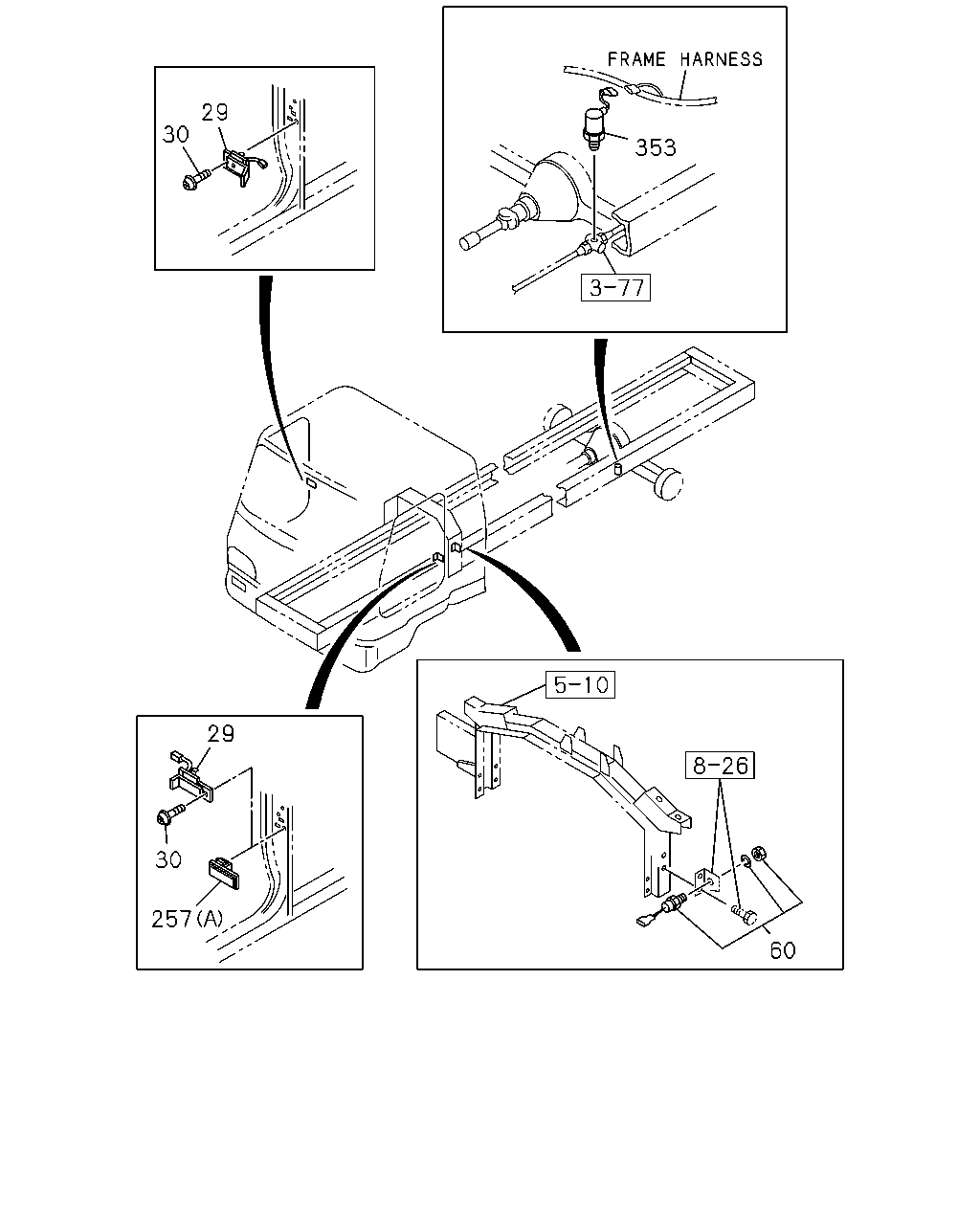

çizim 76934
29 30 353 29 30 257 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0210 ● ● ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0211- ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0210 ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0211- ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0005-0211 ● ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ● ●
353 SWITCH ASM; PARKING BRAKE 1-82410-163-1 01 1 0005- ● ● ● ●

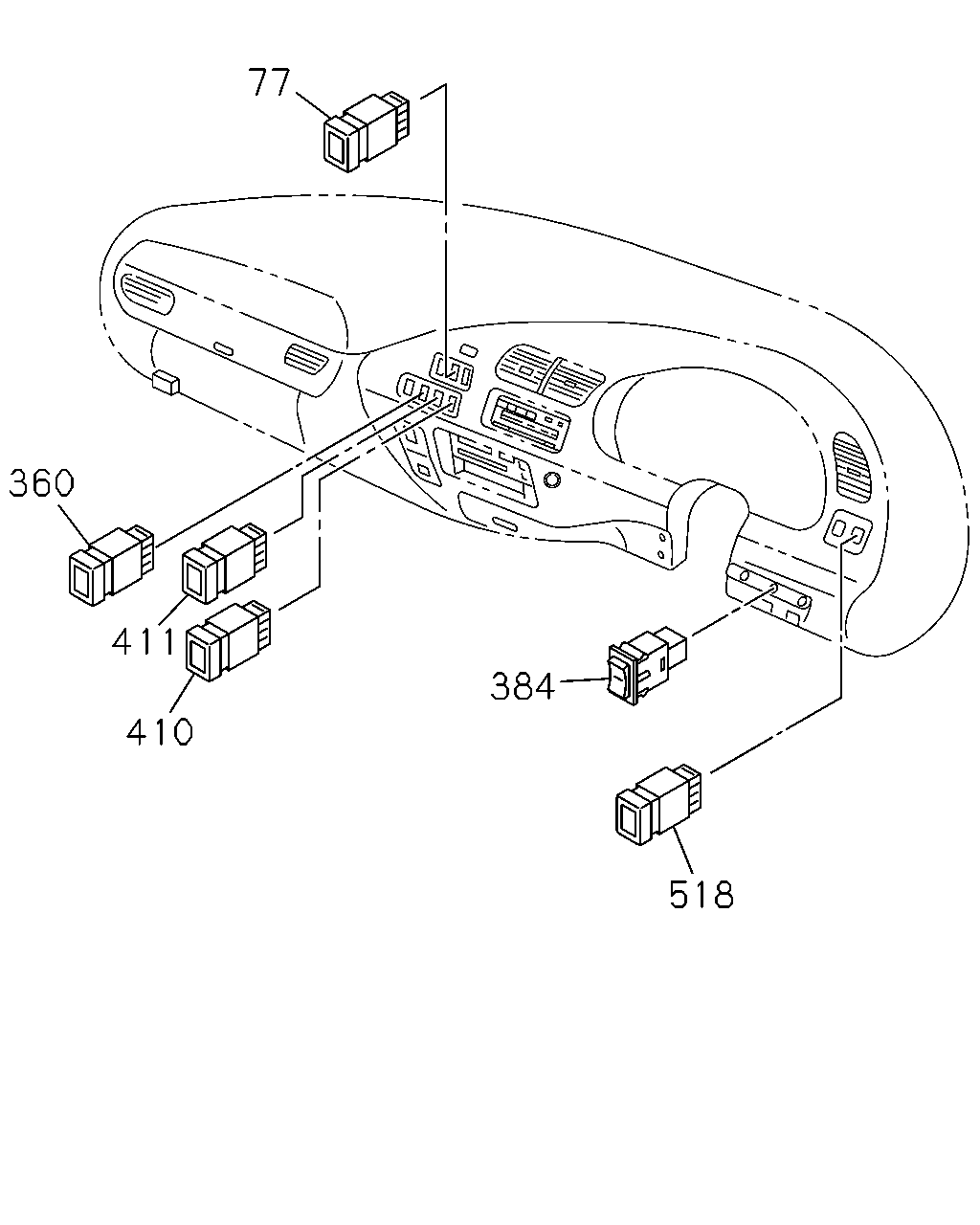

çizim 78689
77 360 411 384 410 518
BalonParca AdiParca NoAdetTipApplied Date A B C D
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0005-0210 ● ● ● ●
360 SWITCH ASM; DIFF LK 1-82350-264-0 01 1 0211- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0211- ● ● ● ●
410 SWITCH; FRT DRIVE 1-82350-264-0 01 1 0005-0210 ● ● ● ●
410 SWITCH; FRT DRIVE 1-82350-264-0 01 1 0211- ● ●
411 SWITCH; TRANSFER 1-82350-265-0 01 1 0005- ● ● ● ●
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 0005-0210 ● ● ● ●
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0211- ● ● ● ●

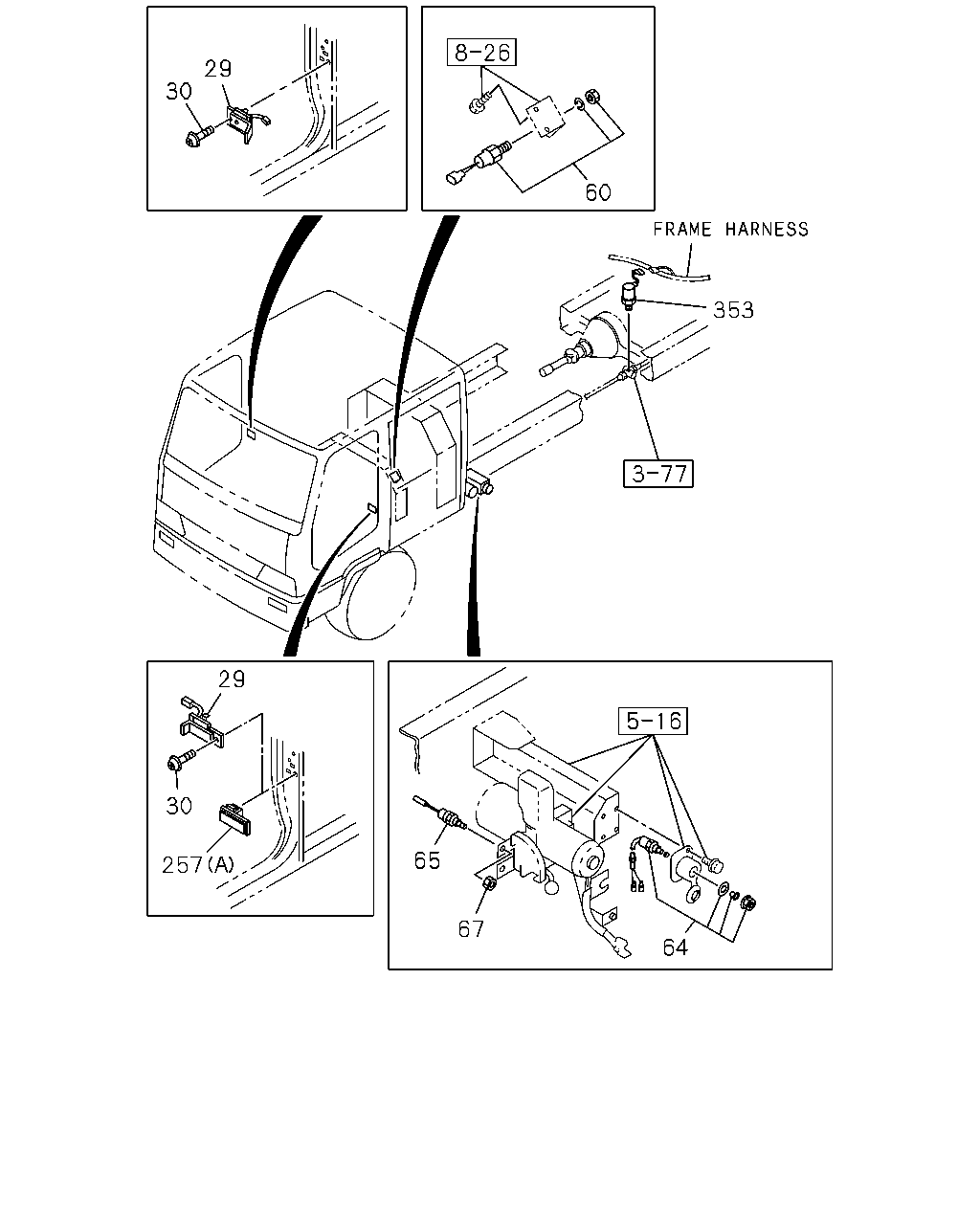

çizim 79085
29 30 60 353 29 30 65 257 67 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0210 ● ● ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0211- ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0210 ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0211- ● ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0005-0211 ● ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ● ● ● ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0005- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-126-0 01 1 0005- ● ●
67 NUT; SW,CAB TILT
M16 		9-99111-416-0 01 1 0005-0512 ● ●
67 NUT; SW,CAB TILT
M16 		0-91111-516-0 01 1 0601- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ● ●
353 SWITCH ASM; PARKING BRAKE 1-82410-163-1 01 1 0005- ● ● ● ●
