Sayfa 8-15 - Isuzu EPC

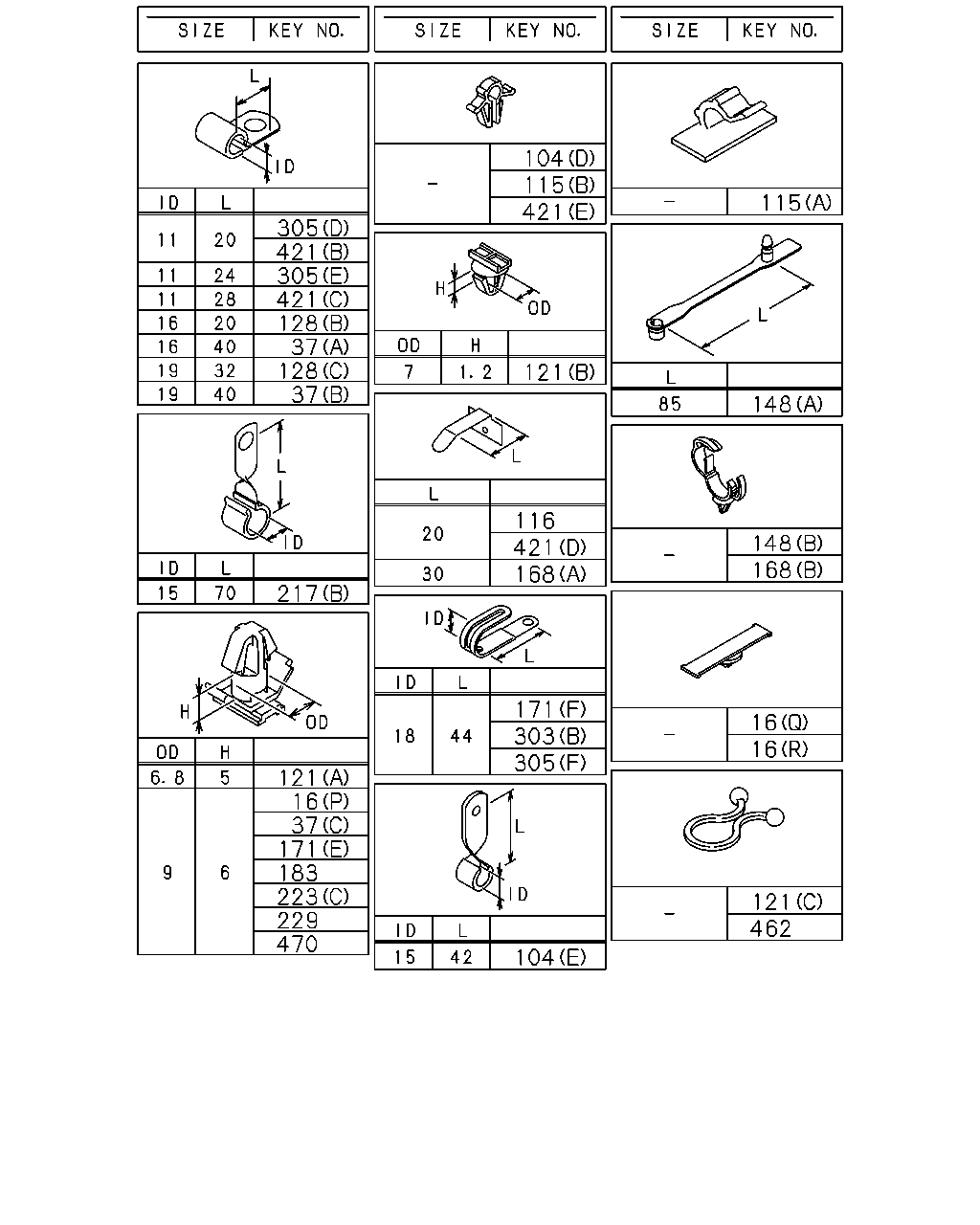

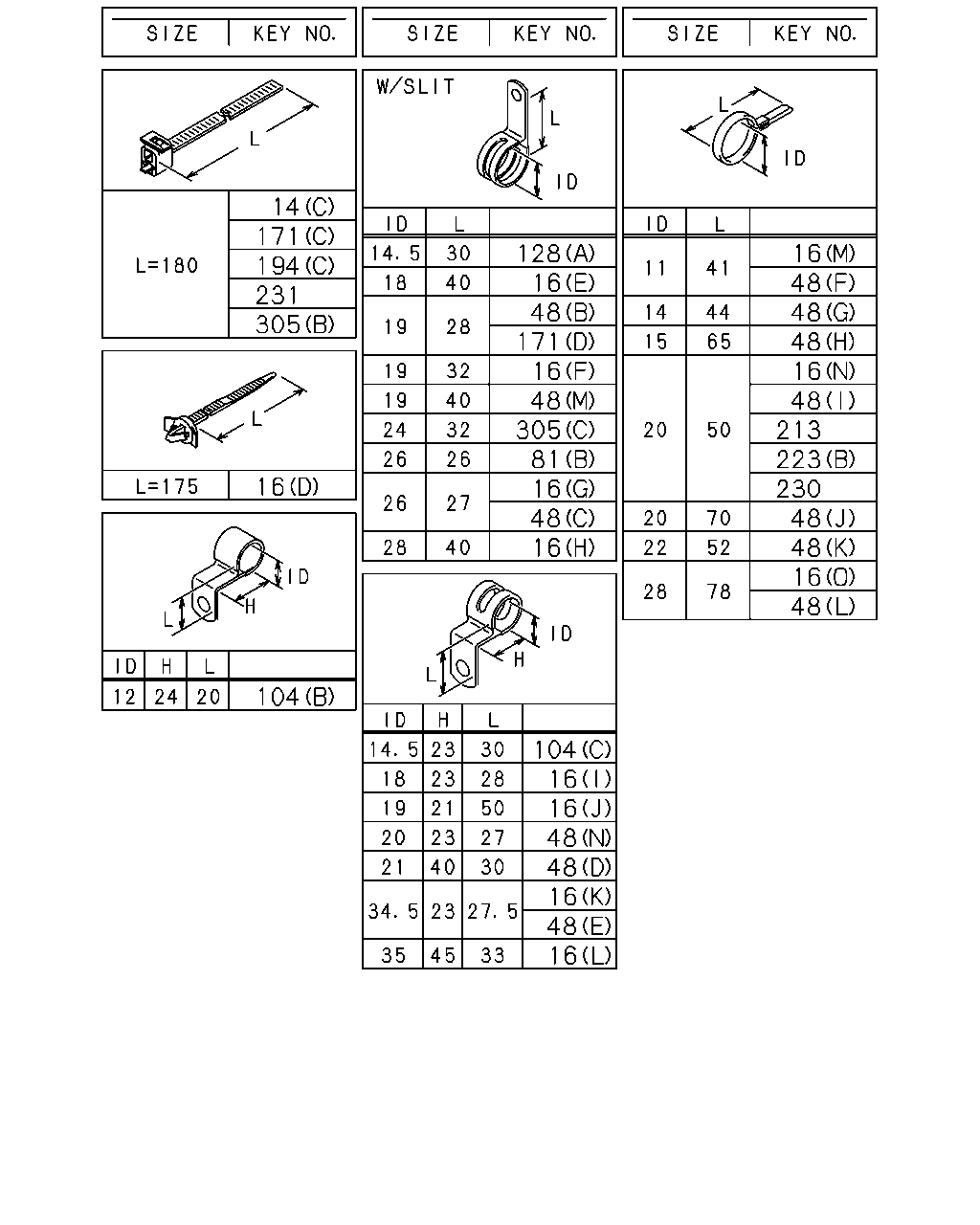

8-15 — FIXING PARTS; WIRING HARNESS (#8230) — 549 parça

421 14 16 40 48 81 102 104 171 206 223 228 14 16 194 217 235 305 178 178 510 513 530 16 171 194 303 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	CLIP; BAND,HARNESS (C) L=180	1-09707-162-1	01	1	0005-	●	●	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	01	1	0005-0210	●	●	●	●
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	02	1	0211-1205	●	●	●	●
14	CLIP; BAND,HARNESS (A) L=140	8-98216-431-0	02	1	1206-	●	●	●	●
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	01	1	0203-0206	●	●	●	●
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0005-0101	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0005-0101		●		●
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0102-0210	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0102-0210		●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0102-0210			●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0211-		●		●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	05	1	0005-0110	●	●	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	07	1	0111-0210	●	●	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	03	1	0211-	●	●	●	●
16	CLIP; HARNESS (O) ID=28 L=78	1-09700-858-0	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (G) ID=26 L=27	1-09701-006-0	02	1	0211-	●	●	●	●
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (J) ID=19 H=21 L=50	1-09700-910-1	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (I) ID=18 H=23 L=28	1-09700-860-0	01	1	0211-	●	●	●	●
16	CLIP; HARNESS (C) L=300	1-09707-001-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (P) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	03	1	0005-0110	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	0111-0210	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	0211-	●	●
16	CLIP; HARNESS (F) ID=19 L=32	9-09525-866-0	01	1	0005-0606	●	●	●	●
16	CLIP; HARNESS (F) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	04	1	0211-0301	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	03	1	0302-	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	03	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (L) ID=35 H=45 L=33	1-09701-047-0	01	1	0211-	●	●	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	06	1	0005-0101	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	06	1	0102-0210	●
16	CLIP; HARNESS (Q) L=55	8-94432-655-0	03	1	0211-	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	06	1	0005-0101	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	06	1	0102-0210	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	06	1	0211-	●		●
16	CLIP; HARNESS (E) ID=18 L=40	1-09701-111-0	01	1	0007-0210		●
16	CLIP; HARNESS (E) ID=18 L=40	1-09701-111-0	01	1	0211-		●		●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	03	1	0102-0210			●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	03	1	0102-0210			●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	05	1	0211-0401	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	06	1	0402-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	04	1	0102-0210			●
16	CLIP; HARNESS (R)	8-97229-356-0	03	1	0211-	●		●
16	CLIP; HARNESS MLD7Q M/T(X5K) (M) ID=11 L=41	1-09700-403-0	01	1	0005-0210			●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0211-			●	●
16	CLIP; HARNESS (H) ID=28 L=40	1-09700-995-1	01	1	0005-0210				●
40	CLIP; BAND,SW,CAB TILT L=140	5-09707-031-1	01	1	0005-		●		●
48	CLIP; FRAME HARNESS ASSISTOR SHIFT CONTROL<WX8> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0406-	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	14	1	0005-0210	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (I) ID=20 L=50	9-09917-430-0	14	1	0211-	●
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	0005-	●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	05	1	0005-0009	●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	06	1	0010-0210	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=50	9-09917-430-0	17	1	0211-		●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	0009-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	0211-		●
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0005-0006	●	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0007-0210		●		●
48	CLIP; FRAME HARNESS (M) ID=19 L=40	9-09525-876-0	01	1	0211-0606		●
48	CLIP; FRAME HARNESS (M) ID=19 L=40	0-95235-876-0	01	1	0607-		●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	01	1	0005-0405	●	●	●	●
48	CLIP; FRAME HARNESS EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=19 L=28	9-09525-856-0	01	1	0406-0606	●	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	01	1	0406-0606			●	●
48	CLIP; FRAME HARNESS EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0607-			●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	02	1	0005-0006	●	●	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	0007-0210	●	●	●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	06	1	0211-	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0005-0008	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0005-0008		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0009-0210		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	06	1	0211-0212		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	0301-		●		●
48	CLIP; FRAME HARNESS (K) ID=22 L=52	9-09917-431-0	01	1	0007-0210	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	18	1	0211-			●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	04	1	0005-0210	●		●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	06	1	0211-0212	●		●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	02	1	0301-	●	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	02	1	0301-	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	0007-0210	●		●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	05	1	0211-	●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	17	1	0005-0009		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	17	1	0010-0210		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0211-	●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	03	1	0005-0212		●		●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	03	1	0301-			●	●
48	CLIP; FRAME HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	0005-0210		●		●
48	CLIP; FRAME HARNESS (C) ID=26 L=27	1-09701-006-0	02	1	0211-		●		●
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	0005-			●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	04	1	0005-0210			●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	16	1	0005-0009			●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	16	1	0010-0210			●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	04	1	0211-0212			●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	04	1	0301-	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	04	1	0301-			●
48	CLIP; FRAME HARNESS MLD7Q M/T(X5K) (I) ID=20 L=50	9-09917-430-0	01	1	0005-0008			●	●
48	CLIP; FRAME HARNESS MLD7Q M/T(X5K) (J) ID=20 L=70	1-09700-485-0	04	1	0009-0210			●	●
48	CLIP; FRAME HARNESS SPEED LIMITER CABLE STROKE CONTROL<TDT> (G) ID=14 L=44	9-09917-427-0	03	1	0005-0210			●	●
48	CLIP; FRAME HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-				●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	0005-0210				●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	04	1	0211-				●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0005-0210	●	●	●	●
81	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0211-	●	●	●	●
102	CLIP; BAND L=140	5-09707-031-1	01	1	0112-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=12 H=24 L=20	1-09700-605-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (D) ID=4.8	1-09701-218-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=15 L=42	9-09716-203-1	02	1	0211-	●	●	●	●
171	CLIP; STARTER HARNESS ENGINE REAR PTO(SV1) (D) ID=19 L=28	9-09525-856-0	01	1	0005-0606	●	●
171	CLIP; STARTER HARNESS ENGINE REAR PTO(SV1) (D) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
171	CLIP; STARTER HARNESS (F) ID=18 L=44	8-94225-185-0	01	1	0005-0210	●	●	●
171	CLIP; STARTER HARNESS (B) L=300	1-09707-001-1	01	1	0005-	●	●	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	9-09525-856-0	04	1	0005-0210	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	9-09525-856-0	05	1	0211-0606	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	0-95235-856-0	05	1	0607-	●	●	●	●
171	CLIP; STARTER HARNESS MLD7Q M/T(X5K) (C) L=180	1-09707-162-1	01	1	0005-0210			●	●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-1	01	1	0005-0210				●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0005-	●	●	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0005-	●	●		●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0005-		●
178	GROMMET; HARNESS (B) ID=19 OD=23 T=24	1-09332-103-0	01	1	0005-			●	●
194	CLIP; BAND (C) L=180	1-09707-162-1	04	1	0005-	●	●	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	0005-0210		●		●
194	CLIP; BAND (B) L=500	1-09707-082-1	02	1	0211-		●		●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0005-		●		●
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0211-			●	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0005-	●	●	●	●
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	0005-0208	●	●	●	●
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-1	02	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	06	1	0005-0210	●	●	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0211-	●	●	●	●
228	CLIP; COOLER HARNESS L=140	5-09707-031-1	01	1	0005-	●	●	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS L=250	5-09707-030-1	01	1	0005-	●	●	●	●
303	CLIP; HARNESS POWER TILT RELAY (A) L=300	1-09707-001-1	01	1	0005-		●		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-94225-185-0	01	1	0005-0801		●		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●		●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●	●	●	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	03	1	0211-	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●	●	●
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-94225-185-0	03	1	0211-0801	●	●	●	●
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-97367-985-1	03	1	0802-	●	●	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	9-09525-045-0	01	1	0211-0606	●	●	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	0-95235-045-0	01	1	0607-	●	●	●	●
305	CLIP; ENG HARNESS SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) L=250	5-09707-030-1	01	1	0005-0210			●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0211-0606	●	●	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●	●
421	CLIP; FLOOR HARNESS (D) L=20	1-09987-246-2	07	1	0005-0101	●	●	●	●
421	CLIP; FLOOR HARNESS (D) L=20	1-09987-246-2	01	1	0102-	●	●	●	●
421	CLIP; FLOOR HARNESS (E) ID=9	5-09707-027-0	02	1	0005-		●		●
421	CLIP; FLOOR HARNESS (A) L=100	5-09707-036-1	01	1	0005-		●		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	9-09525-032-0	03	1	0005-0301		●		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	9-09525-032-0	02	1	0302-0606		●		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	0-95235-032-0	02	1	0607-		●		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	9-09525-052-0	04	1	0005-0301		●		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	9-09525-052-0	05	1	0302-0606		●		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	0-95235-052-0	05	1	0607-		●		●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	01	1	0211-	●	●	●	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-1	08	1	0005-	●		●
513	TAPE; SOFT,HARNESS 100X30	1-74998-068-0	02	1	0005-		●		●
530	SEAL; HARNESS EXC. NIKKO<Y70> 180X40	1-72498-019-0	01	1	0006-0006	●	●	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	0007-	●	●	●	●
530	SEAL; HARNESS 180X40	1-72498-019-0	06	1	0102-0210	●		●
530	SEAL; HARNESS 180X40	1-72498-019-1	07	1	0211-	●		●

59 246 59 59 246 312 342 503 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	0005-	●	●	●	●
59	BRACKET; FRAME HARNESS (B)	1-82698-423-0	01	1	0211-		●		●
59	BRACKET; FRAME HARNESS (C)	1-82699-745-1	01	1	0211-0303		●		●
59	BRACKET; FRAME HARNESS (C)	1-82698-489-0	01	1	0304-		●		●
246	BRACKET; CLIP,SPD SENSOR (B) L=55	1-47475-304-0	01	1	0005-0210	●	●	●	●
246	BRACKET; CLIP,SPD SENSOR (B) L=55	1-47475-304-0	01	1	0211-	●	●
246	BRACKET; CLIP,SPD SENSOR (A) L=95	1-82699-085-0	01	1	0211-			●	●
312	BRACKET; CLIP HARNESS	1-82699-557-0	01	1	0005-		●		●
342	BRACKET; HARNESS CAB MTG	1-82698-231-0	01	1	0005-0006				●
342	BRACKET; HARNESS CAB MTG	1-82698-231-0	01	1	0007-		●		●
503	CONNECTOR (A)	1-82690-668-0	01	1	0310-	●	●	●	●
503	CONNECTOR STARTER SWITCH DELETION<E5D> (B)	1-82690-666-0	01	1	0212-	●	●	●	●
503	CONNECTOR (A)	1-82690-668-0	01	1	0102-0210	●	●	●	●

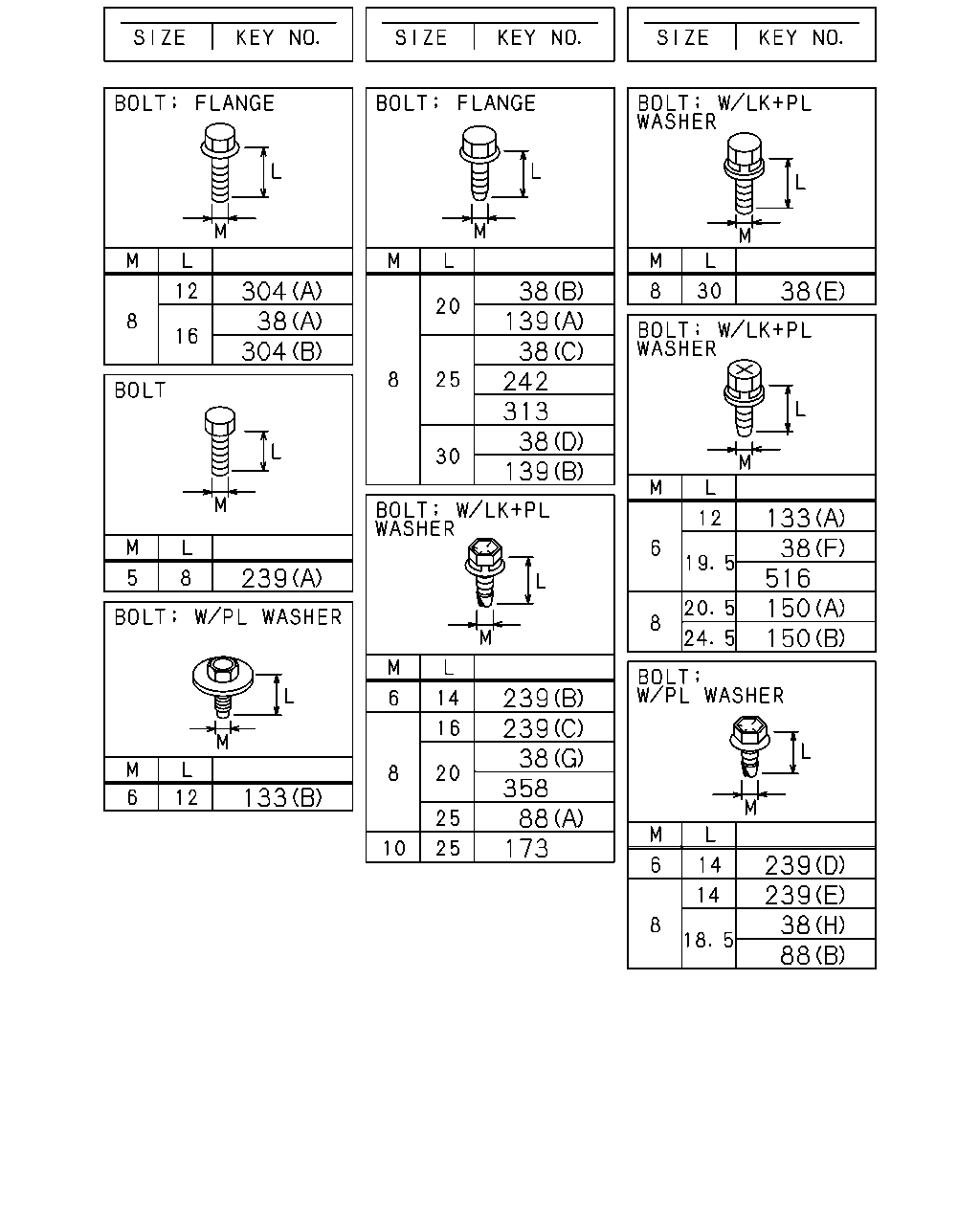

304 38 304 38 139 38 242 313 38 139 38 133 38 516 150 150 239 239 38 88 173 88 358 38 239 239 133 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	05	1	0211-0512	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	10	1	0211-0512	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	10	1	0601-	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	0005-0006	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	0005-0006				●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	0007-0210	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	0007-0210		●		●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
38	BOLT; CLIP,HARNESS (E) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0005-0512	●	●	●	●
38	BOLT; CLIP,HARNESS (E) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●	●	●
38	BOLT; CLIP,HARNESS (G) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0210	●	●	●	●
38	BOLT; CLIP,HARNESS (G) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0211-1201	●	●	●	●
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-	●	●	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●	●	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●	●	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512		●		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●		●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	03	1	0005-0210		●		●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●		●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	01	1	0005-0210		●		●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512		●		●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●		●
38	BOLT; CLIP,HARNESS (F) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0005-		●		●
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0005-0210	●		●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0211-1007	●	●	●	●
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-	●	●	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0005-0110	●	●	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●	●	●	●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●	●	●	●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512	●	●	●	●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512		●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●	●	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512				●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
150	BOLT; CLIP (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0211-0608	●	●	●	●
150	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0609-0904	●	●	●	●
150	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0005-	●	●	●	●
239	BOLT; GRAND (A) M5X8	0-20800-508-0	01	1	0005-	●	●	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0005-1007	●	●	●	●
239	BOLT; GRAND (D) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●	●	●	●
239	BOLT; GRAND (C) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-1201	●	●	●	●
239	BOLT; GRAND (E) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●	●	●
242	BOLT; BRKT,HARNESS M8X25 FLANGE	0-28680-825-0	01	1	0005-0006				●
242	BOLT; BRKT,HARNESS M8X25 FLANGE	0-28680-825-0	01	1	0007-0512		●		●
242	BOLT; BRKT,HARNESS M8X25 FLANGE	0-28650-825-0	01	1	0601-		●		●
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0211-0512	●	●	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●	●	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●
313	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●		●
313	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
358	BOLT; EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0210		●		●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●	●	●	●

104 115 421 115 305 421 305 421 128 37 128 37 121 148 116 421 168 148 168 217 171 303 305 16 16 121 16 37 171 183 223 229 470 121 462 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0005-0101	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0005-0101		●		●
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0102-0210	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0102-0210		●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0102-0210			●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0211-		●		●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	05	1	0005-0110	●	●	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	07	1	0111-0210	●	●	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	03	1	0211-	●	●	●	●
16	CLIP; HARNESS (O) ID=28 L=78	1-09700-858-0	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (G) ID=26 L=27	1-09701-006-0	02	1	0211-	●	●	●	●
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (J) ID=19 H=21 L=50	1-09700-910-1	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (I) ID=18 H=23 L=28	1-09700-860-0	01	1	0211-	●	●	●	●
16	CLIP; HARNESS (C) L=300	1-09707-001-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (P) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	03	1	0005-0110	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	0111-0210	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	0211-	●	●
16	CLIP; HARNESS (F) ID=19 L=32	9-09525-866-0	01	1	0005-0606	●	●	●	●
16	CLIP; HARNESS (F) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	04	1	0211-0301	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	03	1	0302-	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	03	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (L) ID=35 H=45 L=33	1-09701-047-0	01	1	0211-	●	●	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	06	1	0005-0101	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	06	1	0102-0210	●
16	CLIP; HARNESS (Q) L=55	8-94432-655-0	03	1	0211-	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	06	1	0005-0101	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	06	1	0102-0210	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	06	1	0211-	●		●
16	CLIP; HARNESS (E) ID=18 L=40	1-09701-111-0	01	1	0007-0210		●
16	CLIP; HARNESS (E) ID=18 L=40	1-09701-111-0	01	1	0211-		●		●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	03	1	0102-0210			●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	03	1	0102-0210			●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	05	1	0211-0401	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	06	1	0402-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	04	1	0102-0210			●
16	CLIP; HARNESS (R)	8-97229-356-0	03	1	0211-	●		●
16	CLIP; HARNESS MLD7Q M/T(X5K) (M) ID=11 L=41	1-09700-403-0	01	1	0005-0210			●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0211-			●	●
16	CLIP; HARNESS (H) ID=28 L=40	1-09700-995-1	01	1	0005-0210				●
37	CLIP; HARNESS,POWER TILT (C) OD=9 H=6	1-09709-178-0	02	1	0005-		●		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=40	9-09525-575-0	02	1	0005-0606		●		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=40	0-95235-575-0	02	1	0607-		●		●
37	CLIP; HARNESS,POWER TILT (B) ID=19 L=40	9-09525-875-0	01	1	0005-0606		●		●
37	CLIP; HARNESS,POWER TILT (B) ID=19 L=40	0-95235-875-0	01	1	0607-		●		●
104	CLIP; HEADLAMP HARNESS (B) ID=12 H=24 L=20	1-09700-605-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (D) ID=4.8	1-09701-218-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=15 L=42	9-09716-203-1	02	1	0211-	●	●	●	●
115	CLIP; DOOR HARNESS (A) ID=15	1-09987-115-0	06	1	0005-0207		●		●
115	CLIP; DOOR HARNESS (B) ID=12	1-09987-201-0	06	1	0005-0207		●		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	02	1	0005-0009	●		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	0010-0405	●		●
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20	1-09987-246-2	05	1	0406-	●		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	05	1	0406-		●		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	04	1	0005-0009		●		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	05	1	0010-0405		●		●
116	CLIP; ROOF HARNESS EXC. MAP LAMP<C85> L=20	1-09987-246-2	03	1	0406-	●		●
121	CLIP; FACIA HARNESS (C) ID=11.5	1-09709-083-0	02	1	0005-		●		●
121	CLIP; FACIA HARNESS EXC. POWER WINDOW<A30> (B) OD=7 H=1.2	8-94364-750-0	02	1	0005-0210			●
121	CLIP; FACIA HARNESS (A) OD=6.8 H=5	8-97082-051-0	02	1	0211-	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	9-09525-535-0	01	1	0005-0606	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=19 L=32	9-09525-862-0	01	1	0005-0011	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	01	1	0005-	●	●	●	●
148	CLIP; BAND,HEADLAMP HARNESS (B) ID=6 & 10-13	8-97069-515-0	01	1	0005-	●	●	●	●
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	05	1	0005-	●	●	●	●
168	CLIP; DASH HARNESS (A) L=30	1-09987-265-0	01	1	0102-	●	●	●	●
171	CLIP; STARTER HARNESS ENGINE REAR PTO(SV1) (D) ID=19 L=28	9-09525-856-0	01	1	0005-0606	●	●
171	CLIP; STARTER HARNESS ENGINE REAR PTO(SV1) (D) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
171	CLIP; STARTER HARNESS (F) ID=18 L=44	8-94225-185-0	01	1	0005-0210	●	●	●
171	CLIP; STARTER HARNESS (B) L=300	1-09707-001-1	01	1	0005-	●	●	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	9-09525-856-0	04	1	0005-0210	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	9-09525-856-0	05	1	0211-0606	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	0-95235-856-0	05	1	0607-	●	●	●	●
171	CLIP; STARTER HARNESS MLD7Q M/T(X5K) (C) L=180	1-09707-162-1	01	1	0005-0210			●	●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-1	01	1	0005-0210				●
183	CLIP; CONNECTOR OD=9 H=6	1-09709-178-0	01	1	0005-0006				●
183	CLIP; CONNECTOR OD=9 H=6	1-09709-178-0	01	1	0007-		●		●
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	0005-0208	●	●	●	●
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-1	02	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	06	1	0005-0210	●	●	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0211-	●	●	●	●
229	CLIP; STARTER SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0005-	●	●	●	●
303	CLIP; HARNESS POWER TILT RELAY (A) L=300	1-09707-001-1	01	1	0005-		●		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-94225-185-0	01	1	0005-0801		●		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●		●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●	●	●	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	03	1	0211-	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●	●	●
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-94225-185-0	03	1	0211-0801	●	●	●	●
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-97367-985-1	03	1	0802-	●	●	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	9-09525-045-0	01	1	0211-0606	●	●	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	0-95235-045-0	01	1	0607-	●	●	●	●
305	CLIP; ENG HARNESS SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) L=250	5-09707-030-1	01	1	0005-0210			●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0211-0606	●	●	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●	●
421	CLIP; FLOOR HARNESS (D) L=20	1-09987-246-2	07	1	0005-0101	●	●	●	●
421	CLIP; FLOOR HARNESS (D) L=20	1-09987-246-2	01	1	0102-	●	●	●	●
421	CLIP; FLOOR HARNESS (E) ID=9	5-09707-027-0	02	1	0005-		●		●
421	CLIP; FLOOR HARNESS (A) L=100	5-09707-036-1	01	1	0005-		●		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	9-09525-032-0	03	1	0005-0301		●		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	9-09525-032-0	02	1	0302-0606		●		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	0-95235-032-0	02	1	0607-		●		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	9-09525-052-0	04	1	0005-0301		●		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	9-09525-052-0	05	1	0302-0606		●		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	0-95235-052-0	05	1	0607-		●		●
462	CLIP; HARNESS,HTR ID=20	1-09709-068-0	02	1	0005-	●	●	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0005-	●	●	●	●

14 171 194 231 305 128 16 48 171 16 48 305 81 16 48 16 16 48 48 48 16 48 213 223 230 48 48 16 48 16 104 104 16 16 48 48 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	CLIP; BAND,HARNESS (C) L=180	1-09707-162-1	01	1	0005-	●	●	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	01	1	0005-0210	●	●	●	●
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	02	1	0211-1205	●	●	●	●
14	CLIP; BAND,HARNESS (A) L=140	8-98216-431-0	02	1	1206-	●	●	●	●
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	01	1	0203-0206	●	●	●	●
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0005-0101	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0005-0101		●		●
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0102-0210	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0102-0210		●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	02	1	0102-0210			●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	02	1	0211-		●		●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	05	1	0005-0110	●	●	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	07	1	0111-0210	●	●	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	03	1	0211-	●	●	●	●
16	CLIP; HARNESS (O) ID=28 L=78	1-09700-858-0	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (G) ID=26 L=27	1-09701-006-0	02	1	0211-	●	●	●	●
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (J) ID=19 H=21 L=50	1-09700-910-1	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (I) ID=18 H=23 L=28	1-09700-860-0	01	1	0211-	●	●	●	●
16	CLIP; HARNESS (C) L=300	1-09707-001-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (P) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	0005-	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	03	1	0005-0110	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	0111-0210	●	●	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	0211-	●	●
16	CLIP; HARNESS (F) ID=19 L=32	9-09525-866-0	01	1	0005-0606	●	●	●	●
16	CLIP; HARNESS (F) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	01	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	04	1	0211-0301	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	03	1	0302-	●	●	●	●
16	CLIP; HARNESS (N) ID=20 L=50	9-09917-430-0	03	1	0005-0210	●	●	●	●
16	CLIP; HARNESS (L) ID=35 H=45 L=33	1-09701-047-0	01	1	0211-	●	●	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	06	1	0005-0101	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	06	1	0102-0210	●
16	CLIP; HARNESS (Q) L=55	8-94432-655-0	03	1	0211-	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	06	1	0005-0101	●		●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	06	1	0102-0210	●
16	CLIP; HARNESS (D) L=175	8-97110-167-0	06	1	0211-	●		●
16	CLIP; HARNESS (E) ID=18 L=40	1-09701-111-0	01	1	0007-0210		●
16	CLIP; HARNESS (E) ID=18 L=40	1-09701-111-0	01	1	0211-		●		●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	03	1	0102-0210			●
16	CLIP; HARNESS POWER WINDOW<A30> (Q) L=55	8-94432-655-0	03	1	0102-0210			●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	05	1	0211-0401	●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	06	1	0402-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (D) L=175	8-97110-167-0	04	1	0102-0210			●
16	CLIP; HARNESS (R)	8-97229-356-0	03	1	0211-	●		●
16	CLIP; HARNESS MLD7Q M/T(X5K) (M) ID=11 L=41	1-09700-403-0	01	1	0005-0210			●	●
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0211-			●	●
16	CLIP; HARNESS (H) ID=28 L=40	1-09700-995-1	01	1	0005-0210				●
48	CLIP; FRAME HARNESS ASSISTOR SHIFT CONTROL<WX8> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0406-	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	14	1	0005-0210	●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (I) ID=20 L=50	9-09917-430-0	14	1	0211-	●
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	0005-	●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	05	1	0005-0009	●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	06	1	0010-0210	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=50	9-09917-430-0	17	1	0211-		●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	0009-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	03	1	0211-		●
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0005-0006	●	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0007-0210		●		●
48	CLIP; FRAME HARNESS (M) ID=19 L=40	9-09525-876-0	01	1	0211-0606		●
48	CLIP; FRAME HARNESS (M) ID=19 L=40	0-95235-876-0	01	1	0607-		●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	01	1	0005-0405	●	●	●	●
48	CLIP; FRAME HARNESS EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=19 L=28	9-09525-856-0	01	1	0406-0606	●	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	01	1	0406-0606			●	●
48	CLIP; FRAME HARNESS EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0607-			●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	02	1	0005-0006	●	●	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	0007-0210	●	●	●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	06	1	0211-	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0005-0008	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0005-0008		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0009-0210		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	06	1	0211-0212		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	0301-		●		●
48	CLIP; FRAME HARNESS (K) ID=22 L=52	9-09917-431-0	01	1	0007-0210	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	18	1	0211-			●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	04	1	0005-0210	●		●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	06	1	0211-0212	●		●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	02	1	0301-	●	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	02	1	0301-	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	0007-0210	●		●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	05	1	0211-	●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	17	1	0005-0009		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	17	1	0010-0210		●		●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0211-	●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	03	1	0005-0212		●		●
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	03	1	0301-			●	●
48	CLIP; FRAME HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	0005-0210		●		●
48	CLIP; FRAME HARNESS (C) ID=26 L=27	1-09701-006-0	02	1	0211-		●		●
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	0005-			●	●
48	CLIP; FRAME HARNESS (L) ID=28 L=78	1-09700-858-0	04	1	0005-0210			●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	16	1	0005-0009			●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	16	1	0010-0210			●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	04	1	0211-0212			●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	04	1	0301-	●	●	●	●
48	CLIP; FRAME HARNESS (I) ID=20 L=50	9-09917-430-0	04	1	0301-			●
48	CLIP; FRAME HARNESS MLD7Q M/T(X5K) (I) ID=20 L=50	9-09917-430-0	01	1	0005-0008			●	●
48	CLIP; FRAME HARNESS MLD7Q M/T(X5K) (J) ID=20 L=70	1-09700-485-0	04	1	0009-0210			●	●
48	CLIP; FRAME HARNESS SPEED LIMITER CABLE STROKE CONTROL<TDT> (G) ID=14 L=44	9-09917-427-0	03	1	0005-0210			●	●
48	CLIP; FRAME HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-				●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	01	1	0005-0210				●
48	CLIP; FRAME HARNESS (J) ID=20 L=70	1-09700-485-0	04	1	0211-				●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0005-0210	●	●	●	●
81	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=12 H=24 L=20	1-09700-605-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (D) ID=4.8	1-09701-218-0	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	02	1	0211-	●	●	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=15 L=42	9-09716-203-1	02	1	0211-	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	9-09525-535-0	01	1	0005-0606	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=19 L=32	9-09525-862-0	01	1	0005-0011	●	●	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●	●	●
171	CLIP; STARTER HARNESS ENGINE REAR PTO(SV1) (D) ID=19 L=28	9-09525-856-0	01	1	0005-0606	●	●
171	CLIP; STARTER HARNESS ENGINE REAR PTO(SV1) (D) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
171	CLIP; STARTER HARNESS (F) ID=18 L=44	8-94225-185-0	01	1	0005-0210	●	●	●
171	CLIP; STARTER HARNESS (B) L=300	1-09707-001-1	01	1	0005-	●	●	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	9-09525-856-0	04	1	0005-0210	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	9-09525-856-0	05	1	0211-0606	●	●	●	●
171	CLIP; STARTER HARNESS (D) ID=19 L=28	0-95235-856-0	05	1	0607-	●	●	●	●
171	CLIP; STARTER HARNESS MLD7Q M/T(X5K) (C) L=180	1-09707-162-1	01	1	0005-0210			●	●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-1	01	1	0005-0210				●
194	CLIP; BAND (C) L=180	1-09707-162-1	04	1	0005-	●	●	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	0005-0210		●		●
194	CLIP; BAND (B) L=500	1-09707-082-1	02	1	0211-		●		●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0005-		●		●
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0211-			●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●	●	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	06	1	0005-0210	●	●	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0211-	●	●	●	●
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	0005-	●	●	●	●
231	CLIP; BAND,OIL PRESS L=180	1-09707-162-1	01	1	0005-	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●	●	●	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	03	1	0211-	●	●	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●	●	●
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-94225-185-0	03	1	0211-0801	●	●	●	●
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-97367-985-1	03	1	0802-	●	●	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	9-09525-045-0	01	1	0211-0606	●	●	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	0-95235-045-0	01	1	0607-	●	●	●	●
305	CLIP; ENG HARNESS SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) L=250	5-09707-030-1	01	1	0005-0210			●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0211-0606	●	●	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●	●

119 64 524 219 294 133 210 520 184 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0211-	●	●	●	●
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M5X14 W/PL WASHER	8-94447-551-0	02	1	0005-0210	●		●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0211-	●		●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0005-0110	●	●	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●	●	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0005-	●	●	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	0005-0603	●	●	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-	●	●	●	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	0005-	●	●	●	●
219	NUT M8 FLANGE	0-91150-108-0	05	1	0005-0210	●	●	●	●
219	NUT M8 FLANGE	0-91150-108-0	09	1	0211-0403	●	●	●	●
219	NUT M8 FLANGE	0-91150-108-0	10	1	0404-0602	●	●	●	●
219	NUT M8 FLANGE	0-91180-108-0	10	1	0603-	●	●	●	●
219	NUT M8 FLANGE	0-91150-108-0	01	1	0005-0210		●		●
219	NUT M8 FLANGE	0-91150-108-0	05	1	0211-0602		●		●
219	NUT M8 FLANGE	0-91180-108-0	05	1	0603-		●		●
219	NUT M8 FLANGE	0-91150-108-0	02	1	0005-0006				●
219	NUT M8 FLANGE	0-91150-108-0	02	1	0007-0210		●		●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●	●	●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
294	NUT M8 FLANGE	0-91150-108-0	02	1	0005-0210		●		●
294	NUT M8 FLANGE	0-91150-108-0	03	1	0211-0602		●		●
294	NUT M8 FLANGE	0-91180-108-0	03	1	0603-		●		●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	0005-	●	●	●	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
