◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#8229) — 194 parça

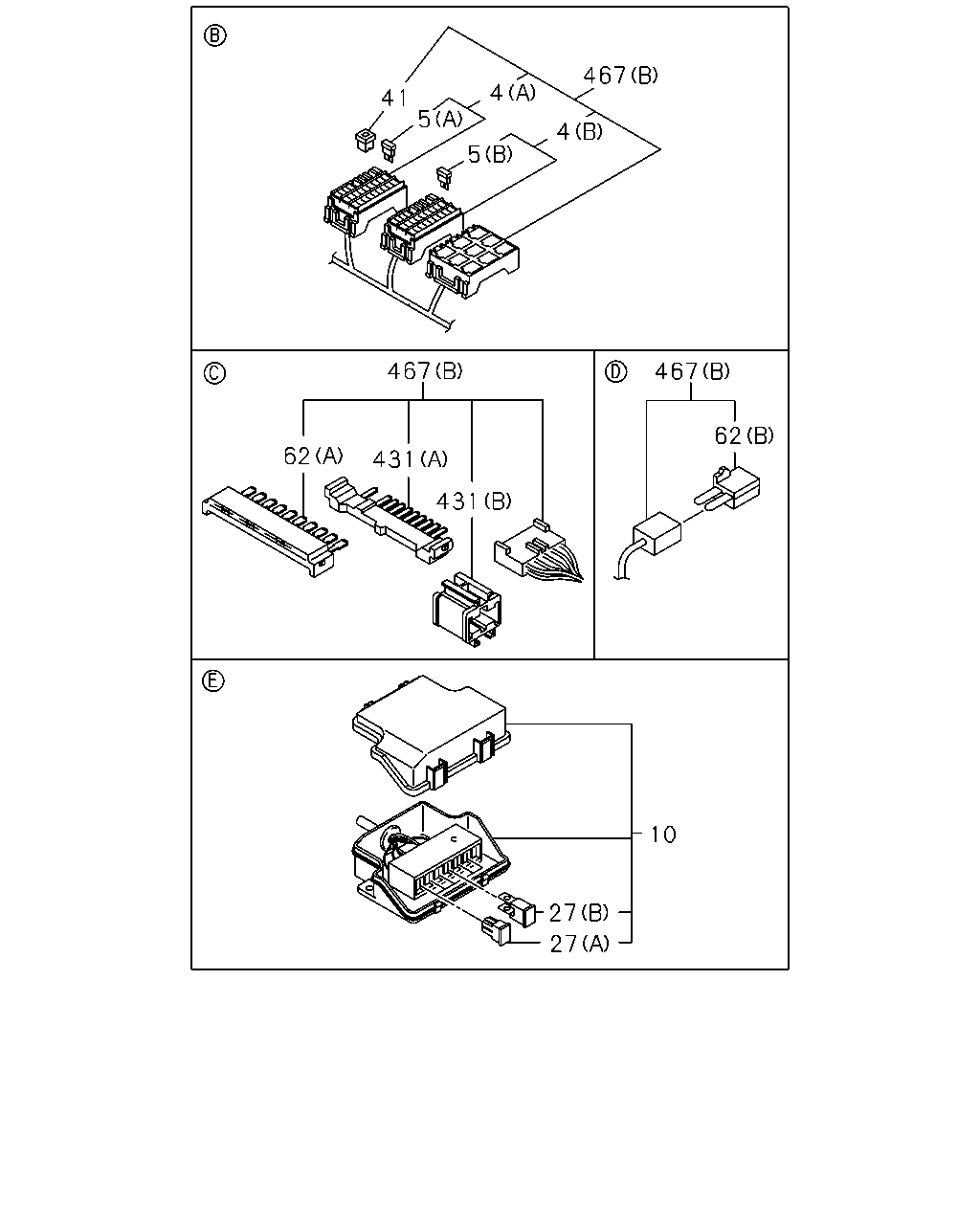

çizim 76471
467 4 41 5 4 5 467 467 62 62 431 431 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX17 		1-82510-393-0 01 1 0005-0210 ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX16 		1-82510-395-0 01 1 0211- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0005- ● ● ● ●
5 FUSE; FACIA HARNESS
(A) 15A BLUE 		5-82516-003-0 AR 1 0005- ● ● ● ●
5 FUSE; FACIA HARNESS
(B) 7.5A BROWN 		8-94159-007-0 AR 1 0005- ● ● ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0005- ● ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0005- ● ● ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0005- ● ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0005- ● ● ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0005- ● ● ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0005-0210 ● ● ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 0211- ● ● ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0005- ● ● ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0211- ● ● ● ●
467 HARNESS; FACIA
(A) 		1-82627-153-3 01 1 0005-0210 ● ● ● ●
467 HARNESS; FACIA
(A) 		1-82628-708-2 01 1 0211- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-380-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-380-3 01 1 0211- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-379-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-381-3 01 1 0211- ●
467 HARNESS; FACIA
(B) 		1-82629-381-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-382-3 01 1 0211- ●
467 HARNESS; FACIA
(A) 		1-82660-761-0 01 1 0211- ● ●
467 HARNESS; FACIA
(B) 		1-82661-388-3 01 1 0211- ●

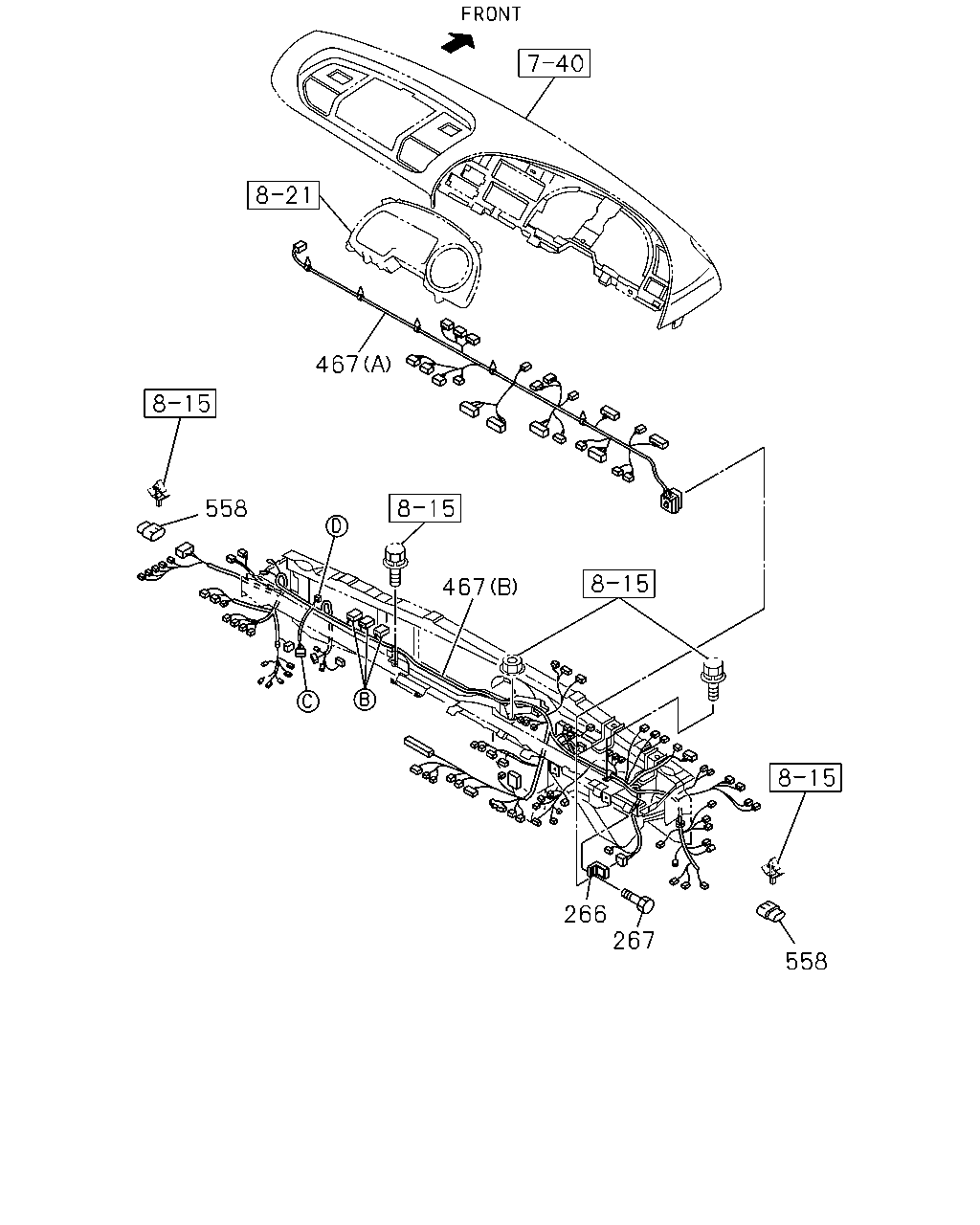

çizim 78586
467 558 467 266 267 558
BalonParca AdiParca NoAdetTipApplied Date A B C D
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0005- ● ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0005- ● ● ● ●
467 HARNESS; FACIA
(A) 		1-82627-153-3 01 1 0005-0210 ● ● ● ●
467 HARNESS; FACIA
(A) 		1-82628-708-2 01 1 0211- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-380-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-380-3 01 1 0211- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-379-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-381-3 01 1 0211- ●
467 HARNESS; FACIA
(B) 		1-82629-381-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-382-3 01 1 0211- ●
467 HARNESS; FACIA
(A) 		1-82660-761-0 01 1 0211- ● ●
467 HARNESS; FACIA
(B) 		1-82661-388-3 01 1 0211- ●
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 0005-0210 ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0005-0210 ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0211- ● ● ● ●

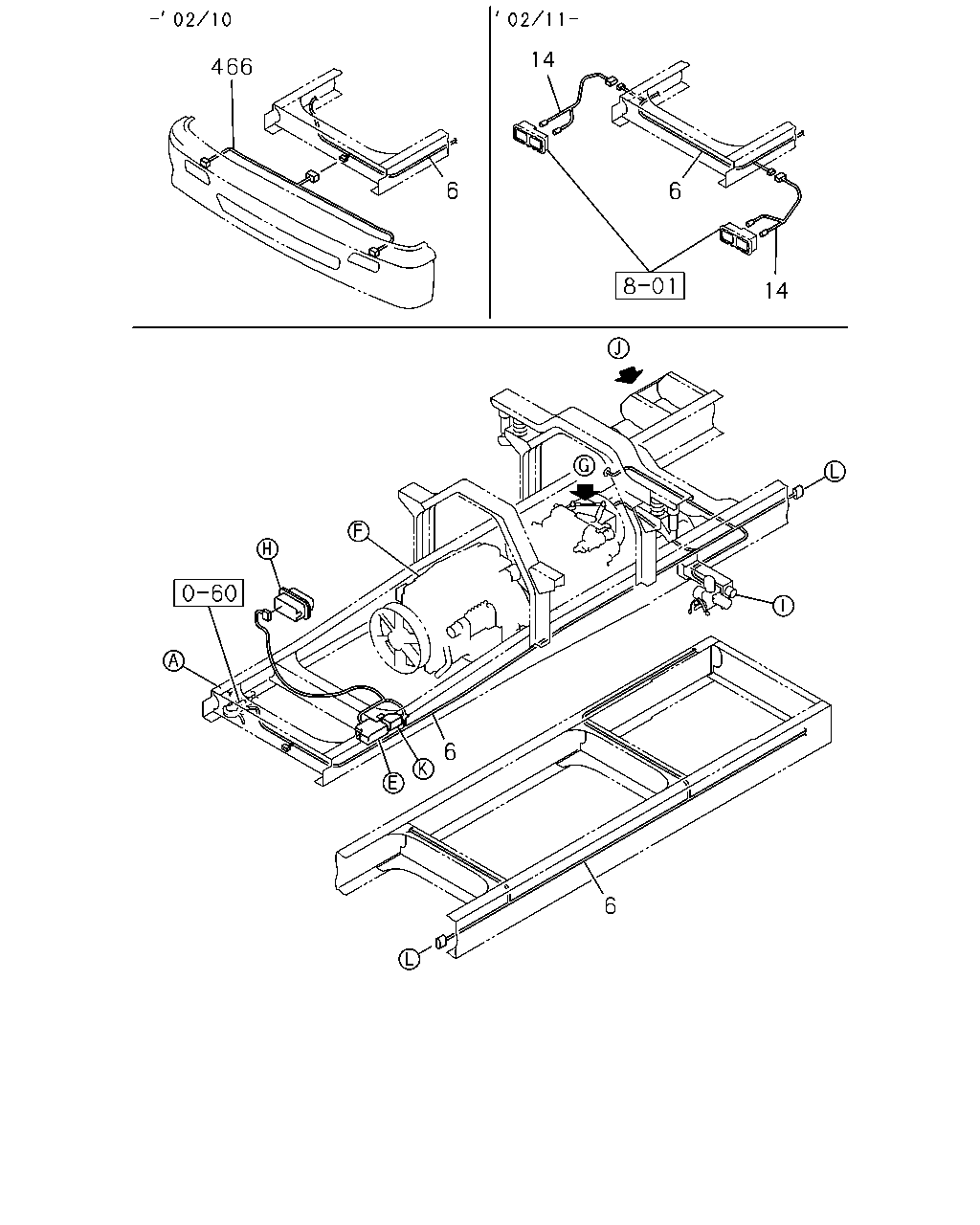

çizim 78622
14 466 6 6 14 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME 1-82673-252-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-037-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-429-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-253-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-038-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-430-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-259-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-039-1 01 1 0211- ●
6 HARNESS; FRAME 1-82673-260-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-040-1 01 1 0211- ●
14 HARNESS; HEADLAMP 1-82639-285-0 02 1 0211- ● ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0210 ● ● ● ●

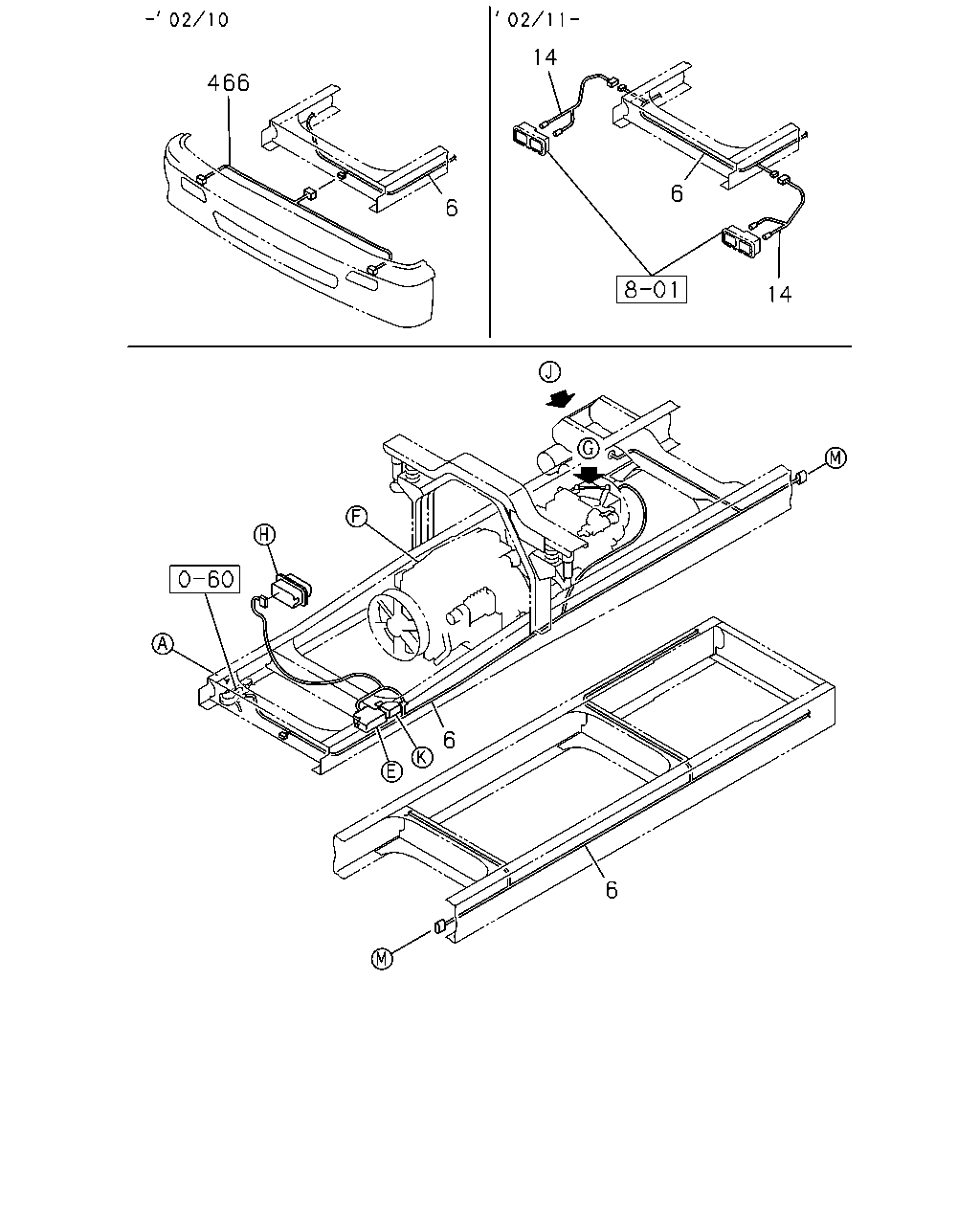

çizim 78623
14 466 6 6 14 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME 1-82673-252-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-037-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-429-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-253-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-038-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-430-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-259-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-039-1 01 1 0211- ●
6 HARNESS; FRAME 1-82673-260-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-040-1 01 1 0211- ●
14 HARNESS; HEADLAMP 1-82639-285-0 02 1 0211- ● ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0210 ● ● ● ●

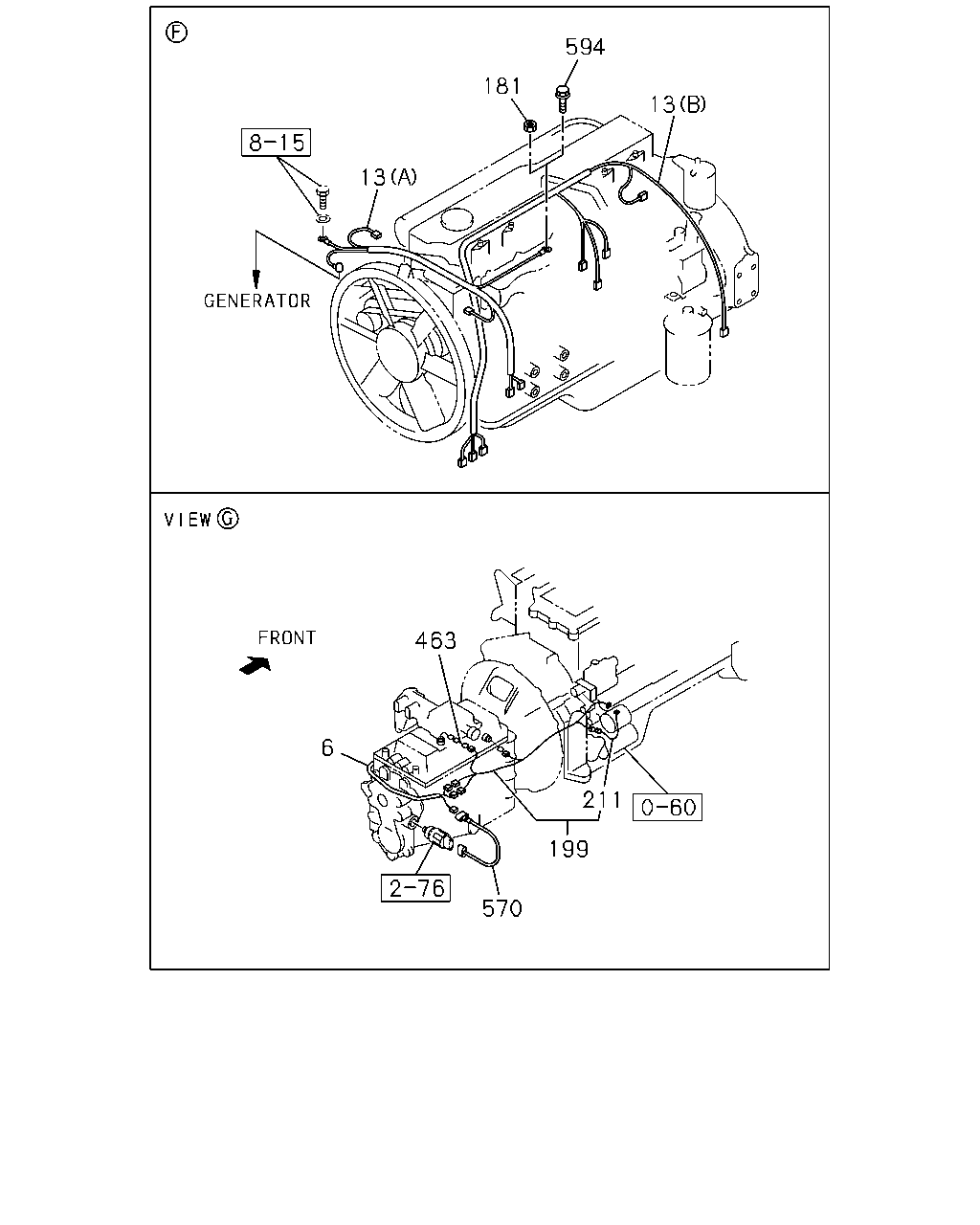

çizim 79048
594 181 13 13 463 6 211 199 570
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME 1-82673-252-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-037-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-429-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-253-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-038-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-430-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-259-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-039-1 01 1 0211- ●
6 HARNESS; FRAME 1-82673-260-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-040-1 01 1 0211- ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 0005-0009 ● ● ● ●
13 HARNESS; ENG
(A) 		1-82641-165-0 01 1 0010-0210 ● ● ● ●
13 HARNESS; ENG
(A) 		1-82641-277-1 01 1 0211- ● ● ● ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0211- ● ● ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0005- ● ● ● ●
199 HARNESS; STARTER
ENGINE REAR PTO(SV1) 		1-82641-146-0 01 1 0005-0210 ● ●
199 HARNESS; STARTER
MBJ5J M/T(Y1Y) ENGINE REAR PTO(SV1) 		1-82641-146-0 01 1 0005-0210 ● ●
199 HARNESS; STARTER
EXC. ENGINE REAR PTO(SV1) 		1-82640-966-0 01 1 0005-0210 ● ●
199 HARNESS; STARTER
MBJ5J M/T(Y1Y) EXC. ENGINE REAR PTO(SV1) 		1-82640-966-0 01 1 0005-0210 ● ●
199 HARNESS; STARTER
MLD7Q M/T(X5K),MLD6D M/T(X5Q) 		1-82640-974-0 01 1 0005-0210 ● ●
199 HARNESS; STARTER 1-82641-302-2 01 1 0211- ● ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0005-0210 ● ●
211 WIRE; FUSIBLE LINK,STARTER
MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) WHITE 		1-82659-124-0 01 1 0005-0210 ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-1 01 1 0211- ● ● ● ●
463 HARNESS; SW,BACK UP
MLD7Q M/T(X5K) 		1-82639-608-1 01 1 0005-0210 ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0005-0206 ● ● ● ●
570 HARNESS; SPEED SENSOR 1-82676-547-0 01 1 0207-0210 ● ● ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0211-0401 ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0211-0604 ● ● ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ● ● ● ●

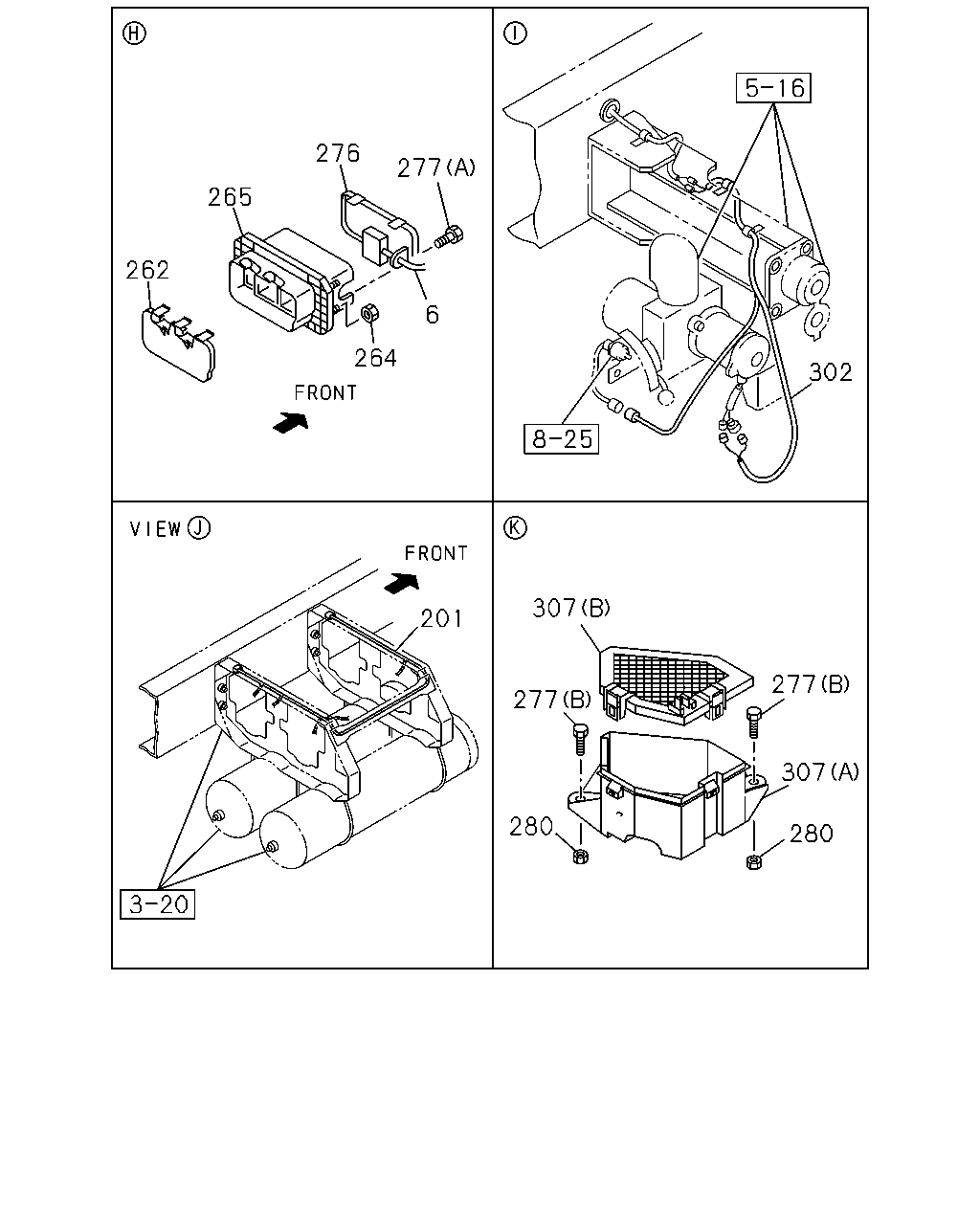

çizim 79084
276 277 265 262 6 264 302 307 201 277 277 307 280 280
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME 1-82673-252-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-037-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-429-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-253-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-038-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-430-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-259-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-039-1 01 1 0211- ●
6 HARNESS; FRAME 1-82673-260-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-040-1 01 1 0211- ●
201 HARNESS; AIR TANK 1-82670-537-1 01 1 0005-0210 ●
201 HARNESS; AIR TANK 1-82676-041-1 01 1 0211- ●
201 HARNESS; AIR TANK 1-82671-550-0 01 1 0005-0210 ● ● ●
201 HARNESS; AIR TANK 1-82676-042-1 01 1 0211- ●
201 HARNESS; AIR TANK 1-82676-043-1 01 1 0211- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0005- ● ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005- ● ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0005- ● ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0005- ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0512 ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ● ●
277 BOLT; BOX ASM FIX
(B) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211- ● ● ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
302 HARNESS; POWER CAB TILT 1-82639-388-4 01 1 0005- ● ●
307 BOX; ENG HARNESS
(A) 		1-82698-070-1 01 1 0211- ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 0211- ● ● ● ●
307 BOX; ENG HARNESS
(A) 		1-82698-119-0 01 1 0211- ● ●

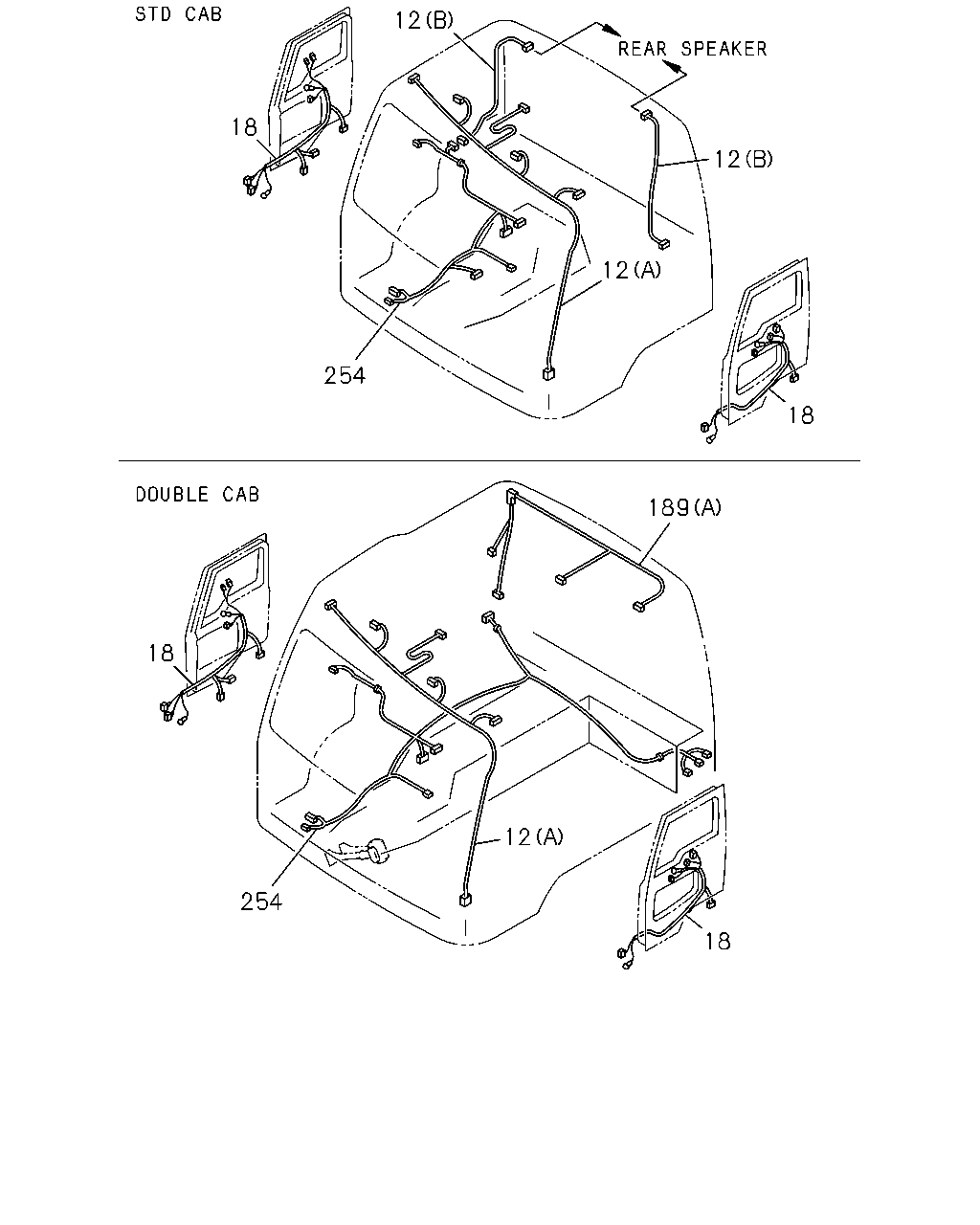

çizim 79118
12 18 12 12 254 18 189 18 12 254 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 HARNESS; ROOF
(A) 		1-82625-715-3 01 1 0005-0210 ● ● ● ●
12 HARNESS; ROOF
(A) 		1-82660-765-1 01 1 0211- ● ● ● ●
12 HARNESS; ROOF
(B) 		1-82626-753-0 02 1 0005- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 0005-0210 ●
18 HARNESS; DOOR 1-82629-301-1 01 1 0211- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0005-0210 ●
18 HARNESS; DOOR 1-82628-582-0 01 1 0211- ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 02 1 0005-0202 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 0005-0202 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 02 1 0203-0210 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 0203-0210 ●
18 HARNESS; DOOR 1-82628-581-0 02 1 0211- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-585-0 01 1 0005-0210 ●
18 HARNESS; DOOR 1-82660-768-0 01 1 0211- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 0005-0210 ●
18 HARNESS; DOOR 1-82660-767-0 01 1 0211- ●
18 HARNESS; DOOR 1-82661-358-0 02 1 0203- ●
189 HARNESS; EXT
MAP LAMP<C85> (A) 		1-82662-384-1 01 1 0406- ● ●
189 HARNESS; EXT
(B) 		1-82625-673-2 02 1 0005-0210 ●
189 HARNESS; EXT
(A) 		1-82625-774-0 01 1 0005-0405 ● ●
189 HARNESS; EXT
EXC. MAP LAMP<C85> (A) 		1-82625-774-0 01 1 0406- ● ●
254 HARNESS; CAB FLOOR 1-82628-129-5 01 1 0005-0210 ● ●
254 HARNESS; CAB FLOOR 1-82661-385-1 01 1 0211-0310 ● ●
254 HARNESS; CAB FLOOR 1-82662-049-1 01 1 0311- ● ●
254 HARNESS; CAB FLOOR 1-82628-136-3 01 1 0005-0210 ● ●
254 HARNESS; CAB FLOOR 1-82660-769-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR 1-82662-050-1 01 1 0311- ●
254 HARNESS; CAB FLOOR 1-82661-628-2 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR 1-82662-051-1 01 1 0311- ●

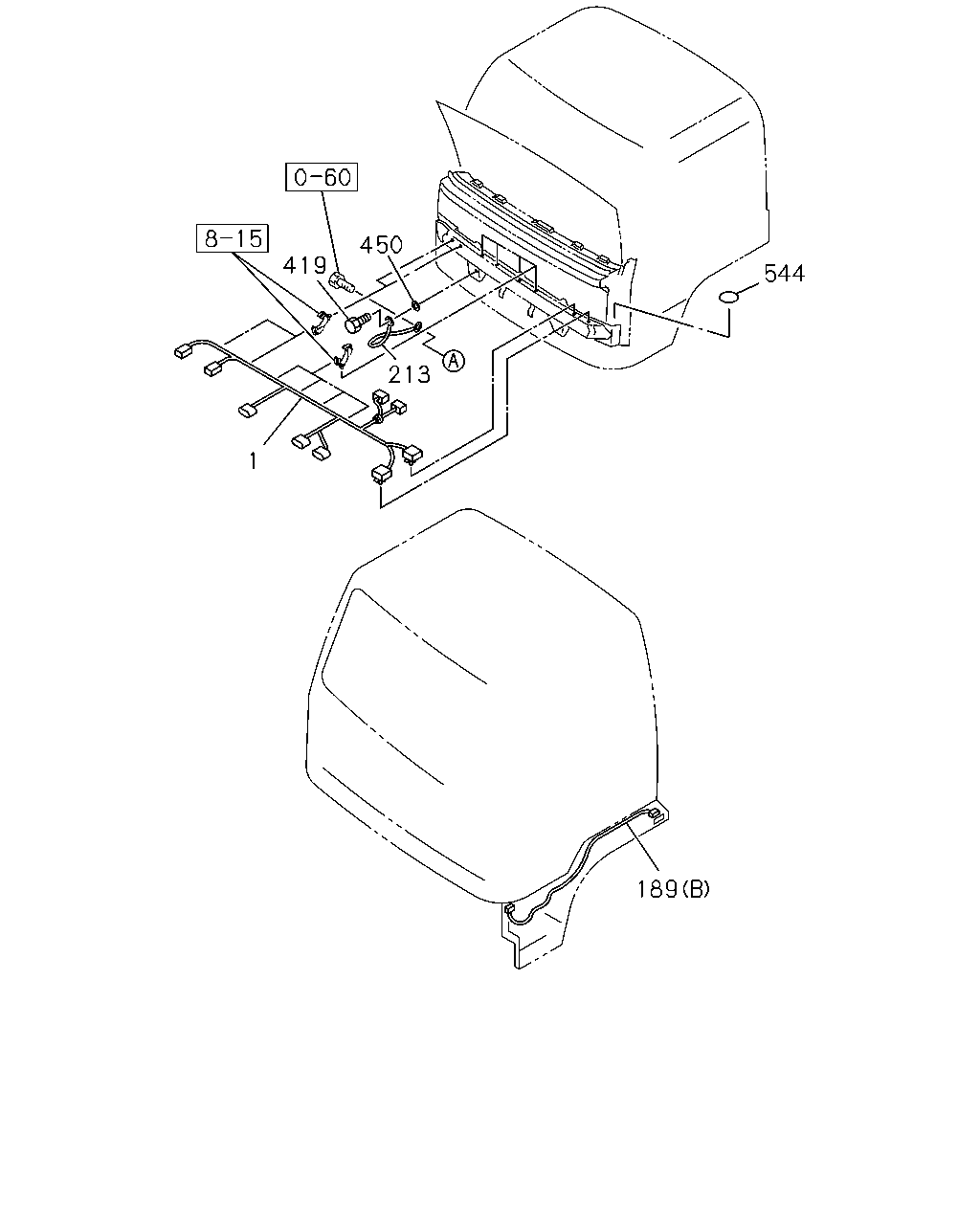

çizim 103397
450 419 544 213 1 189
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB 1-82626-365-0 01 1 0005-0210 ● ● ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0211- ● ● ● ●
189 HARNESS; EXT
MAP LAMP<C85> (A) 		1-82662-384-1 01 1 0406- ● ●
189 HARNESS; EXT
(B) 		1-82625-673-2 02 1 0005-0210 ●
189 HARNESS; EXT
(A) 		1-82625-774-0 01 1 0005-0405 ● ●
189 HARNESS; EXT
EXC. MAP LAMP<C85> (A) 		1-82625-774-0 01 1 0406- ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0005- ● ● ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0204 ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0204 ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0205-1201 ● ● ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ● ● ●

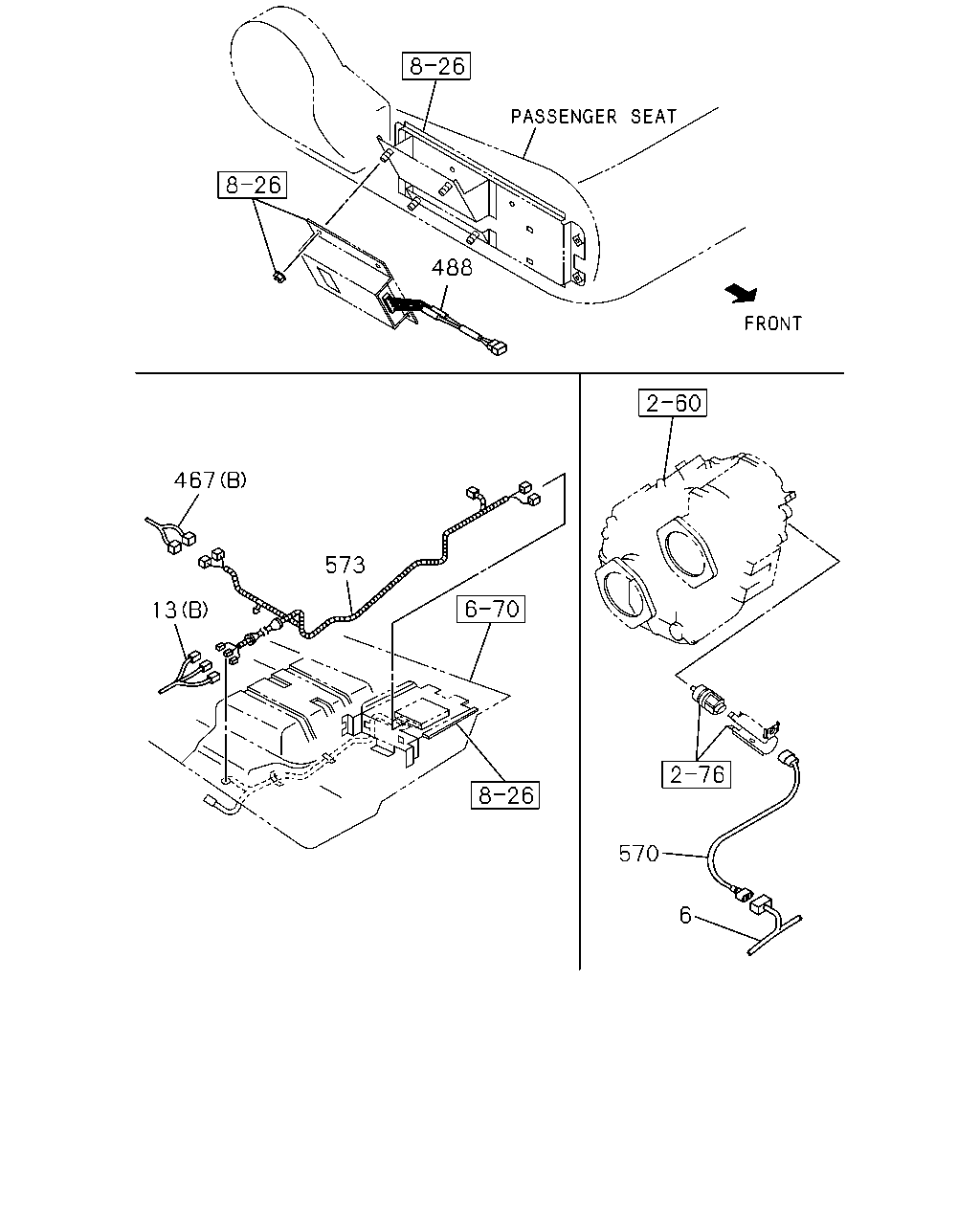

çizim 103533
488 467 573 13 570 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME 1-82673-252-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-037-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-429-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-253-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-038-2 01 1 0211-0401 ●
6 HARNESS; FRAME 1-82677-430-0 01 1 0402- ●
6 HARNESS; FRAME 1-82673-259-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-039-1 01 1 0211- ●
6 HARNESS; FRAME 1-82673-260-3 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-040-1 01 1 0211- ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 0005-0009 ● ● ● ●
13 HARNESS; ENG
(A) 		1-82641-165-0 01 1 0010-0210 ● ● ● ●
13 HARNESS; ENG
(A) 		1-82641-277-1 01 1 0211- ● ● ● ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0211- ● ● ● ●
467 HARNESS; FACIA
(A) 		1-82627-153-3 01 1 0005-0210 ● ● ● ●
467 HARNESS; FACIA
(A) 		1-82628-708-2 01 1 0211- ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> (B) 		1-82629-380-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-380-3 01 1 0211- ●
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) 		1-82629-379-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-381-3 01 1 0211- ●
467 HARNESS; FACIA
(B) 		1-82629-381-3 01 1 0005-0210 ● ●
467 HARNESS; FACIA
(B) 		1-82661-382-3 01 1 0211- ●
467 HARNESS; FACIA
(A) 		1-82660-761-0 01 1 0211- ● ●
467 HARNESS; FACIA
(B) 		1-82661-388-3 01 1 0211- ●
488 HARNESS; EXT,CONVERTER
W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-0603 ● ● ● ●
488 HARNESS; EXT,CONVERTER 1-82662-883-0 01 1 0604- ● ● ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0005-0206 ● ● ● ●
570 HARNESS; SPEED SENSOR 1-82676-547-0 01 1 0207-0210 ● ● ● ●
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0211-0401 ● ●
573 HARNESS; CONTROL UNIT 1-82661-390-2 01 1 0211- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
