10831 - FSS/FTS(AUSTRALIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#8228) — 47 parça
Tümü
A - FSS5MF
B - FSS5WF
C - FTS5MF
D - FTS5WF
◀

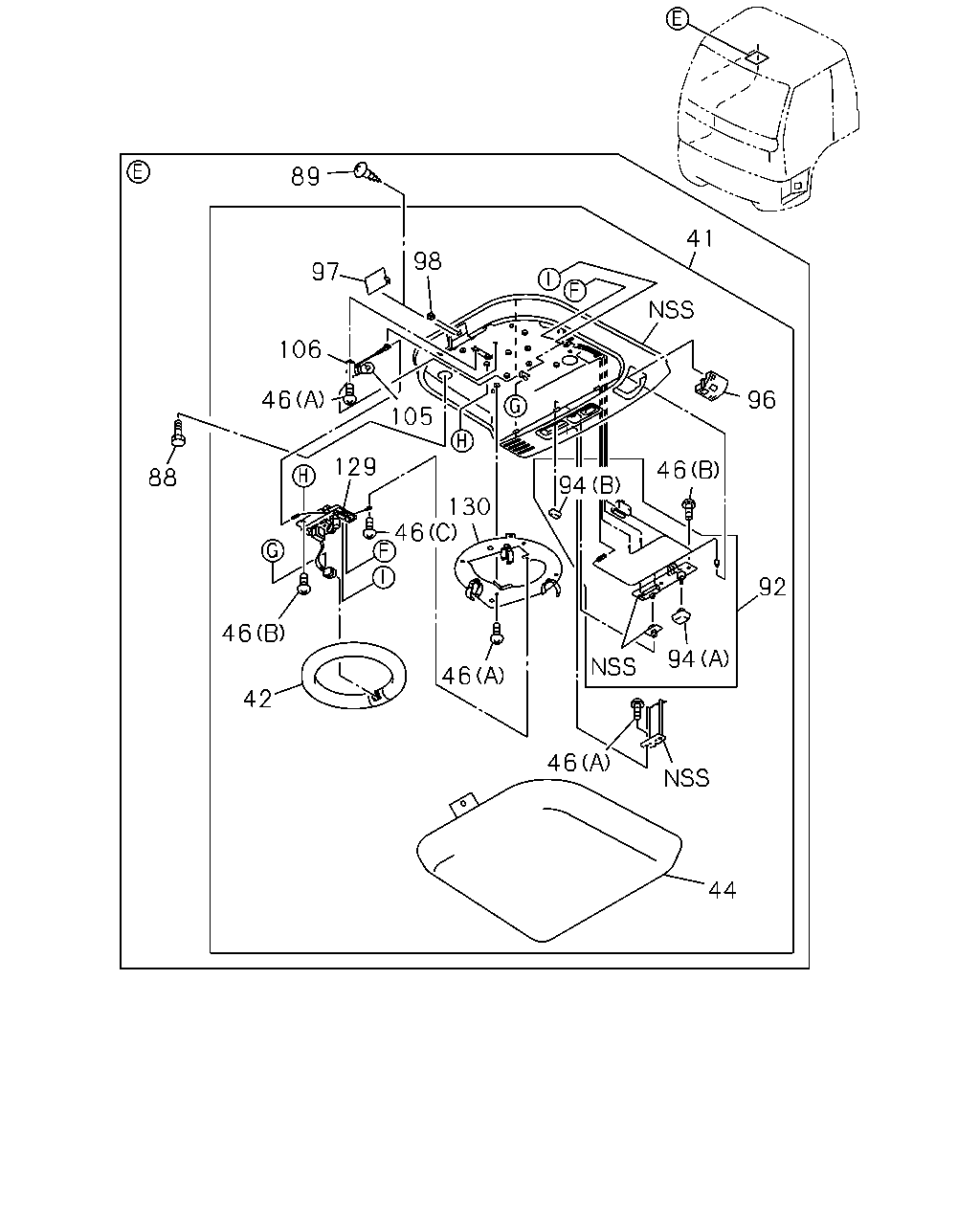

[805A] MAP LAMP (19 parça)
[805A] COMPONENT (28 parça)
▶
89
41
98
97
106
46
96
105
129
46
88
94
130
46
92
46
94
46
42
46
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
41
LAMP ASM; FLUORESCENT
MAP LAMP<C85>
1-86830-315-2
01
1
0406-
●
●
●
●
42
LAMP; FLUORESCENT
MAP LAMP<C85>
1-86830-094-1
01
1
0406-
●
●
●
●
44
LENS; FLUORESCENT LAMP
MAP LAMP<C85>
1-86830-092-0
01
1
0406-
●
●
●
●
46
SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING
1-86830-095-0
08
1
0406-
●
●
●
●
46
SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12
1-86830-202-0
07
1
0406-
●
●
●
●
46
SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING
1-86830-336-0
01
1
0406-
●
●
●
●
88
BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0406-
●
●
●
●
89
SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING
9-07076-510-0
01
1
0406-0603
●
●
●
●
89
SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING
0-71240-510-0
01
1
0604-
●
●
●
●
92
SWITCH ASM; FLUORESCENT
MAP LAMP<C85>
1-86830-306-0
01
1
0406-
●
●
●
●
94
KNOB; ROOM LAMP SW
MAP LAMP<C85> (A)
1-86830-312-0
01
1
0406-
●
●
●
●
94
KNOB; ROOM LAMP SW
MAP LAMP<C85> (B)
1-86830-313-0
01
1
0406-
●
●
●
●
96
CAP; SPOT LAMP
MAP LAMP<C85>
1-86830-385-0
01
1
0406-
●
●
●
●
97
CAP; LENS FIX
MAP LAMP<C85>
1-86830-311-0
01
1
0406-
●
●
●
●
98
GROMMET; SCREW,LENS FIX
MAP LAMP<C85>
1-86830-102-0
01
1
0406-
●
●
●
●
105
BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W
1-86830-200-0
01
1
0406-
●
●
●
●
106
SOCKET; BULB
MAP LAMP<C85>
1-86830-201-0
01
1
0406-
●
●
●
●
129
INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85>
1-86830-338-0
01
1
0406-
●
●
●
●
130
PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85>
1-86830-339-0
01
1
0406-
●
●
●
●
2
2
38
4
3
34
35
45
90
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
LAMP ASM; ROOM
1-82140-050-1
01
1
0005-0408
●
●
●
●
1
LAMP ASM; ROOM
1-82140-050-1
01
1
0005-0408
●
●
1
LAMP ASM; ROOM
EXC. MAP LAMP<C85>
1-82140-050-1
01
1
0409-
●
●
●
●
1
LAMP ASM; ROOM
1-82140-050-1
01
1
0409-
●
●
2
BULB; ROOM LAMP
24V 10W
1-82195-001-0
02
1
0005-0408
●
●
●
●
2
BULB; ROOM LAMP
24V 10W
1-82195-001-0
02
1
0005-0408
●
●
2
BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W
1-82195-001-0
02
1
0409-
●
●
●
●
2
BULB; ROOM LAMP
24V 10W
1-82195-001-0
02
1
0409-
●
●
3
LENS; ROOM LAMP
1-82145-020-0
01
1
0005-0408
●
●
●
●
3
LENS; ROOM LAMP
1-82145-020-0
01
1
0005-0408
●
●
3
LENS; ROOM LAMP
EXC. MAP LAMP<C85>
1-82145-020-0
01
1
0409-
●
●
●
●
3
LENS; ROOM LAMP
1-82145-020-0
01
1
0409-
●
●
4
SCREW; ROOM LAMP
M5X20 TAPPING
9-07066-520-0
03
1
0005-0603
●
●
●
●
4
SCREW; ROOM LAMP
M5X20 TAPPING
9-07066-520-0
03
1
0005-0603
●
●
4
SCREW; ROOM LAMP
M5X20 TAPPING
0-71040-520-0
03
1
0604-
●
●
●
●
4
SCREW; ROOM LAMP
M5X20 TAPPING
0-71040-520-0
03
1
0604-
●
●
34
COVER; STEP LAMP
1-79998-925-0
02
1
0005-
●
●
●
●
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74310-420-0
04
1
0005-0604
●
●
●
●
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74360-420-0
04
1
0605-
●
●
●
●
38
COVER; STEP LAMP,DOOR
1-74997-029-2
01
1
0005-
●
●
●
●
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74100-516-0
04
1
0005-0210
●
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74100-516-0
04
1
0211-0404
●
●
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74100-516-0
04
1
0405-0604
●
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74160-516-0
04
1
0605-
●
90
BASE; LAMP
1-79998-977-1
01
1
0211-0404
●
90
BASE; LAMP
1-79998-976-1
01
1
0211-0404
●
90
BASE; LAMP
1-79996-316-2
01
1
0005-
●
90
BASE; LAMP
1-79996-315-2
01
1
0005-
●
