8-01 — LAMP; FRONT AND FRONT SIDE (#8226) — 158 parça

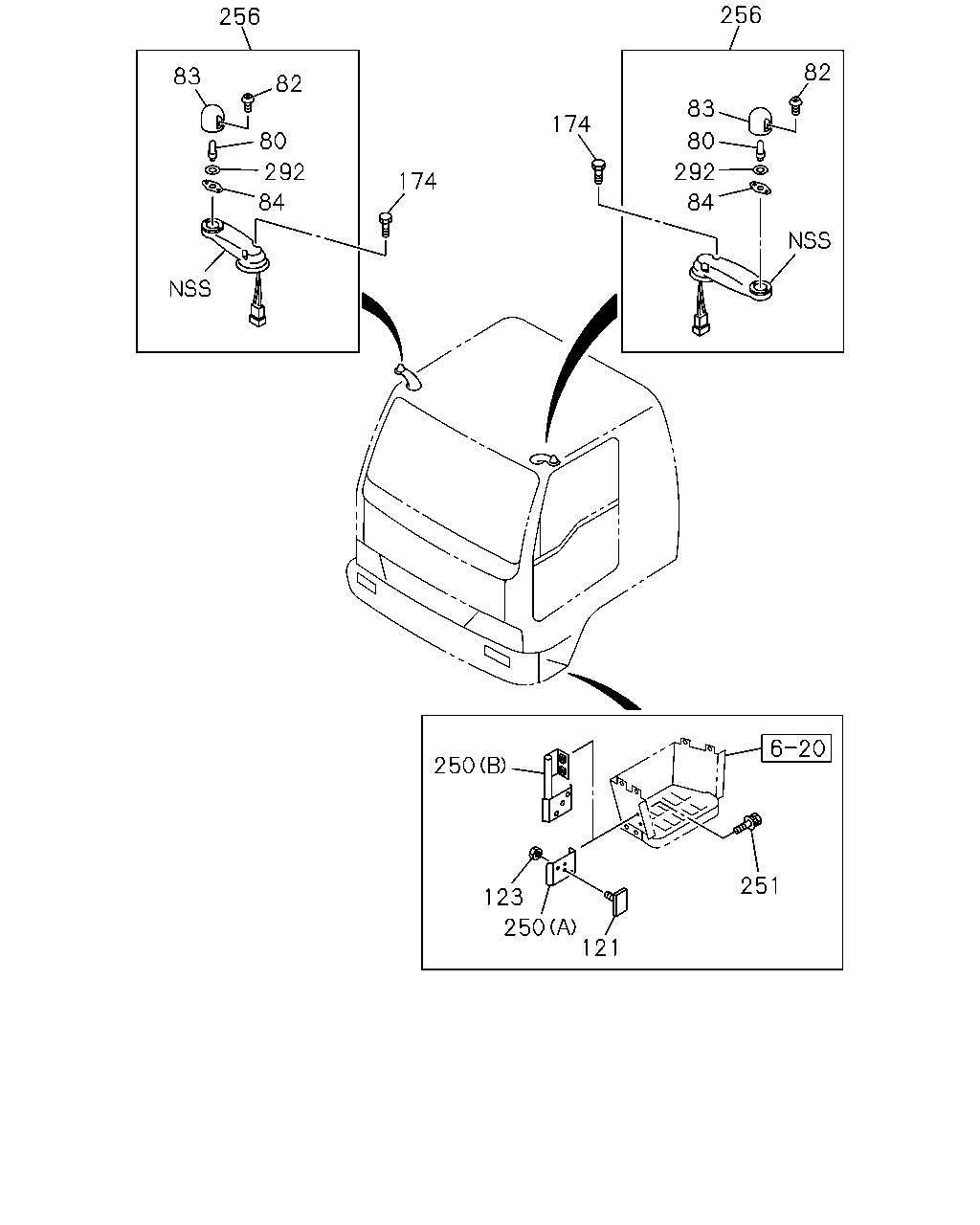

çizim 78723
256 256 82 83 82 83 174 80 80 292 292 174 84 84 250 251 123 250 121
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0211- ● ● ● ●
80 BULB; MARKER LAMP
12V 5W 		1-82194-053-0 02 1 0005-0210 ● ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0005- ● ● ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0005- ● ● ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 0005- ● ● ● ●
121 REFLECTOR; REFLEX 1-82290-061-0 02 1 0005- ● ● ● ●
123 NUT; REFLECTOR
M6 		9-09110-406-0 02 1 0005-0512 ● ● ● ●
123 NUT; REFLECTOR
M6 		0-91110-506-0 02 1 0601- ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0906 ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ● ● ● ●
250 BRACKET ASM
(A) 		1-71996-139-1 02 1 0005-0210 ● ● ●
250 BRACKET ASM
(B) 		1-71996-313-0 01 1 0211- ● ● ● ●
250 BRACKET ASM
(A) 		1-71996-161-0 01 1 0005-0210 ●
250 BRACKET ASM
(A) 		1-71996-160-0 01 1 0005-0210 ●
250 BRACKET ASM
(B) 		1-71996-314-0 01 1 0211- ● ● ● ●
251 SCREW; BRKT FIX
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0005- ● ● ● ●
256 LAMP; MARKER 1-86830-293-0 01 1 0005- ● ● ● ●
256 LAMP; MARKER 1-86830-292-0 01 1 0005- ● ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0005- ● ● ● ●

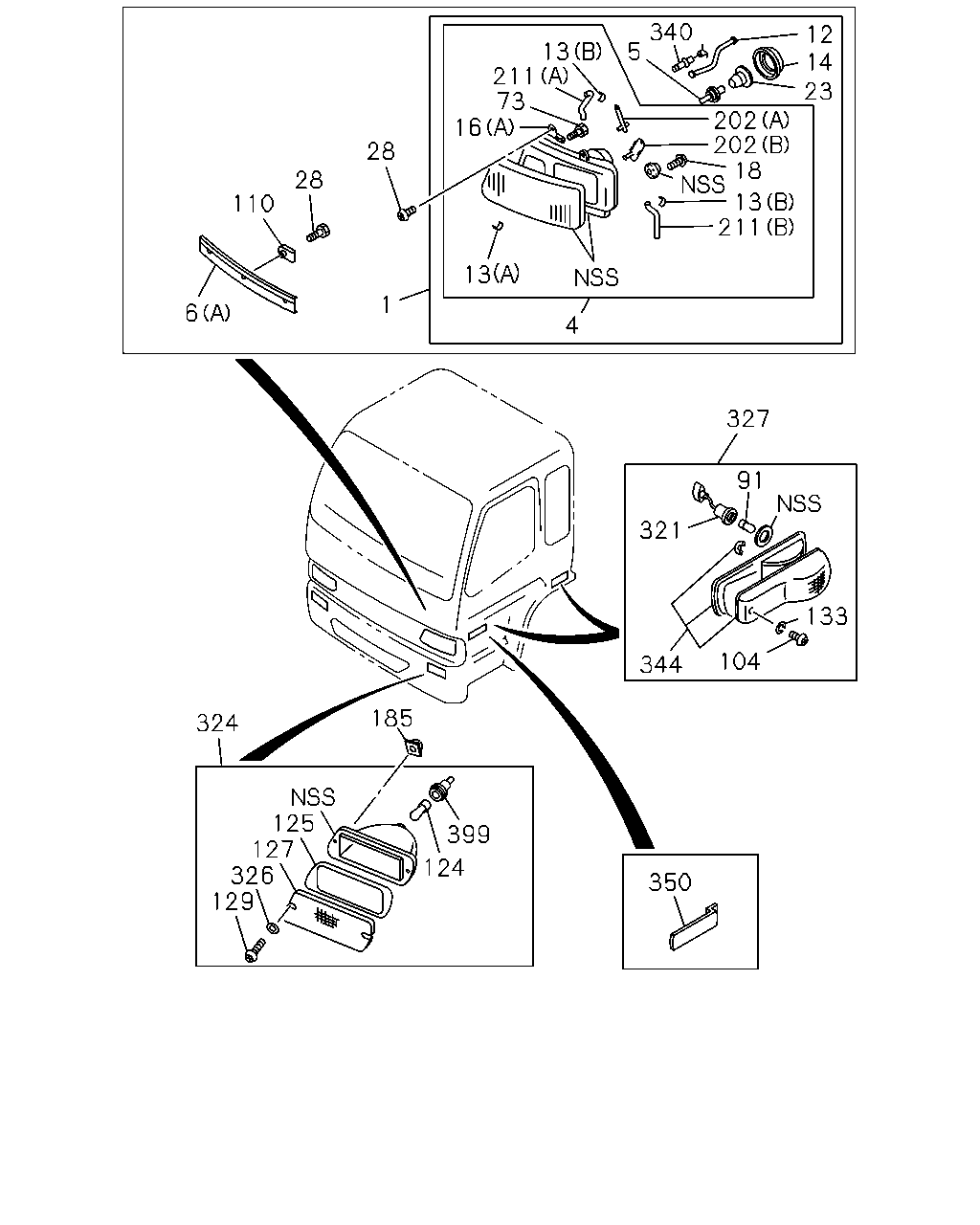

çizim 103398
340 5 12 14 23 13 211 73 16 202 202 18 28 28 13 211 110 13 1 6 4 327 91 321 133 104 344 185 324 125 127 326 129 399 124 350
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD 1-86830-122-4 01 1 0005-0210 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0211-0712 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ● ● ● ●
1 LAMP ASM; HEAD 1-86830-121-4 01 1 0005-0210 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0211-0712 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ● ● ● ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0211- ● ● ● ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0211- ● ● ● ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 0005-0210 ● ● ● ●
4 HEADLAMP UNIT
INNER TYPE 1 24V 70W 		1-82191-032-0 02 1 0211- ● ● ● ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 0005-0210 ● ● ● ●
4 HEADLAMP UNIT
OUTER TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0211- ● ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0005-0210 ● ● ● ●
5 BULB; HEADLAMP
OUTER 24V 75/70W 		1-82193-006-0 02 1 0211- ● ● ● ●
5 BULB; HEADLAMP
INNER 24V 70W 		1-82193-007-0 02 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(A) 		1-86830-006-5 01 1 0005-0210 ● ● ● ●
6 RIM; HEADLAMP
(A) 		1-86830-005-5 01 1 0005-0210 ● ● ● ●
6 RIM; HEADLAMP
(B) OUTER 		1-82114-019-0 02 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(B) INNER 		1-82114-018-0 02 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(C) 		1-82117-078-0 01 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(C) 		1-82117-079-0 01 1 0211- ● ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0005-0210 ● ● ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0005-0210 ● ● ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0005-0210 ● ● ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0005-0210 ● ● ● ●
16 BRACKET; HEADLAMP
(A) 		1-86830-076-0 01 1 0005-0210 ● ● ● ●
16 BRACKET; HEADLAMP
(C) 		1-82117-106-3 01 1 0211- ● ● ● ●
16 BRACKET; HEADLAMP
(A) 		1-86830-075-0 01 1 0005-0210 ● ● ● ●
16 BRACKET; HEADLAMP
(B) 		1-82117-103-1 04 1 0211- ● ● ● ●
16 BRACKET; HEADLAMP
(C) 		1-82117-107-3 01 1 0211- ● ● ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0005-0210 ● ● ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0005-0210 ● ● ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0210 ● ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0210 ● ● ● ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28681-025-0 08 1 0211-0512 ● ● ● ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0005- ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005- ● ● ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0005-0210 ● ● ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0005-0210 ● ● ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0005-0210 ● ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0005-0210 ● ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0005-0210 ● ● ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0005-0210 ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ● ● ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0210 ● ● ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0211-0211 ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0005-0210 ● ● ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0005-0210 ● ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0005-0105 ● ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0005-0210 ● ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0005-0105 ● ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0005-0210 ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005- ● ● ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0005-0210 ● ● ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0005-0210 ● ● ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0005-0210 ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-1 01 1 0005- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-1 01 1 0005- ● ● ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0005-0210 ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005- ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005- ● ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 0005-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0210 ●
350 COVER; SIDE TURN HOLE 1-79996-617-0 01 1 0211- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 0005-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0210 ●
350 COVER; SIDE TURN HOLE 1-79996-616-0 01 1 0211- ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0005-0210 ● ● ● ●

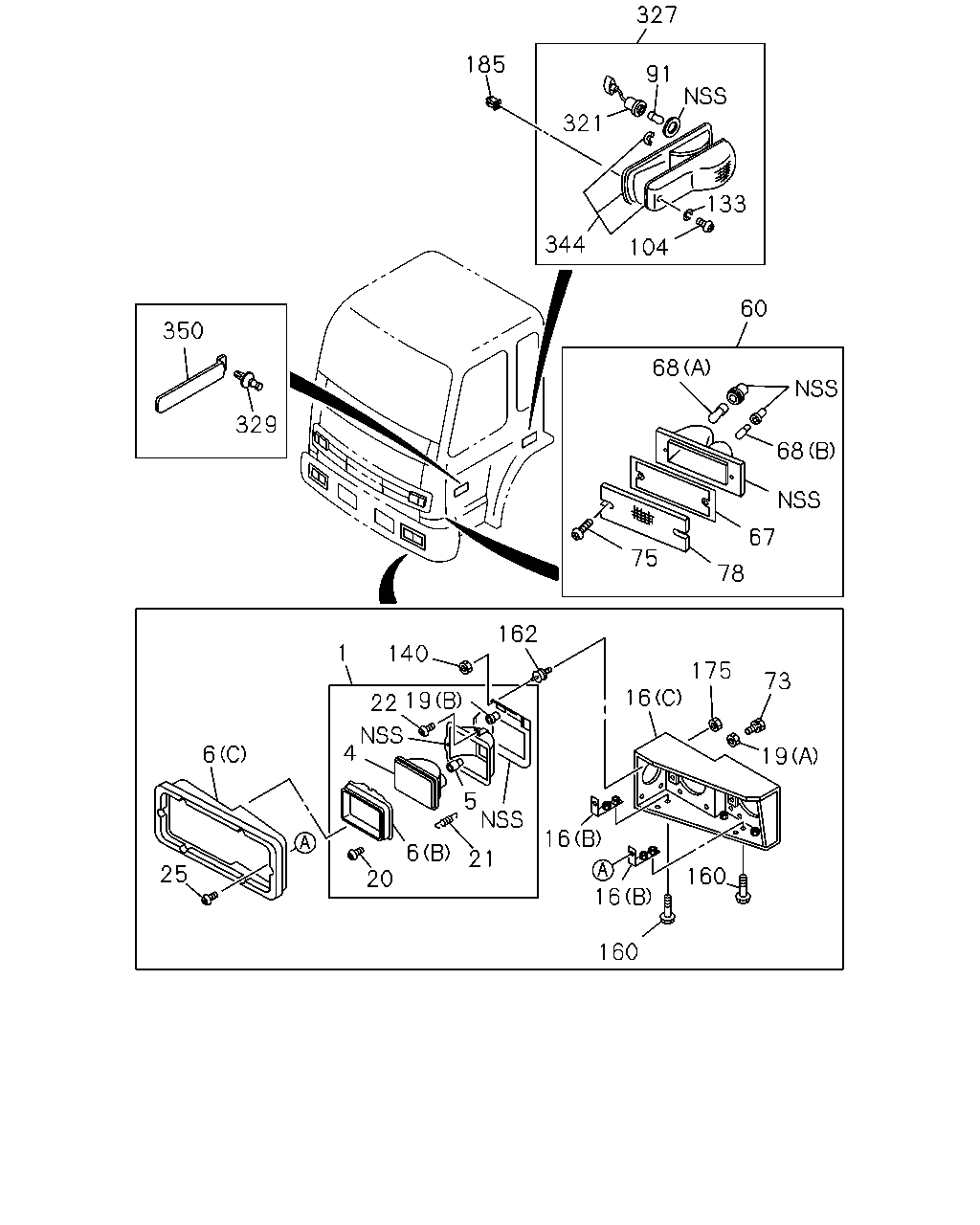

çizim 103436
327 185 91 321 133 344 104 60 350 68 329 68 67 75 78 162 1 140 175 73 16 22 19 4 6 19 5 16 6 21 16 25 160 20 160
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD 1-86830-122-4 01 1 0005-0210 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0211-0712 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ● ● ● ●
1 LAMP ASM; HEAD 1-86830-121-4 01 1 0005-0210 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0211-0712 ● ● ● ●
1 LAMP ASM; HEAD
INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ● ● ● ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0211- ● ● ● ●
1 LAMP ASM; HEAD
OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0211- ● ● ● ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 0005-0210 ● ● ● ●
4 HEADLAMP UNIT
INNER TYPE 1 24V 70W 		1-82191-032-0 02 1 0211- ● ● ● ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 0005-0210 ● ● ● ●
4 HEADLAMP UNIT
OUTER TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0211- ● ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0005-0210 ● ● ● ●
5 BULB; HEADLAMP
OUTER 24V 75/70W 		1-82193-006-0 02 1 0211- ● ● ● ●
5 BULB; HEADLAMP
INNER 24V 70W 		1-82193-007-0 02 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(A) 		1-86830-006-5 01 1 0005-0210 ● ● ● ●
6 RIM; HEADLAMP
(A) 		1-86830-005-5 01 1 0005-0210 ● ● ● ●
6 RIM; HEADLAMP
(B) OUTER 		1-82114-019-0 02 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(B) INNER 		1-82114-018-0 02 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(C) 		1-82117-078-0 01 1 0211- ● ● ● ●
6 RIM; HEADLAMP
(C) 		1-82117-079-0 01 1 0211- ● ● ● ●
16 BRACKET; HEADLAMP
(A) 		1-86830-076-0 01 1 0005-0210 ● ● ● ●
16 BRACKET; HEADLAMP
(C) 		1-82117-106-3 01 1 0211- ● ● ● ●
16 BRACKET; HEADLAMP
(A) 		1-86830-075-0 01 1 0005-0210 ● ● ● ●
16 BRACKET; HEADLAMP
(B) 		1-82117-103-1 04 1 0211- ● ● ● ●
16 BRACKET; HEADLAMP
(C) 		1-82117-107-3 01 1 0211- ● ● ● ●
19 NUT; HEADLAMP
(A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ● ● ●
19 NUT; HEADLAMP
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 0211- ● ● ● ●
20 SCREW; HEADLAMP 1-82119-023-0 16 1 0211- ● ● ● ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 0211- ● ● ● ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 0211- ● ● ● ●
25 SCREW; LAMP 1-09104-031-0 08 1 0211- ● ● ● ●
60 LAMP ASM; FRT COMB 1-86830-133-0 01 1 0211-0703 ● ● ● ●
60 LAMP ASM; FRT COMB 1-86830-422-0 01 1 0704- ● ● ● ●
60 LAMP ASM; FRT COMB 1-86830-132-0 01 1 0211-0703 ● ● ● ●
60 LAMP ASM; FRT COMB 1-86830-421-0 01 1 0704- ● ● ● ●
67 GASKET; FRT COMB LAMP 8-94149-259-0 02 1 0211- ● ● ● ●
68 BULB; FRT COMB LAMP
(B) 24V 5W 		1-82194-089-0 02 1 0211- ● ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-090-0 02 1 0211- ● ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0210 ● ● ● ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28681-025-0 08 1 0211-0512 ● ● ● ●
73 BOLT; BRKT,HEADLAMP
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ● ● ● ●
75 SCREW; FRT COMB LAMP 0-91190-435-0 04 1 0211- ● ● ● ●
78 LENS ASM; FRT COMB 8-94151-265-0 01 1 0211- ● ● ● ●
78 LENS ASM; FRT COMB 8-94151-264-0 01 1 0211- ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0005- ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005- ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0206 ● ● ● ●
140 NUT
M5 FLANGE 		1-09984-170-0 12 1 0211- ● ● ● ●
160 BOLT; BRKT TO FRAME
M8X16 FLANGE 		0-28080-816-0 08 1 0211-0512 ● ● ● ●
160 BOLT; BRKT TO FRAME
M8X16 FLANGE 		0-28050-816-0 08 1 0601- ● ● ● ●
162 RUBBER; CUSHION UPR 1-82117-304-1 16 1 0211-0403 ● ● ● ●
162 RUBBER; CUSHION UPR 1-82117-166-0 16 1 0404- ● ● ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0211-0602 ● ● ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0603- ● ● ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0210 ● ● ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0211-0211 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-1 01 1 0005- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-1 01 1 0005- ● ● ● ●
329 FASTENER; COVER 1-09987-245-1 02 1 0211- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0005- ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0005- ● ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 0005-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-0210 ●
350 COVER; SIDE TURN HOLE 1-79996-617-0 01 1 0211- ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 0005-0209 ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-0210 ●
350 COVER; SIDE TURN HOLE 1-79996-616-0 01 1 0211- ●
