7-70 — SEPARATER AND BED (#8225) — 132 parça

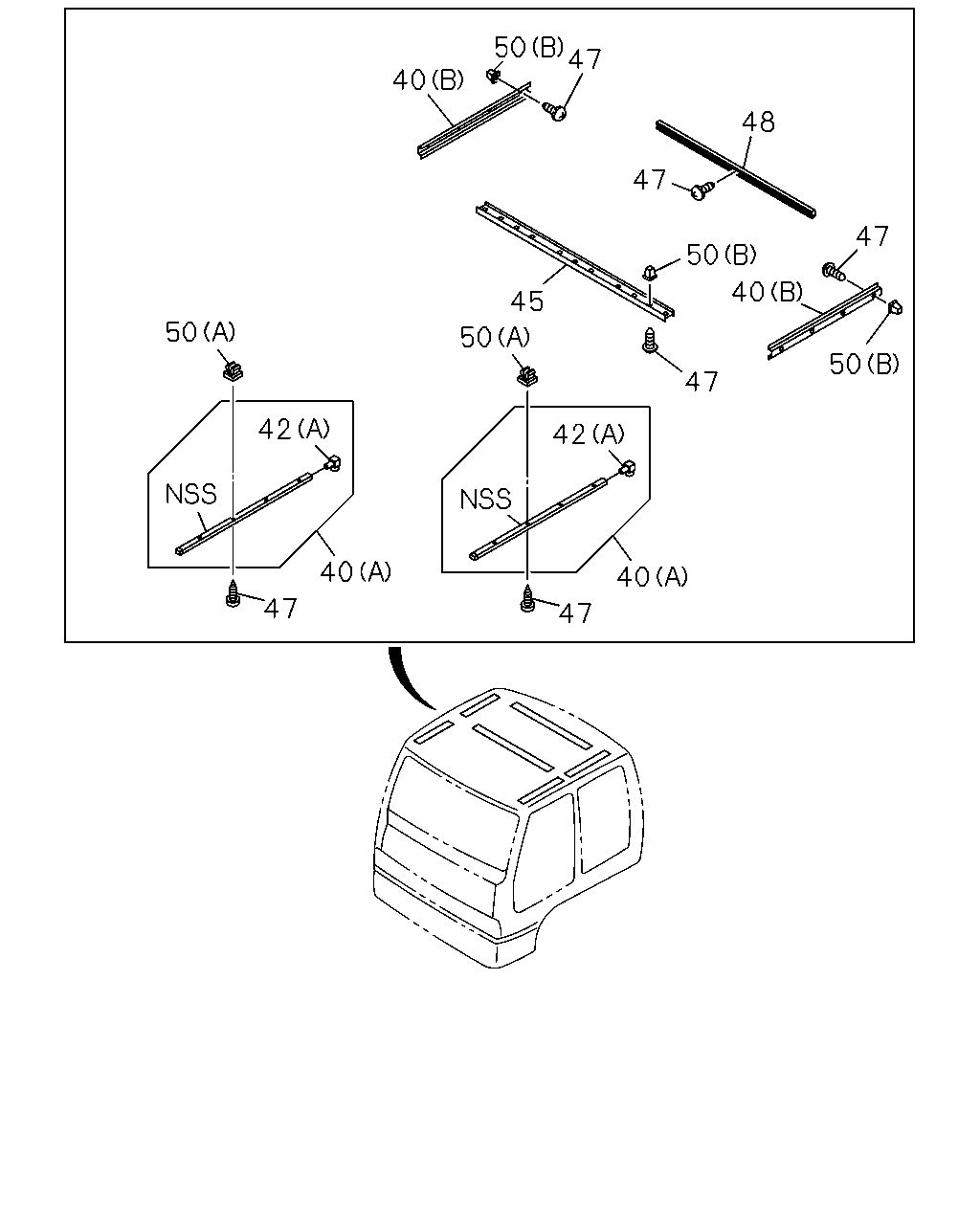

50 47 40 48 47 47 50 40 45 50 50 50 47 42 42 40 40 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (D)	1-73996-368-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (D)	1-73996-367-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-0	02	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-378-1	02	1	0211-	●	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-381-0	02	1	0005-			●	●
40	RAIL; CURTAIN,SIDE (B)	1-73996-448-1	01	1	0005-			●	●
40	RAIL; CURTAIN,SIDE (B)	1-73996-447-1	01	1	0005-			●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0211-	●	●	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0211-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0210			●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-370-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-369-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0211-	●	●
45	RAIL; CURTAIN,FRT	1-73996-387-1	01	1	0005-			●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0005-	●	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0005-	●	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	15	1	0005-			●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	13	1	0005-			●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-0	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-0	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0211-	●	●
48	RAIL; CURTAIN,BACK	1-73996-449-1	01	1	0005-			●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	04	1	0005-			●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-			●	●

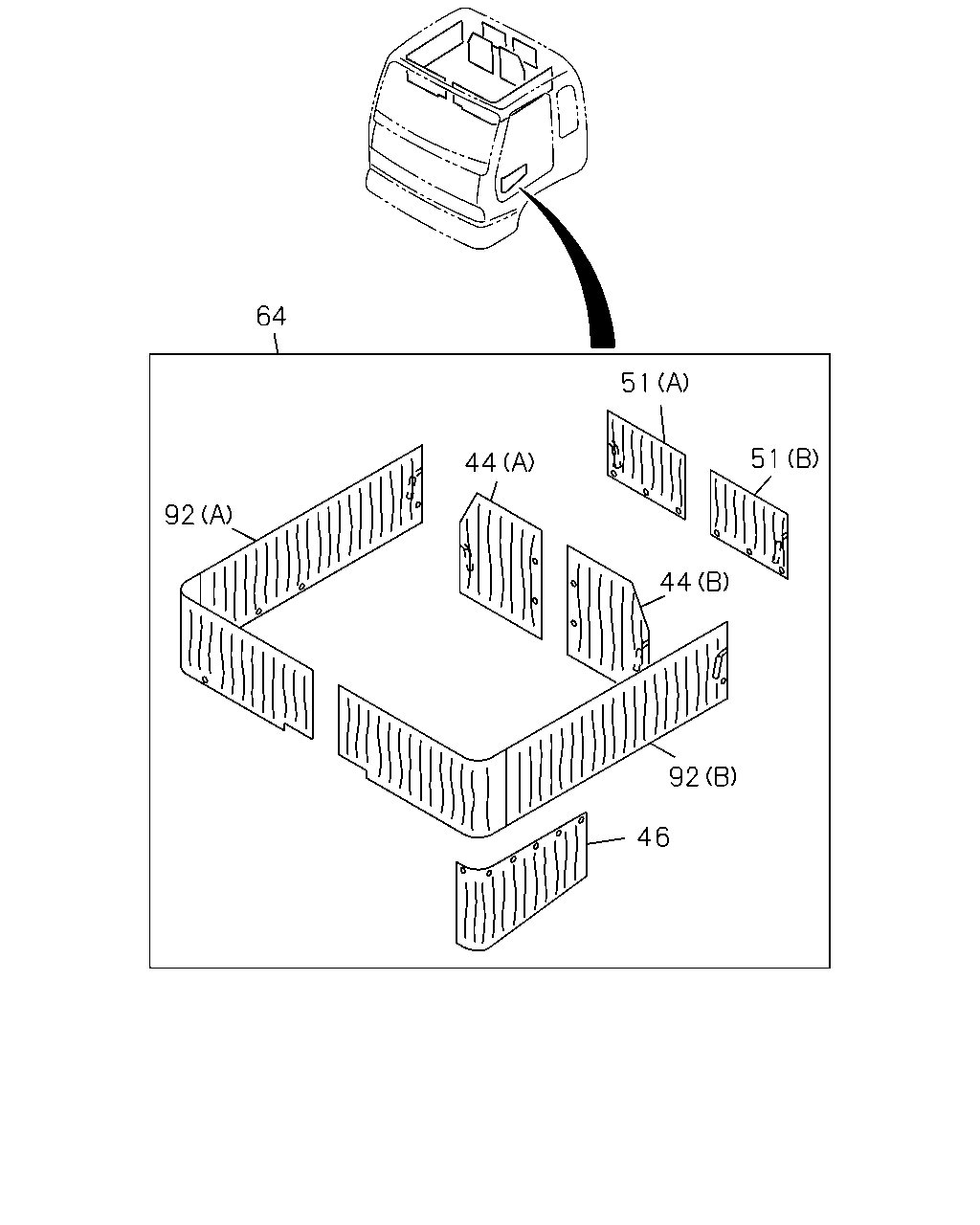

64 51 51 44 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-0	01	1	0005-0210	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-0	01	1	0005-0210	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	0005-0210	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73908-212-0	01	1	0005-0210	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73908-211-0	01	1	0005-0210	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-0	01	1	0005-0210	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73908-216-0	01	1	0005-0210	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73908-215-0	01	1	0005-0210	●	●

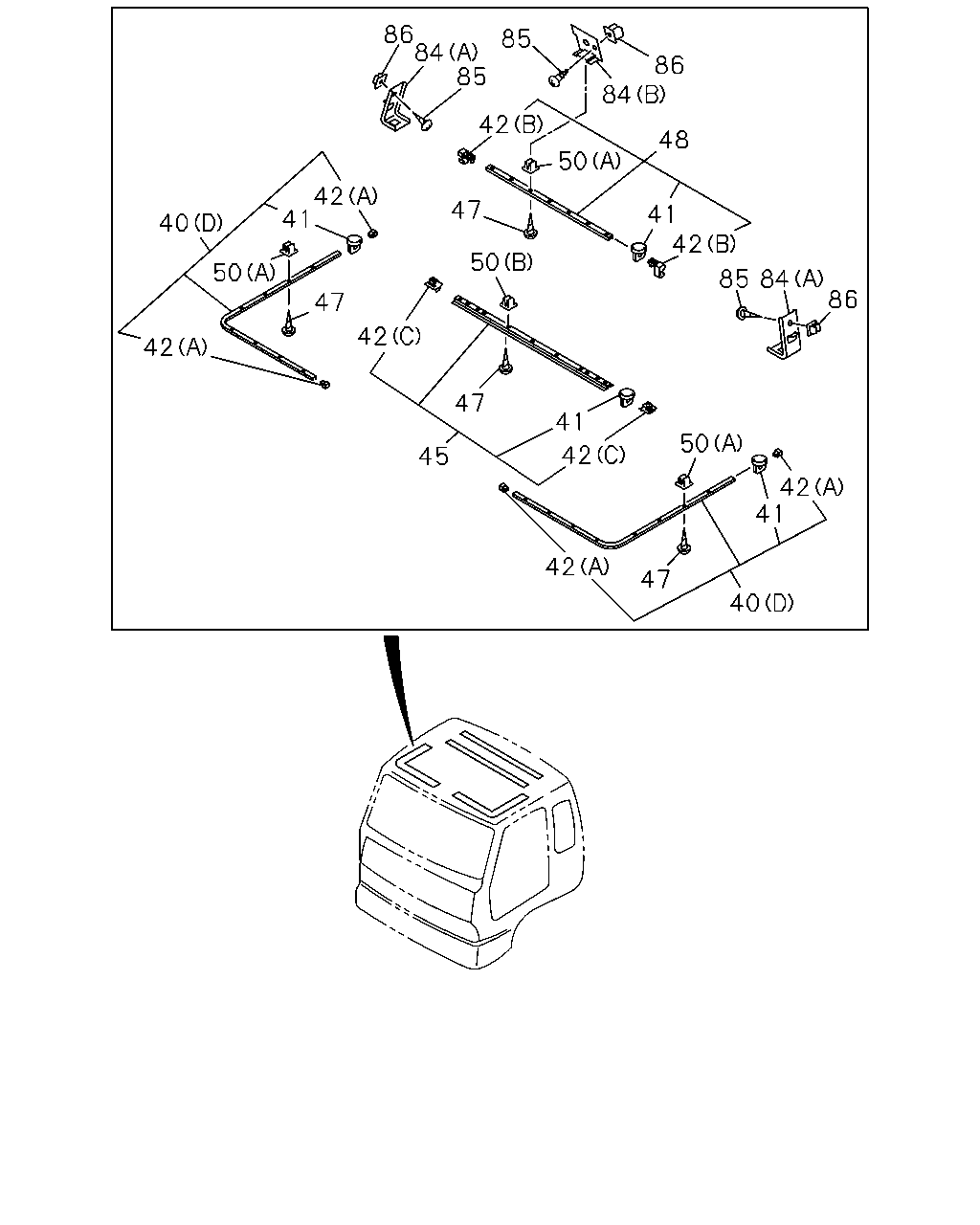

85 48 85 86 86 42 84 84 50 86 85 50 45 50 40 47 42 84 42 42 47 50 42 47 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (D)	1-73996-368-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (D)	1-73996-367-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-0	02	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-378-1	02	1	0211-	●	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-381-0	02	1	0005-			●	●
40	RAIL; CURTAIN,SIDE (B)	1-73996-448-1	01	1	0005-			●	●
40	RAIL; CURTAIN,SIDE (B)	1-73996-447-1	01	1	0005-			●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0211-	●	●	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0211-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0210			●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-370-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-369-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0211-	●	●
45	RAIL; CURTAIN,FRT	1-73996-387-1	01	1	0005-			●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0005-	●	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0005-	●	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	15	1	0005-			●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	13	1	0005-			●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-0	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-0	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0211-	●	●
48	RAIL; CURTAIN,BACK	1-73996-449-1	01	1	0005-			●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	04	1	0005-			●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-			●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0005-0210	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0211-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	03	1	0005-0210	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0005-0210	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0211-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	03	1	0005-0210	●	●

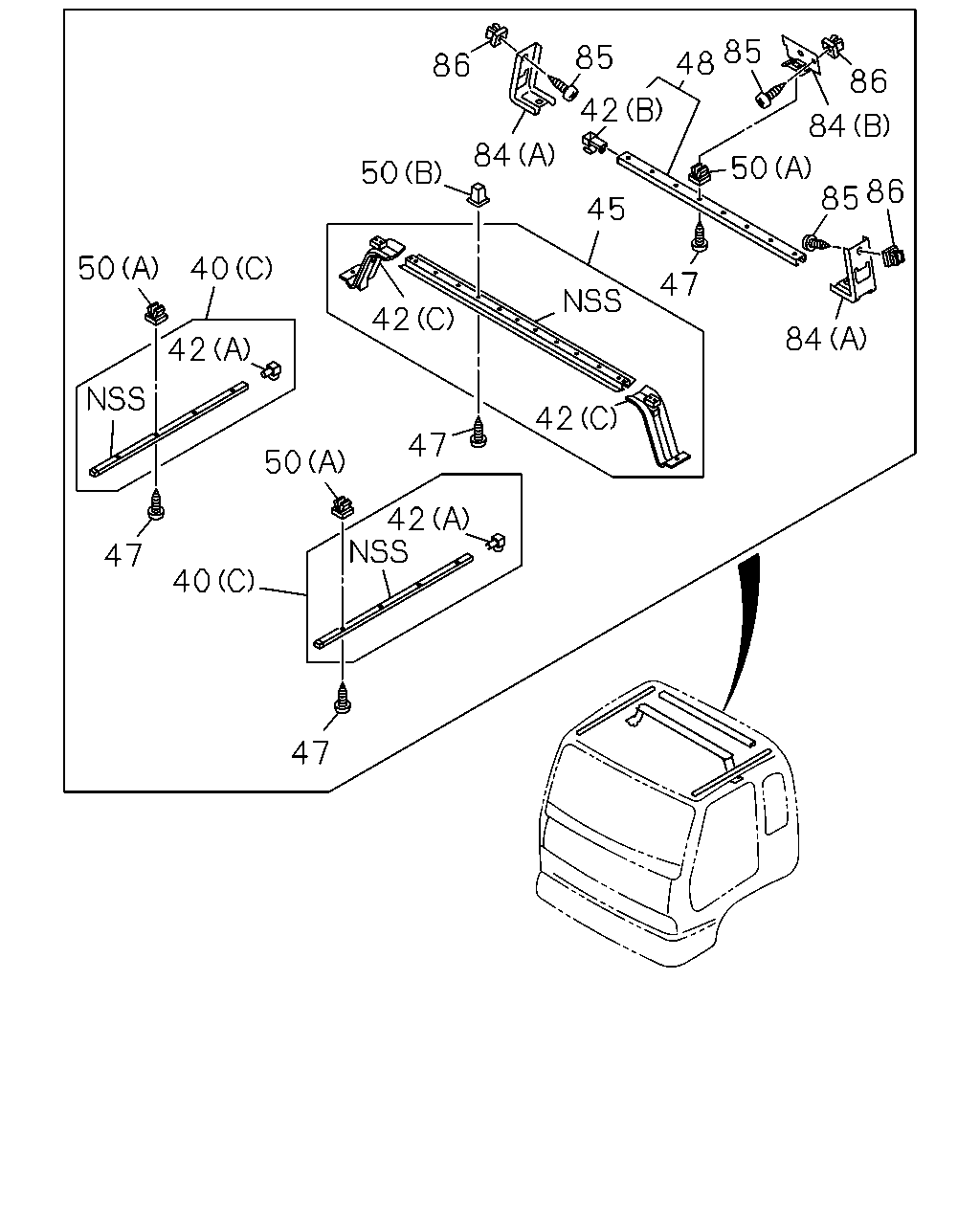

86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 50 47 85 84 86 42 42 47 41 50 42 45 42 41 42 47 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (D)	1-73996-368-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (D)	1-73996-367-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-0	02	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-378-1	02	1	0211-	●	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-381-0	02	1	0005-			●	●
40	RAIL; CURTAIN,SIDE (B)	1-73996-448-1	01	1	0005-			●	●
40	RAIL; CURTAIN,SIDE (B)	1-73996-447-1	01	1	0005-			●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	01	1	0005-0210	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	32	1	0005-0210	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0211-	●	●	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0211-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0210			●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-370-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-369-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0211-	●	●
45	RAIL; CURTAIN,FRT	1-73996-387-1	01	1	0005-			●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	19	1	0005-	●	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0005-	●	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	15	1	0005-			●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	13	1	0005-			●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-0	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-0	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0211-	●	●
48	RAIL; CURTAIN,BACK	1-73996-449-1	01	1	0005-			●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	04	1	0005-			●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-			●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0005-0210	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0211-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	03	1	0005-0210	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0005-0210	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0211-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	03	1	0005-0210	●	●
