7-55 — REAR SEAT (#8223) — 26 parça

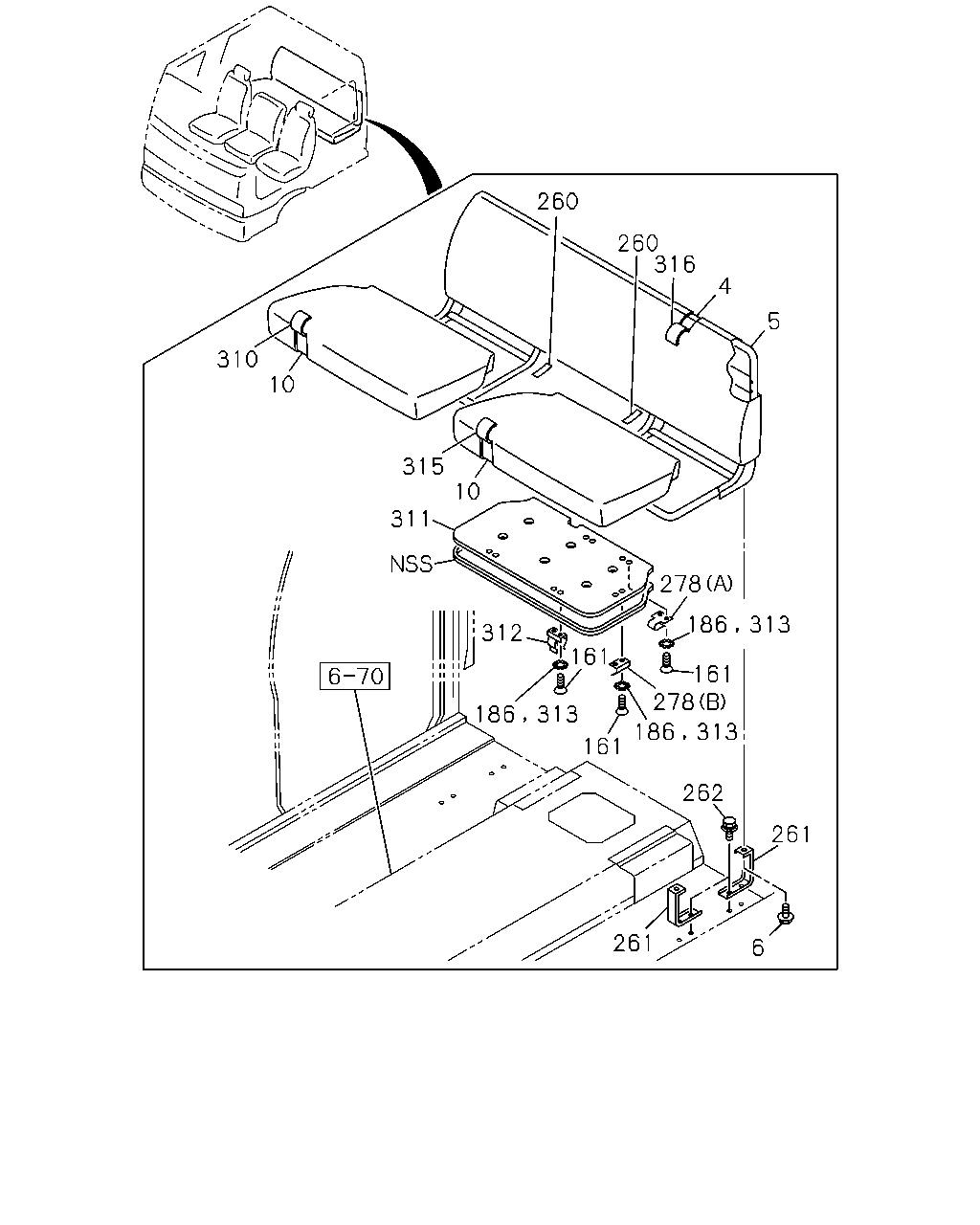

çizim 78658
260 260 316 4 5 310 10 315 10 311 278 312 161 161 278 161 262 261 261 6 186 313 186 313 186 313
BalonParca AdiParca NoAdetTipApplied Date A B
4 PAD; RR,SEAT BACK 1-75116-137-1 01 1 0005- ● ●
5 FRAME ASM; RR SEAT BACK 1-75148-193-2 01 1 0005- ● ●
6 BOLT; RR SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 0005-0703 ● ●
6 BOLT; RR SEAT
M8X20 FLANGE 		0-28450-820-0 08 1 0704- ● ●
10 PAD; CUSHION,RR SEAT 1-75116-135-1 02 1 0005- ● ●
161 SCREW; RR SEAT BRKT
M6X16 CK-HEAD 		9-03090-616-0 20 1 0005- ● ●
186 WASHER; LK,RR SEAT BRKT
ID=6.4 TOOTH LK COUNTERSUNK 		9-09152-706-0 10 1 0005- ● ●
260 FINISHER; RR SEAT
L=200 SERVICED BY L=880 		1-73948-003-0 02 1 0005- ● ●
261 STAND; RR SEAT 1-75558-285-2 04 1 0005- ● ●
262 BOLT; STAND TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 0005-0703 ● ●
262 BOLT; STAND TO FLOOR
M8X20 FLANGE 		0-28450-820-0 08 1 0704- ● ●
278 BRACKET; RR SEAT CUSHION
(A) 		9-61407-082-0 04 1 0005- ● ●
278 BRACKET; RR SEAT CUSHION
(B) 		9-61407-083-0 02 1 0005- ● ●
310 TRIM COVER ASM; RR SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-697-0 01 1 0005-0104 ● ●
310 TRIM COVER ASM; RR SEAT 1-75116-697-2 01 1 0105- ● ●
310 TRIM COVER ASM; RR SEAT
VINYL SEAT<A83> 		1-75116-656-0 01 1 0005-0104 ● ●
311 PAN ASM; SEAT CUSH,RR SEAT 1-75148-191-1 01 1 0005- ● ●
311 PAN ASM; SEAT CUSH,RR SEAT 1-75148-192-1 01 1 0005- ● ●
312 BRACKET; STOPPER,RR SEAT 8-94276-841-1 04 1 0005- ● ●
313 WASHER; LK,BRKT PAN
ID=6.4 TOOTH LK COUNTERSUNK 		9-09152-706-0 10 1 0005- ● ●
315 TRIM ASM; CUSH,RR SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-718-0 01 1 0005-0104 ● ●
315 TRIM ASM; CUSH,RR SEAT 1-75116-718-2 01 1 0105- ● ●
315 TRIM ASM; CUSH,RR SEAT
VINYL SEAT<A83> 		1-75116-719-0 01 1 0005-0104 ● ●
316 COVER ASM; TRIM,RR SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-698-0 01 1 0005-0104 ● ●
316 COVER ASM; TRIM,RR SEAT 1-75116-698-2 01 1 0105- ● ●
316 COVER ASM; TRIM,RR SEAT
VINYL SEAT<A83> 		1-75116-660-0 01 1 0005-0104 ● ●
