Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#8222) — 350 parça

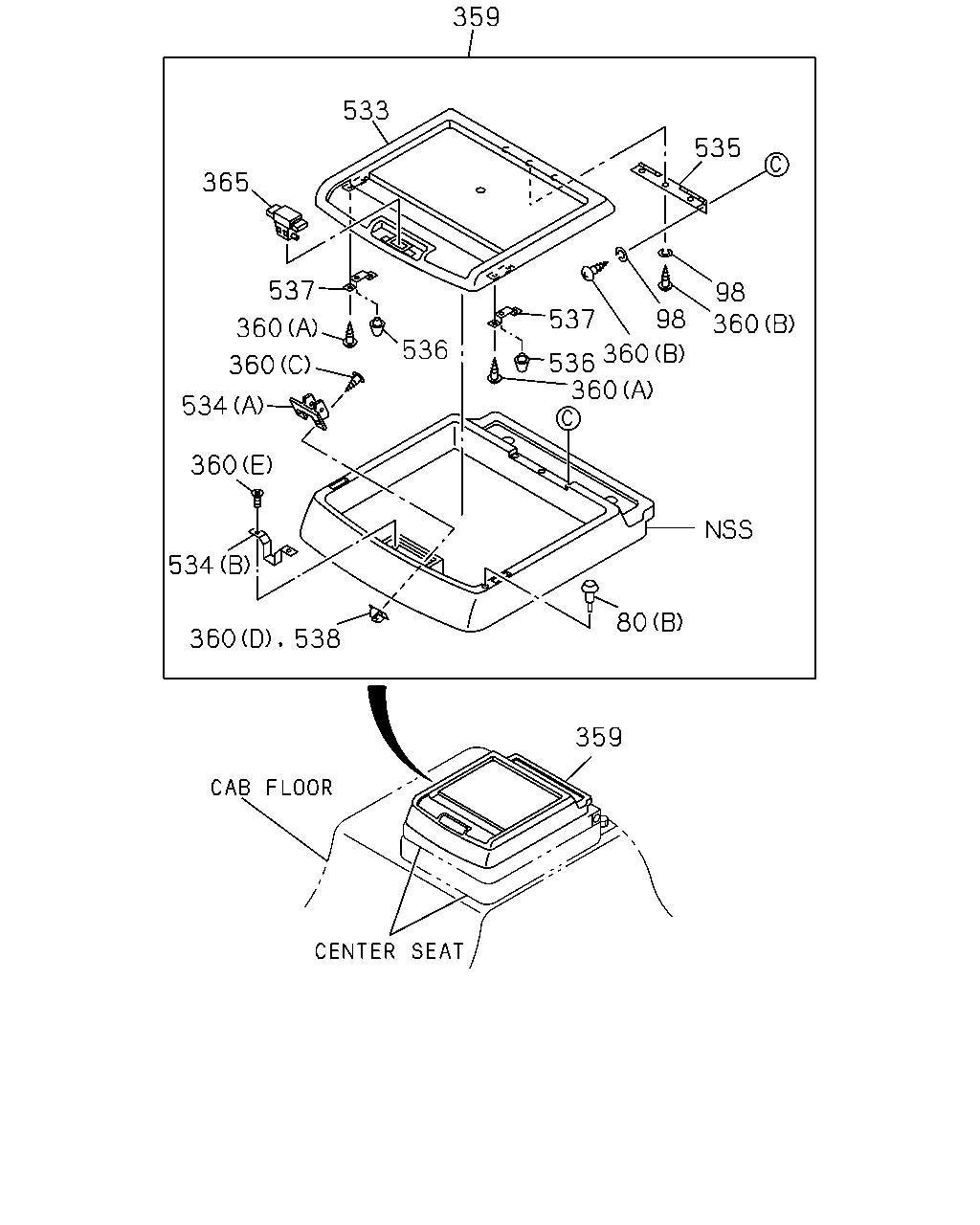

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-	●	●	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-062-0	02	1	0005-0104		●		●
98	WASHER; HINGE EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0005-0210	●		●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0005-0210		●		●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0211-	●	●	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-275-0	01	1	0005-0210	●		●
359	BOX; PARCEL	1-72538-275-0	01	1	0005-0210		●		●
359	BOX; PARCEL	1-72538-275-4	01	1	0211-1006	●	●	●	●
359	BOX; PARCEL	8-98145-114-0	01	1	1007-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0005-0210	●		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0005-0210		●		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0211-0612	●	●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●	●	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	0005-0210	●		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0005-0210		●		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0211-0612	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0210	●		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0210		●		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0211-1006	●	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D)	1-09983-165-0	02	1	0005-0210	●		●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0005-0210		●		●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0211-0310	●	●	●	●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-180-0	01	1	0005-0210	●		●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0005-0210		●		●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0211-	●	●	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-277-0	01	1	0005-0210	●		●
533	LID; PARCEL BOX	1-72538-277-0	01	1	0005-0210		●		●
533	LID; PARCEL BOX	1-72538-277-1	01	1	0211-1006	●	●	●	●
533	LID; PARCEL BOX	8-98145-118-0	01	1	1007-	●	●	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A)	1-72538-181-0	01	1	0005-0210	●		●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0005-0210		●		●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0211-1006	●	●	●	●
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1007-	●	●	●	●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72447-391-1	01	1	0005-0210	●		●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0005-0210		●		●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0211-	●	●	●	●
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9>	5-09983-002-1	02	1	0005-0210	●		●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0005-0210		●		●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0211-1006	●	●	●	●
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72548-057-1	02	1	0005-0210	●		●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0005-0210		●		●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0211-1006	●	●	●	●
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-1006	●	●	●	●

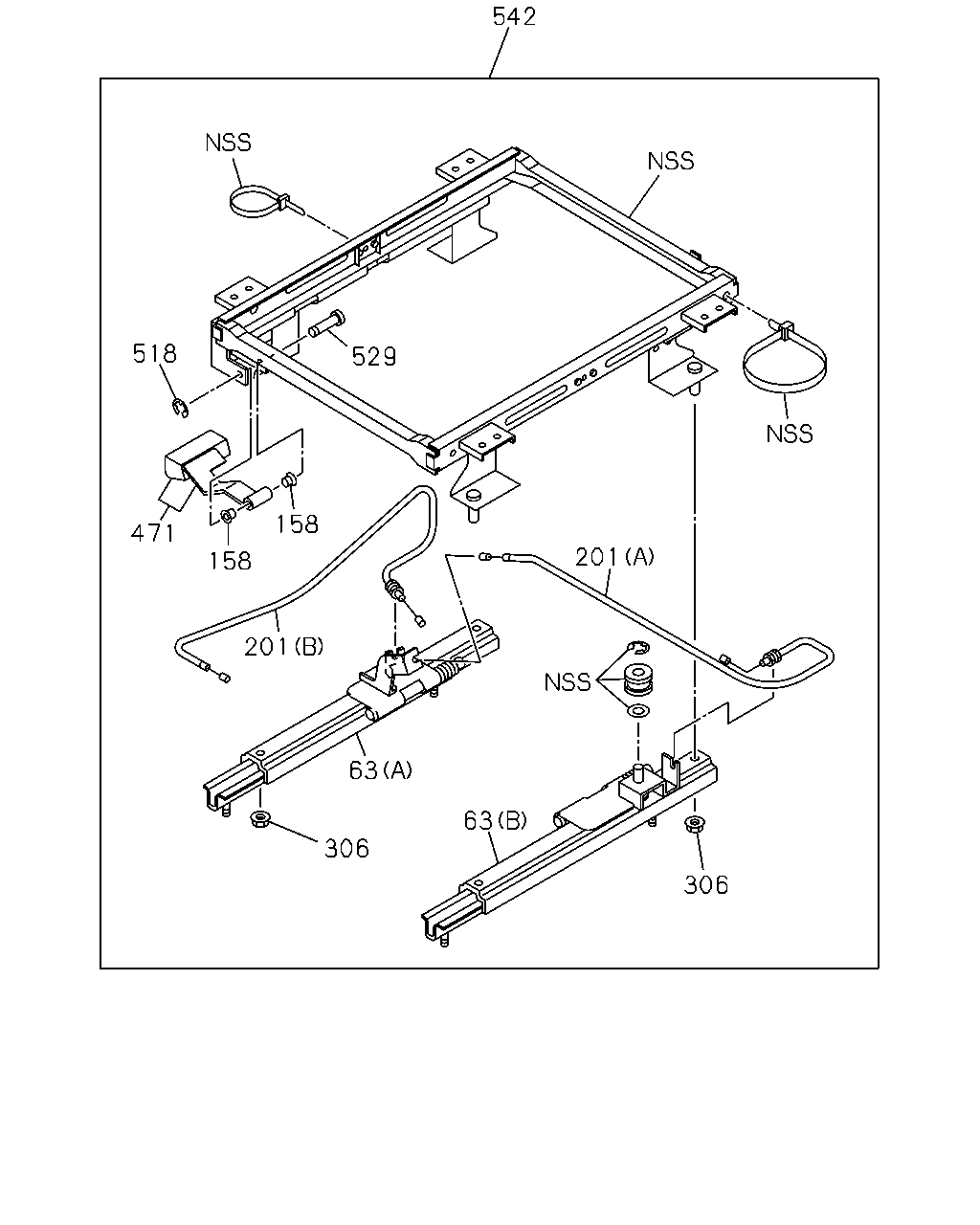

542 518 529 158 471 201 158 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
63	ADJUSTER; SEAT SLIDE (C)	1-75518-315-0	01	1	0005-0104	●		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	1-75518-315-0	01	1	0005-0104		●		●
63	ADJUSTER; SEAT SLIDE (C)	1-75518-315-0	01	1	0105-	●	●	●	●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-199-0	01	1	0005-0104		●		●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75518-294-1	01	1	0005-0104		●		●
158	BUSHING; LINK ARM SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-209-0	02	1	0005-0104		●		●
201	CABLE; ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) L=667	1-75518-288-0	01	1	0005-0104		●		●
201	CABLE; ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=605	1-75518-289-1	01	1	0005-0104		●		●
306	NUT; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	1-75538-207-0	04	1	0005-0104		●		●
471	LEVER; SEAT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-291-0	01	1	0005-0104		●		●
518	NUT; TILT ADJ SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-263-0	01	1	0005-0104		●		●
529	PIN; LINK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-262-0	01	1	0005-0104		●		●
542	ADJUSTER ASM; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-285-1	01	1	0005-0104		●		●

506 360 175 176 188 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	ADJUSTER ASM; RECLINING (B) DRIVER	1-75418-064-0	01	1	0005-0104	●		●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75418-064-0	01	1	0005-0104		●		●
16	ADJUSTER ASM; RECLINING (B) DRIVER	1-75418-064-0	01	1	0105-	●	●	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) CENTER	1-75418-062-0	01	1	0005-0210	●		●
16	ADJUSTER ASM; RECLINING (A) CENTER	1-75418-062-0	01	1	0005-0210		●		●
16	ADJUSTER ASM; RECLINING (A) CENTER	1-75418-062-1	01	1	0211-	●	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-857-0	01	1	0005-0104	●		●
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-857-0	01	1	0005-0104		●		●
175	BACK ASM; PASSENGER CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-857-0	01	1	0105-0210	●		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-857-0	01	1	0105-0210		●		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-857-4	01	1	0211-	●	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-854-0	01	1	0005-0104		●		●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83>	1-75026-855-0	01	1	0005-0104		●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-711-0	01	1	0005-0104	●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-711-0	01	1	0005-0104		●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-711-0	01	1	0105-0210	●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-711-0	01	1	0105-0210		●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-711-2	01	1	0211-	●	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-650-0	01	1	0005-0104		●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83>	1-75116-651-0	01	1	0005-0104		●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-694-0	01	1	0005-0104	●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-694-0	01	1	0005-0104		●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75116-694-0	01	1	0105-0210	●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-694-0	01	1	0105-0210		●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-694-2	01	1	0211-	●	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-637-0	01	1	0005-0104		●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83>	1-75116-696-0	01	1	0005-0104		●		●
182	CUSHION ASM; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-843-0	01	1	0005-0104	●		●
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-843-0	01	1	0005-0104		●		●
182	CUSHION ASM; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-75026-843-0	01	1	0105-0210	●		●
182	CUSHION ASM; CENTER SEAT	1-75026-843-0	01	1	0105-0210		●		●
182	CUSHION ASM; CENTER SEAT	1-75026-843-4	01	1	0211-	●	●	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-839-0	01	1	0005-0104		●		●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83>	1-75026-845-0	01	1	0005-0104		●		●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE	1-75198-053-0	04	1	0005-0210	●		●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0005-0210		●		●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0211-	●	●	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE 2 CREWS<SP9>	8-97854-900-0	01	1	0005-0210	●		●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0005-0210		●		●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0211-	●	●	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-275-0	01	1	0005-0210	●		●
359	BOX; PARCEL	1-72538-275-0	01	1	0005-0210		●		●
359	BOX; PARCEL	1-72538-275-4	01	1	0211-1006	●	●	●	●
359	BOX; PARCEL	8-98145-114-0	01	1	1007-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0005-0210	●		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0005-0210		●		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0211-0612	●	●	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●	●	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16	0-70080-416-0	06	1	0005-0210	●		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0005-0210		●		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0211-0612	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0210	●		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0210		●		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0211-1006	●	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D)	1-09983-165-0	02	1	0005-0210	●		●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0005-0210		●		●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0211-0310	●	●	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-518-0	04	1	0005-0210	●		●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0005-0210		●		●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0211-0312	●	●	●	●
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-0703	●	●	●	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0704-	●	●	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE 2 CREWS<SP9>	1-09983-180-0	04	1	0005-0210	●		●
506	CAP; PARCEL BOX	1-09983-180-0	04	1	0005-0210		●		●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0211-1006	●	●	●	●
506	CAP; PARCEL BOX	1-09983-180-3	02	1	1007-	●	●	●	●

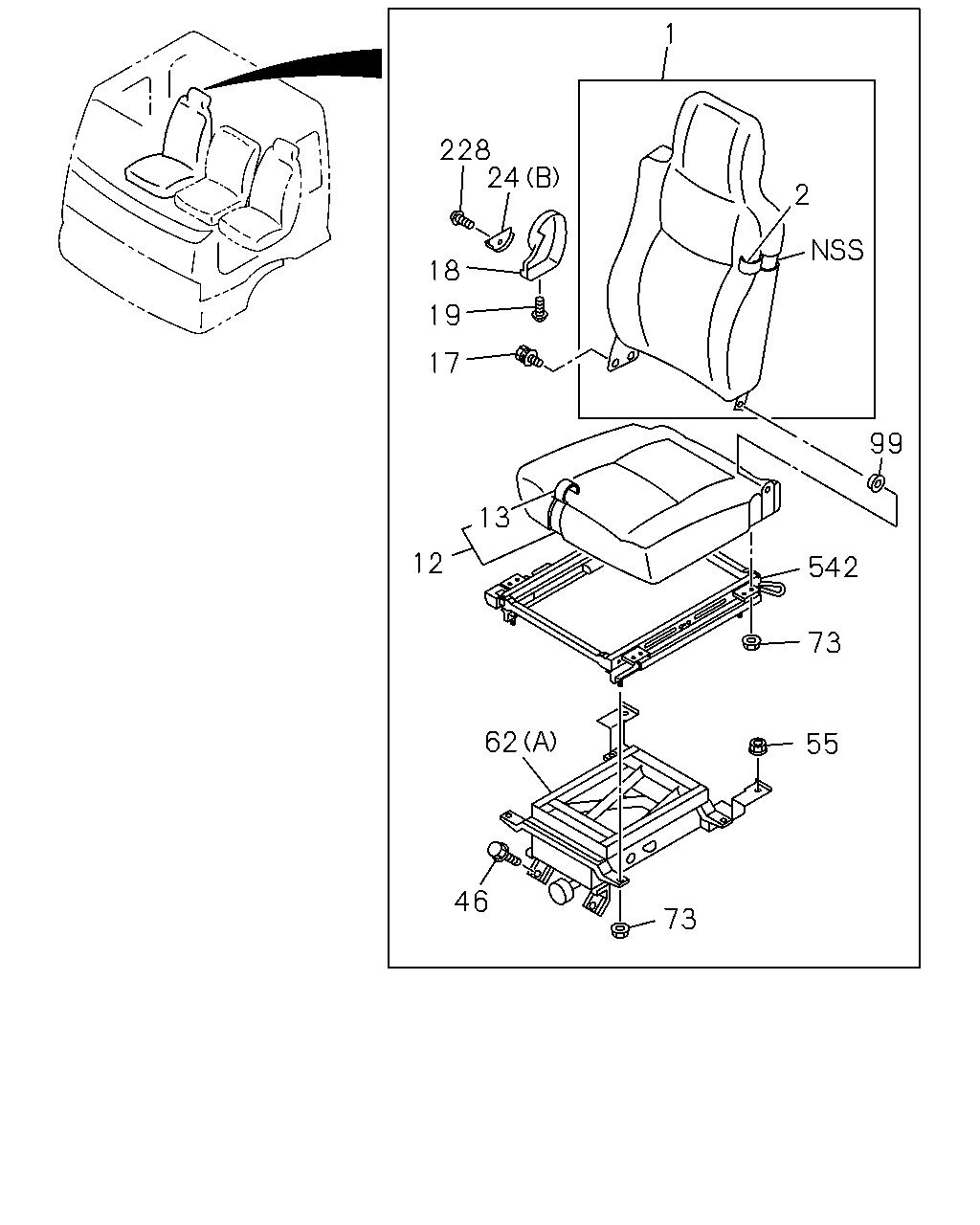

1 228 24 2 18 19 17 99 13 12 542 73 62 55 46 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BACK ASM; SEAT DRIVER	1-75026-267-0	01	1	0005-0104	●		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-267-0	01	1	0005-0104		●		●
1	BACK ASM; SEAT DRIVER	1-75026-267-0	01	1	0105-	●	●	●	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-730-0	01	1	0005-0104		●		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-464-0	01	1	0005-0104	●		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-464-0	01	1	0005-0104		●		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-464-0	01	1	0105-	●	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-704-0	01	1	0005-0104		●		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-268-0	01	1	0005-0104	●		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-268-0	01	1	0005-0104		●		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-268-0	01	1	0105-	●	●	●	●
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-696-0	01	1	0005-0104		●		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-465-0	01	1	0005-0104	●		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-465-0	01	1	0005-0104		●		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-465-0	01	1	0105-	●	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-684-0	01	1	0005-0104		●		●
17	BOLT; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER M8X20	8-97255-906-0	02	1	0005-0104		●		●
18	COVER; RECLINING DRIVER	1-75418-063-0	01	1	0005-0104	●		●
18	COVER; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75418-063-0	01	1	0005-0104		●		●
18	COVER; RECLINING DRIVER	1-75418-063-0	01	1	0105-	●	●	●	●
18	COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER DARK GRAY	8-97867-020-0	01	1	0005-0104		●		●
19	SCREW; COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0104		●		●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97859-019-0	01	1	0005-	●	●	●	●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0005-0104		●		●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0005-0703	●	●	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0005-0703	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●	●	●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-0104	●		●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-0104		●		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0105-	●	●	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-165-0	01	1	0005-0104		●		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0005-	●	●	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	1-75538-207-0	08	1	0005-0104		●		●
99	BUSHING; SEAT BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	8-97854-087-0	01	1	0005-0104		●		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-	●	●	●	●
542	ADJUSTER ASM; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75518-285-1	01	1	0005-0104		●		●

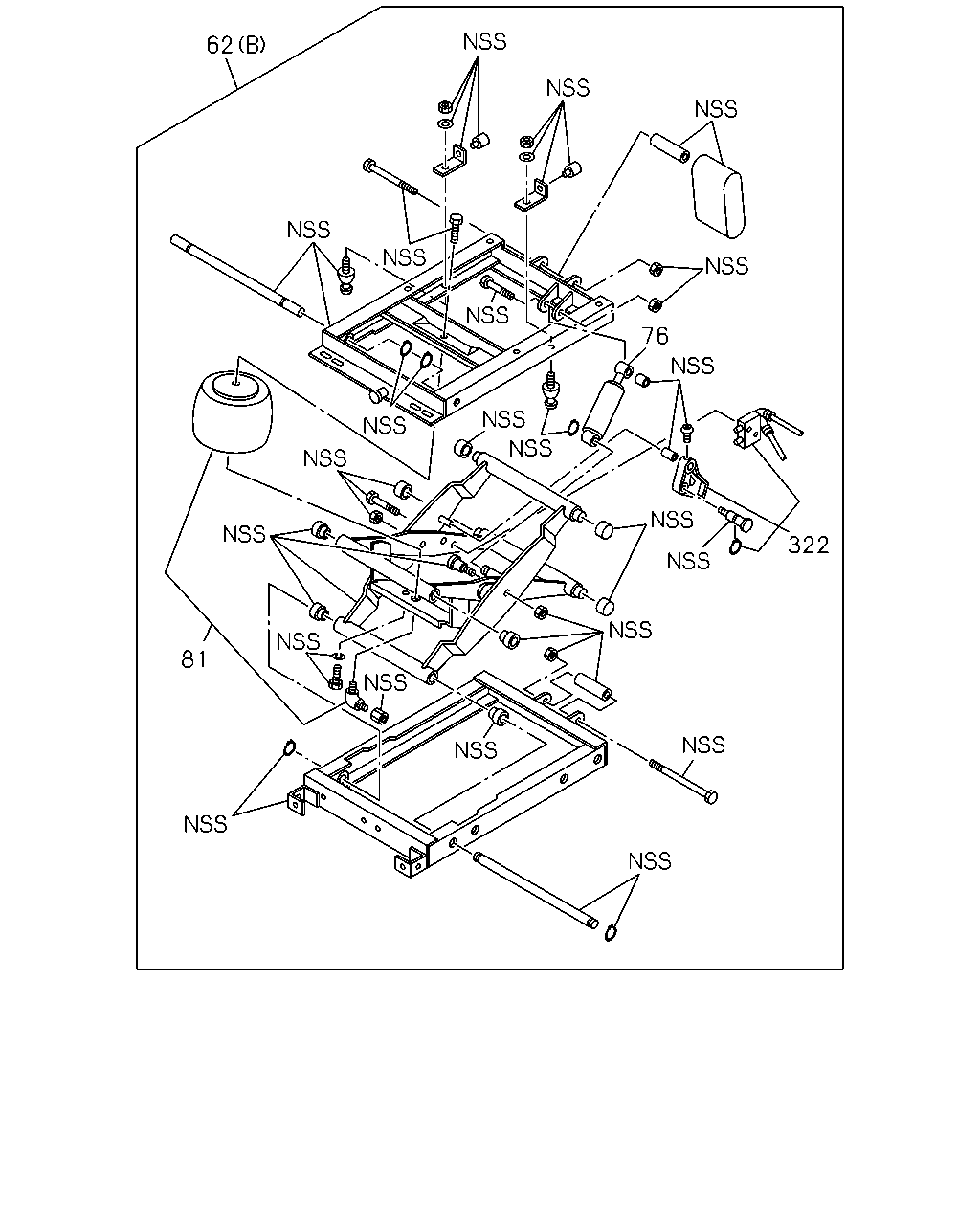

62 76 322 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-0104	●		●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-0104		●		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0105-	●	●	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-165-0	01	1	0005-0104		●		●
76	DAMPER; AIR SUSP	1-75538-201-0	01	1	0005-0104	●		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-201-0	01	1	0005-0104		●		●
76	DAMPER; AIR SUSP	1-75538-201-0	01	1	0105-	●	●	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-166-0	01	1	0005-0104		●		●
81	SPRING; AIR	1-75538-199-0	01	1	0005-0104	●		●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-199-0	01	1	0005-0104		●		●
81	SPRING; AIR	1-75538-199-0	01	1	0105-	●	●	●	●
322	VALVE; AIR SPRING	1-75538-200-0	01	1	0005-0104	●		●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-200-0	01	1	0005-0104		●		●
322	VALVE; AIR SPRING	1-75538-200-0	01	1	0105-	●	●	●	●

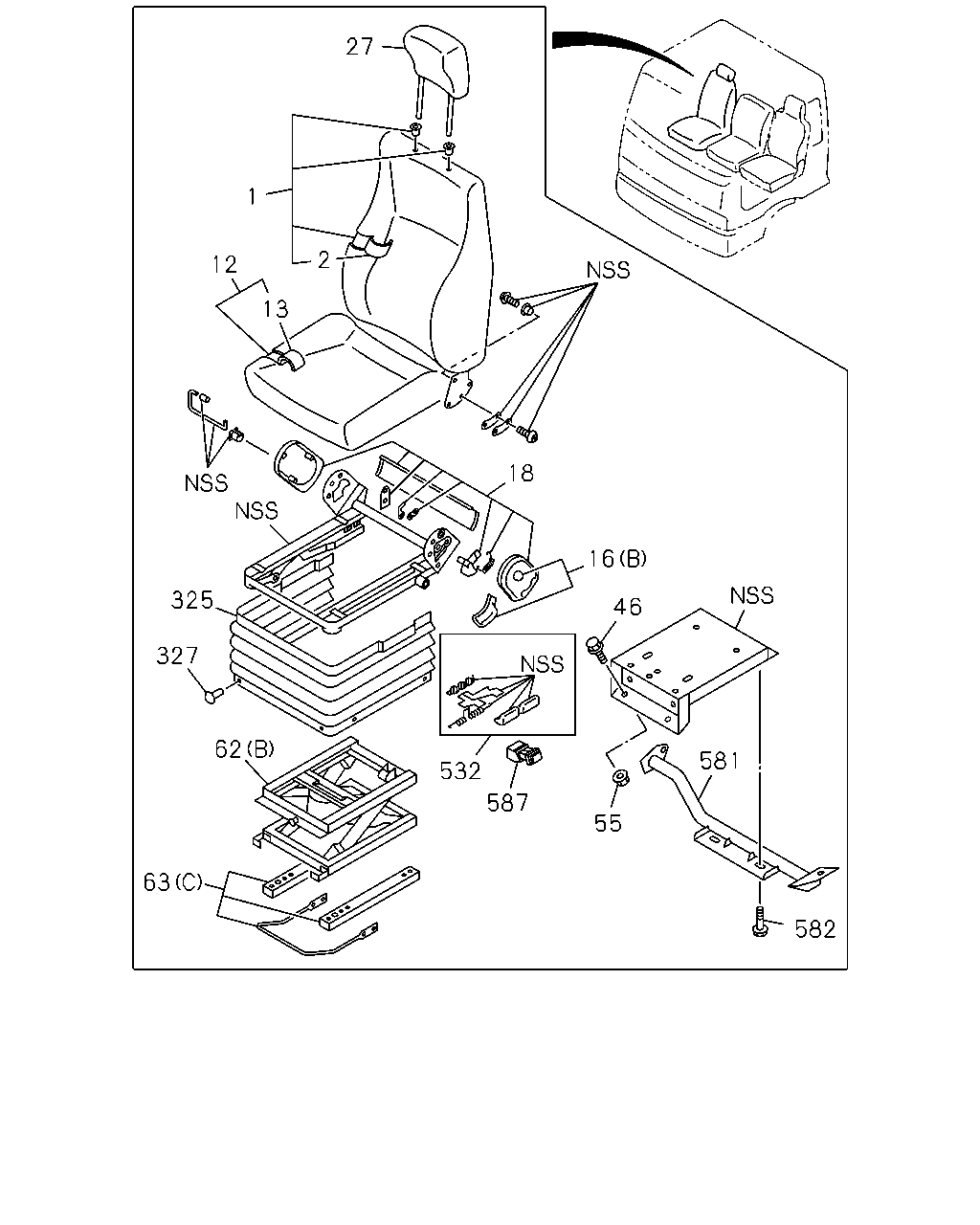

27 1 2 12 13 18 16 325 46 327 62 581 532 587 55 63 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BACK ASM; SEAT DRIVER	1-75026-267-0	01	1	0005-0104	●		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-267-0	01	1	0005-0104		●		●
1	BACK ASM; SEAT DRIVER	1-75026-267-0	01	1	0105-	●	●	●	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-730-0	01	1	0005-0104		●		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-464-0	01	1	0005-0104	●		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-464-0	01	1	0005-0104		●		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	1-75116-464-0	01	1	0105-	●	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-704-0	01	1	0005-0104		●		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-268-0	01	1	0005-0104	●		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75026-268-0	01	1	0005-0104		●		●
12	CUSHION; SEAT,FRT DRIVER	1-75026-268-0	01	1	0105-	●	●	●	●
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75026-696-0	01	1	0005-0104		●		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-465-0	01	1	0005-0104	●		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75116-465-0	01	1	0005-0104		●		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER	1-75116-465-0	01	1	0105-	●	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER	1-75116-684-0	01	1	0005-0104		●		●
16	ADJUSTER ASM; RECLINING (B) DRIVER	1-75418-064-0	01	1	0005-0104	●		●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75418-064-0	01	1	0005-0104		●		●
16	ADJUSTER ASM; RECLINING (B) DRIVER	1-75418-064-0	01	1	0105-	●	●	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) CENTER	1-75418-062-0	01	1	0005-0210	●		●
16	ADJUSTER ASM; RECLINING (A) CENTER	1-75418-062-0	01	1	0005-0210		●		●
16	ADJUSTER ASM; RECLINING (A) CENTER	1-75418-062-1	01	1	0211-	●	●	●	●
18	COVER; RECLINING DRIVER	1-75418-063-0	01	1	0005-0104	●		●
18	COVER; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75418-063-0	01	1	0005-0104		●		●
18	COVER; RECLINING DRIVER	1-75418-063-0	01	1	0105-	●	●	●	●
18	COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER DARK GRAY	8-97867-020-0	01	1	0005-0104		●		●
27	REST; HD,FRT SEAT DRIVER	1-75658-052-0	01	1	0005-0104	●		●
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-75658-052-0	01	1	0005-0104		●		●
27	REST; HD,FRT SEAT DRIVER	1-75658-052-0	01	1	0105-	●	●	●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0005-0703	●	●	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0005-0703	●	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●	●	●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-0104	●		●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-0104		●		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0105-	●	●	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-165-0	01	1	0005-0104		●		●
63	ADJUSTER; SEAT SLIDE (C)	1-75518-315-0	01	1	0005-0104	●		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	1-75518-315-0	01	1	0005-0104		●		●
63	ADJUSTER; SEAT SLIDE (C)	1-75518-315-0	01	1	0105-	●	●	●	●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-199-0	01	1	0005-0104		●		●
63	ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75518-294-1	01	1	0005-0104		●		●
325	COVER; SUSPENSION DEVICE DRIVER SEAT	1-75538-196-0	01	1	0005-0104	●		●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75538-196-0	01	1	0005-0104		●		●
325	COVER; SUSPENSION DEVICE DRIVER SEAT	1-75538-196-0	01	1	0105-	●	●	●	●
327	CLIP; COVER DRIVER SEAT	1-75538-197-0	01	1	0005-0104	●		●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75538-197-0	01	1	0005-0104		●		●
327	CLIP; COVER DRIVER SEAT	1-75538-197-0	01	1	0105-	●	●	●	●
327	CLIP; COVER PASSENGER SEAT	1-09987-273-0	02	1	0211-		●		●
532	LEVER ASM; TILT DRIVER SEAT	1-75518-314-0	01	1	0005-0104	●		●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75518-314-0	01	1	0005-0104		●		●
532	LEVER ASM; TILT DRIVER SEAT	1-75518-314-0	01	1	0105-	●	●	●	●
581	PIPE; SEAT DRIVER	1-73907-573-3	01	1	0005-0104	●		●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-73907-573-3	01	1	0005-0104		●		●
581	PIPE; SEAT DRIVER	1-73907-573-3	01	1	0105-	●	●	●	●
582	BOLT; PIPE,SEAT DRIVER	1-09980-619-1	02	1	0005-0104	●		●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER	1-09980-619-1	02	1	0005-0104		●		●
582	BOLT; PIPE,SEAT DRIVER	1-09980-619-1	02	1	0105-	●	●	●	●
587	VALVE; LUMBAR SUPPORT DRIVER SEAT	1-75418-065-0	01	1	0005-0104	●		●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75418-065-0	01	1	0005-0104		●		●
587	VALVE; LUMBAR SUPPORT DRIVER SEAT	1-75418-065-0	01	1	0105-	●	●	●	●

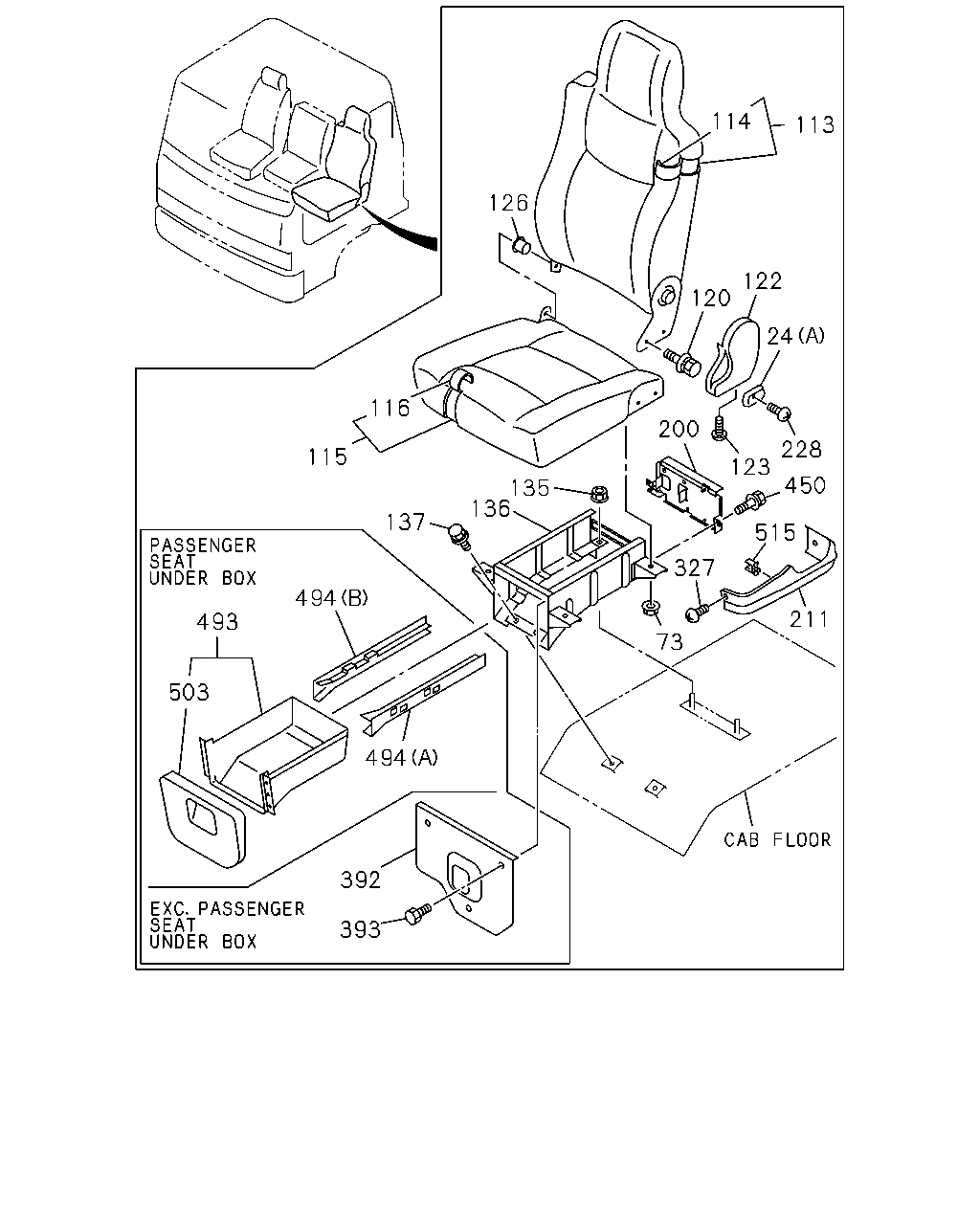

114 113 126 122 120 24 116 200 228 115 123 450 135 136 137 515 327 494 211 493 73 503 494 392 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97859-019-0	01	1	0005-	●	●	●	●
24	KNOB; RECLINING,FRT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DRIVER DARK GRAY	8-97867-021-0	01	1	0005-0104		●		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0005-	●	●	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	1-75538-207-0	08	1	0005-0104		●		●
113	BACK ASM; SEAT PASSENGER	1-75026-796-0	01	1	0005-0104	●		●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> PASSENGER	1-75026-796-0	01	1	0005-0104		●		●
113	BACK ASM; SEAT PASSENGER	1-75026-796-0	01	1	0105-0105	●	●	●	●
113	BACK ASM; SEAT PASSENGER	1-75208-191-4	01	1	0106-	●	●	●	●
113	BACK ASM; SEAT VINYL SEAT<A83> PASSENGER	1-75026-735-0	01	1	0005-0104		●		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-0	01	1	0005-0104	●		●
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-709-0	01	1	0005-0104		●		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-2	01	1	0105-	●	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-592-0	01	1	0005-0104		●		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-0	01	1	0005-0104	●		●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	1-75026-782-0	01	1	0005-0104		●		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-0	01	1	0105-0210	●	●	●	●
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-2	01	1	0211-	●		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-784-2	01	1	0211-		●		●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-701-0	01	1	0005-0104		●		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-0	01	1	0005-0104	●		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	1-75116-589-0	01	1	0005-0104		●		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-0	01	1	0105-0210	●	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-2	01	1	0211-	●		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-691-2	01	1	0211-		●		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-689-0	01	1	0005-0104		●		●
120	BOLT; RECLINING ADJ PASSENGER SEAT M8X20	8-97255-906-0	02	1	0005-	●	●	●	●
122	COVER; ADJ,RECLINING PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0005-	●	●	●	●
123	SCREW; COVER,RECLINING PASSENGER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-	●	●	●	●
126	BUSHING; HINGE,RECLINING PASSENGER SEAT	8-97854-087-0	01	1	0005-	●	●	●	●
135	NUT; SEAT STAND PASSENGER M10 FLANGE	1-09984-153-0	02	1	0005-0703	●	●	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-584-0	01	1	0005-0101	●	●	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-584-0	01	1	0102-0104	●		●
136	STAND; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> PASSENGER SEAT UNDER BOX<TDN>	1-75558-584-0	01	1	0102-0104		●		●
136	STAND; PASSENGER SEAT	1-75558-584-0	01	1	0105-0105	●	●	●	●
136	STAND; PASSENGER SEAT	1-75558-603-0	01	1	0106-0210	●	●	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0211-1305		●		●
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1306-		●		●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-585-0	01	1	0005-0105	●	●	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-601-0	01	1	0106-0210	●	●	●	●
136	STAND; PASSENGER SEAT	1-75558-601-3	01	1	0211-1305	●		●
136	STAND; PASSENGER SEAT	8-98242-298-0	01	1	1306-	●		●
136	STAND; PASSENGER SEAT VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN>	1-75558-603-0	01	1	0102-0104		●		●
136	STAND; PASSENGER SEAT VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-601-0	01	1	0102-0104		●		●
137	BOLT; STAND PASSENGER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0005-0703	●	●	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●	●	●
200	BRACKET; SEAT EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER	1-75558-583-2	01	1	0005-0210		●		●
200	BRACKET; SEAT PASSENGER	1-75558-583-2	01	1	0211-		●		●
211	COVER; FRT SEAT PASSENGER	1-72538-274-0	01	1	0211-		●		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-	●	●	●	●
327	CLIP; COVER DRIVER SEAT	1-75538-197-0	01	1	0005-0104	●		●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT	1-75538-197-0	01	1	0005-0104		●		●
327	CLIP; COVER DRIVER SEAT	1-75538-197-0	01	1	0105-	●	●	●	●
327	CLIP; COVER PASSENGER SEAT	1-09987-273-0	02	1	0211-		●		●
392	COVER; STAND,PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-523-4	01	1	0005-0111	●	●	●	●
392	COVER; STAND,PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-556-1	01	1	0112-0210	●	●	●	●
392	COVER; STAND,PASSENGER SEAT	1-75558-556-1	01	1	0211-	●	●	●	●
393	BOLT; COVER,SEAT STAND EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0210	●	●	●	●
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0211-0703	●	●	●	●
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	01	1	0704-	●	●	●	●
450	BOLT; BRKT EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER SEAT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0005-0210		●		●
450	BOLT; BRKT PASSENGER SEAT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0211-0703		●		●
450	BOLT; BRKT M6X16	0-52000-616-0	03	1	0704-		●		●
493	BOX; SEAT STAND PASSENGER SEAT UNDER BOX<TDN> PASSENGER	1-72537-130-1	01	1	0005-0210	●	●	●	●
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (A) PASSENGER SEAT	1-72537-149-0	01	1	0005-0104	●	●	●	●
494	RAIL; GUIDE (A) PASSENGER SEAT	1-72537-149-0	01	1	0105-0210	●	●	●	●
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (B) PASSENGER SEAT	1-72537-150-0	01	1	0005-0104	●	●	●	●
494	RAIL; GUIDE (B) PASSENGER SEAT	1-72537-150-0	01	1	0105-0210	●	●	●	●
503	COVER; BOX PASSENGER SEAT UNDER BOX<TDN> PASSENGER SEAT	1-72537-136-0	01	1	0005-0210	●	●	●	●
515	CLIP; PIPE PASSENGER SEAT BLACK	8-94227-248-1	01	1	0211-		●		●

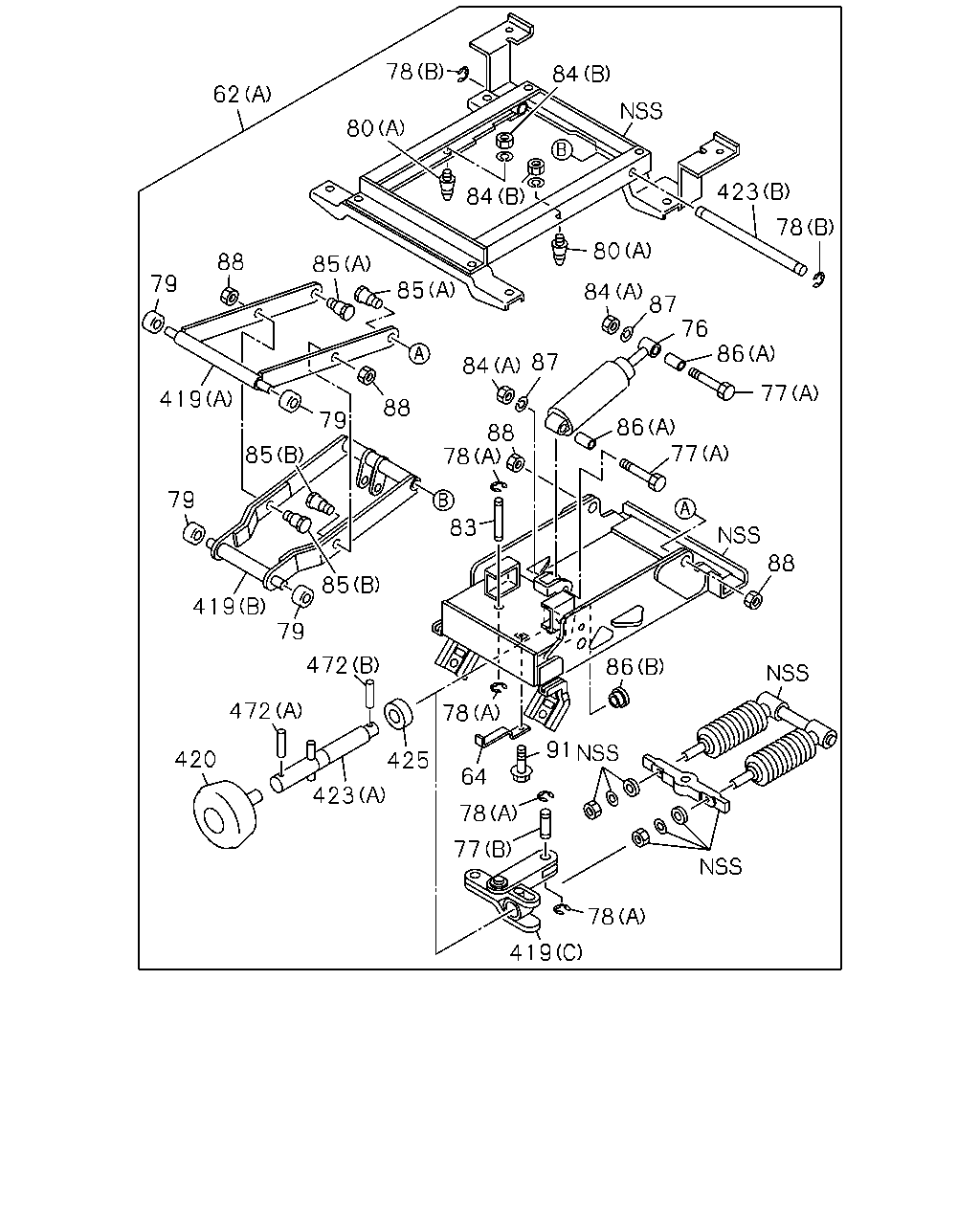

78 84 62 80 423 84 78 80 88 85 79 85 84 87 76 86 87 84 77 419 88 79 86 77 88 78 85 79 83 88 85 419 79 472 86 472 78 91 420 425 64 423 78 77 78 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0005-0104	●		●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (B) DRIVER	1-75538-198-0	01	1	0005-0104		●		●
62	DAMPER ASM; SEAT SUSP (B) DRIVER	1-75538-198-0	01	1	0105-	●	●	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DRIVER	1-75538-165-0	01	1	0005-0104		●		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-080-0	01	1	0005-0104		●		●
76	DAMPER; AIR SUSP	1-75538-201-0	01	1	0005-0104	●		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-201-0	01	1	0005-0104		●		●
76	DAMPER; AIR SUSP	1-75538-201-0	01	1	0105-	●	●	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-166-0	01	1	0005-0104		●		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-040-0	02	1	0005-0104		●		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-065-0	01	1	0005-0104		●		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-066-0	03	1	0005-0104		●		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-069-0	02	1	0005-0104		●		●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-043-0	04	1	0005-0104		●		●
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-	●	●	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-062-0	02	1	0005-0104		●		●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-070-0	01	1	0005-0104		●		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-042-0	02	1	0005-0104		●		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-063-0	02	1	0005-0104		●		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-048-0	02	1	0005-0104		●		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-068-0	02	1	0005-0104		●		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-041-0	02	1	0005-0104		●		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-071-0	01	1	0005-0104		●		●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-036-0	02	1	0005-0104		●		●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-039-0	04	1	0005-0104		●		●
91	SCREW; SEAT ADJ COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-081-0	01	1	0005-0104		●		●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-085-0	01	1	0005-0104		●		●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-086-0	01	1	0005-0104		●		●
419	LINK ASM; SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C)	1-75530-087-0	01	1	0005-0104		●		●
420	KNOB; ADJ,SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-067-0	01	1	0005-0104		●		●
423	SHAFT; SEAT DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-064-0	01	1	0005-0104		●		●
423	SHAFT; SEAT DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-082-0	01	1	0005-0104		●		●
425	BEARING; THRUST,KNOB SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-074-0	01	1	0005-0104		●		●
472	PIN; SPRING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75530-072-0	01	1	0005-0104		●		●
472	PIN; SPRING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75530-075-0	01	1	0005-0104		●		●

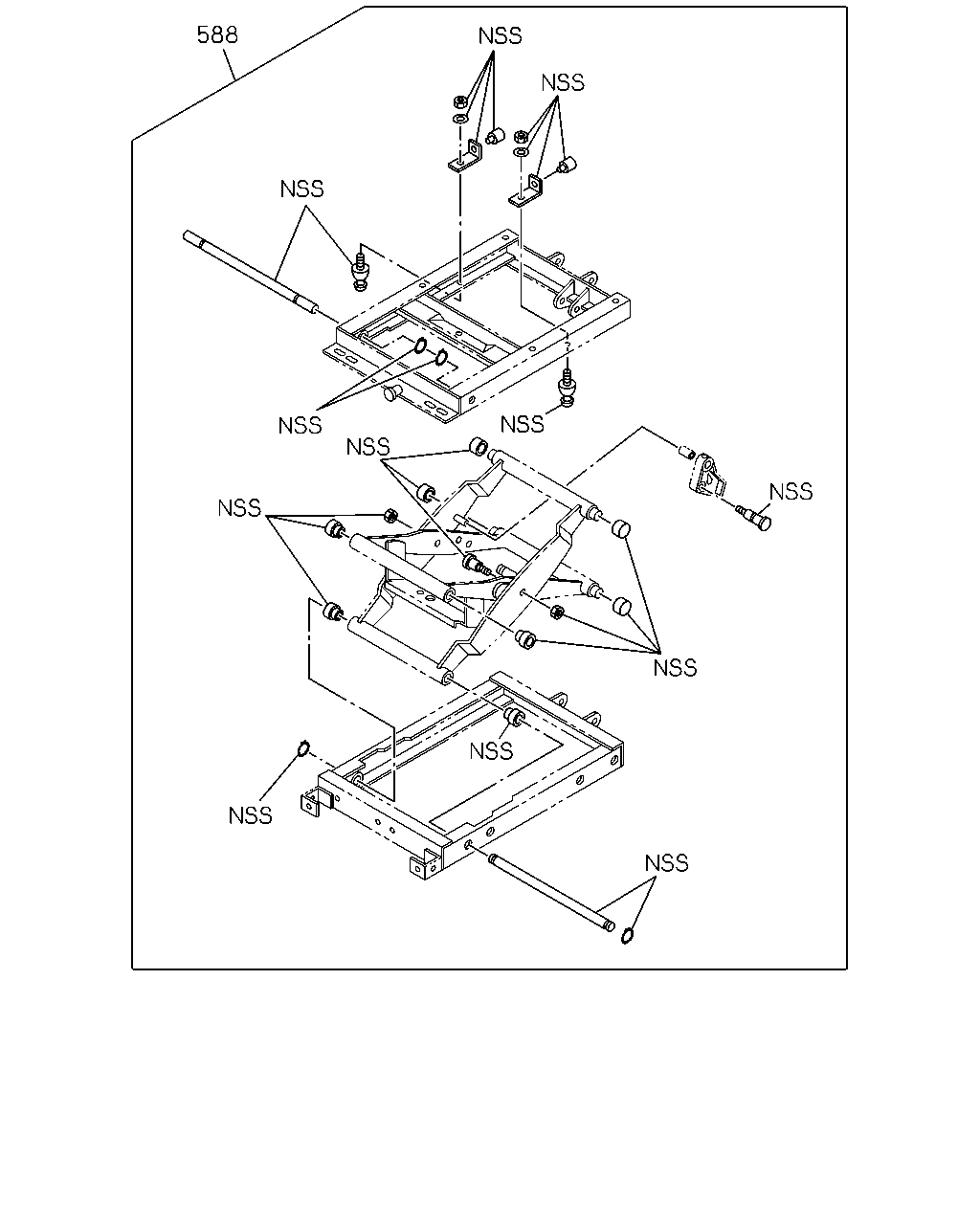

588

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
588	REPAIR KIT; SUSPENSION	1-75538-202-0	01	1	0005-0104	●		●
588	REPAIR KIT; SUSPENSION DRIVER ISRINGHAUSEN SEAT<SJA>	1-75538-202-0	01	1	0005-0104		●		●
588	REPAIR KIT; SUSPENSION	1-75538-202-0	01	1	0105-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
