Isuzu WW
▶
TRUCKS
▶
FSS
▶
10831 - FSS/FTS(AUSTRALIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

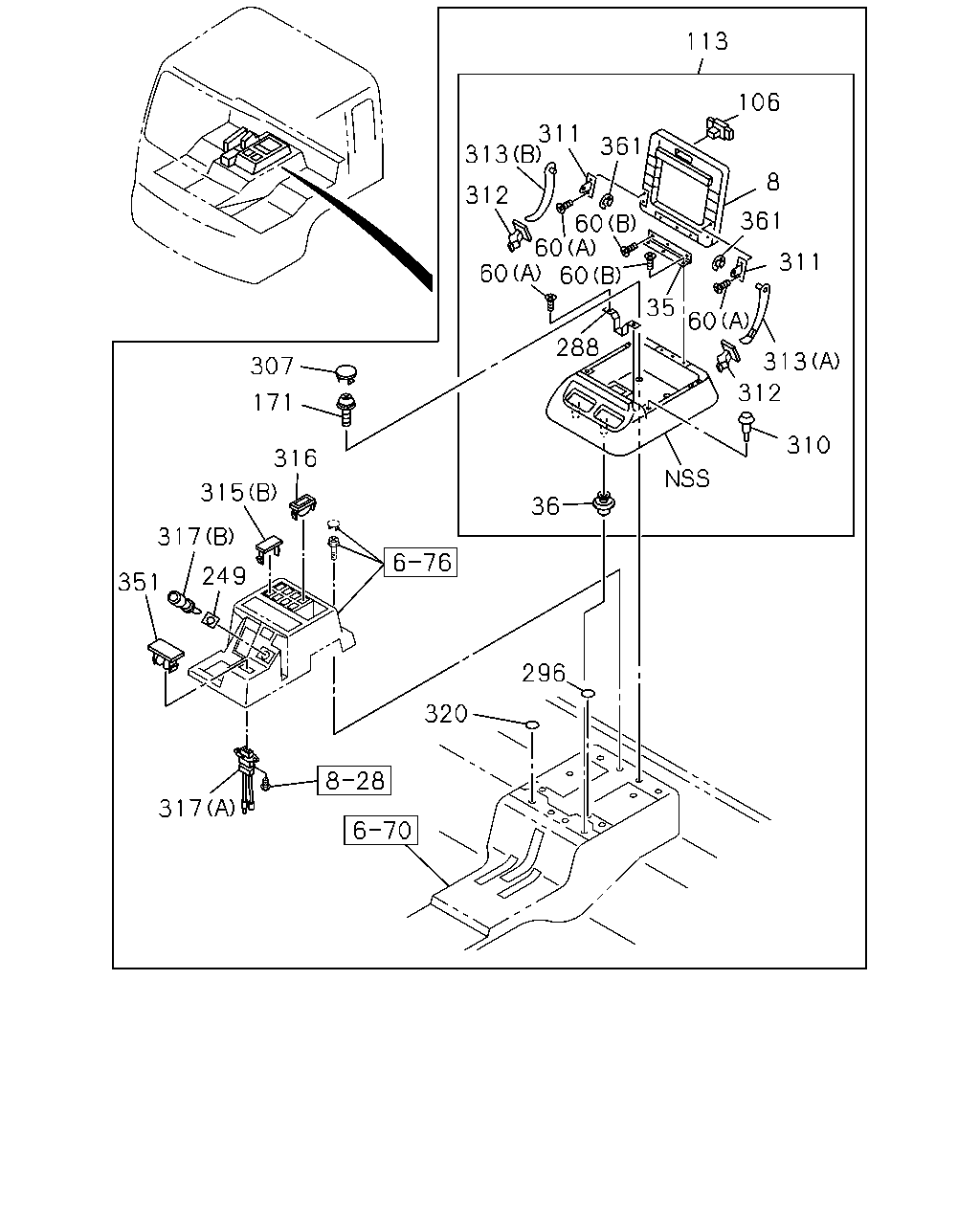

7-45 — CONSOLE BOX
(#8221) — 43 parça
Tümü
A - FSS5MF
B - FTS5MF
C - FSS5WF
D - FTS5WF
◀
[745A] CONSOLE BOX AND CONSENT (35 parça)
[745A] SW HOLE COVER (8 parça)
▶
113
106
311
313
361
8
312
60
60
60
361
311
60
35
60
288
313
307
312
171
310
316
315
36
317
249
351
296
320
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
8
LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-260-0
01
1
0005-0210
●
●
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-182-1
01
1
0005-0210
●
●
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-09984-190-0
02
1
0005-0210
●
●
60
SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD
0-70080-514-0
06
1
0210-0210
●
●
60
SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14
8-94279-325-0
04
1
0210-0210
●
●
106
LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-180-0
01
1
0005-0210
●
●
113
BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-258-0
01
1
0005-0209
●
●
113
BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-297-0
01
1
0210-0210
●
●
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
0005-0210
●
●
249
COVER
1-82529-001-0
01
1
0005-
●
●
●
●
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-190-0
01
1
0005-0210
●
●
296
SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK
1-76798-019-0
02
1
0005-0210
●
●
296
SEAL
OD=25 BLACK
1-76798-019-0
02
1
0005-0210
●
●
296
SEAL
OD=25 BLACK
1-76798-019-0
02
1
0211-
●
●
●
●
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-76337-461-0
02
1
0005-0210
●
●
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-187-0
02
1
0005-0210
●
●
311
HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-188-2
02
1
0005-0210
●
●
312
STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-186-1
02
1
0005-0210
●
●
313
ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B)
1-72538-184-3
01
1
0005-0210
●
●
313
ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A)
1-72538-185-3
01
1
0005-0210
●
●
315
COVER; HOLE,SW
EXC. MAP LAMP<C85> (A)
1-82359-069-2
06
1
0406-
●
●
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
04
1
0005-0210
●
●
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
06
1
0211-0405
●
●
●
●
315
COVER; HOLE,SW
MAP LAMP<C85> (A)
1-82359-069-2
08
1
0406-
●
●
●
●
315
COVER; HOLE,SW
(B)
8-97043-732-1
06
1
0005-
●
●
●
●
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
0005-0210
●
●
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0005-0210
●
●
●
●
315
COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A)
1-82359-069-2
01
1
0005-0210
●
●
●
●
316
BOX; COIN
8-94482-280-2
02
1
0005-
●
●
●
●
317
CONSENT
(A)
1-82523-020-2
01
1
0005-0310
●
●
●
●
317
CONSENT
(B)
8-94382-451-1
01
1
0005-
●
●
●
●
320
SEAL; HOLE,TRAY
OD=25 BLACK
1-76798-019-0
05
1
0005-
●
●
320
SEAL; HOLE,TRAY
OD=25 BLACK
1-76798-019-0
04
1
0005-
●
●
351
COVER; HOLE CONSENT
8-97535-037-0
01
1
0403-
●
●
●
●
361
RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5
9-09185-405-0
02
1
0210-0210
●
●
315
315
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
315
COVER; HOLE,SW
EXC. MAP LAMP<C85> (A)
1-82359-069-2
06
1
0406-
●
●
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
04
1
0005-0210
●
●
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
06
1
0211-0405
●
●
●
●
315
COVER; HOLE,SW
MAP LAMP<C85> (A)
1-82359-069-2
08
1
0406-
●
●
●
●
315
COVER; HOLE,SW
(B)
8-97043-732-1
06
1
0005-
●
●
●
●
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
0005-0210
●
●
●
●
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0005-0210
●
●
●
●
315
COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A)
1-82359-069-2
01
1
0005-0210
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
