Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#8220) — 239 parça

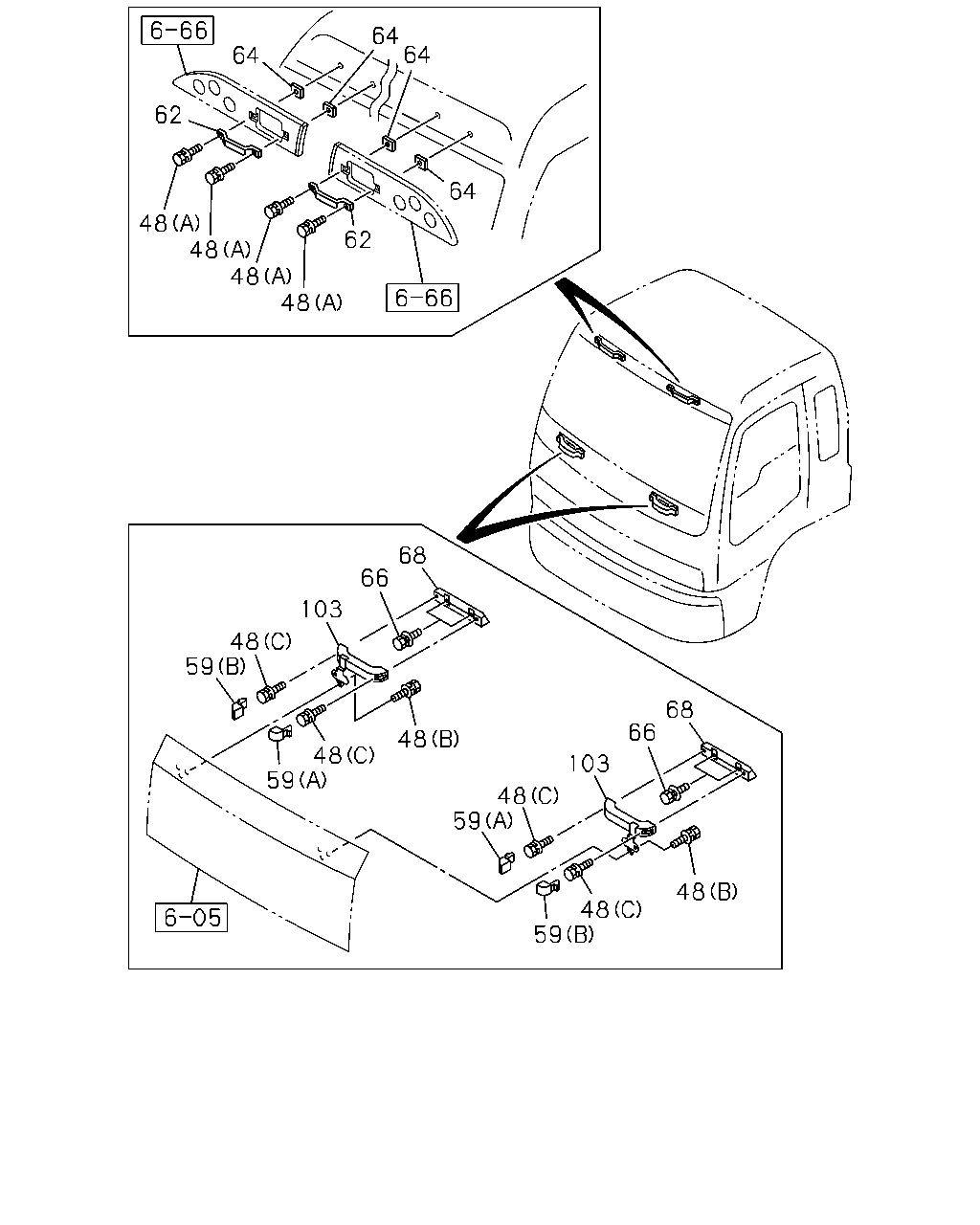

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904			●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-			●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-	●	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-	●	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-			●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0005-0907	●	●	●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-	●	●	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0005-	●	●	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0005-	●	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0005-	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0005-0411	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0412-	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0005-0411	●	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0412-	●	●	●	●

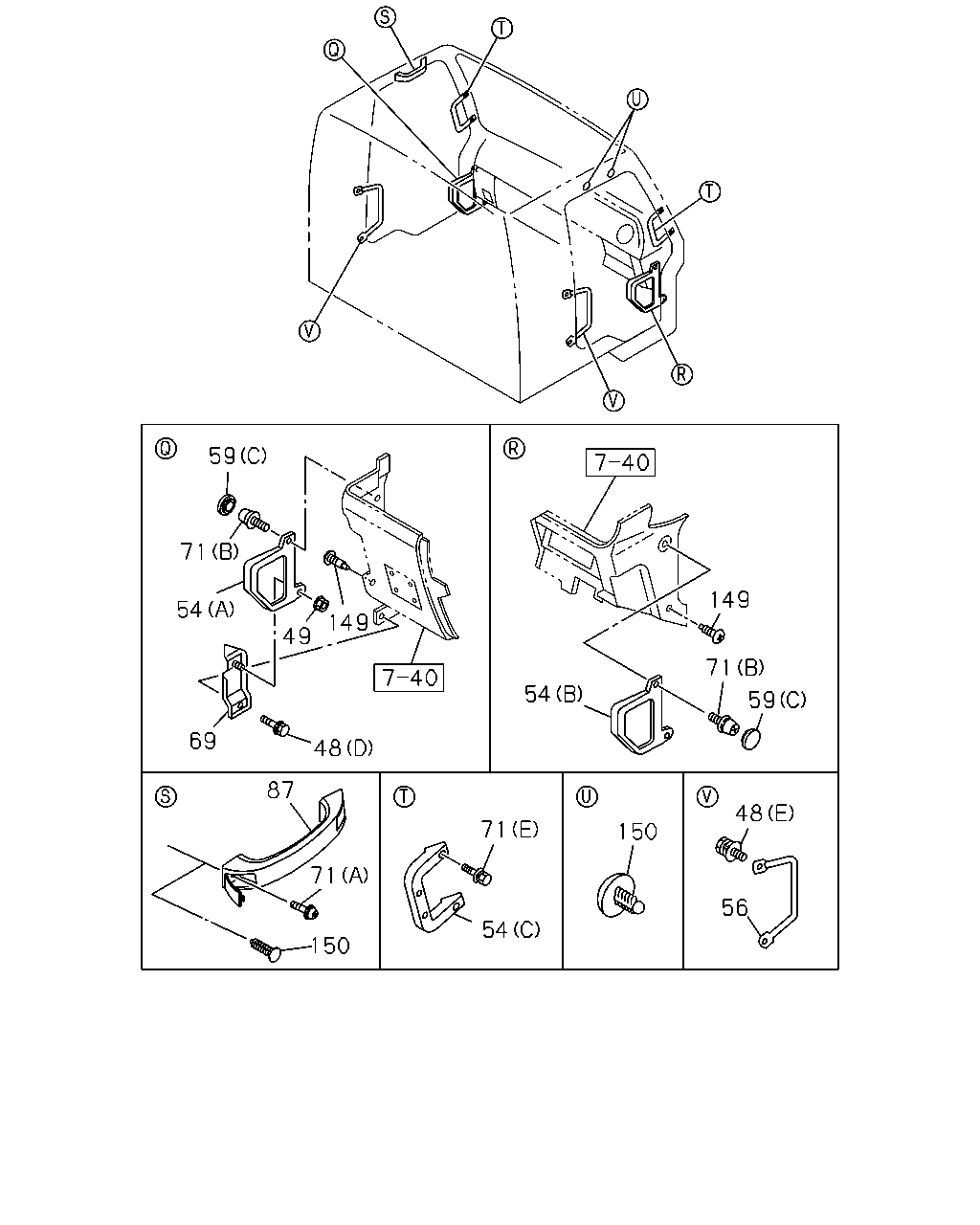

59 71 149 54 149 49 71 54 59 69 48 87 48 71 150 71 56 54 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904			●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-			●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0005-0602			●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-			●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0005-0210	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0211-0211	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-185-1	02	1	0212-	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0005-			●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-563-1	01	1	0005-			●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-	●	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-	●	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-			●	●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	0005-			●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0210	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211	●	●	●	●
71	SCREW (E) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-			●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●	●	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0404-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●	●	●

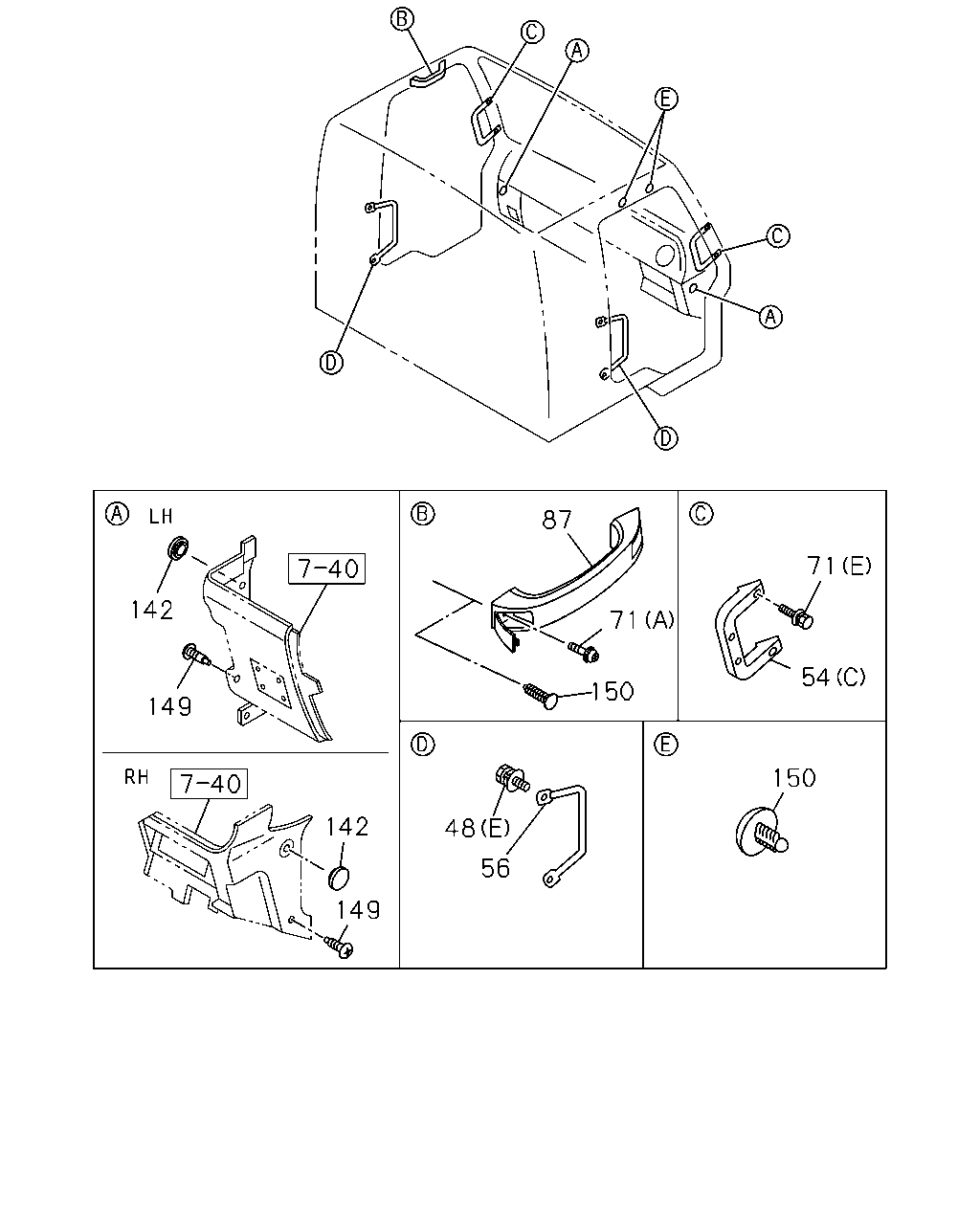

87 71 142 71 54 150 149 150 142 48 56 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904			●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-			●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0005-0210	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0211-0211	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-185-1	02	1	0212-	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0005-			●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-563-1	01	1	0005-			●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0210	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211	●	●	●	●
71	SCREW (E) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-			●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●	●	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0404-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●	●	●

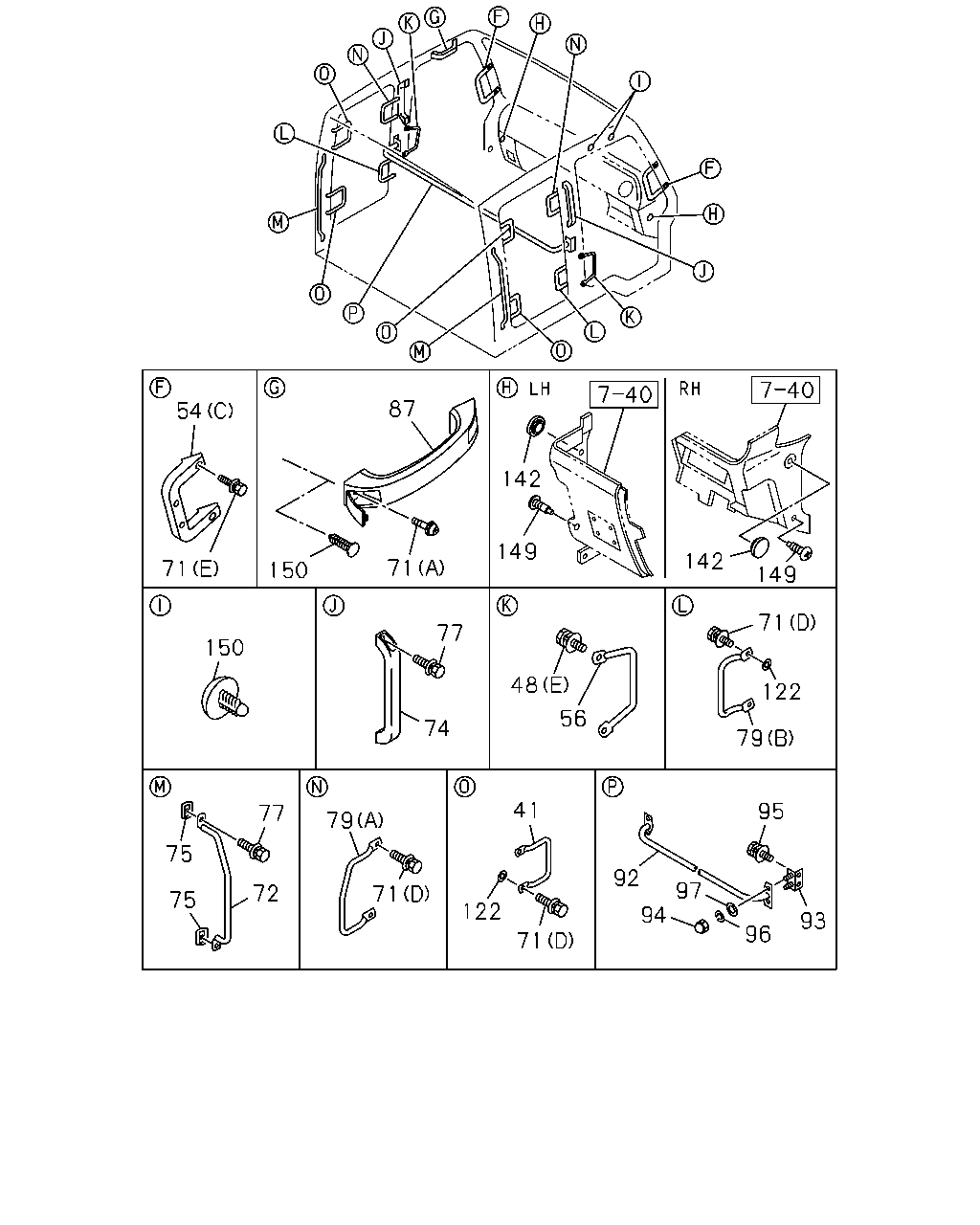

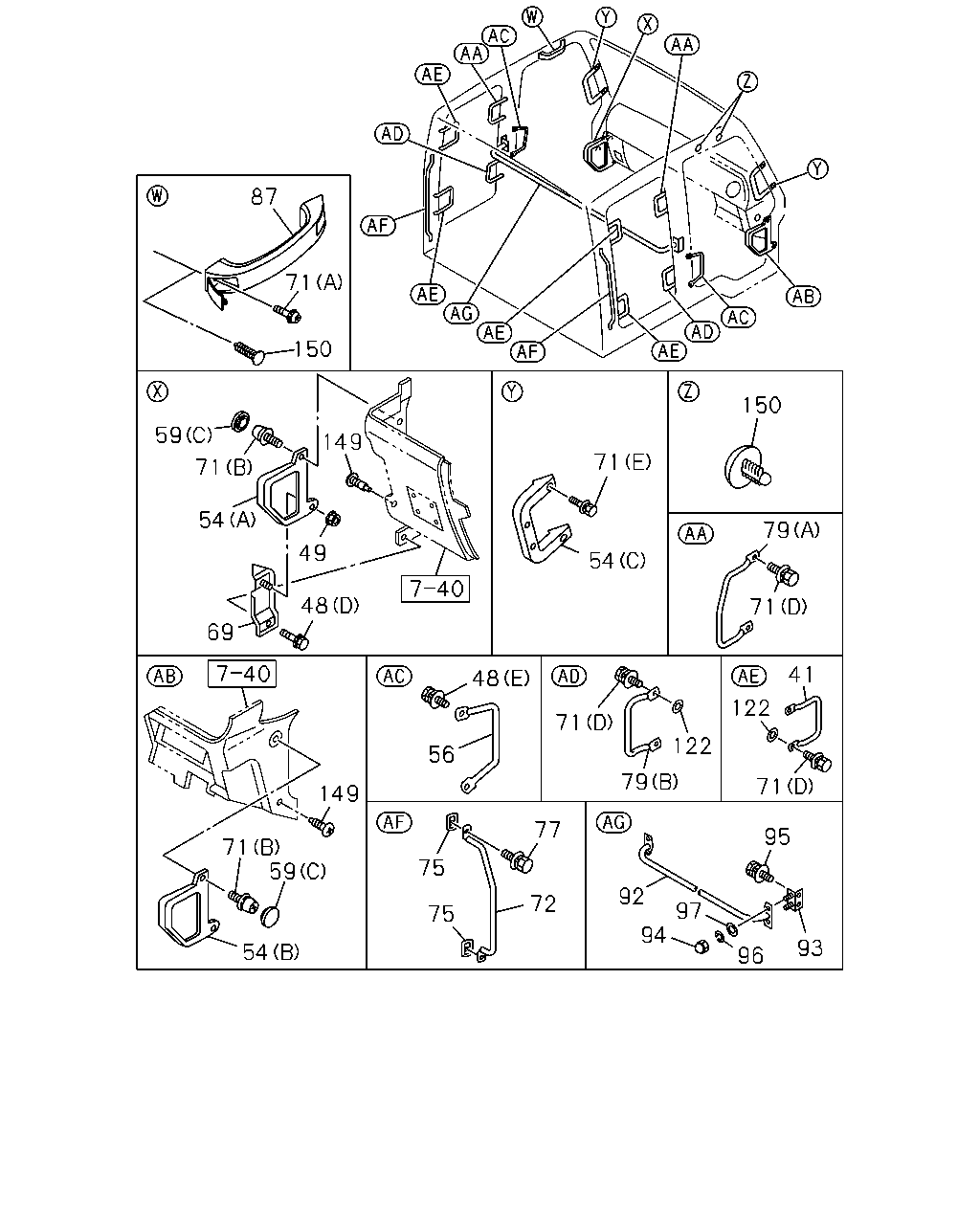

87 54 142 149 142 71 71 150 149 71 77 150 48 122 56 74 79 41 95 77 79 75 92 97 72 71 75 122 94 93 96 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	GRIP; ASSIST,BACK SIDE	1-71998-467-0	04	1	0005-		●		●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904			●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-			●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0005-0210	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0211-0211	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-185-1	02	1	0212-	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0005-			●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-563-1	01	1	0005-			●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0210	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211	●	●	●	●
71	SCREW (E) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-			●	●
72	GRIP; ASSIST,CAB ENTRY,BACK WHITE	1-71998-278-0	02	1	0005-		●		●
74	GRIP; ASSIST,CAB ENTRY,BACK CENTER	1-71998-944-2	02	1	0005-		●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	04	1	0005-		●		●
77	SCREW; ASSIST GRIP	8-94279-407-0	08	1	0005-		●
77	SCREW; ASSIST GRIP	8-94279-407-0	04	1	0005-				●
79	GRIP; ASSIST (A)	1-71996-134-0	02	1	0005-		●		●
79	GRIP; ASSIST (B)	1-71998-467-0	02	1	0005-		●		●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●	●	●	●
92	BAR; ASSIST	1-73618-123-2	01	1	0005-		●		●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	0005-		●		●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	0005-		●		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0011		●		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0211-0904		●		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●		●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	0005-		●		●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	0005-		●		●
122	WASHER; PL,ASSIST GRIP ID=10.2 OD=22 T=6	1-09989-009-1	02	1	0005-		●		●
122	WASHER; PL,ASSIST GRIP ID=6.4 OD=14 T=1	1-09985-187-0	08	1	0006-		●		●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0404-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●	●	●

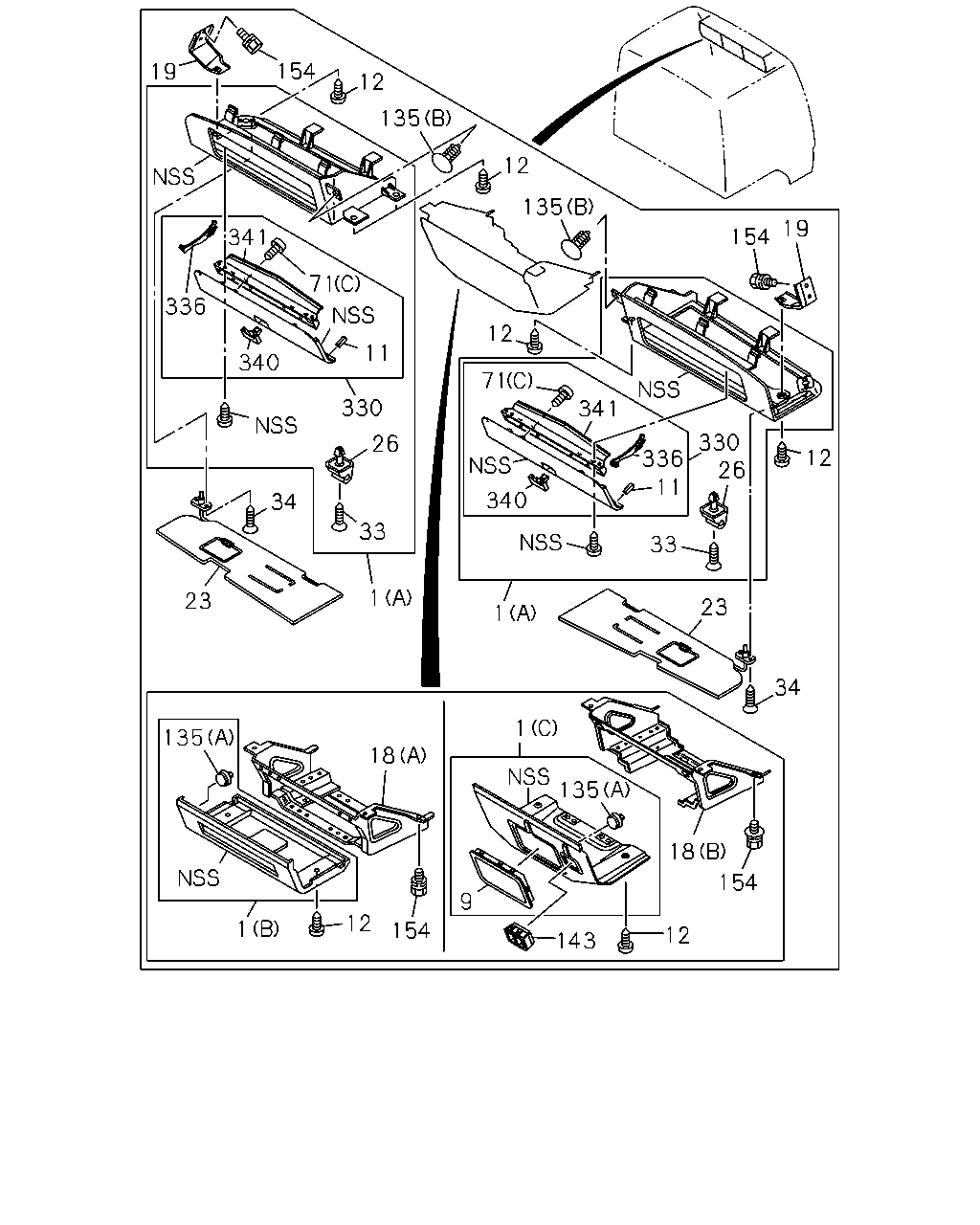

154 19 12 135 12 135 19 154 341 71 336 12 11 340 71 330 341 330 26 26 12 336 11 340 34 33 33 1 23 23 1 34 1 135 18 135 18 154 9 12 1 154 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BOARD; HEADER SHELF MAP LAMP<C85> (C) CENTER	1-72448-667-0	01	1	0406-	●	●	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0005-0405	●	●	●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0406-	●	●	●	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0005-	●	●	●	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0005-	●	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0406-	●	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	0005-	●	●	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> (B)	1-72448-632-1	01	1	0406-	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	8-97865-124-0	01	1	0005-0405	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85> (A)	8-97865-124-1	01	1	0406-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0005-	●	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0005-	●	●	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-	●	●	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0603	●	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0005-	●	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0005-	●	●	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0210	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211	●	●	●	●
71	SCREW (E) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-			●	●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0406-	●	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	0005-0209	●	●	●	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0210-	●	●	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005	●	●	●	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-0405	●	●	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0406-	●	●	●	●
143	BEZEL MAP LAMP<C85>	1-72448-532-0	01	1	0408-	●	●	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-	●	●	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-	●	●	●	●
336	STAY; LID	1-72448-379-3	04	1	0005-	●	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	0005-	●	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	0005-	●	●	●	●

87 71 150 150 59 149 71 71 54 79 49 54 48 71 69 41 48 122 71 122 56 79 71 149 77 95 71 59 75 92 72 97 75 94 93 54 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	GRIP; ASSIST,BACK SIDE	1-71998-467-0	04	1	0005-		●		●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●	●
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●	●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904			●	●
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-			●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0005-0602			●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-			●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0005-0210	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-158-2	02	1	0211-0211	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (C)	1-73618-185-1	02	1	0212-	●	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0005-			●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-563-1	01	1	0005-			●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-	●	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-	●	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-			●	●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	0005-			●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0210	●	●	●	●
71	SCREW (E) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211	●	●	●	●
71	SCREW (E) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005		●		●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-		●		●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-		●		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-			●	●
72	GRIP; ASSIST,CAB ENTRY,BACK WHITE	1-71998-278-0	02	1	0005-		●		●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	04	1	0005-		●		●
77	SCREW; ASSIST GRIP	8-94279-407-0	08	1	0005-		●
77	SCREW; ASSIST GRIP	8-94279-407-0	04	1	0005-				●
79	GRIP; ASSIST (A)	1-71996-134-0	02	1	0005-		●		●
79	GRIP; ASSIST (B)	1-71998-467-0	02	1	0005-		●		●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●	●	●	●
92	BAR; ASSIST	1-73618-123-2	01	1	0005-		●		●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	0005-		●		●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	0005-		●		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0011		●		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0211-0904		●		●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●		●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	0005-		●		●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	0005-		●		●
122	WASHER; PL,ASSIST GRIP ID=10.2 OD=22 T=6	1-09989-009-1	02	1	0005-		●		●
122	WASHER; PL,ASSIST GRIP ID=6.4 OD=14 T=1	1-09985-187-0	08	1	0006-		●		●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0404-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
