◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#8219) — 139 parça

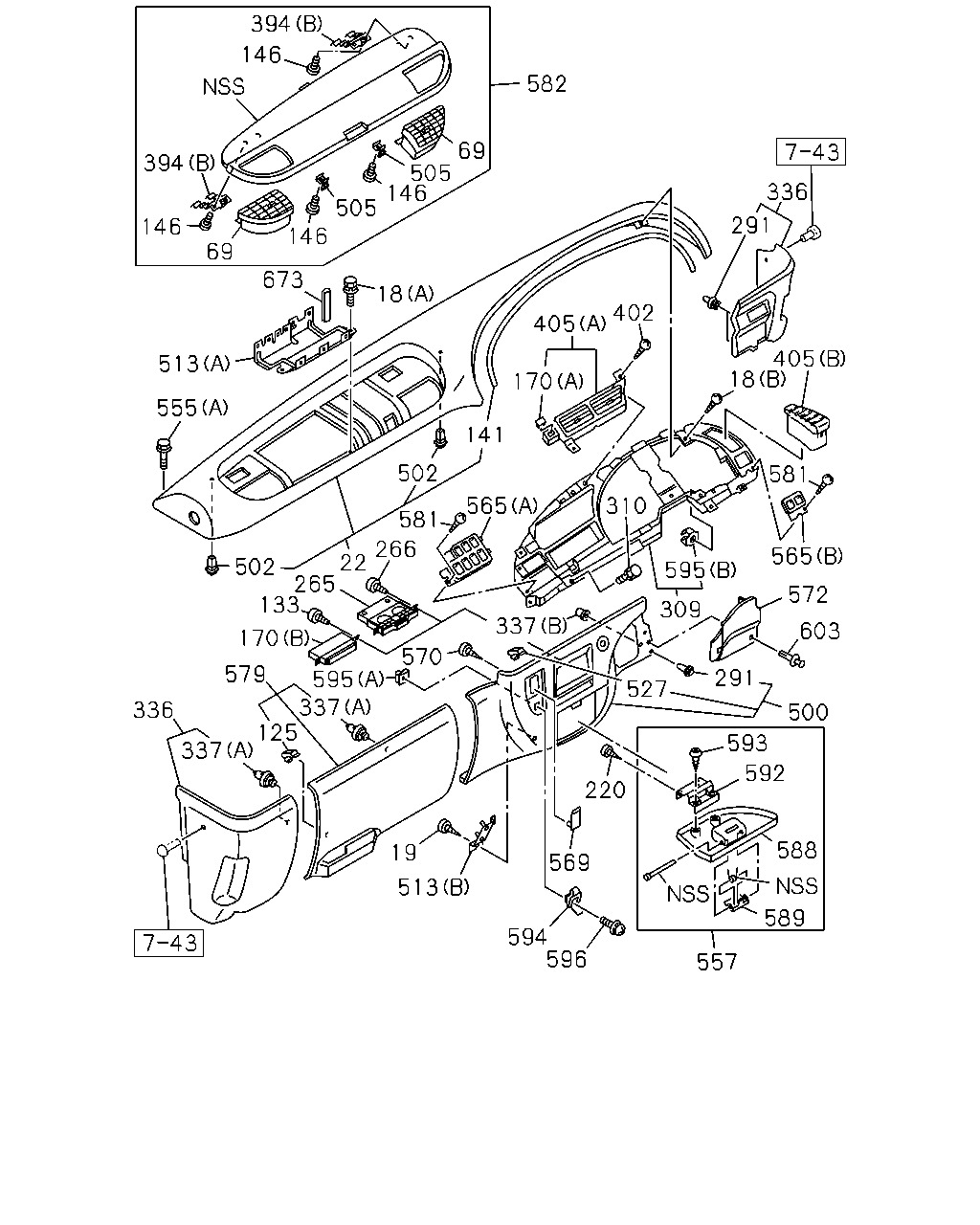

çizim 103347
394 146 582 69 505 146 394 336 505 291 146 146 69 673 18 402 405 405 18 513 170 555 141 502 581 310 565 581 266 22 265 133 565 502 595 572 309 337 603 170 570 595 337 125 579 291 527 336 500 593 337 592 220 588 19 569 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512 ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0211- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-0210 ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ● ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0005-0210 ● ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005-0210 ● ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0211- ● ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0211- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005-0210 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005- ● ● ● ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0005-0210 ● ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0005- ● ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0005- ● ● ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0005- ● ● ● ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-0 01 1 0005-0210 ● ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 0005-0210 ● ● ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0211- ● ● ● ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0005-0210 ● ● ● ●
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0211- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0211- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005-0210 ● ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0005- ● ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005- ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0211- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005-0210 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005- ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0005- ● ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0005- ● ● ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005- ● ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0005- ● ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 0005- ● ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0005-0205 ● ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206- ● ● ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0005-0210 ● ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0005- ● ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0005-0512 ● ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005- ● ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0005- ● ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0005- ● ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0005- ● ● ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0005- ● ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0005- ● ● ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0005- ● ● ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0005- ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005- ● ● ● ●
588 LID; BOX 1-72548-135-3 01 1 0005- ● ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 0005- ● ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 0005- ● ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0005- ● ● ● ●
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0005-0012 ● ● ● ●
595 NUT; HOOK
(A) WO/NUT 		8-97810-118-0 01 1 0101-0110 ● ● ● ●
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0111- ● ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0005- ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0005-0012 ● ● ● ●
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110 ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111- ● ● ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005- ● ● ● ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ● ● ●

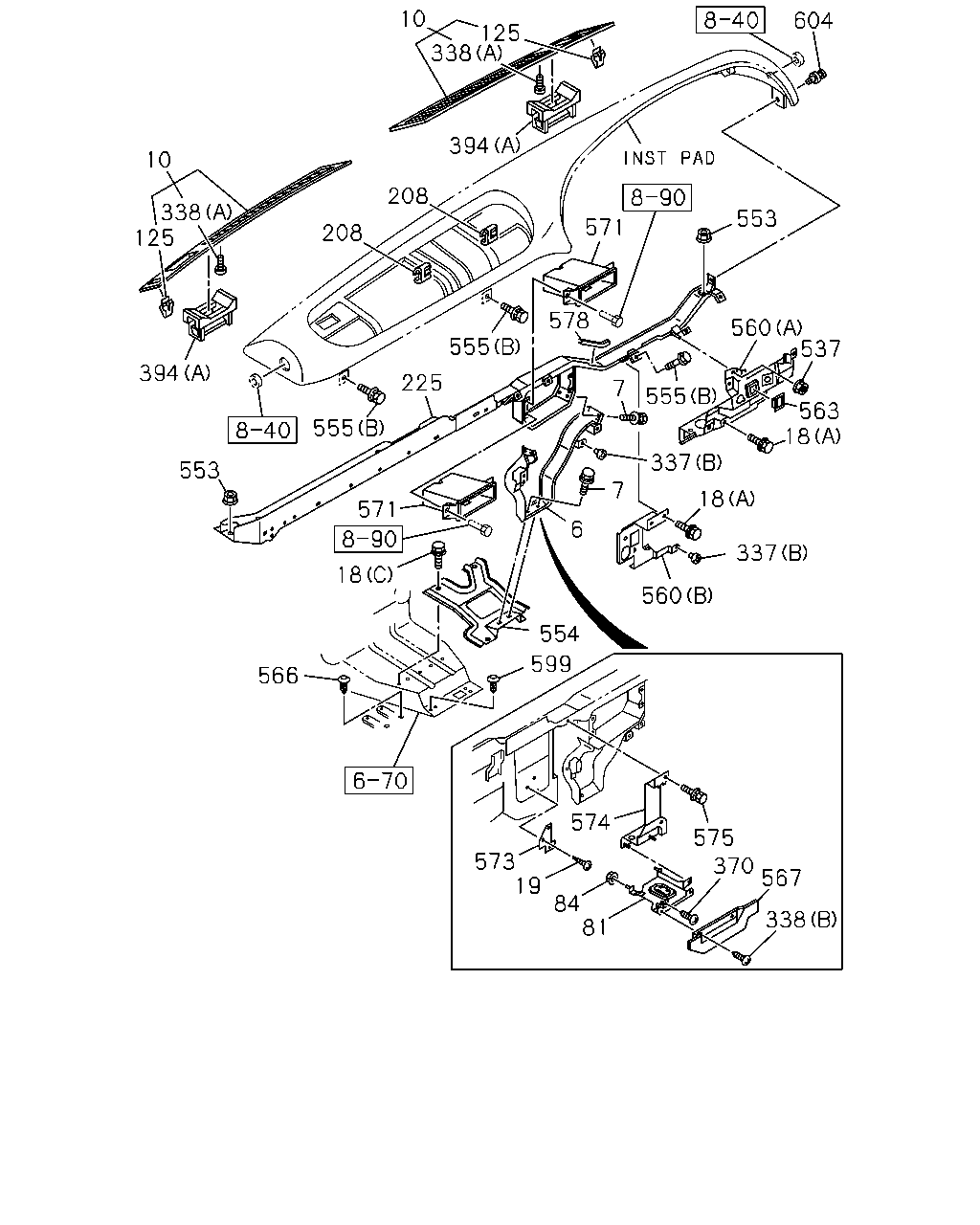

çizim 103350
10 604 125 338 394 10 208 338 125 553 571 208 578 560 537 555 394 555 225 7 563 18 555 337 553 7 18 571 6 337 18 560 554 599 566 574 575 370 567 573 19 84 81 338
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0005- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0005- ● ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0005- ● ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0005- ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512 ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0211- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-0210 ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ● ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0005-0210 ● ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005-0210 ● ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0211- ● ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0005-0006 ● ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0007-0210 ● ●
81 BRACKET; ELEC CONT UNIT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-008-7 01 1 0007-0210 ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0211- ● ● ● ●
81 BRACKET; ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-156-4 01 1 0007-0210 ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0211- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005-0210 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005- ● ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0005- ● ● ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 0005-1002 ● ● ● ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0211- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005-0210 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ● ● ● ●
338 SCREW; COVER
(A) TAPPING M5X14 		8-94279-325-0 10 1 0005-0208 ● ● ● ●
338 SCREW; COVER
(A) TAPPING M5X14 		8-94148-576-1 10 1 0209-0309 ● ● ● ●
338 SCREW; COVER
(A) TAPPING M5X14 		8-94279-325-0 20 1 0310-0405 ● ● ● ●
338 SCREW; COVER
(A) TAPPING M5X14 		8-94279-325-0 10 1 0406-0801 ● ● ● ●
338 SCREW; COVER
(A) TAPPING M5X14 		8-94279-325-0 15 1 0802- ● ● ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0005-0210 ● ● ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0211-0302 ● ● ● ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0303- ● ● ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0005- ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005- ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0005- ● ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0005-0512 ● ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005- ● ● ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0005- ● ● ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 0005-0210 ● ● ● ●
560 BRACKET
(A) 		1-65681-179-4 01 1 0211- ● ● ● ●
563 BEZEL; BRKT 1-72448-410-3 01 1 0303- ● ● ● ●
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0404- ● ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0005- ● ● ● ●
567 COVER; CONT UNIT 1-65681-022-2 01 1 0005- ● ● ● ●
571 BEZEL; POCKET 1-72438-151-1 02 1 0005-0309 ● ● ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0310- ● ● ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0005- ● ● ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0005- ● ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0005- ● ● ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0005- ● ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0005- ● ● ● ●
