◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#8216) — 26 parça
çizim 79082
49 109 60 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 PLATE; CAUTION,FUSE BOX 1-85878-077-0 01 1 0005-0109 ● ● ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0110-0210 ● ● ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-324-0 01 1 0211- ● ● ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-221-0 01 1 0005-0210 ● ● ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-233-0 01 1 0211- ● ● ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 0005- ● ● ● ●
60 PLATE; CAUTION,CAB TILT
(A) 		1-85883-169-0 01 1 0005- ● ●
60 PLATE; CAUTION,CAB TILT
(B) 		1-85883-128-0 01 1 0005-0201 ● ●
60 PLATE; CAUTION,CAB TILT
(A) 		1-85883-178-0 01 1 0005- ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-745-1 01 1 0005-0210 ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-856-0 01 1 0211- ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-746-1 01 1 0005-0210 ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-857-0 01 1 0211- ● ●
çizim 103351
119 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 LABEL; ENG MAINTENANCE 8-94390-517-0 01 1 0005-0210 ● ● ● ●
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 0211- ● ● ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0005- ● ● ● ●

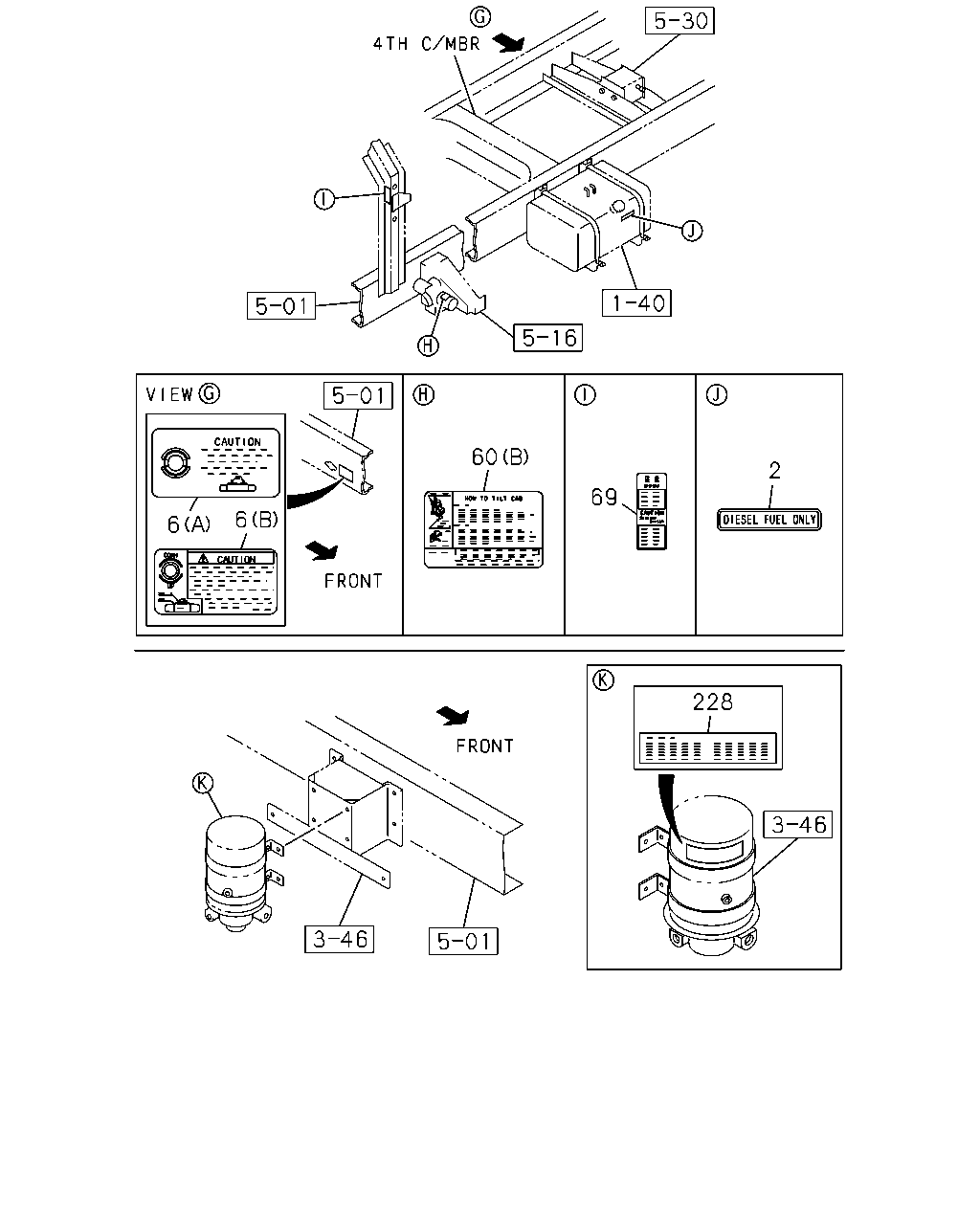

çizim 103441
60 2 6 6 228 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LABEL; FUEL CAUTION 8-97135-605-0 01 1 0005-0312 ● ● ● ●
2 LABEL; FUEL CAUTION 1-85883-153-0 01 1 0401- ● ● ● ●
6 PLATE; CAUTION,SPARE TIRE
(A) 		1-53639-004-0 01 1 0005-0708 ● ● ● ●
6 PLATE; CAUTION,SPARE TIRE
(B) 		8-98082-437-0 01 1 0709- ● ● ● ●
60 PLATE; CAUTION,CAB TILT
(A) 		1-85883-169-0 01 1 0005- ● ●
60 PLATE; CAUTION,CAB TILT
(B) 		1-85883-128-0 01 1 0005-0201 ● ●
60 PLATE; CAUTION,CAB TILT
(A) 		1-85883-178-0 01 1 0005- ● ●
69 PLATE; CAUTION,STARTER SW 1-85887-389-0 01 1 0005-0302 ● ● ● ●
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D> 		1-85887-389-0 01 1 0303- ● ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0005-1001 ● ● ● ●
