6-78 — FLOOR HOLE PLUG (#8210) — 17 parça

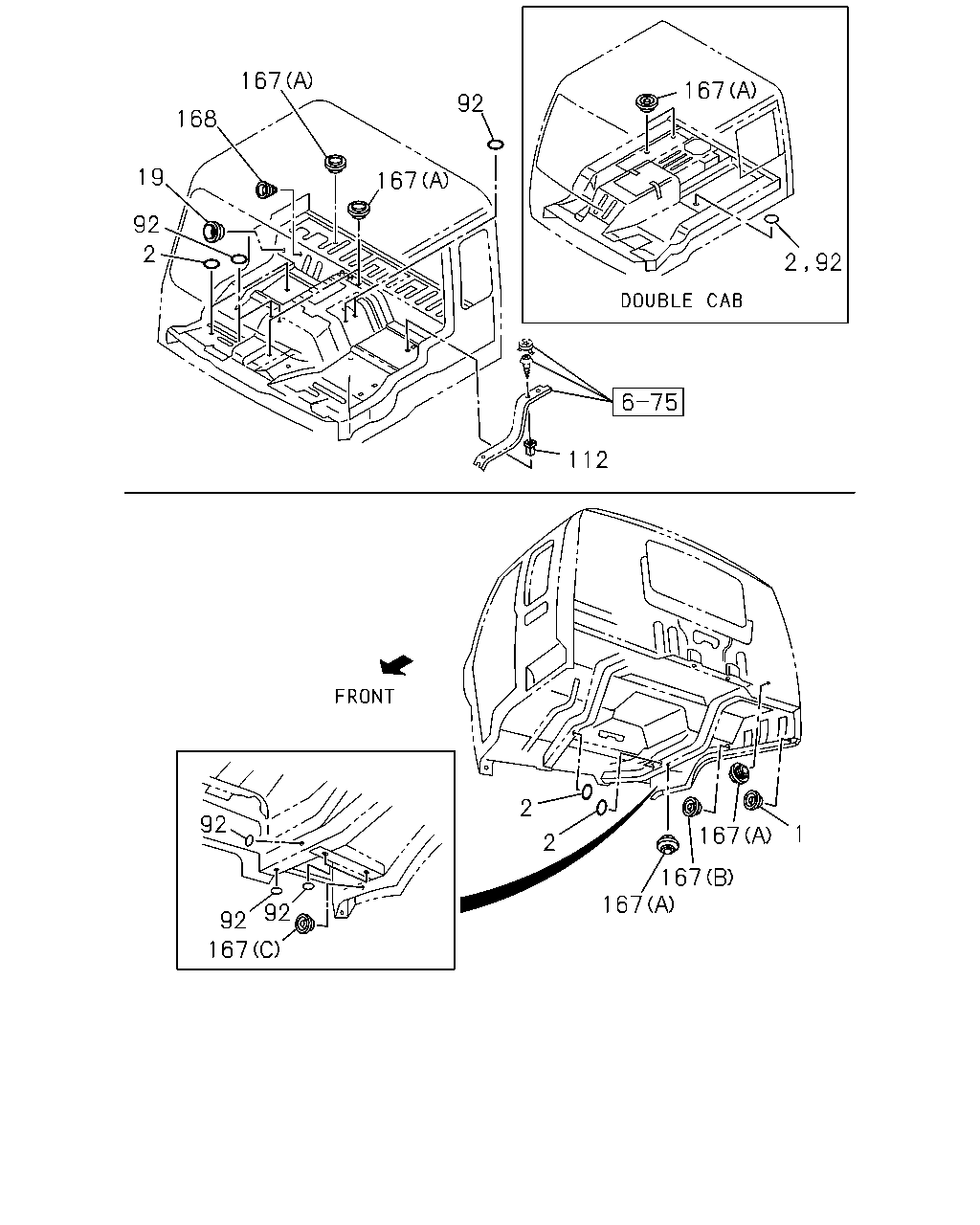

çizim 79050
167 167 92 168 19 167 92 2 112 2 92 1 167 2 167 167 92 92 167 2 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GROMMET
OD=40 		1-09600-083-0 02 1 0005- ● ●
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ● ●
2 GROMMET
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0005- ● ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 0005- ● ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 0005- ● ● ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0005- ● ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 12 1 0005- ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0005- ● ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0005- ● ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0005- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 0005- ● ● ● ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 0005- ● ● ● ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 0005- ● ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 06 1 0005- ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 0005- ● ●
