◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#8208) — 33 parça

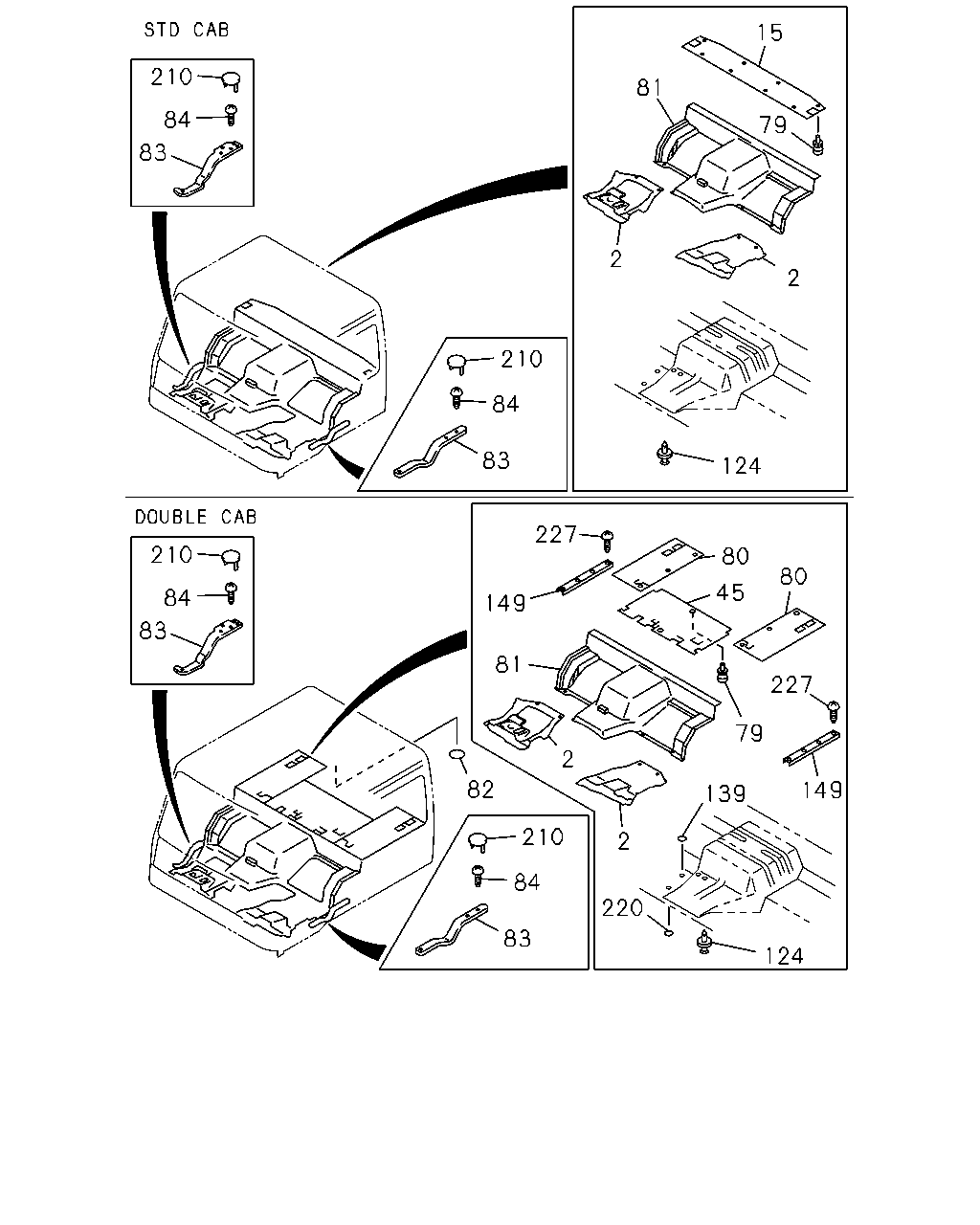

çizim 80363
15 210 81 79 84 83 2 2 210 84 83 124 227 210 80 80 45 84 149 83 81 227 79 2 82 149 139 210 2 84 220 83 124
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MAT; FLOOR 1-73236-180-0 01 1 0005-0202 ● ● ● ●
2 MAT; FLOOR 1-73236-469-1 01 1 0203- ● ● ● ●
2 MAT; FLOOR 1-73236-178-0 01 1 0005-0006 ● ● ● ●
2 MAT; FLOOR 1-73236-357-0 01 1 0007-0202 ● ● ● ●
2 MAT; FLOOR 1-73236-470-1 01 1 0203- ● ● ● ●
15 MAT; FLOOR REAR 1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR 1-73236-522-1 01 1 0203- ● ●
45 MAT; FLOOR,ENG COVER 1-73236-182-0 01 1 0005-0202 ● ●
45 MAT; FLOOR,ENG COVER 1-73236-512-0 01 1 0203-0210 ● ●
45 MAT; FLOOR,ENG COVER 1-73236-534-1 01 1 0211-0511 ● ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 0005- ● ●
79 HOOK; MALE
BLACK 		8-94279-089-0 12 1 0005- ● ●
80 MAT; FLOOR,RR 1-73236-187-0 01 1 0005-0202 ● ●
80 MAT; FLOOR,RR 1-73236-526-0 01 1 0203-0511 ● ●
80 MAT; FLOOR,RR 1-73236-184-0 01 1 0005-0202 ● ●
80 MAT; FLOOR,RR 1-73236-525-0 01 1 0203-0210 ● ●
80 MAT; FLOOR,RR 1-73236-532-1 01 1 0211-0511 ● ●
81 MAT; FLOOR,CENTER 1-73236-303-5 01 1 0005-0202 ● ●
81 MAT; FLOOR,CENTER 1-73236-491-2 01 1 0203-0210 ● ●
81 MAT; FLOOR,CENTER 1-73236-547-3 01 1 0211- ● ●
81 MAT; FLOOR,CENTER 1-73236-191-6 01 1 0005-0202 ● ●
81 MAT; FLOOR,CENTER 1-73236-487-5 01 1 0203- ● ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0005- ● ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0005- ● ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0005- ● ● ● ●
124 FASTENER 1-09470-007-0 04 1 0005- ● ● ● ●
139 SEAL; FLOOR
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005- ● ●
149 PLATE; KICKING,RR 1-76798-010-4 02 1 0005- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0005- ● ● ● ●
220 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 03 1 0005- ● ●
227 SCREW; KICKING PLATE
M6X24 W/PL WASHER 		1-09981-504-0 08 1 0005-0103 ● ●
227 SCREW; KICKING PLATE
M6X16 W/PL WASHER 		1-09981-505-0 08 1 0104- ● ●
