◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#8207) — 124 parça

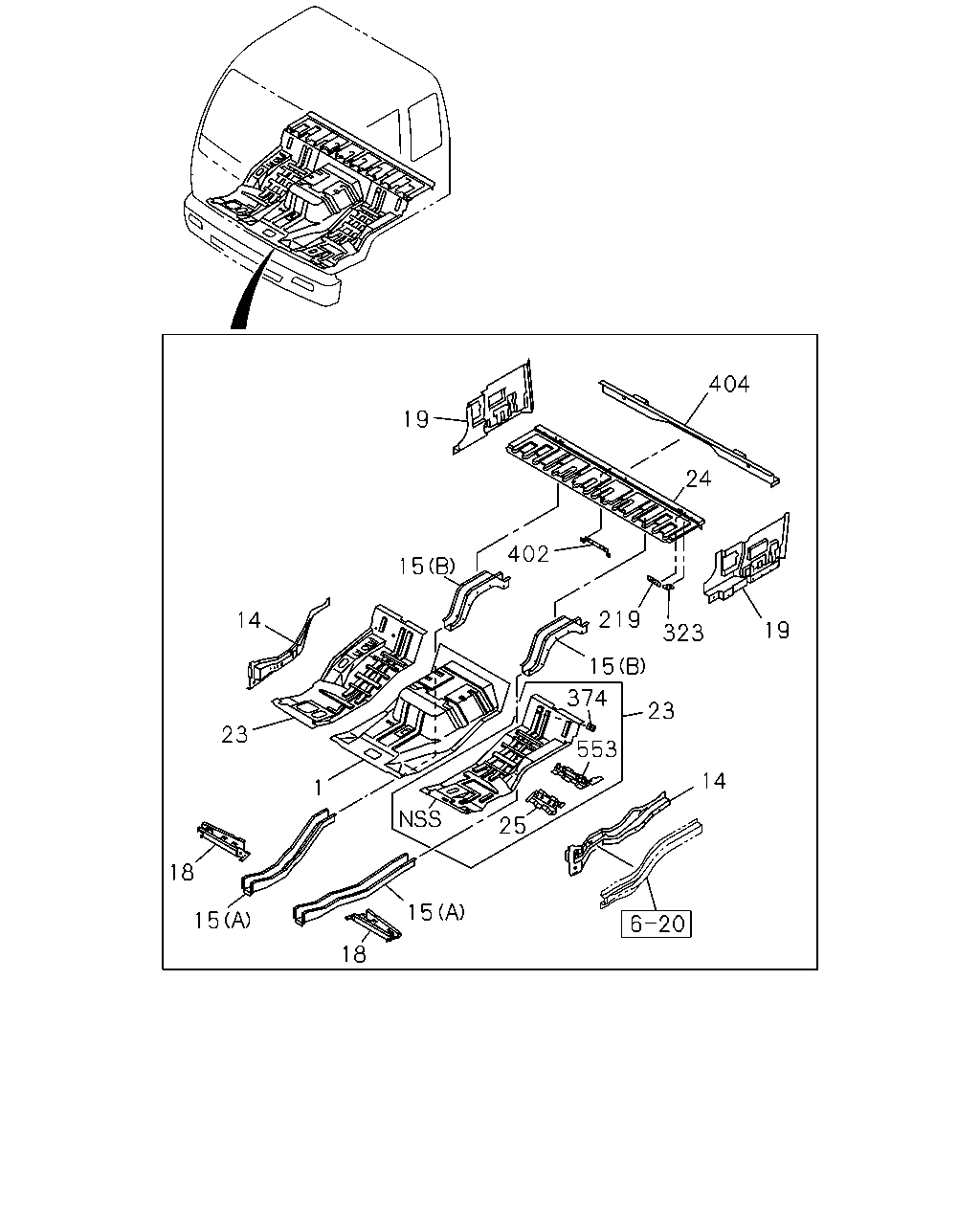

çizim 78979
404 24 19 323 219 402 19 15 14 23 1 25 553 374 23 15 14 15 18 15 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR 1-62183-405-2 01 1 0005-0210 ● ●
1 PANEL; FLOOR 1-62183-668-0 01 1 0211- ● ●
1 PANEL; FLOOR 1-62183-225-3 01 1 0005-0210 ● ●
1 PANEL; FLOOR 1-62183-656-0 01 1 0211- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005-0210 ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0211- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005-0210 ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0211- ● ● ● ●
15 FRAME; UNDER
(C) 		1-62483-018-3 01 1 0211- ●
15 FRAME; UNDER
(C) 		1-62483-348-1 01 1 0211- ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0005-0401 ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0005- ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0005-0103 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0005- ● ●
15 FRAME; UNDER
(C) 		1-62483-018-2 01 1 0005-0210 ● ●
15 FRAME; UNDER
(C) 		1-62483-340-1 01 1 0211-0211 ● ●
15 FRAME; UNDER
(C) 		1-62483-340-2 01 1 0211- ●
15 FRAME; UNDER
(C) 		1-62483-017-2 01 1 0005-0210 ● ●
15 FRAME; UNDER
(C) 		1-62483-339-0 01 1 0211-0211 ● ●
15 FRAME; UNDER
(C) 		1-62483-339-1 01 1 0211- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-6 01 1 0005- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0211- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0005- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0005- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0005-0210 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 0005- ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0005- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0005- ● ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0005- ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 0005- ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0005- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0005- ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0005- ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0005- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0005- ● ●

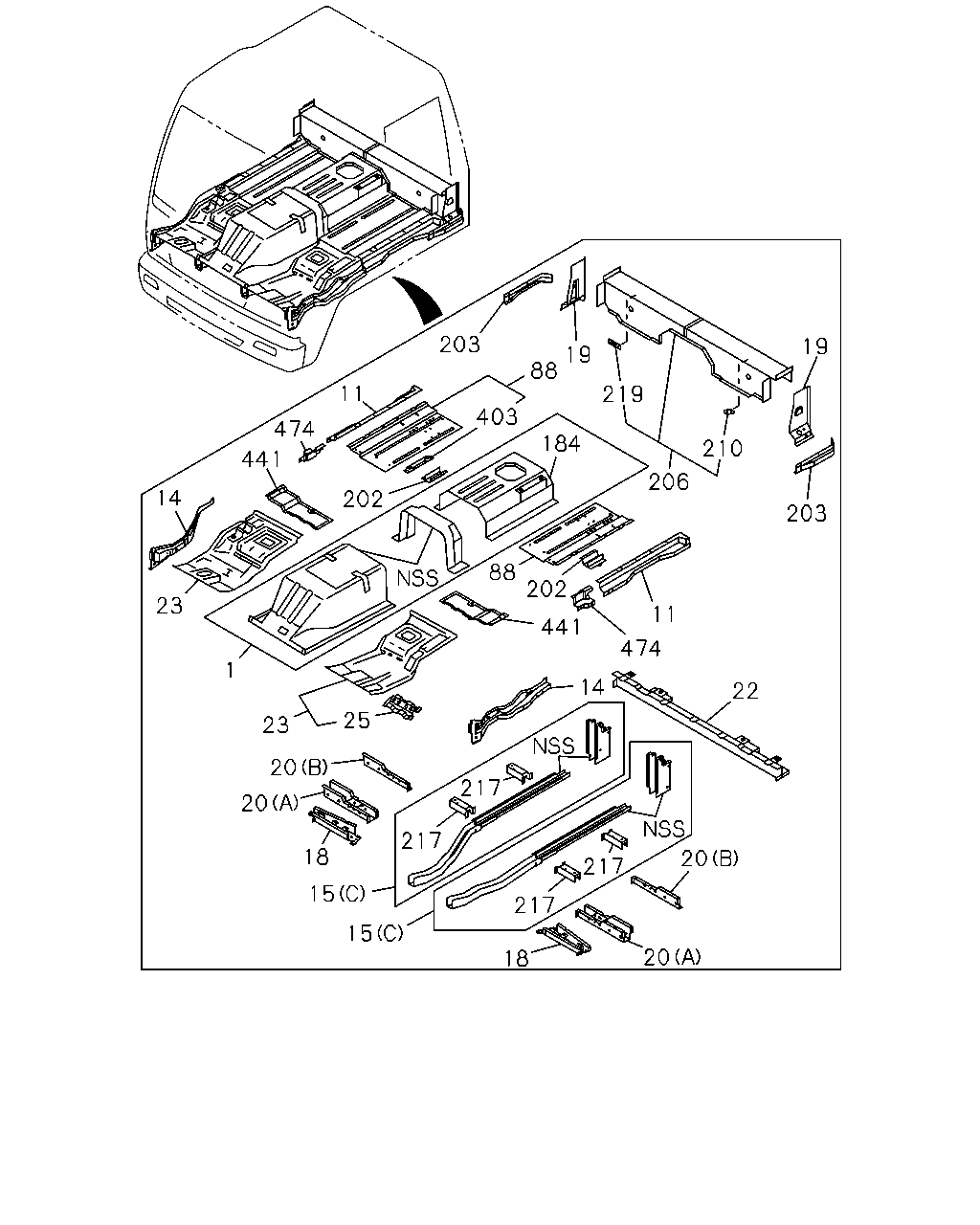

çizim 103396
19 203 210 206 219 19 88 203 403 184 11 474 441 202 14 23 1 23 25 441 202 88 11 474 22 20 20 217 217 18 15 15 18 20 20 217 217 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR 1-62183-405-2 01 1 0005-0210 ● ●
1 PANEL; FLOOR 1-62183-668-0 01 1 0211- ● ●
1 PANEL; FLOOR 1-62183-225-3 01 1 0005-0210 ● ●
1 PANEL; FLOOR 1-62183-656-0 01 1 0211- ● ●
11 PANEL; FLOOR SIDE RR 1-62483-265-0 01 1 0005-0008 ● ●
11 PANEL; FLOOR SIDE RR 1-62483-318-0 01 1 0009- ● ●
11 PANEL; FLOOR SIDE RR 1-62483-264-0 01 1 0005-0008 ● ●
11 PANEL; FLOOR SIDE RR 1-62483-317-0 01 1 0009- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005-0210 ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0211- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005-0210 ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0211- ● ● ● ●
15 FRAME; UNDER
(C) 		1-62483-018-3 01 1 0211- ●
15 FRAME; UNDER
(C) 		1-62483-348-1 01 1 0211- ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0005-0401 ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0005- ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0005-0103 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0005- ● ●
15 FRAME; UNDER
(C) 		1-62483-018-2 01 1 0005-0210 ● ●
15 FRAME; UNDER
(C) 		1-62483-340-1 01 1 0211-0211 ● ●
15 FRAME; UNDER
(C) 		1-62483-340-2 01 1 0211- ●
15 FRAME; UNDER
(C) 		1-62483-017-2 01 1 0005-0210 ● ●
15 FRAME; UNDER
(C) 		1-62483-339-0 01 1 0211-0211 ● ●
15 FRAME; UNDER
(C) 		1-62483-339-1 01 1 0211- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-6 01 1 0005- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0211- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0005- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0005- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0005-0210 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 0005- ● ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-303-3 01 1 0005- ● ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-778-1 01 1 0005- ● ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-302-3 01 1 0005- ● ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-315-3 01 1 0005- ● ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 0005- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0005- ● ● ● ●
88 BOARD ASM; FLOOR 1-62483-038-1 01 1 0005-0210 ● ●
88 BOARD ASM; FLOOR 1-62483-336-0 01 1 0211- ● ●
88 BOARD ASM; FLOOR 1-62483-037-1 01 1 0005-0210 ● ●
88 BOARD ASM; FLOOR 1-62483-334-0 01 1 0211- ● ●
184 HOOD ASM; ENG RR 1-62183-036-1 01 1 0005-0210 ● ●
184 HOOD ASM; ENG RR 1-62183-657-0 01 1 0211- ● ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 0005- ● ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 0005- ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 0212- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 0212- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 0005-0210 ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62483-354-0 01 1 0211-0211 ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62483-354-0 01 1 0212- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 0005-0210 ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62483-353-0 01 1 0211-0211 ● ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62483-353-0 01 1 0212- ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 0005- ● ●
210 PANEL; HAND BRAKE LEVER BRKT 1-62182-085-0 01 1 0005- ● ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 0211- ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 0211- ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 0005-0210 ● ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 02 1 0211-0211 ● ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 02 1 0211- ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 0005-0210 ● ●
217 PANEL; SEAT STAND
W/NUT 		1-62483-341-0 01 1 0211-0211 ● ●
217 PANEL; SEAT STAND
W/NUT 		1-62483-341-0 01 1 0211- ●
217 PANEL; SEAT STAND
W/NUT 		1-62483-342-1 01 1 0211-0211 ● ●
217 PANEL; SEAT STAND
W/NUT 		1-62483-342-1 01 1 0211- ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0005- ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 0005- ● ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 0005- ● ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-031-4 01 1 0005-0210 ● ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-030-5 01 1 0005-0210 ● ●
474 EXTENSION; FLOOR SIDE 1-62182-992-2 01 1 0005- ● ●
474 EXTENSION; FLOOR SIDE 1-62182-991-2 01 1 0005- ● ●
