6-66 — HEAD LINING AND TRIM (#8206) — 117 parça

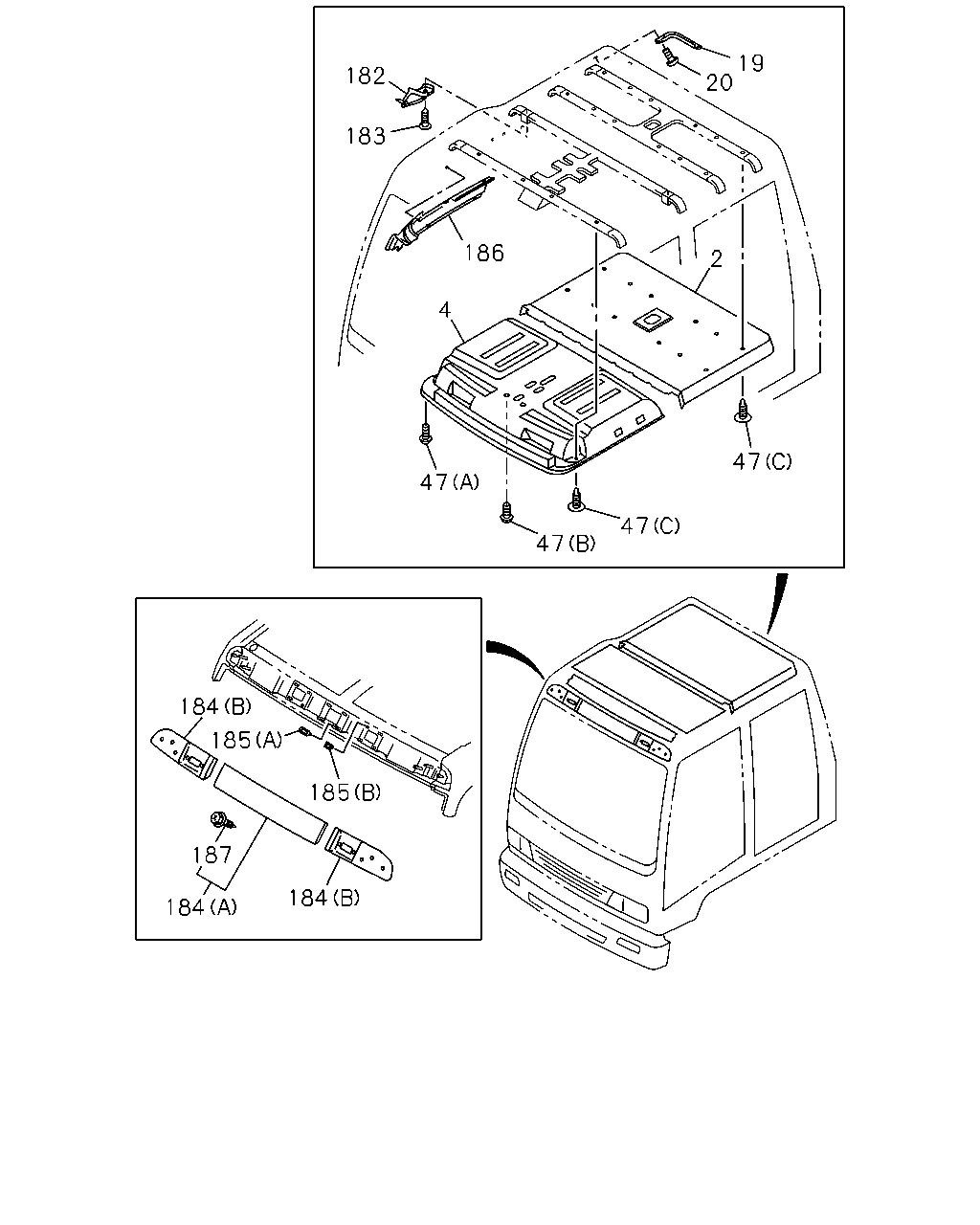

çizim 79119
19 20 182 183 186 2 4 47 47 47 47 184 185 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-709-0 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-721-0 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR 1-73318-646-1 01 1 0005-0212 ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-646-1 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR 1-73318-646-3 01 1 0406- ● ●
2 LINING; HD,ROOF RR 1-73318-620-1 01 1 0005-0212 ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-620-1 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR 1-73318-620-2 01 1 0406- ● ●
4 LINING; ROOF,FRT
MAP LAMP<C85> 		1-73318-597-7 01 1 0406- ● ●
4 LINING; ROOF,FRT
MAP LAMP<C85> 		1-73318-619-7 01 1 0406- ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		8-97893-788-1 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		1-73318-698-1 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT 8-97865-577-1 01 1 0005-0212 ● ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		8-97865-577-2 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT 8-97865-577-2 01 1 0406-0406 ● ●
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85> 		8-97865-577-4 01 1 0406- ● ●
4 LINING; ROOF,FRT 1-73318-647-2 01 1 0005-0212 ● ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-647-3 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT 1-73318-647-3 01 1 0406-0406 ● ●
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85> 		1-73318-647-5 01 1 0406- ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73318-611-0 01 1 0005-0006 ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73318-665-0 01 1 0007- ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73318-610-0 01 1 0005-0006 ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73318-664-0 01 1 0007- ● ●
20 SCREW; FINISHER,BACK CORNER,HEADLINING
M4X16 TAPPING 		1-09981-477-0 04 1 0005- ● ●
47 CLIP; HEADLINING
MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 16 1 0406- ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 17 1 0406- ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0405 ● ● ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0406- ● ● ● ●
47 CLIP; HEADLINING
(D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-0405 ● ●
47 CLIP; HEADLINING
MAP LAMP<C85> (D) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0406- ● ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0211- ● ● ● ●
47 CLIP; HEADLINING
(C) D6X23 LIGHT GRAY 		1-73318-629-0 17 1 0005-0405 ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0406- ● ●
182 COVER; HEAD LIMING 1-73318-624-2 01 1 0005- ● ●
182 COVER; HEAD LIMING 1-73318-623-2 01 1 0005- ● ●
183 CLIP; COVER
D4.6X14.7 BLACK 		1-09983-104-0 06 1 0005-0005 ● ●
183 CLIP; COVER
D5X14.7 		1-09983-183-0 06 1 0006- ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0005-0210 ● ● ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0211-0211 ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0212- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 0005- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 0005- ● ● ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0005-0210 ● ● ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0211- ● ● ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0005-0210 ● ● ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0211- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0005-0210 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0211-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0406- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0005-0210 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0211-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0406- ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0211-0211 ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0212- ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005-0210 ● ● ● ●

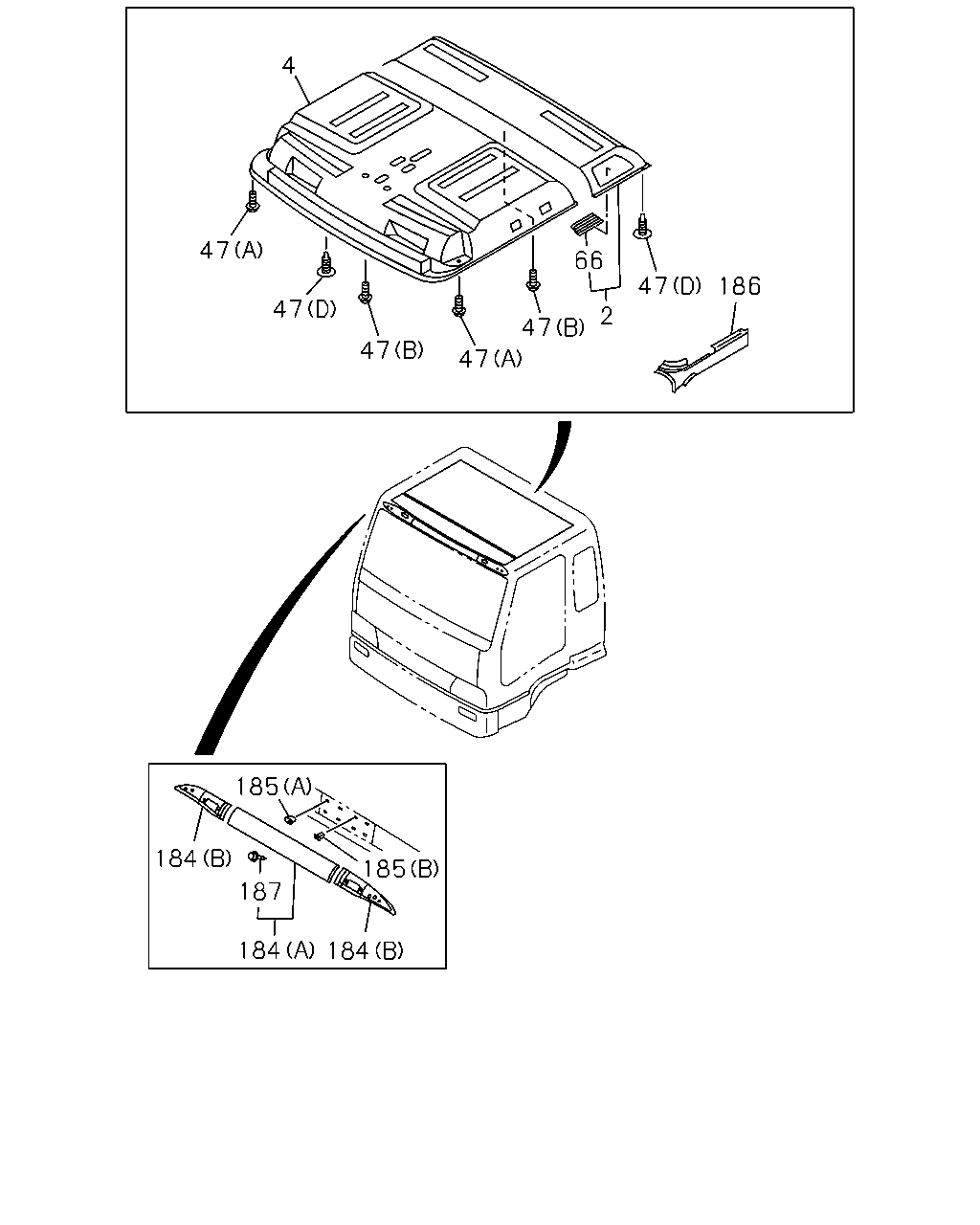

çizim 79153
4 47 66 47 186 47 2 47 47 47 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-709-0 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-721-0 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR 1-73318-646-1 01 1 0005-0212 ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-646-1 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR 1-73318-646-3 01 1 0406- ● ●
2 LINING; HD,ROOF RR 1-73318-620-1 01 1 0005-0212 ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-620-1 01 1 0301-0405 ● ●
2 LINING; HD,ROOF RR 1-73318-620-2 01 1 0406- ● ●
4 LINING; ROOF,FRT
MAP LAMP<C85> 		1-73318-597-7 01 1 0406- ● ●
4 LINING; ROOF,FRT
MAP LAMP<C85> 		1-73318-619-7 01 1 0406- ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		8-97893-788-1 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		1-73318-698-1 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT 8-97865-577-1 01 1 0005-0212 ● ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		8-97865-577-2 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT 8-97865-577-2 01 1 0406-0406 ● ●
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85> 		8-97865-577-4 01 1 0406- ● ●
4 LINING; ROOF,FRT 1-73318-647-2 01 1 0005-0212 ● ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-647-3 01 1 0301-0405 ● ●
4 LINING; ROOF,FRT 1-73318-647-3 01 1 0406-0406 ● ●
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85> 		1-73318-647-5 01 1 0406- ● ●
47 CLIP; HEADLINING
MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 16 1 0406- ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 17 1 0406- ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0405 ● ● ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0406- ● ● ● ●
47 CLIP; HEADLINING
(D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-0405 ● ●
47 CLIP; HEADLINING
MAP LAMP<C85> (D) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0406- ● ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0211- ● ● ● ●
47 CLIP; HEADLINING
(C) D6X23 LIGHT GRAY 		1-73318-629-0 17 1 0005-0405 ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0406- ● ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0211- ● ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0211- ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0005-0210 ● ● ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0211-0211 ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0212- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 0005- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 0005- ● ● ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0005-0210 ● ● ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0211- ● ● ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0005-0210 ● ● ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0211- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0005-0210 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0211-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0406- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0005-0210 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0211-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0406- ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0211-0211 ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0212- ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005-0210 ● ● ● ●
