◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#82047) — 100 parça

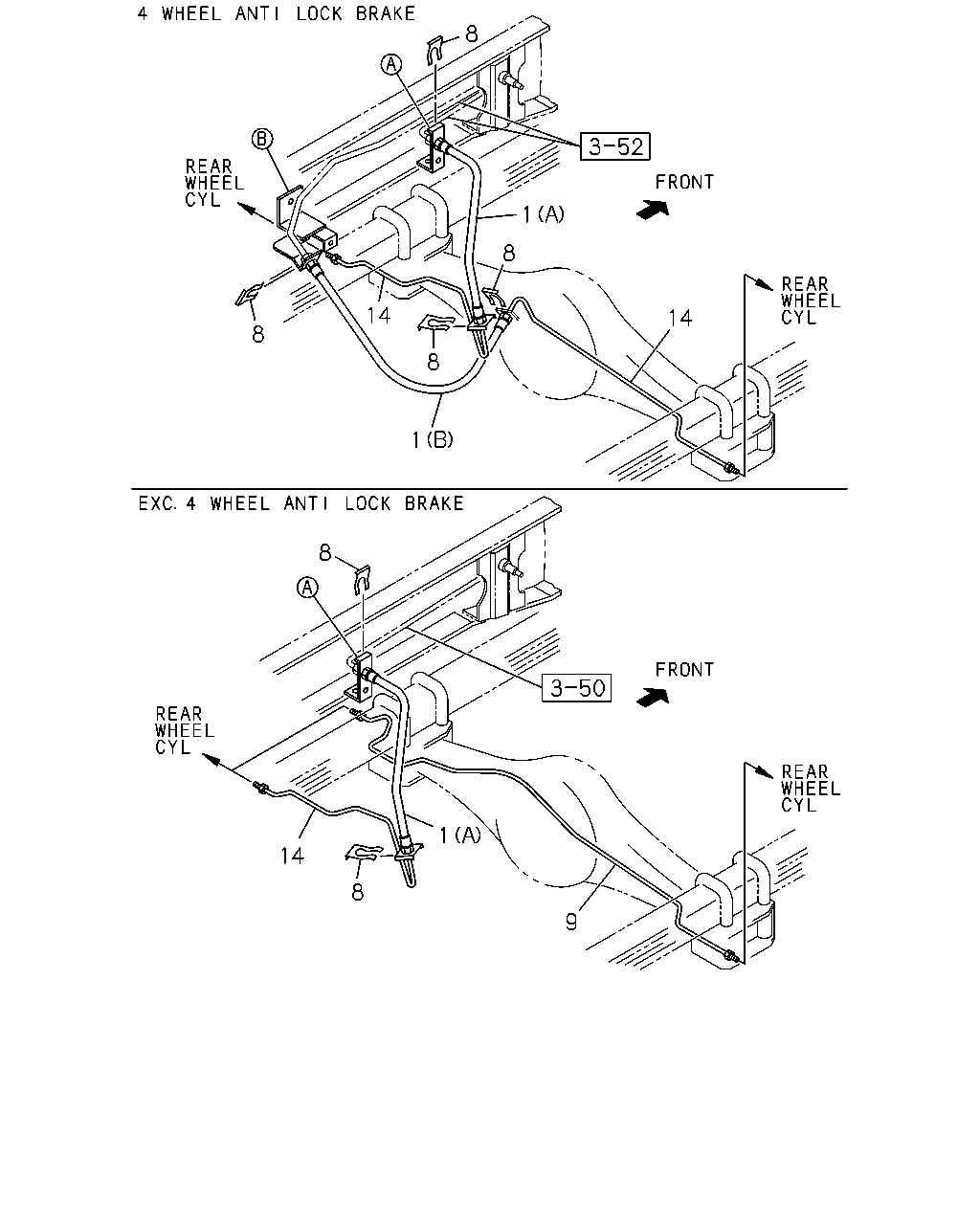

çizim 119782
9 8 1 14 8 1 8 8 14 14 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 1103-1108 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345 		8-97230-284-1 01 1 1109- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1103- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1103-1108 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 1109- ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1109- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1103-1108 ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1109- ● ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1211-1308 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1309-1409 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98021-870-0 01 1 1309-1409 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1410-1410 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98021-870-0 01 1 1410-1410 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98021-870-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),4 WHEEL ANTI LOCK BRAKE<JE5>,CHILE EQUIPMENT(KE1) 		8-98021-870-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-861-0 01 1 1109-1308 ●
9 04.685 PIPE; BRK,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-861-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-864-0 01 1 1109-1206 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-864-0 01 1 1207-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-864-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1109-1206 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1207-1210 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1211-1410 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-256-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-860-0 01 1 1109-1206 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-860-0 01 1 1109-1206 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-860-0 01 1 1207- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-860-0 01 1 1207- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1109-1206 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1207-1210 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1211-1410 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1211-1410 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1411-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1411-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1411-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 		8-98021-869-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ),BRK WHL LK CONT LSPV <6PH> 		8-98021-869-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 		8-98021-869-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ),BRK WHL LK CONT LSPV <6PH> 		8-98021-869-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 		8-98021-869-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ),BRK WHL LK CONT LSPV <6PH> 		8-98021-869-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 		8-98021-869-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ),BRK WHL LK CONT LSPV <6PH> 		8-98021-869-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-862-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) EXC. BRK WHL LK CONT LSPV<6PH> 		8-98021-862-0 01 1 1109- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-877-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) EXC. BRK WHL LK CONT LSPV<6PH> 		8-98021-877-0 01 1 1109-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) 		8-98021-877-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-877-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-871-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1) 		8-98021-871-0 01 1 1109-1206 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98021-871-0 01 1 1207-1210 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> CHILE EQUIPMENT(KE1) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 1211-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98021-871-0 01 1 1211-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> CHILE EQUIPMENT(KE1) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 		8-98021-871-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1),BRK WHL LK CONT LSPV<6PH> 		8-98021-871-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. CHILE EQUIPMENT(KE1) 		8-98021-879-0 01 1 1109-1206 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98021-879-0 01 1 1207-1210 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> CHILE EQUIPMENT(KE1) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 1211-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98021-879-0 01 1 1211-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 1309-1409 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 1410-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98021-879-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98021-879-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) 		8-98021-879-0 01 1 1508- ●
çizim 121109
3 3 25 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97251-436-0 01 1 1103- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98117-513-0 01 1 1103-1108 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98117-513-0 01 1 1109- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1103- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98153-296-0 01 1 1103-1108 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98153-296-0 01 1 1109- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1103-1108 ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1109- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1103-1108 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1103-1108 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1103-1108 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1109-1206 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1109-1206 ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1109-1206 ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1109-1206 ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1109-1206 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1207-1507 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1207-1507 ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1207-1507 ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1207-1507 ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1207-1507 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1508- ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1508- ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1508- ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
