3-52 — BRAKE PIPING; OIL,FRONT (#82046) — 326 parça

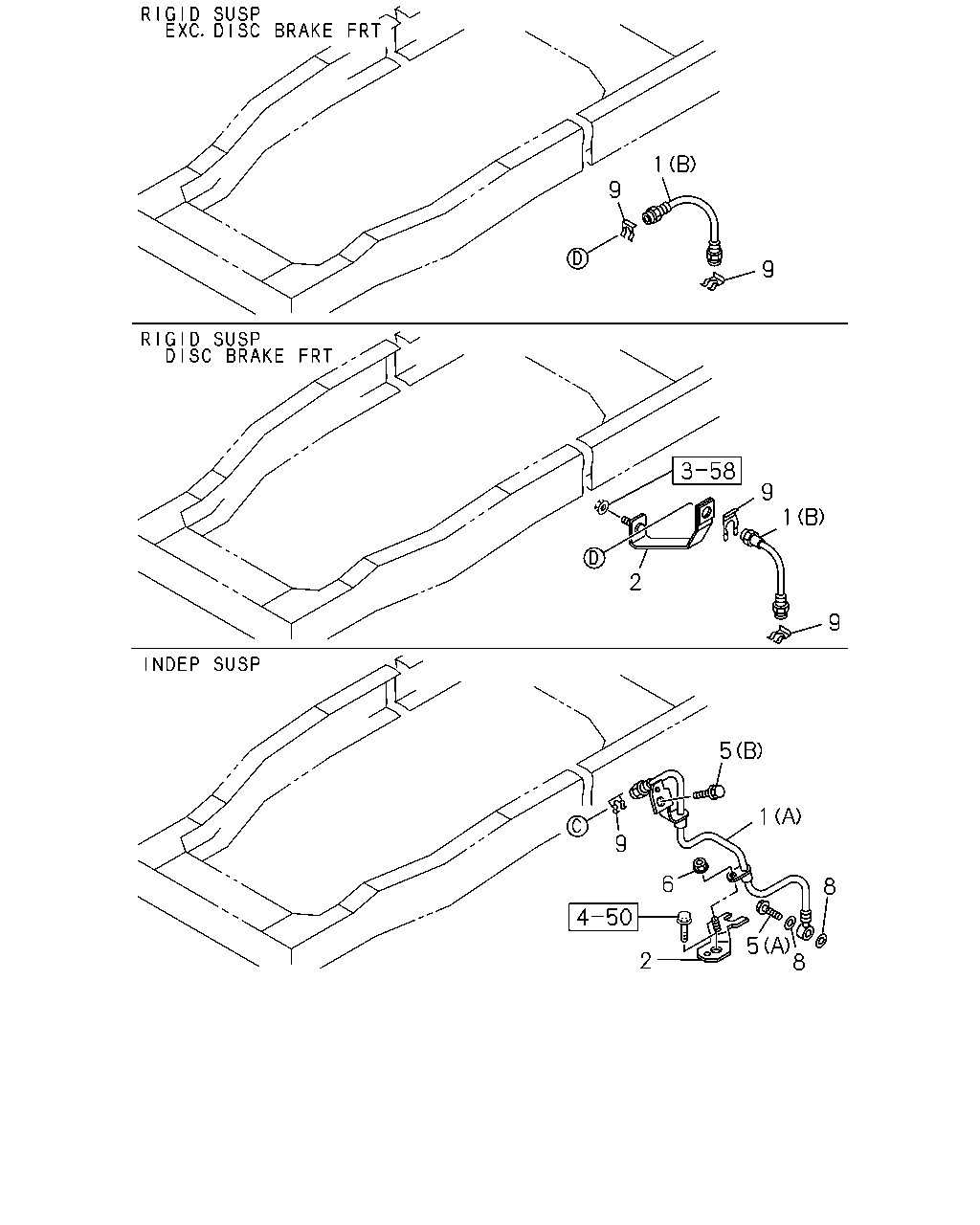

çizim 119774
8 8 5 2 6 9 5 1 2 9 1 9 9 9 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 1403- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97358-770-3 01 1 1103-1108 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-770-3 01 1 1109- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97358-771-3 01 1 1103-1108 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-771-3 01 1 1109- ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97042-976-0 02 1 1103-1108 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97042-976-0 02 1 1109-1402 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97042-976-0 02 1 1109-1402 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97042-976-0 02 1 1403- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (B) 		8-97042-976-0 02 1 1403- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1109-1402 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1403- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 		8-97389-691-1 01 1 1403- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1109-1402 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1403- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 		8-97389-692-1 01 1 1403- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
04.686 		8-97369-635-1 01 1 1103-1108 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-635-1 01 1 1109- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
04.686 		8-97369-636-1 01 1 1103-1108 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-636-1 01 1 1109- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1103-1108 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1109- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1103-1108 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) M10X22 		8-98014-005-0 02 1 1109-1402 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) M10X22 		8-98014-005-0 02 1 1403- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> (A) M10X22 		8-98014-005-0 02 1 1403- ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1103-1108 ●
6 04.686 NUT; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1103-1108 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1109-1402 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1403- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1403- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1103-1108 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1103-1108 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1402 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-054-0 02 1 1109-1402 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1402 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1403- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-054-0 02 1 1403- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1403- ●

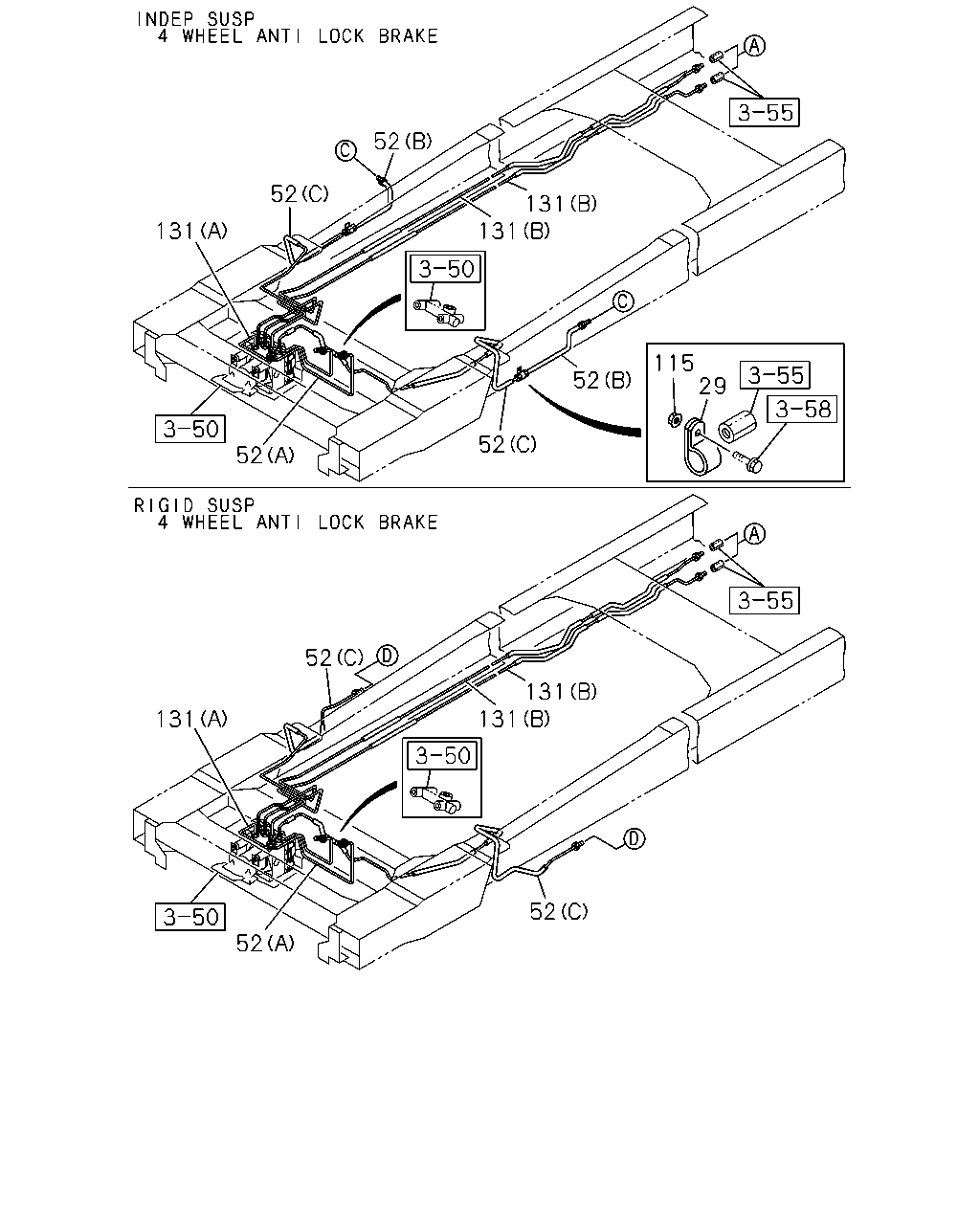

çizim 119810
52 52 131 52 131 131 29 115 52 52 52 131 52 52 131 131
BalonParca AdiParca NoAdetTipApplied Date A B
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 02 1 1103-1108 ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-694-0 01 1 1207-1507 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98054-694-0 01 1 1508- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1403- ●
52 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1109- ●
52 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1109- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1109- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1109- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1109- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1109- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1103-1108 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1109- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1403- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1403- ●
52 04.685 PIPE; BRK
(F) 2WAY TO REAR 		8-98054-696-0 01 1 1109-1109 ●
52 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1109-1206 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1207-1507 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1508- ●
115 04.680 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1103-1108 ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1103-1108 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1103-1108 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1103-1108 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1103-1108 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1103-1108 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-371-0 01 1 1103-1108 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-371-0 01 1 1109- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1103-1108 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1109-1210 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1211-1309 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1310- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1310- ●

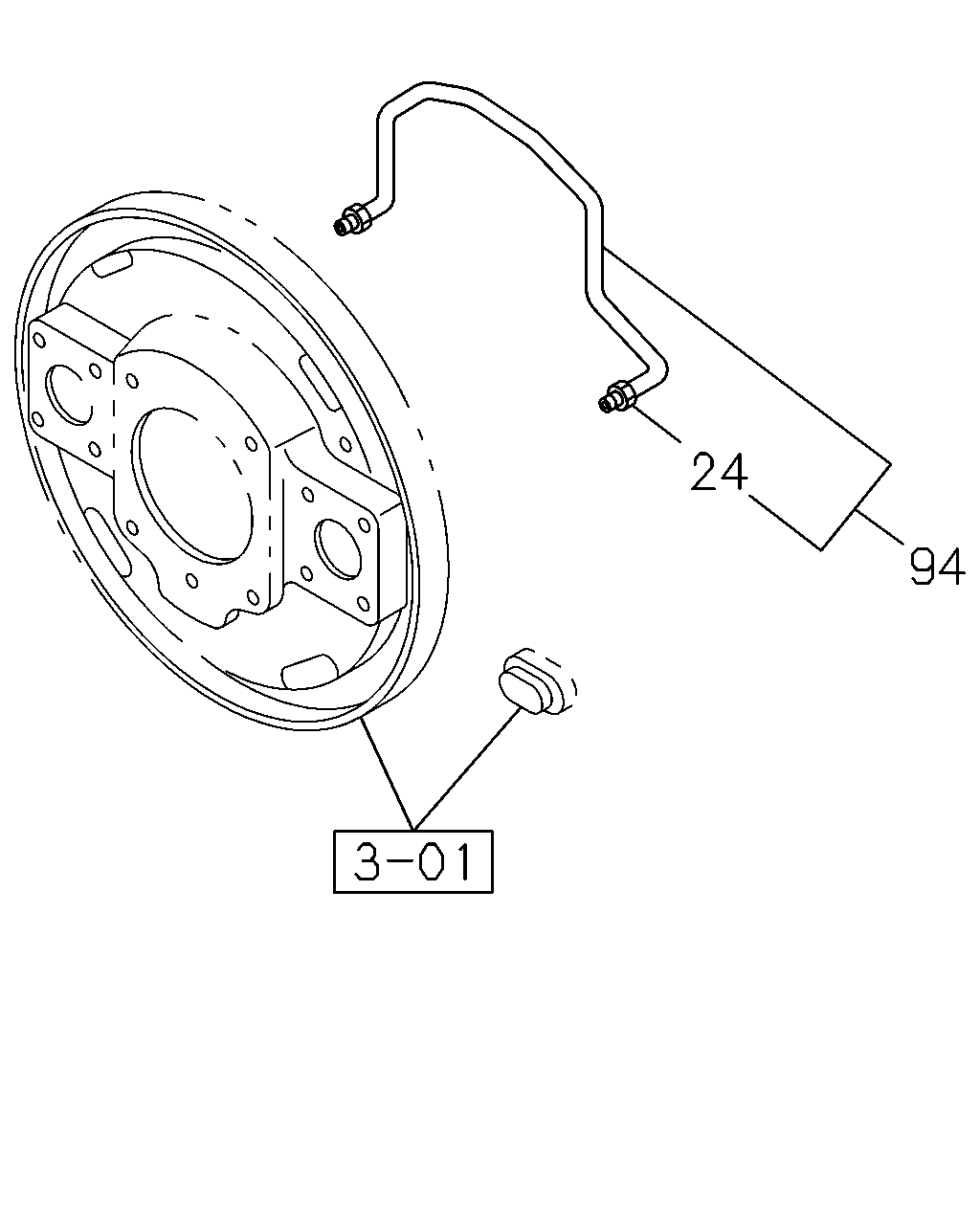

çizim 119821
94 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		0-92107-605-0 02 1 1109-1402 ●
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		0-92107-605-0 02 1 1109-1402 ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		0-92107-605-0 02 1 1403- ●
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 		0-92107-605-0 02 1 1403- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97019-222-0 01 1 1109-1402 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-222-0 01 1 1109-1402 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97019-222-0 01 1 1403- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 		8-97019-222-0 01 1 1403- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97019-223-0 01 1 1109-1402 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-223-0 01 1 1109-1402 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97019-223-0 01 1 1403- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 		8-97019-223-0 01 1 1403- ●

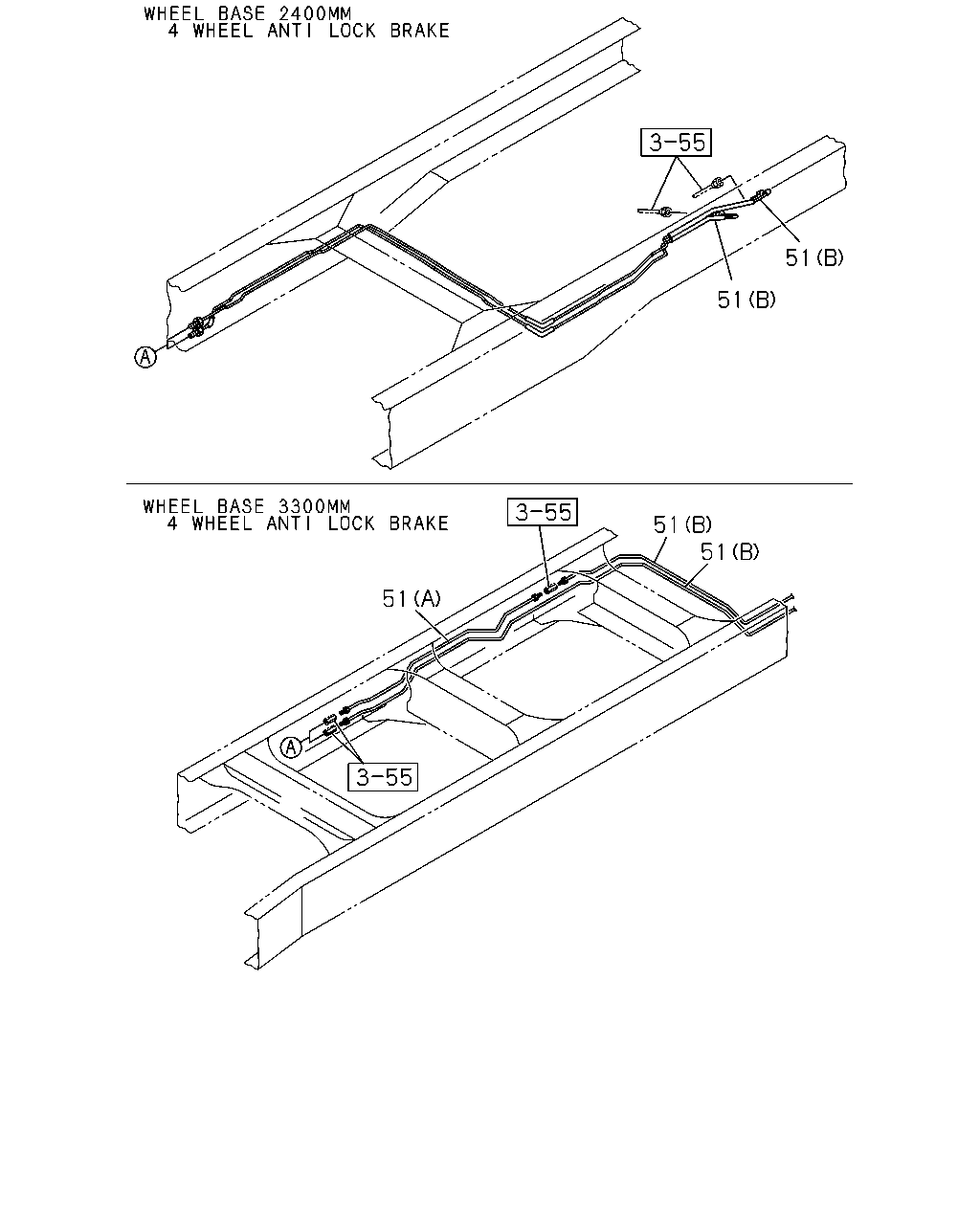

çizim 119923
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1207- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1207- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1109-1309 ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1109-1309 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> EXC. HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> EXC. HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-97389-389-0 01 1 1109- ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-532-1 01 1 1109- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1403- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1403- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1403- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1403- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1109-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1508- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1508- ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1403- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1403- ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1403- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1403- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1109- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1109- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1109-1206 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1207- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1109-1206 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1207- ●
51 04.685 PIPE; BRK
(A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1109-1206 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1207- ●

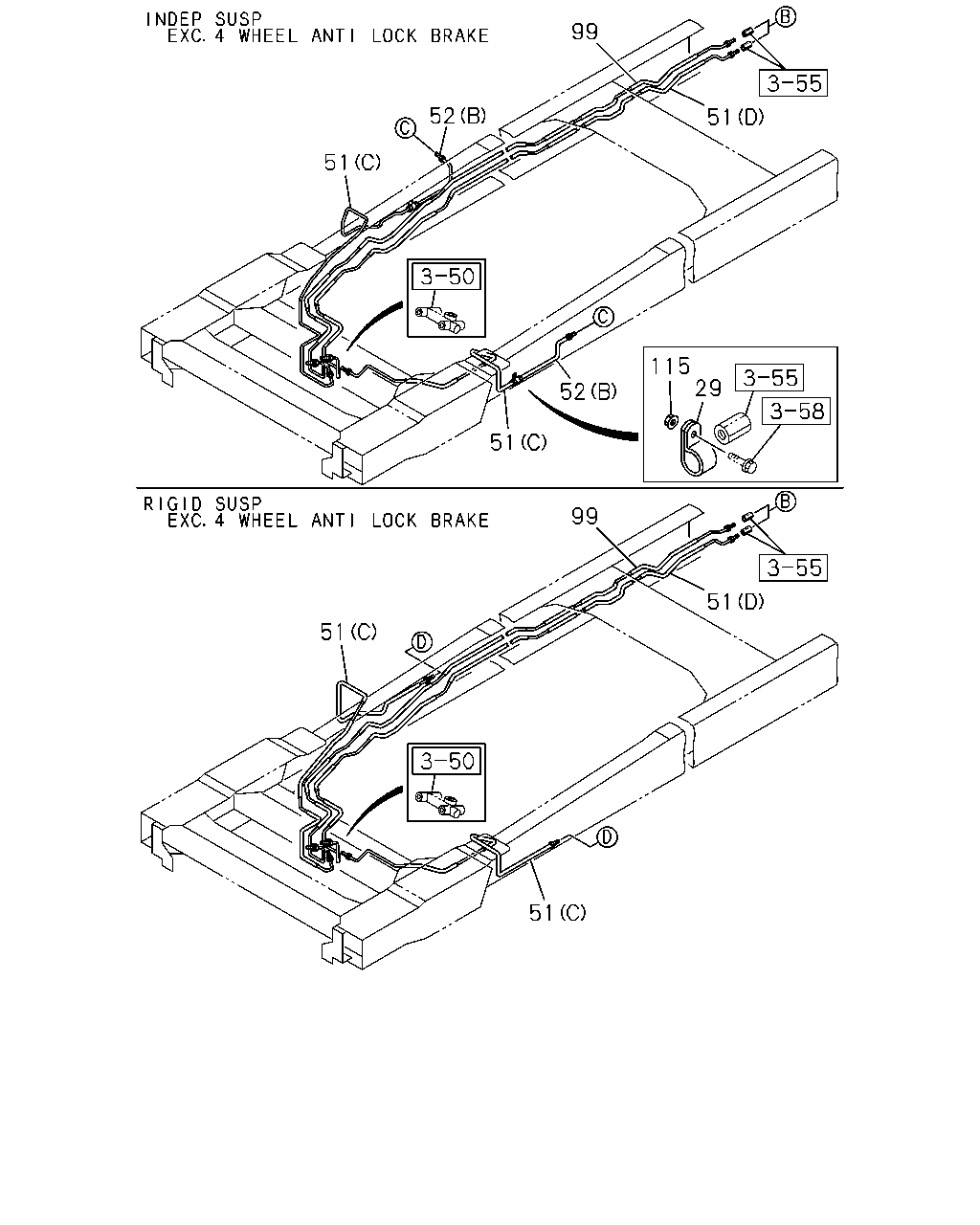

çizim 191520
51 51 99 51 29 115 51 51 52 99 51 52
BalonParca AdiParca NoAdetTipApplied Date A B
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 02 1 1103-1108 ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1207- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1207- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1109-1309 ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1109-1309 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> EXC. HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> EXC. HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-97389-389-0 01 1 1109- ●
51 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-532-1 01 1 1109- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1403- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98051-509-0 01 1 1403- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1403- ●
51 04.685 PIPE; BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-510-0 01 1 1403- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1109-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1507 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1508- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,HEAVY DUTY FRAME<6WB> (D) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1508- ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1403- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH 		8-98195-140-0 01 1 1403- ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1109-1402 ●
51 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1403- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH 		8-98196-268-0 01 1 1403- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1109- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1109- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1109-1206 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1207- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1109-1206 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1207- ●
51 04.685 PIPE; BRK
(A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1103-1108 ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1109-1206 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1207- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-694-0 01 1 1207-1507 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98054-694-0 01 1 1508- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1403- ●
52 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1109- ●
52 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1109- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1109- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1109- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1109- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1109- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1103-1108 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1109- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1403- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1403- ●
52 04.685 PIPE; BRK
(F) 2WAY TO REAR 		8-98054-696-0 01 1 1109-1109 ●
52 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1109-1206 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1207-1507 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1508- ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1109-1210 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1109-1210 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1109-1210 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1211-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1211-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1211-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1211-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB> 		8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98131-078-0 01 1 1109-1210 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98131-078-0 01 1 1109-1210 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98131-078-0 01 1 1211-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1211-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>, HEAVYDUTY FRAME<6WB> 		8-98131-078-0 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,4 WHEEL ANTI LOCK BRAKE<JE5>, HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1310- ●
115 04.680 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1103-1108 ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ●

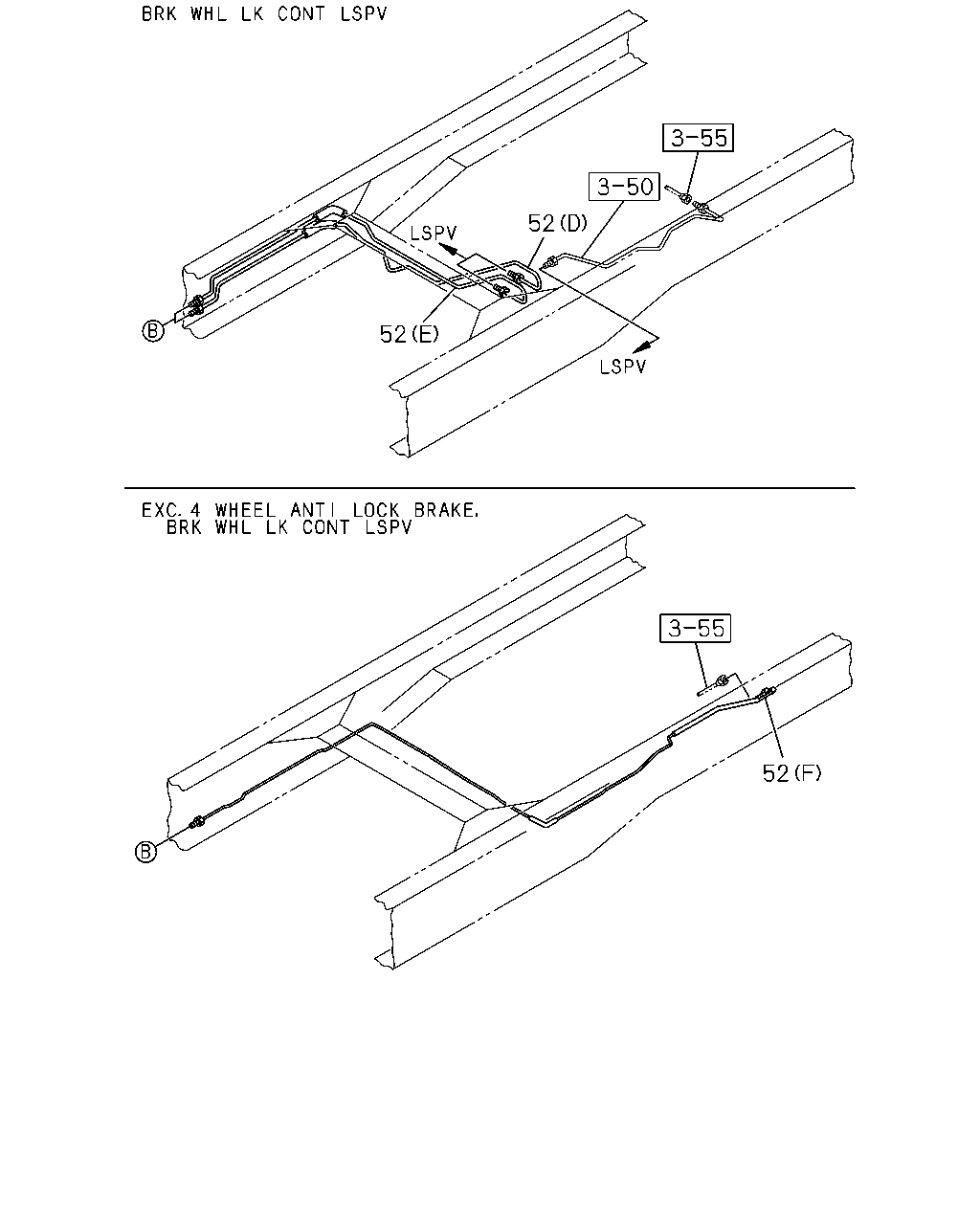

çizim 191573
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1508- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-694-0 01 1 1207-1507 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98054-694-0 01 1 1508- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 1403- ●
52 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> (D) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1109- ●
52 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> (E) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1109- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1109- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1109- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1109- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1109- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1103-1108 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1109- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1403- ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1103-1108 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1109-1402 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1403- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1403- ●
52 04.685 PIPE; BRK
(F) 2WAY TO REAR 		8-98054-696-0 01 1 1109-1109 ●
52 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1109-1206 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1207-1507 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98054-696-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
