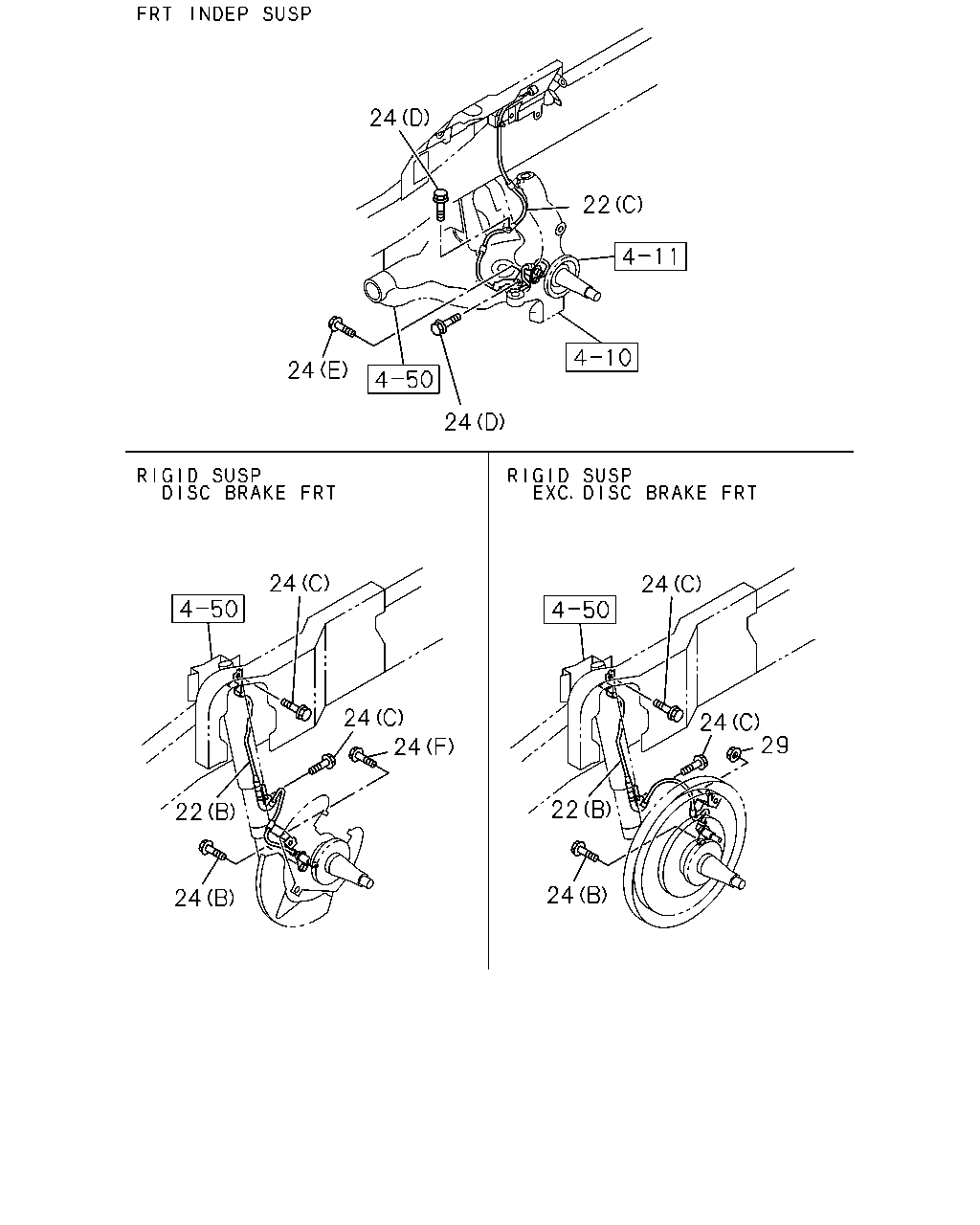

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#82040) — 92 parça

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.730 BRACKET; SENSOR	8-98002-436-1	02	1	1103-1108	●
2	04.730 BRACKET; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-436-1	02	1	1109-	●
2	04.730 BRACKET; SENSOR	8-98000-019-2	02	1	1103-1108		●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-019-2	02	1	1109-		●
20	04.710 ROTOR; SENSOR	8-98113-174-0	02	1	1103-1108	●
20	04.710 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98113-174-0	02	1	1109-	●
20	04.710 ROTOR; SENSOR	8-97234-459-3	02	1	1103-1108		●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97234-459-3	02	1	1109-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (A)	8-98244-877-0	02	1	1402-1402		●
22	04.710 SENSOR; SPEED G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98244-877-0	02	1	1403-		●
22	04.710 SENSOR; SPEED G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98244-877-0	02	1	1403-		●
22	04.710 SENSOR; SPEED (A)	8-97388-899-0	02	1	1103-1108	●	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-1	02	1	1109-1401	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-1	02	1	1109-1401		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-351-0	02	1	1402-1402	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) (A)	8-98219-351-0	02	1	1402-1402		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-351-0	02	1	1403-	●
22	04.710 SENSOR; SPEED G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98219-351-0	02	1	1403-		●
22	04.710 SENSOR; SPEED G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98219-351-0	02	1	1403-		●
22	04.710 SENSOR; SPEED (B)	8-98001-129-1	01	1	1103-1108		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (B)	8-98001-129-1	01	1	1109-	●	●
22	04.710 SENSOR; SPEED (B)	8-98001-130-1	01	1	1103-1108		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (B)	8-98001-130-1	01	1	1109-	●	●
22	04.710 SENSOR; SPEED 05.811 (C)	8-98001-470-1	01	1	1103-1108	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.811 (C)	8-98001-470-1	01	1	1109-	●
22	04.710 SENSOR; SPEED 05.811 (C)	8-98001-471-2	01	1	1103-1108	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.811 (C)	8-98001-471-2	01	1	1109-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1109-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1109-	●
22	04.710 SENSOR; SPEED DISC BRAKE FRT<J52> (B)	8-98001-127-1	01	1	1403-		●
22	04.710 SENSOR; SPEED DISC BRAKE FRT<J52> (B)	8-98001-128-1	01	1	1403-		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1103-1108	●	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1109-1401	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1109-1401		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1103-1108		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1109-1310	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1103-1108		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1109-	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1103-1108		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-	●	●
24	04.730 BOLT; SENSOR 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	1103-1108	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	1109-	●
24	04.730 BOLT; SENSOR 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	1103-1108	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	1109-1409	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 (E) M6X14 FLANGE	0-28080-614-0	02	1	1410-	●
24	04.730 BOLT; SENSOR DISC BRAKE FRT<J52> 06.225 (F) M10X12 FLANGE	0-28051-012-0	02	1	1403-		●

24 22 24 24 24 24 24 24 22 24 24 22 29 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (A)	8-98244-877-0	02	1	1402-1402		●
22	04.710 SENSOR; SPEED G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98244-877-0	02	1	1403-		●
22	04.710 SENSOR; SPEED G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98244-877-0	02	1	1403-		●
22	04.710 SENSOR; SPEED (A)	8-97388-899-0	02	1	1103-1108	●	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-1	02	1	1109-1401	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-1	02	1	1109-1401		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-351-0	02	1	1402-1402	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) (A)	8-98219-351-0	02	1	1402-1402		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-351-0	02	1	1403-	●
22	04.710 SENSOR; SPEED G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98219-351-0	02	1	1403-		●
22	04.710 SENSOR; SPEED G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98219-351-0	02	1	1403-		●
22	04.710 SENSOR; SPEED (B)	8-98001-129-1	01	1	1103-1108		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (B)	8-98001-129-1	01	1	1109-	●	●
22	04.710 SENSOR; SPEED (B)	8-98001-130-1	01	1	1103-1108		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), DISCBRAKE FRT<J52> (B)	8-98001-130-1	01	1	1109-	●	●
22	04.710 SENSOR; SPEED 05.811 (C)	8-98001-470-1	01	1	1103-1108	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.811 (C)	8-98001-470-1	01	1	1109-	●
22	04.710 SENSOR; SPEED 05.811 (C)	8-98001-471-2	01	1	1103-1108	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.811 (C)	8-98001-471-2	01	1	1109-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1109-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1109-	●
22	04.710 SENSOR; SPEED DISC BRAKE FRT<J52> (B)	8-98001-127-1	01	1	1403-		●
22	04.710 SENSOR; SPEED DISC BRAKE FRT<J52> (B)	8-98001-128-1	01	1	1403-		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1103-1108	●	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1109-1401	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1109-1401		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1103-1108		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1109-1310	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1103-1108		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1109-	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1103-1108		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-	●	●
24	04.730 BOLT; SENSOR 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	1103-1108	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	1109-	●
24	04.730 BOLT; SENSOR 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	1103-1108	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	1109-1409	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 (E) M6X14 FLANGE	0-28080-614-0	02	1	1410-	●
24	04.730 BOLT; SENSOR DISC BRAKE FRT<J52> 06.225 (F) M10X12 FLANGE	0-28051-012-0	02	1	1403-		●
29	04.730 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1402		●
29	04.730 NUT EXC. DISC BRAKE FRT<J52> 01.062 M8 FLANGE	0-91180-108-0	02	1	1403-		●
