◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#8204) — 15 parça

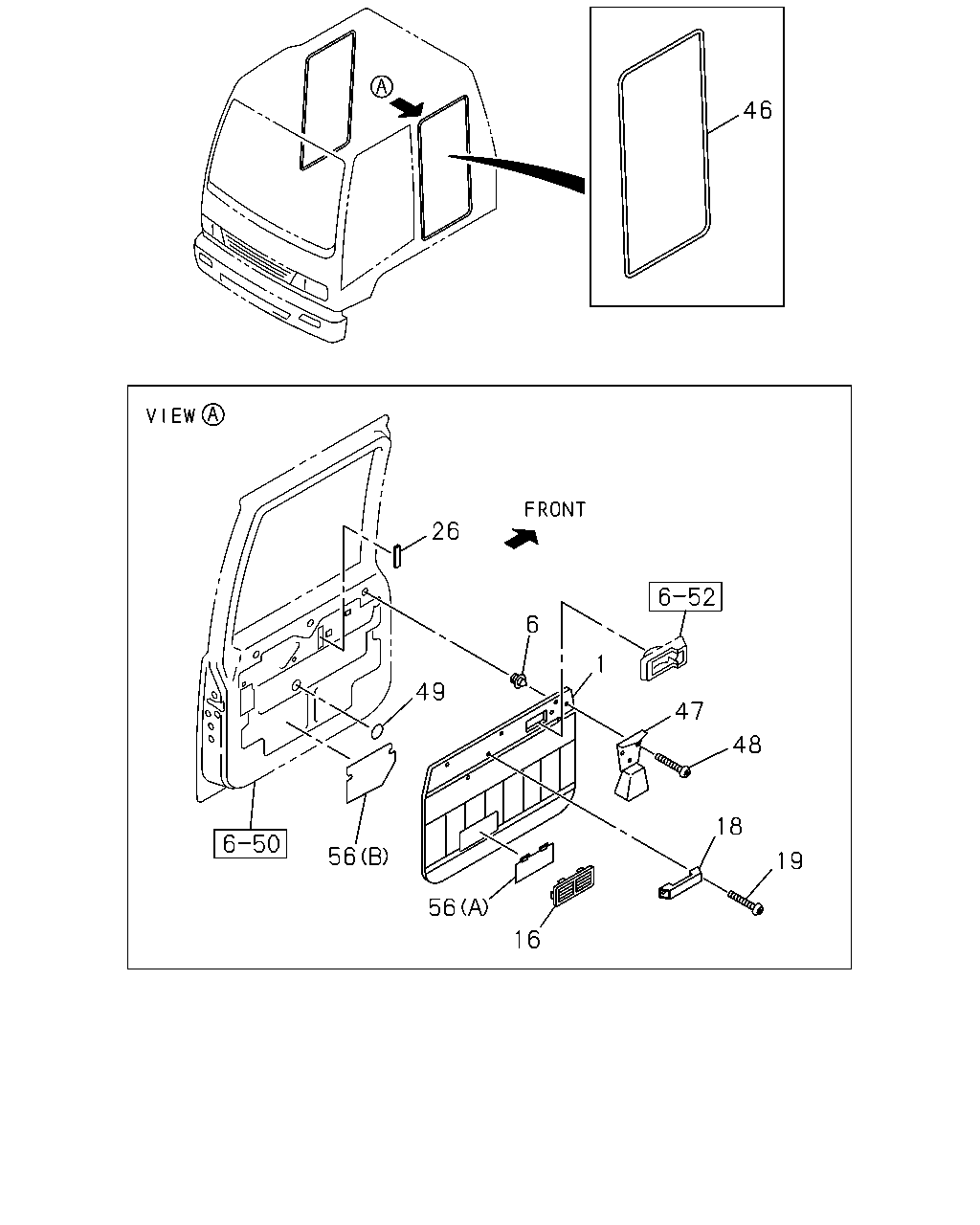

çizim 103286
46 26 6 1 49 47 48 18 56 19 56 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,RR DOOR 1-73337-488-1 01 1 0005- ● ●
1 PAD; TRIM,RR DOOR 1-73337-487-1 01 1 0005- ● ●
6 CLIP; DOOR PAD 1-09987-119-1 18 1 0005- ● ●
16 GRILLE; OUTLET,RR DOOR 8-94351-763-0 02 1 0005- ● ●
18 HANDLE; DOOR PULL
BLACK 		8-94142-589-2 02 1 0005- ● ●
19 SCREW; DOOR PULL HANDLE
M6X30 		8-94279-327-0 04 1 0005- ● ●
26 SEAL; WAIST,RR DOOR INNER 1-76777-051-2 02 1 0005- ● ●
46 SEAL; DOOR,UPR,CAB SIDE 1-76718-124-5 02 1 0005- ● ●
47 TRAY; ASH,RR 5-76457-001-0 02 1 0005- ● ●
48 SCREW; RET,ASH TRAY
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 06 1 0005-0603 ● ●
48 SCREW; RET,ASH TRAY
M4X10 TAPPING OVAL-HEAD 		0-70640-410-0 06 1 0604- ● ●
49 SEAL; DOOR
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0005- ● ●
56 SHUTTER; DOOR TRIM
(A) 		1-76718-134-1 02 1 0005- ● ●
56 SHUTTER; DOOR TRIM
(B) 		1-76718-147-3 01 1 0005- ● ●
56 SHUTTER; DOOR TRIM
(B) 		1-76718-146-3 01 1 0005- ● ●
