◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#82038) — 24 parça

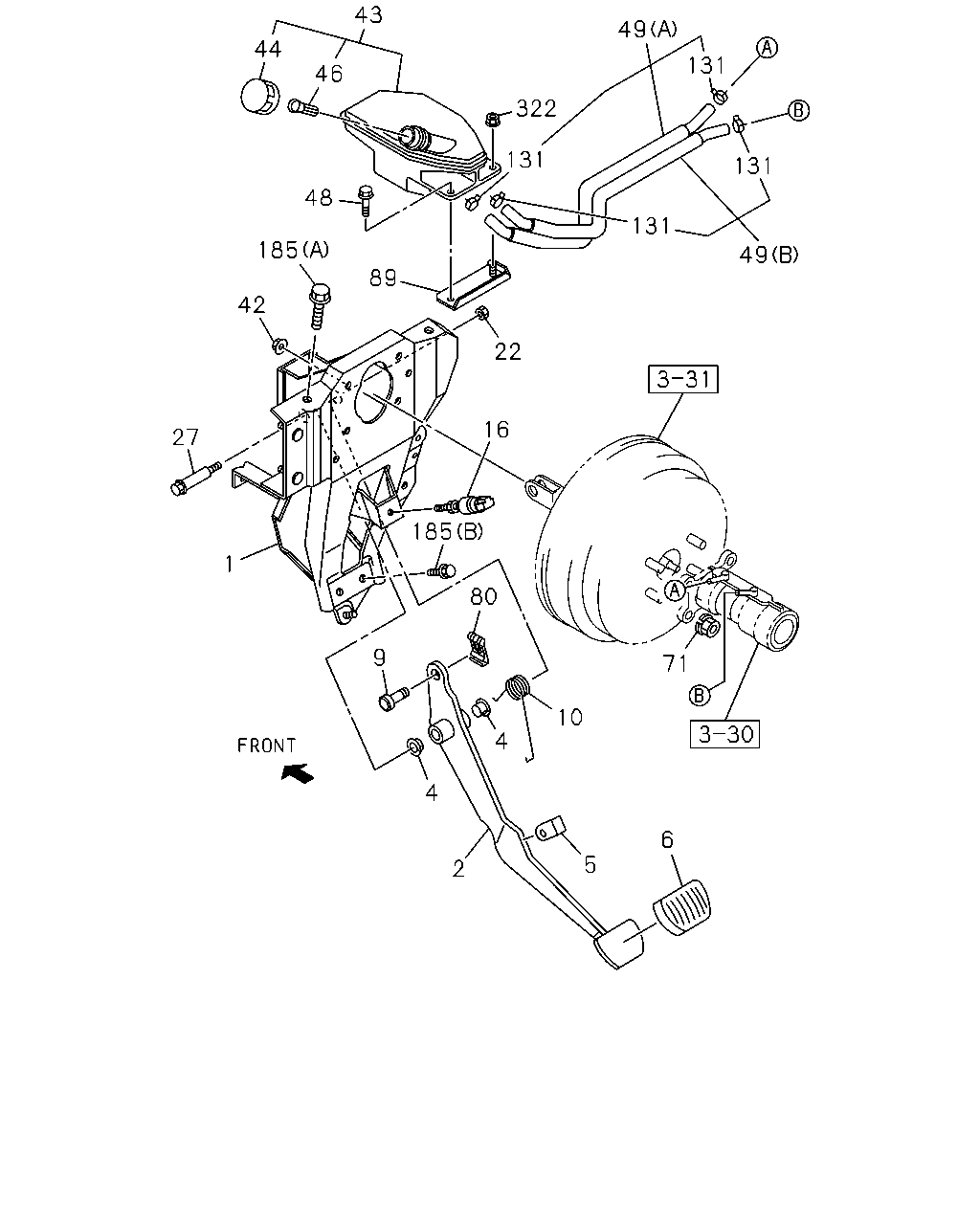

çizim 114842
6 5 2 4 4 80 9 185 10 71 49 16 22 131 131 131 49 322 131 89 27 1 42 48 185 46 43 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.634 BRACKET ASM; PEDAL 8-98029-185-1 01 1 1103- ● ●
2 04.625 PEDAL; BRK 8-98003-157-0 01 1 1103- ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 1103- ● ●
5 04.634 STOPPER; BRK PEDAL 8-98029-187-0 01 1 1103- ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-2 01 1 1103- ● ●
9 04.634 PIN; JAW JOINT 8-98147-657-0 01 1 1103- ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 1103- ● ●
16 02.447 SWITCH; STOP LAMP 8-98000-028-0 01 1 1103- ● ●
22 04.634 NUT; SHAFT
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1103- ● ●
27 04.634 SHAFT; BRK PEDAL 8-97866-667-0 01 1 1103- ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 1103- ● ●
43 04.651 TANK ASM; OIL 8-97387-219-3 01 1 1103- ● ●
44 04.651 CAP; OIL TANK 8-98022-268-0 01 1 1103- ● ●
46 04.651 FILTER; RESERVOIR,BRK 8-98022-269-0 01 1 1103- ● ●
48 04.651 BOLT; OIL TANK TO BRKT
08.077 M6X20 W/PL WASHER 		8-97370-668-0 01 1 1103- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-98030-658-1 01 1 1103- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-98030-659-1 01 1 1103- ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 1103- ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 1103- ● ●
89 04.901 BRACKET; M/CYL 8-98005-493-1 01 1 1103- ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-98031-178-0 04 1 1103- ● ●
185 04.634 BOLT; BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 02 1 1103- ● ●
185 04.634 BOLT; BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 02 1 1103- ● ●
322 04.651 NUT; OIL TANK
01.062 M6 FLANGE 		0-91180-106-0 01 1 1103- ● ●
