◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#82035) — 57 parça

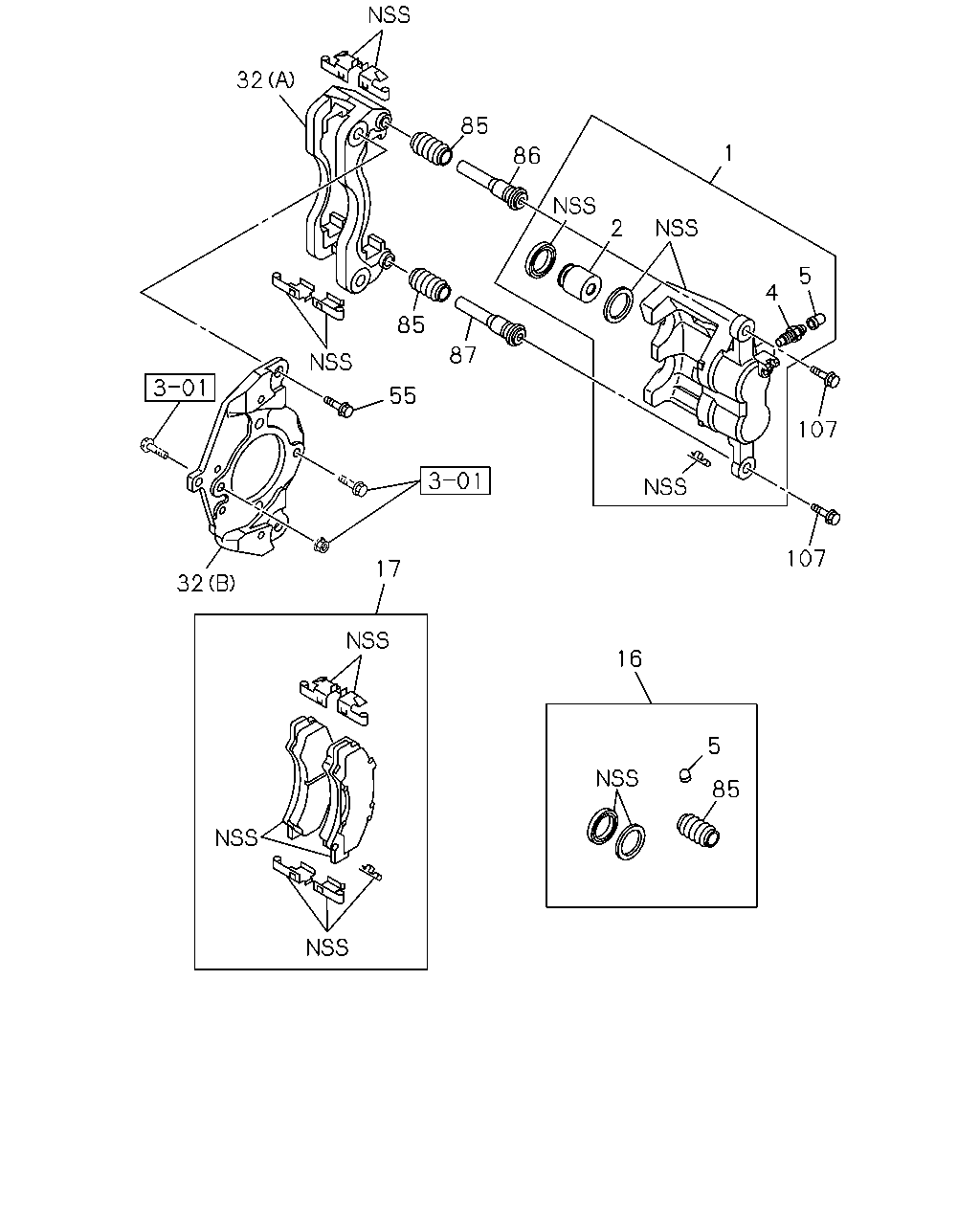

çizim 191513
32 85 85 86 87 55 17 32 16 5 85 107 107 4 5 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-730-0 01 1 1403-1412 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-461-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-731-0 01 1 1403-1412 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-462-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-97367-533-0 01 1 1103-1108 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-533-0 01 1 1109-1412 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-459-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-97367-534-0 01 1 1103-1108 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-534-0 01 1 1109-1412 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-460-0 01 1 1501- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 1403- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-256-0 04 1 1103-1108 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-256-0 04 1 1109- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1403-1412 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-476-0 02 1 1501- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1501- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1103-1108 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47615-027-0 02 1 1109-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1403-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-479-0 02 1 1501- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1501- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1103-1108 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47619-009-0 02 1 1109-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98248-904-0 01 1 1403-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98302-531-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-383-0 01 1 1103-1108 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-383-0 01 1 1109-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98302-529-0 01 1 1501- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1403- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98091-271-0 01 1 1103-1108 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98091-271-0 01 1 1109-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-921-0 01 1 1301- ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 1403- ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98009-726-0 01 1 1403- ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98009-727-0 01 1 1403- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-258-0 02 1 1103-1108 ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97365-258-0 02 1 1109- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 1403- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 M10X12 FLANGE 		0-28051-012-0 02 1 1109-1402 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 M10X12 FLANGE 		0-28051-012-0 02 1 1403- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 M10X12 FLANGE 		0-28051-012-0 02 1 1403- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X48 FLANGE 		8-98033-656-0 04 1 1103-1108 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE 		8-98033-656-0 04 1 1109- ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1103-1108 ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-354-0 04 1 1109-1402 ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-354-0 04 1 1403- ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 1403- ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 1403- ●
86 04.665 PIN; GUIDE 8-98047-530-0 02 1 1103-1108 ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-530-0 02 1 1109- ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98248-005-0 02 1 1403- ●
87 04.665 PIN; LOCK 8-98047-532-0 02 1 1103-1108 ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-532-0 02 1 1109- ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1103-1108 ●
107 04.665 BOLT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-264-0 04 1 1109-1402 ●
107 04.665 BOLT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-264-0 04 1 1403- ●
107 04.665 BOLT; PIN
DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
