Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#82028) — 291 parça

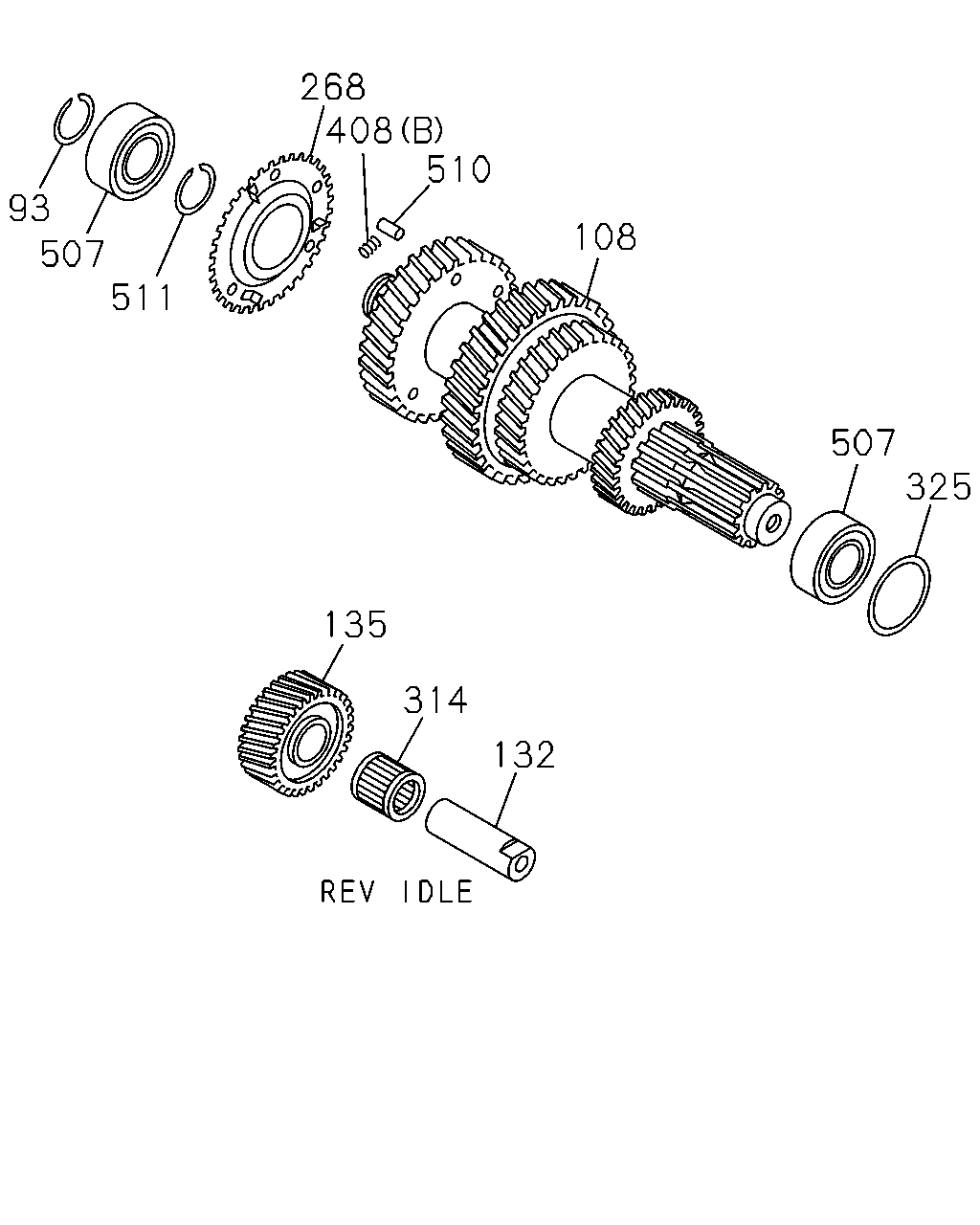

93 507 511 268 408 510 108 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1103-1206	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1207-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1103-1206	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1207-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1103-1206	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1207-	●	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1207-		●
108	04.428 SHAFT; COUNTER Z=45-49-33-21	8-98174-955-0	01	1	1103-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1103-1206	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1207-	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1103-1206	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1207-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1207-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1103-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1103-1206	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1207-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1103-1206	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1103-1206	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1103-1206	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1207-	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1103-1206	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1207-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1103-1206	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1207-	●	●

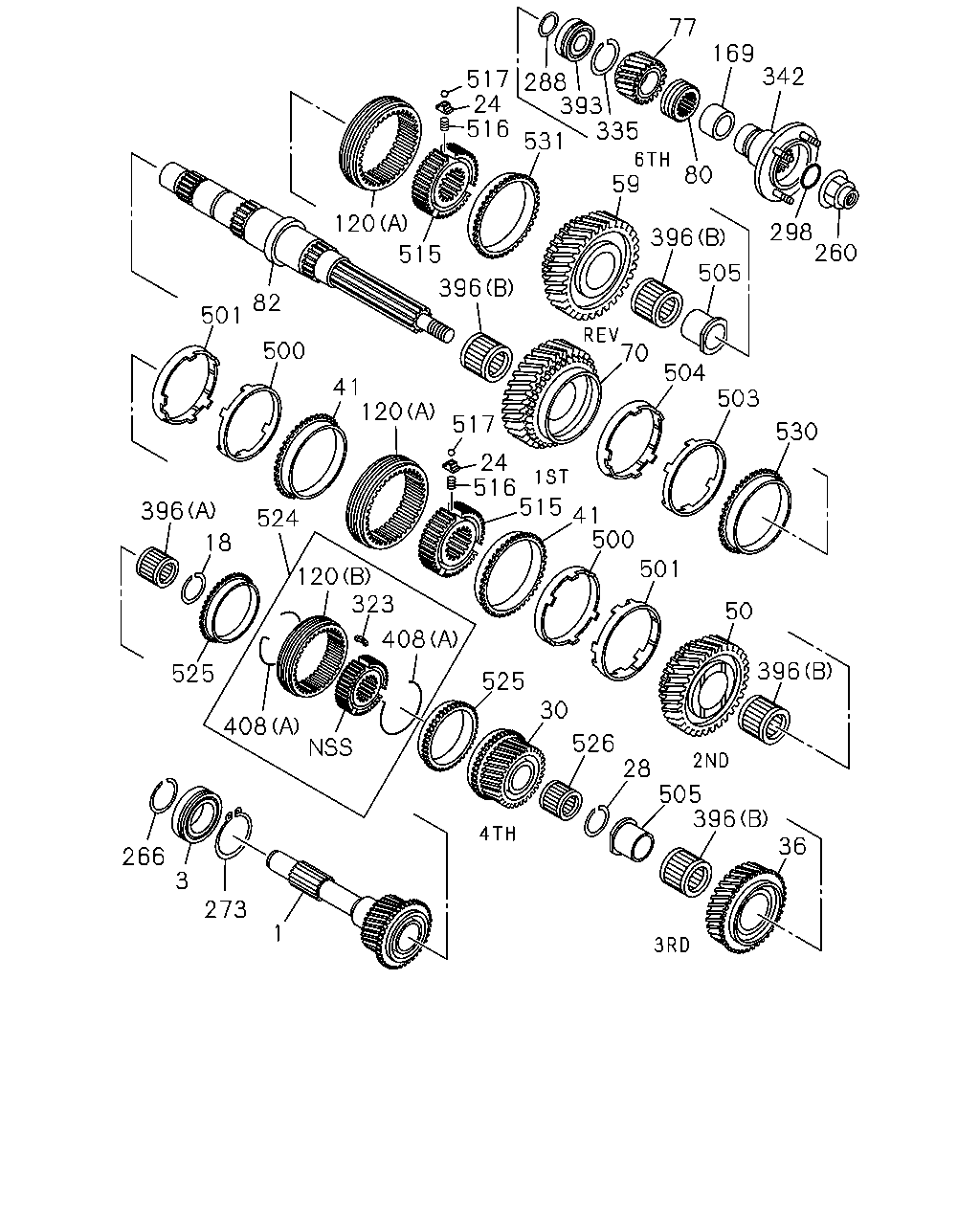

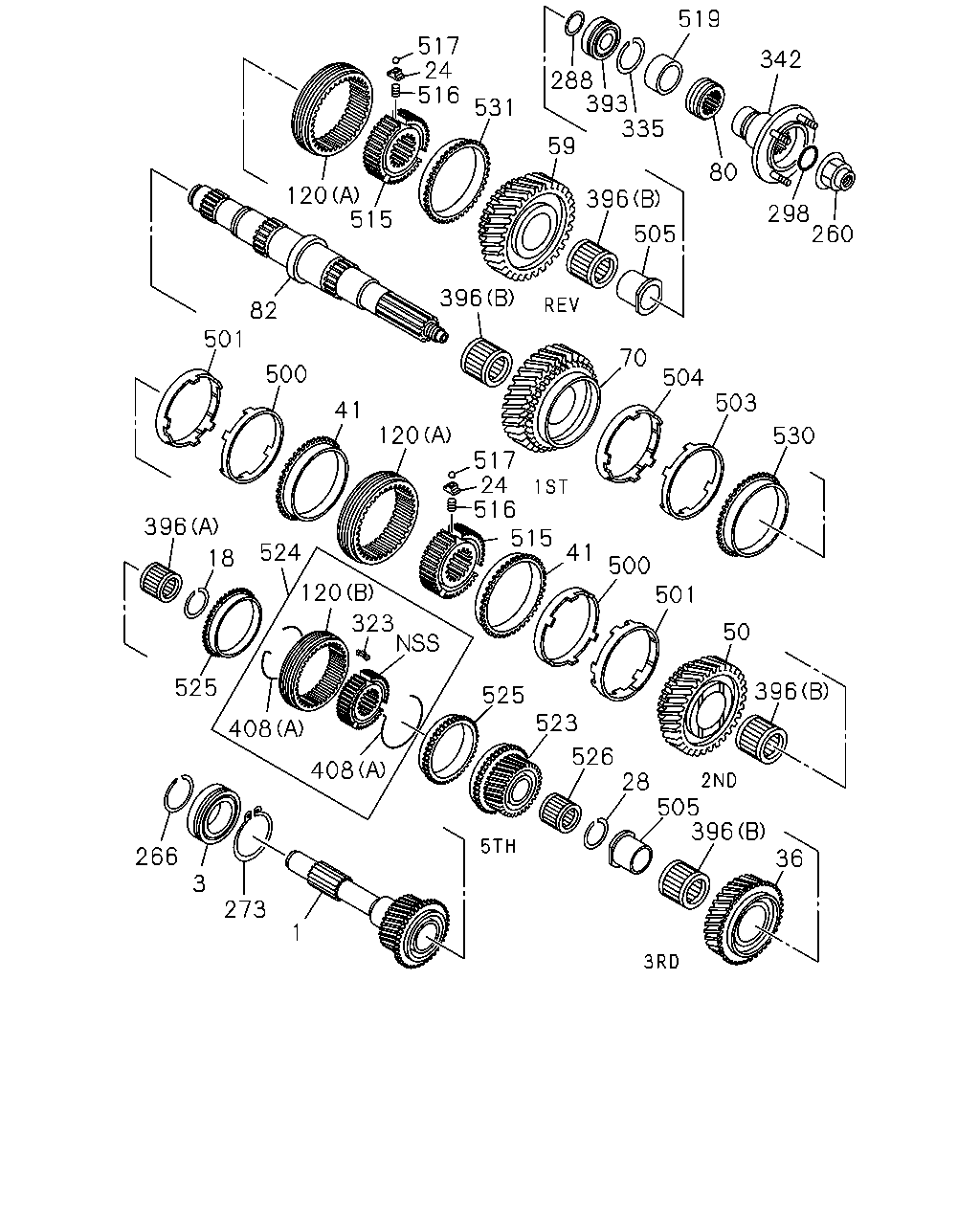

517 24 516 531 59 396 505 120 515 396 70 504 503 530 519 288 393 335 80 298 260 342 82 501 500 41 120 517 24 516 515 41 500 501 50 396 525 523 526 28 505 396 36 408 1 3 273 266 525 408 396 18 524 120 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1207-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1103-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1103-1206	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1207-	●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1103-1206	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1207-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1103-1206	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1207-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1103-1206	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1207-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1103-1206	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1207-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1103-1206	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1207-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1207-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-239-1	01	1	1103-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1103-1206	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1207-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1103-1206	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1207-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1103-1206	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1207-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1207-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1103-	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1103-1206	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1207-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1103-1206	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1207-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1103-1206	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1207-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1103-1206	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1207-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1103-1206	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1207-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1103-1206	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1207-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1103-1206	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1207-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1103-1206	●
323	04.384 INSERT	8-94448-202-2	03	1	1207-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1103-1206	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1207-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1103-1206	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1207-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1103-1206	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1207-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1103-1206	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1207-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1103-1206	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1207-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1103-1206	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1103-1206	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-		●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1103-1206	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1207-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1103-1206	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1207-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1103-1206	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1207-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1103-1206	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1207-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1103-1206	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1207-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1103-1206	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1207-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1103-1206	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1207-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1103-1206	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1207-	●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1103-	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1103-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1103-1206	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1207-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1103-1206	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1207-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1103-1206	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1207-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1103-1206	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1207-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1103-1206	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1207-	●	●

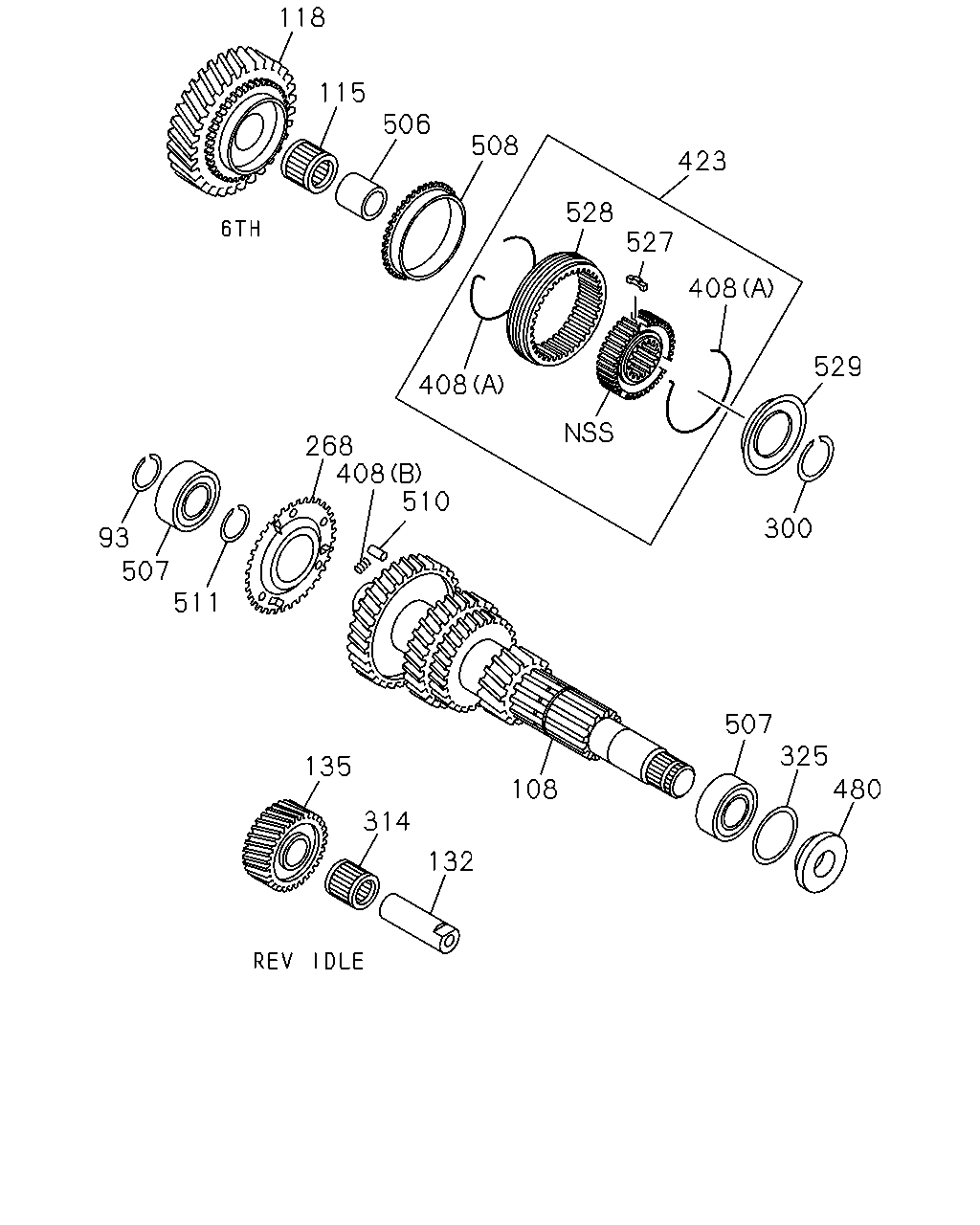

118 115 506 423 508 528 408 527 529 408 300 480 325 507 108 135 314 132 510 408 268 93 507 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1103-1206	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1207-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1103-1206	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1207-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1103-1206	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1207-	●	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1207-		●
108	04.428 SHAFT; COUNTER Z=45-49-33-21	8-98174-955-0	01	1	1103-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1207-		●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1207-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1103-1206	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1207-	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1103-1206	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1207-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1207-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1103-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1207-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1207-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1207-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1207-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1103-1206	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1207-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1103-1206	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1207-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1103-1206	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1103-1206	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-		●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1207-		●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1207-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1207-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1103-1206	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1207-	●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1207-		●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1103-1206	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1207-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1103-1206	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1207-	●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	1207-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	1207-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	1207-		●

517 24 516 531 59 288 393 335 80 77 169 342 298 260 396 505 120 515 396 70 504 503 530 501 500 41 120 517 24 516 515 41 500 501 50 396 524 396 18 525 408 266 3 273 1 36 396 505 28 526 30 525 408 323 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1207-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1103-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1103-1206	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1207-	●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1103-1206	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1207-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1103-1206	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1207-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1103-1206	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1207-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1207-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1103-1206	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1207-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1103-1206	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1207-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1207-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-239-1	01	1	1103-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1103-1206	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1207-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1103-1206	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1207-	●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1207-		●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1103-1206	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1207-	●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1103-1206	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1207-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1103-1206	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1207-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	1207-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1103-1206	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1207-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1103-1206	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1207-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1103-1206	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1207-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1103-1206	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1207-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1103-1206	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1207-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1103-1206	●
323	04.384 INSERT	8-94448-202-2	03	1	1207-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1103-1206	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1207-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1103-1206	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1207-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1103-1206	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1207-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1103-1206	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1207-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1103-1206	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1207-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1103-1206	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1103-1206	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1207-		●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1103-1206	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1207-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1103-1206	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1207-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1103-1206	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1207-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1103-1206	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1207-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1103-1206	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1207-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1103-1206	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1207-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1103-1206	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1207-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1103-1206	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1207-	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1103-1206	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1207-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1103-1206	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1207-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1103-1206	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1207-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1103-1206	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1207-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1103-1206	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1207-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
