◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#82024) — 30 parça

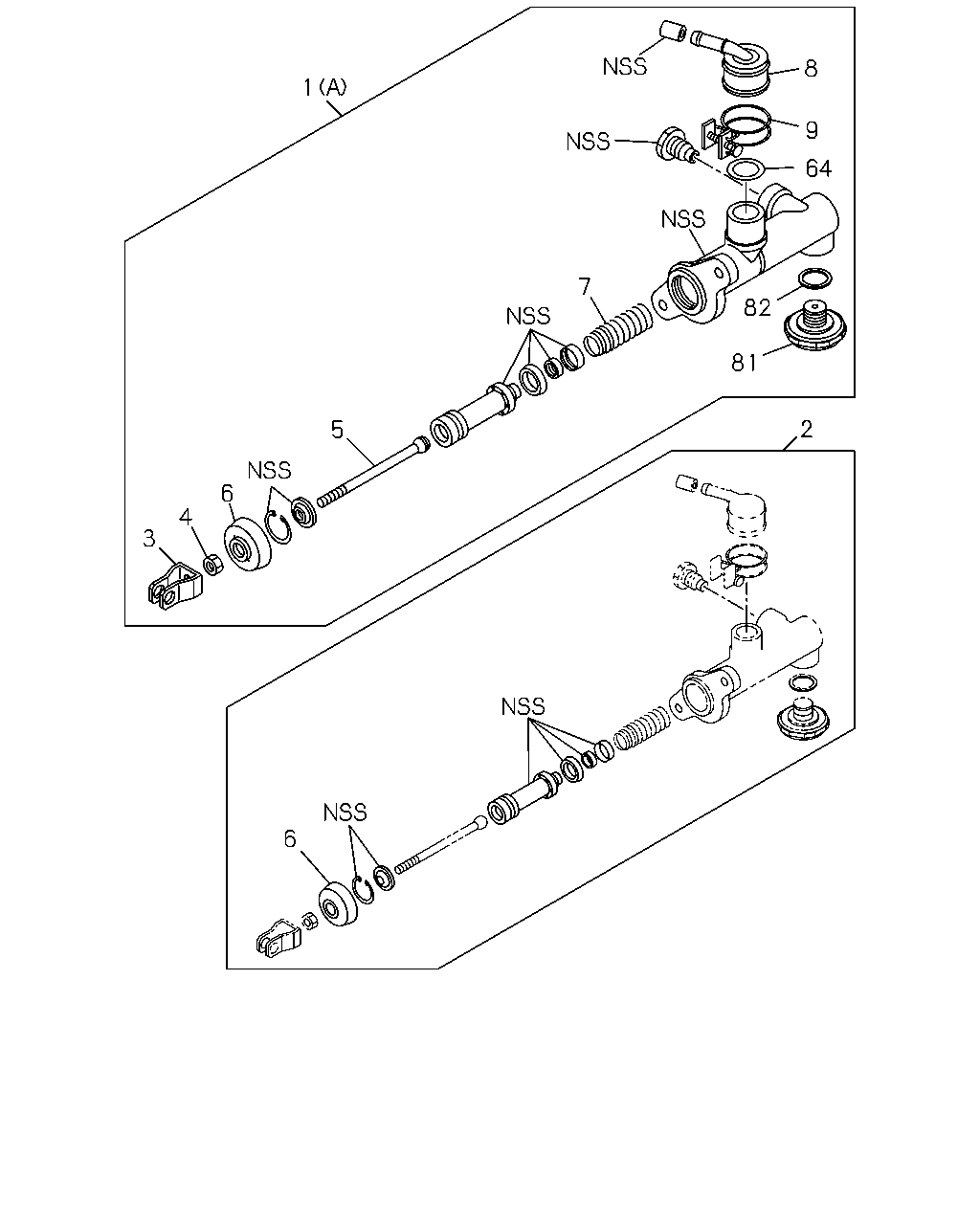

çizim 103831
1 3 4 6 5 7 8 9 64 82 81 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1109- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) (B) 		8-98025-308-0 01 1 1103-1108 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1109- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-643-0 01 1 1103- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1103- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1103- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1103- ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1103- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1103- ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1103- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1103- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1103- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1103- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1103- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1103- ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1103- ● ●
81 00.777 DAMPER; MASTER CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 1103- ● ●
82 00.777 GASKET; DAMPER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 1103- ● ●

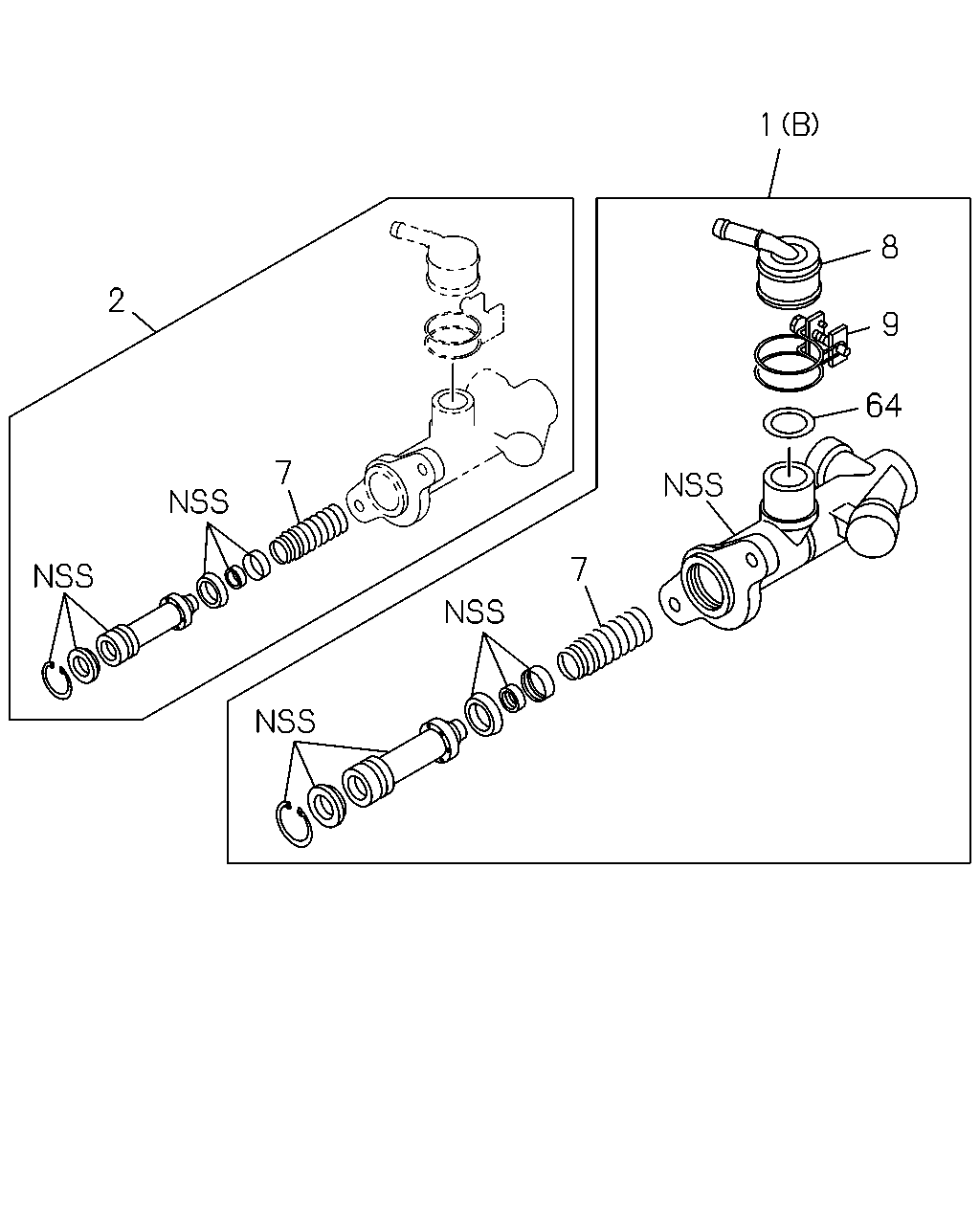

çizim 104132
2 1 8 9 64 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1109- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) (B) 		8-98025-308-0 01 1 1103-1108 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1109- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-643-0 01 1 1103- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1103- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1103- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1103- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1103- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1103- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1103- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1103- ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
