◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#82022) — 23 parça
çizim 102405
1 8 7 3 6 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (B) 		8-97310-989-1 01 1 1103- ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98040-043-1 01 1 1103- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 1103- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 1103-1209 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87832-285-0 01 1 1210- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-517-0 01 1 1103- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 1103- ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-149-0 01 1 1103- ● ●
6 00.787 NUT; LK,ROD END
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10 		0-91111-510-0 01 1 1103- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1103- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 1103-1209 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210- ● ●

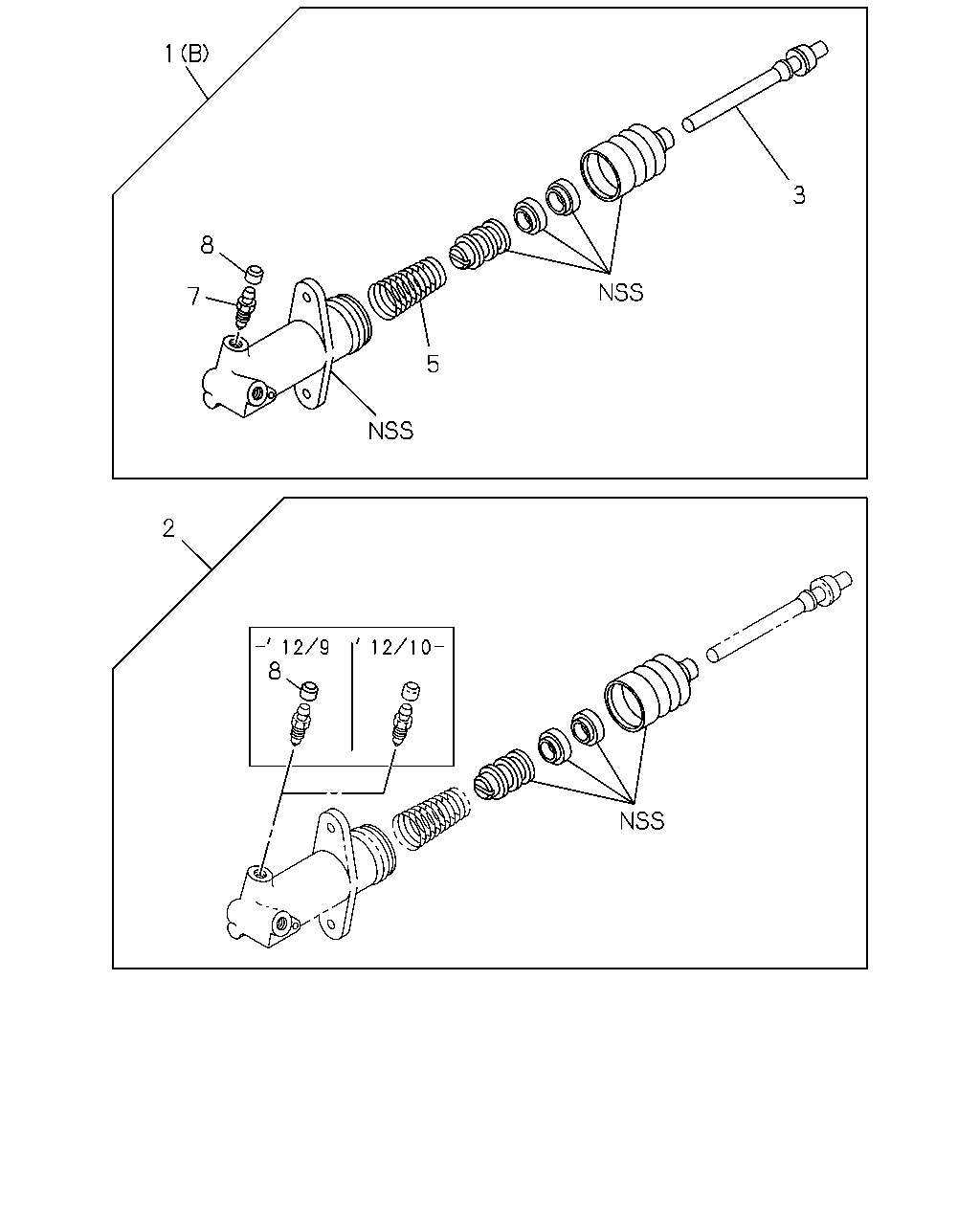

çizim 191508
1 8 7 5 3 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (B) 		8-97310-989-1 01 1 1103- ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98040-043-1 01 1 1103- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 1103- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 1103-1209 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87832-285-0 01 1 1210- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-517-0 01 1 1103- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 1103- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97160-570-0 01 1 1103- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1103- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 1103-1209 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
