◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#82019) — 17 parça

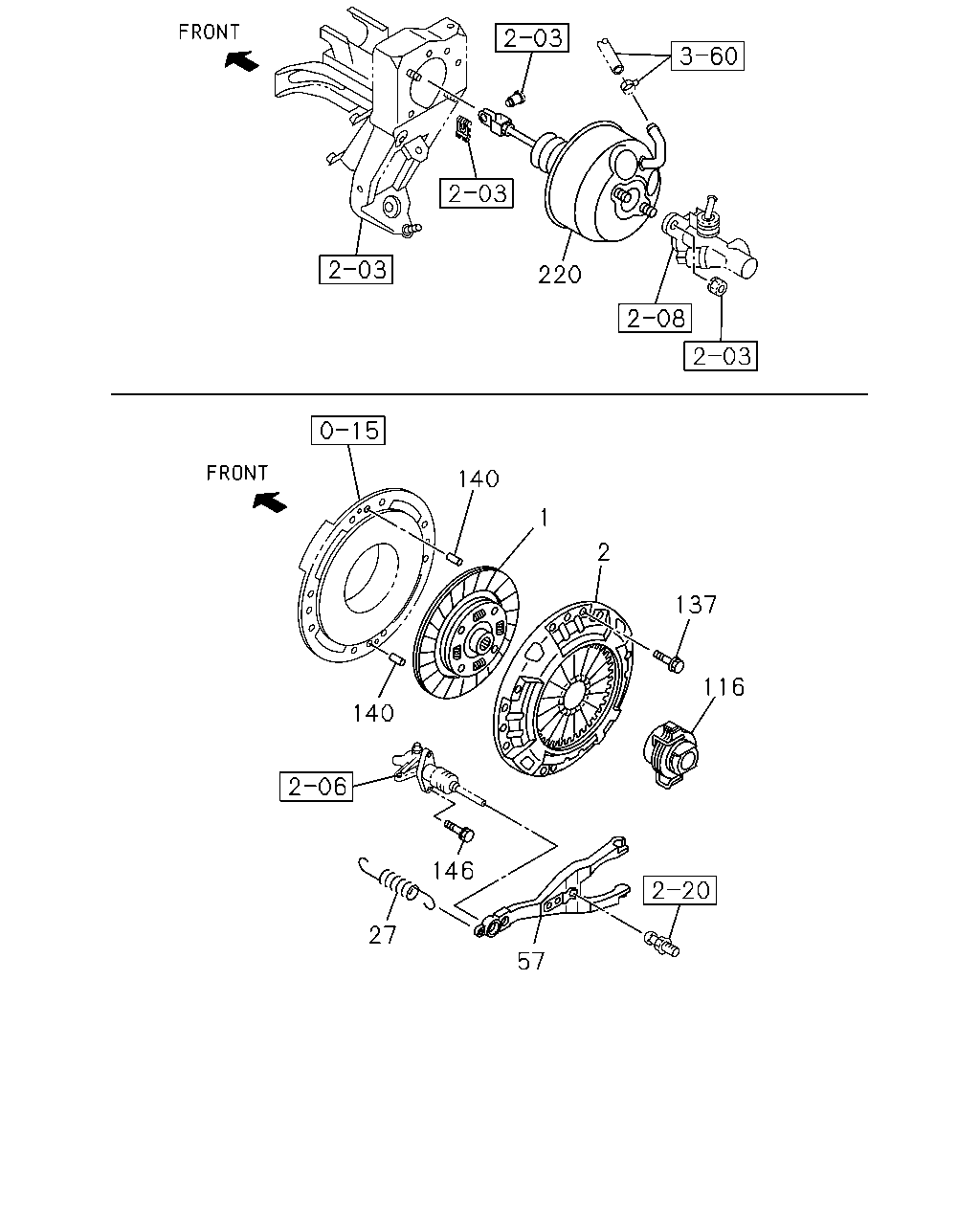

çizim 97645
27 140 146 57 140 1 2 137 116 220
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH 8-98037-004-2 01 1 1103-1401 ● ●
1 00.886 DISC; CLUTCH 8-98255-139-1 01 1 1402- ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-077-0 01 1 1103-1401 ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-077-1 01 1 1402- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98040-093-0 01 1 1103- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-091-0 01 1 1103- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1103- ● ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1103-1206 ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1207- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1103-1206 ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1207- ● ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1103-1206 ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1207- ● ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1103- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1103- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1103- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98043-208-0 01 1 1103- ● ●
