1-50 — EXHAUST PIPE AND SILENCER (#82016) — 118 parça

329 25 2 36 1 8 44 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH	8-98075-966-0	01	1	1103-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	1103-	●	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1103-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98027-805-1	01	1	1103-	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1103-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1103-	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1103-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 01.062 M8 FLANGE	0-91180-108-0	04	1	1103-	●	●

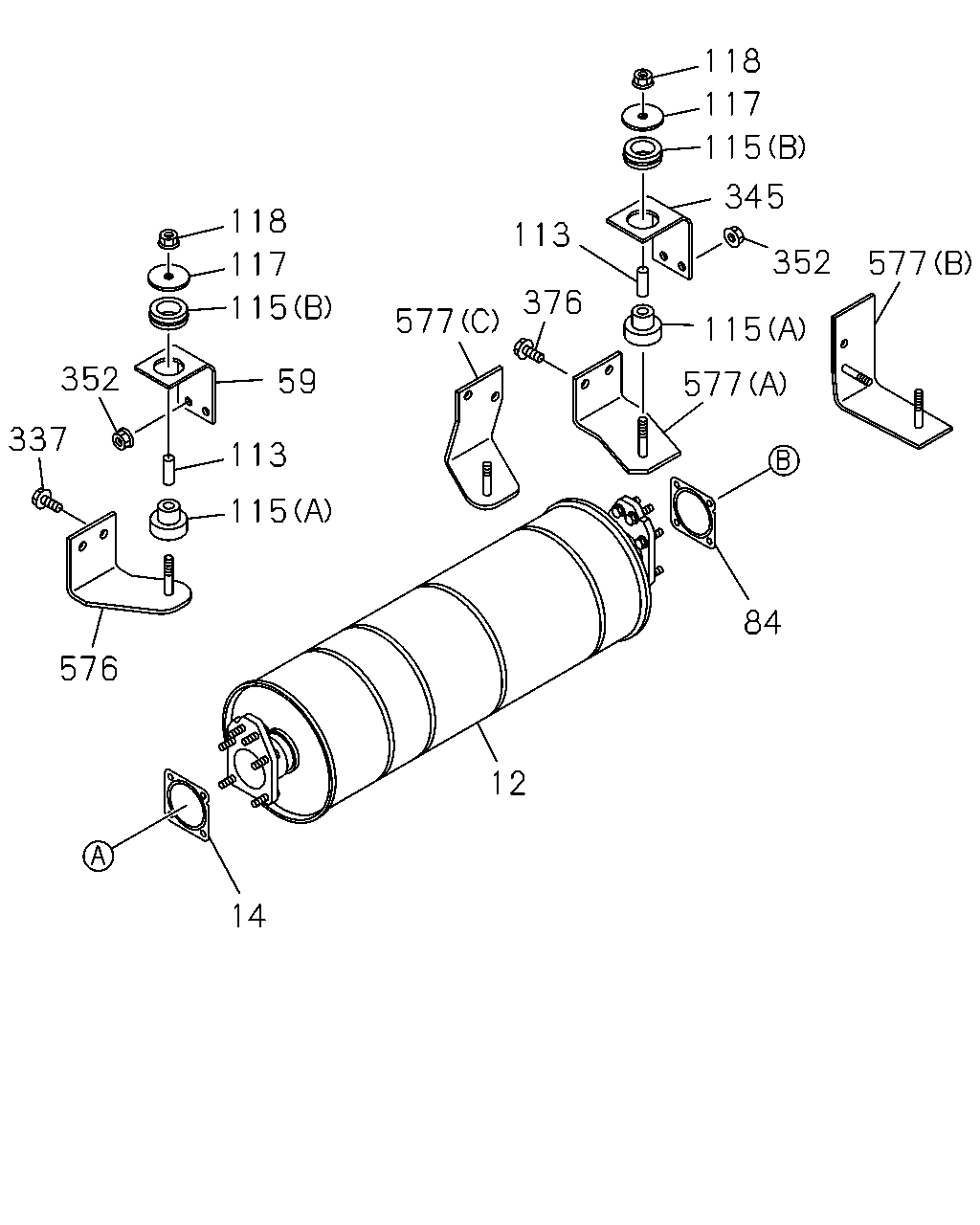

118 117 115 59 113 115 352 337 576 14 12 84 577 115 352 577 345 115 117 118 113 376 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-98119-994-1	01	1	1103-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=64	8-97373-108-0	01	1	1103-	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-98082-156-0	01	1	1103-	●	●
84	03.611 GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	1103-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1103-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1103-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1103-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1103-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1103-	●	●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
345	03.704 BRACKET; EXH SILENCER,RR	8-98027-822-0	01	1	1103-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1103-	●	●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1103-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98067-992-0	01	1	1103-	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98107-265-0	01	1	1207-		●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98107-264-0	01	1	1103-	●
577	03.706 BRACKET; DPD RR TO FRAME (A)	8-98107-266-0	01	1	1103-1206		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98107-266-0	01	1	1207-		●

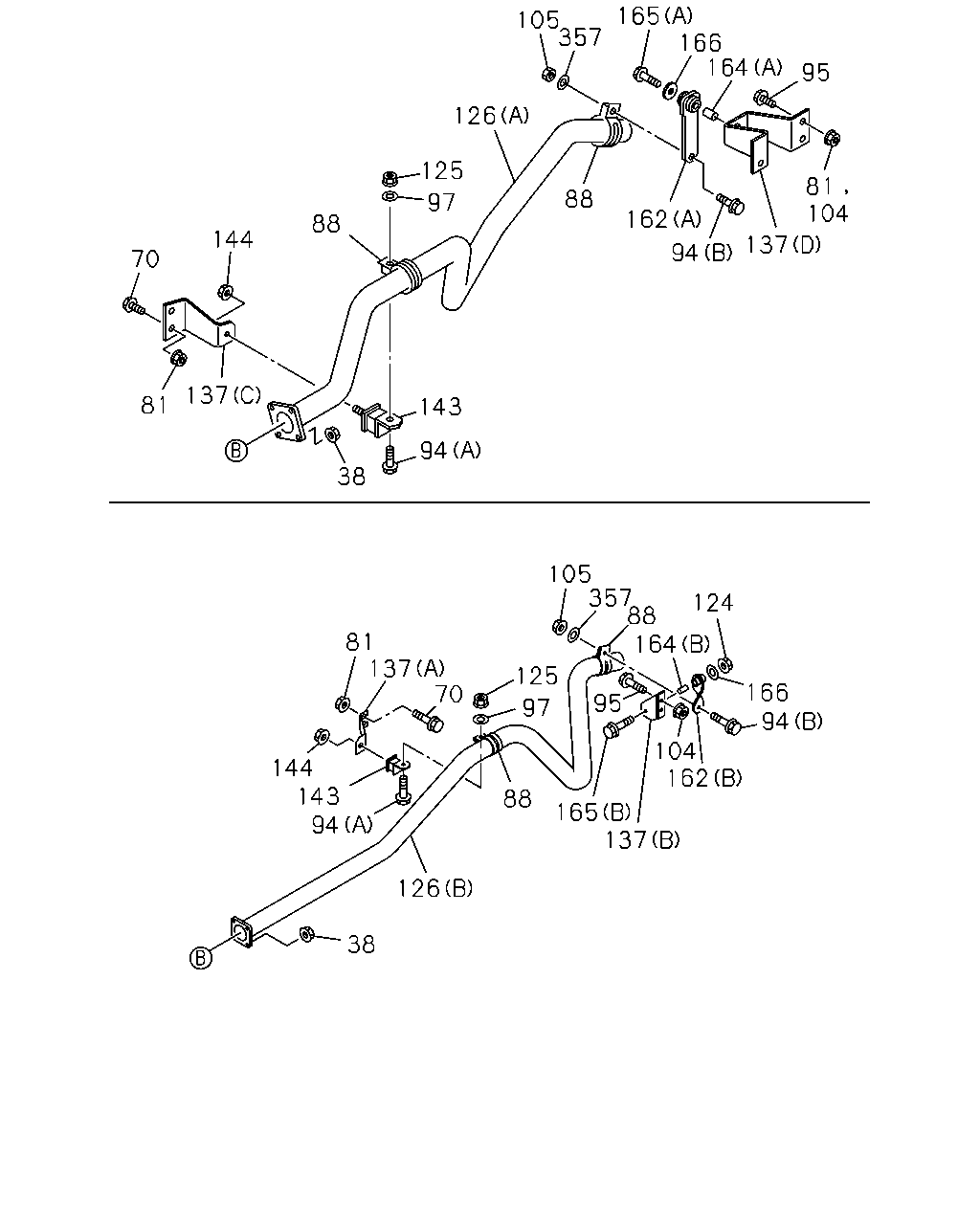

38 126 94 143 144 137 165 88 81 137 70 97 125 95 104 162 94 166 164 88 357 105 124 94 143 38 137 81 70 144 88 97 125 126 105 165 357 166 164 95 81 104 137 94 162 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1103-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1103-	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1103-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1103-	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1103-	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1103-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1103-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1103-		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1103-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98120-471-0	01	1	1207-		●
126	03.705 PIPE; EXH,RR (A)	8-98140-855-0	01	1	1103-	●
126	03.705 PIPE; EXH,RR (B)	8-98120-472-0	01	1	1103-1206		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (E)	8-98038-762-1	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (F)	8-98075-678-0	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE (C)	8-98001-893-1	01	1	1103-	●
137	03.706 BRACKET; TAIL PIPE (D)	8-98001-903-0	01	1	1103-	●
137	03.706 BRACKET; TAIL PIPE (A)	8-98075-674-0	01	1	1103-1206		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-98075-675-1	01	1	1103-1206		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	1207-		●
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1103-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (C)	8-98032-150-0	01	1	1207-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-149-0	01	1	1103-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	1103-1206		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1207-		●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1103-1206	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1207-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1207-		●
164	03.706 COLLAR; DIST,TAIL PIPE (B) L=37.5	9-22151-217-0	01	1	1103-1206		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1207-		●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1103-1206	●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1207-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1207-		●
165	03.706 BOLT; SUPPORT RUBBER (B) M10X70 FLANGE	0-28051-070-0	01	1	1103-1206		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1207-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1103-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1103-	●	●

124 137 104 95 164 166 165 357 105 125 97 94 162 88 88 126 38 94 137 81 70 144 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1103-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1103-	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1103-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1103-	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1103-	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1103-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1103-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1103-		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1103-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98120-471-0	01	1	1207-		●
126	03.705 PIPE; EXH,RR (A)	8-98140-855-0	01	1	1103-	●
126	03.705 PIPE; EXH,RR (B)	8-98120-472-0	01	1	1103-1206		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (E)	8-98038-762-1	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (F)	8-98075-678-0	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE (C)	8-98001-893-1	01	1	1103-	●
137	03.706 BRACKET; TAIL PIPE (D)	8-98001-903-0	01	1	1103-	●
137	03.706 BRACKET; TAIL PIPE (A)	8-98075-674-0	01	1	1103-1206		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	1207-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-98075-675-1	01	1	1103-1206		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	1207-		●
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1103-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (C)	8-98032-150-0	01	1	1207-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-149-0	01	1	1103-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	1103-1206		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1207-		●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1103-1206	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1207-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1207-		●
164	03.706 COLLAR; DIST,TAIL PIPE (B) L=37.5	9-22151-217-0	01	1	1103-1206		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1207-		●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1103-1206	●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1207-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1207-		●
165	03.706 BOLT; SUPPORT RUBBER (B) M10X70 FLANGE	0-28051-070-0	01	1	1103-1206		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1207-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1103-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1103-	●	●
