Sayfa 1-41 - Isuzu EPC

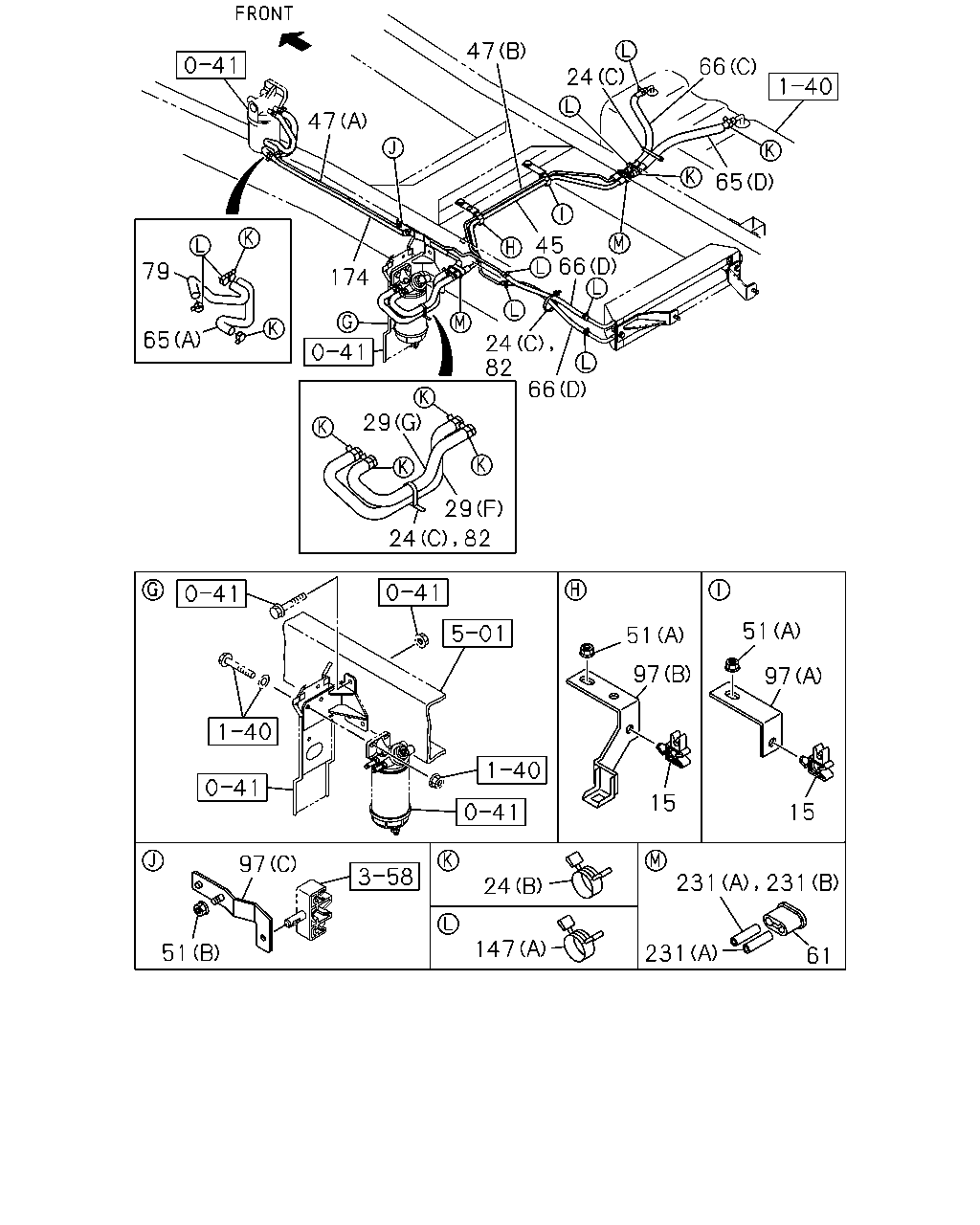

1-41 — FUEL PIPING; CHASSIS (#82015) — 421 parça

47 47 24 66 65 66 45 24 82 66 29 29 82 24 174 65 79 97 51 51 97 51 97 15 15 231 231 61 231 147 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1103-	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1103-1206	●	●
24	03.162 CLIP; FUEL HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=140	5-09707-031-1	01	1	1103-1206	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1207-	●	●
24	03.162 CLIP; FUEL HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=140	5-09707-031-1	01	1	1207-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C) L=140	5-09707-031-1	01	1	1207-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1103-	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1103-1206	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1207-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1207-		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) ID=16	8-98008-098-0	02	1	1103-	●	●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (B)	8-98120-599-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B)	8-98120-599-0	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (D)	8-98138-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (E)	8-98139-112-1	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (C)	8-98139-113-1	01	1	1207-		●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98169-304-0	01	1	1103-1206	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (F)	8-98169-304-0	01	1	1207-	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98169-305-0	01	1	1103-1206	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (G)	8-98169-305-0	01	1	1207-	●	●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1103-1206	●
29	03.163 HOSE; FUEL EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=200	8-98081-038-0	01	1	1103-1206	●
29	03.163 HOSE; FUEL EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) L=200	8-98081-038-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) L=200	8-98081-038-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98099-502-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98099-502-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98099-503-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (E)	8-98099-503-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98105-710-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D)	8-98105-710-0	01	1	1207-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1103-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1103-1108	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1103-1108		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1109-1210		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1103-	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1103-1108		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A) L=994	8-98137-014-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1109-1210		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A) L=994	8-98137-014-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1103-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1103-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1103-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (A)	8-98120-600-0	01	1	1207-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (C)	8-98139-110-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (C)	8-98139-110-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (B)	8-98139-111-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B)	8-98139-111-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 100 LITTER<N02> (D)	8-98120-597-0	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (D)	8-97389-796-0	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-796-0	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-796-0	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1103-1206	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-97389-772-0	01	1	1207-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98098-175-1	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98098-175-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98098-175-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98098-176-1	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98098-176-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98098-176-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-97389-790-0	01	1	1103-1206		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-790-0	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (D) L=330 SERVICED BY L=3000	0-01855-300-0	02	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01855-300-0	02	1	1103-1206		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A) L=300 SERVICED BY L=3000	0-01855-300-0	02	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1103-1206	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1207-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=350 SERVICED BY L=3000	0-01855-300-0	02	1	1103-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1103-1206	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1207-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=500	8-98057-029-0	01	1	1103-1206		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1207-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1103-	●	●
82	03.163 CLIP; FUEL HOSE 03.162 L=140	5-09707-031-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1103-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1103-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1103-1206	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1207-	●
147	03.162 CLIP; FUEL PIPE TO HOSE COLOMBIA EQUIPMENT(CB7) (B) ID=16	8-98008-098-0	04	1	1207-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1207-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B) ID=16	8-98008-098-0	04	1	1207-		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1103-1108	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1103-1108		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1109-1210		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1103-1108		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0)	8-98064-632-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1109-1210		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0)	8-98064-632-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1103-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1103-	●	●

51 97 270 426 147 231 61 231 231 15 97 51 51 97 24 29 29 29 66 82 24 82 174 65 79 47 47 24 66 65 45 66 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1103-	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1103-1206	●	●
24	03.162 CLIP; FUEL HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=140	5-09707-031-1	01	1	1103-1206	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1207-	●	●
24	03.162 CLIP; FUEL HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=140	5-09707-031-1	01	1	1207-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C) L=140	5-09707-031-1	01	1	1207-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1103-	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1103-1206	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1207-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1207-		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) ID=16	8-98008-098-0	02	1	1103-	●	●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (B)	8-98120-599-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B)	8-98120-599-0	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (D)	8-98138-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (E)	8-98139-112-1	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (C)	8-98139-113-1	01	1	1207-		●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98169-304-0	01	1	1103-1206	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (F)	8-98169-304-0	01	1	1207-	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98169-305-0	01	1	1103-1206	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (G)	8-98169-305-0	01	1	1207-	●	●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1103-1206	●
29	03.163 HOSE; FUEL EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=200	8-98081-038-0	01	1	1103-1206	●
29	03.163 HOSE; FUEL EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) L=200	8-98081-038-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) L=200	8-98081-038-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98099-502-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98099-502-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98099-503-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (E)	8-98099-503-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98105-710-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D)	8-98105-710-0	01	1	1207-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1103-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1103-1108	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1103-1108		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1109-1210		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1103-	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1103-1108		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A) L=994	8-98137-014-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1109-1210		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A) L=994	8-98137-014-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1103-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1103-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1103-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (A)	8-98120-600-0	01	1	1207-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (C)	8-98139-110-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (C)	8-98139-110-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (B)	8-98139-111-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B)	8-98139-111-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 100 LITTER<N02> (D)	8-98120-597-0	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (D)	8-97389-796-0	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-796-0	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-796-0	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1103-1206	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-97389-772-0	01	1	1207-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98098-175-1	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98098-175-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98098-175-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98098-176-1	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98098-176-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98098-176-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-97389-790-0	01	1	1103-1206		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-790-0	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (D) L=330 SERVICED BY L=3000	0-01855-300-0	02	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01855-300-0	02	1	1103-1206		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A) L=300 SERVICED BY L=3000	0-01855-300-0	02	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1103-1206	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1207-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=350 SERVICED BY L=3000	0-01855-300-0	02	1	1103-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1103-1206	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1207-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=500	8-98057-029-0	01	1	1103-1206		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1207-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1103-	●	●
82	03.163 CLIP; FUEL HOSE 03.162 L=140	5-09707-031-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1103-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1103-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1103-1206	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1207-	●
147	03.162 CLIP; FUEL PIPE TO HOSE COLOMBIA EQUIPMENT(CB7) (B) ID=16	8-98008-098-0	04	1	1207-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1207-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B) ID=16	8-98008-098-0	04	1	1207-		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1103-1108	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1103-1108		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1109-1210		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1103-1108		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0)	8-98064-632-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1109-1210		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0)	8-98064-632-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1103-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1103-	●	●
270	03.900 PUMP ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98018-187-4	01	1	1103-1408	●	●
270	03.900 PUMP ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●

97 51 47 174 29 29 24 82 24 82 66 66 45 47 65 147 147 311 311 147 65 147 66 24 65 65 51 97 15 231 231 231 61 24 147 97 15 74 51 28 72 426 270 79 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1103-	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1103-1206	●	●
24	03.162 CLIP; FUEL HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=140	5-09707-031-1	01	1	1103-1206	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1207-	●	●
24	03.162 CLIP; FUEL HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=140	5-09707-031-1	01	1	1207-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C) L=140	5-09707-031-1	01	1	1207-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1103-	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1103-1206	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1207-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 02.559 (A) L=250	5-09707-030-1	01	1	1207-		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) ID=16	8-98008-098-0	02	1	1103-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-1206	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1207-		●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL COLOMBIA EQUIPMENT(CB7) (B)	8-98120-599-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B)	8-98120-599-0	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (D)	8-98138-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (E)	8-98139-112-1	01	1	1207-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) (C)	8-98139-113-1	01	1	1207-		●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (F)	8-98169-304-0	01	1	1103-1206	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (F)	8-98169-304-0	01	1	1207-	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (G)	8-98169-305-0	01	1	1103-1206	●	●
29	03.163 HOSE; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (G)	8-98169-305-0	01	1	1207-	●	●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1103-1206	●
29	03.163 HOSE; FUEL EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=200	8-98081-038-0	01	1	1103-1206	●
29	03.163 HOSE; FUEL EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) L=200	8-98081-038-0	01	1	1207-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) L=200	8-98081-038-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98099-502-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98099-502-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (E)	8-98099-503-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (E)	8-98099-503-0	01	1	1207-		●
29	03.163 HOSE; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98105-710-0	01	1	1103-1206		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D)	8-98105-710-0	01	1	1207-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1103-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1103-1108	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1103-1108		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1109-1210		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1103-	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1103-1108		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A) L=994	8-98137-014-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1109-1210		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A) L=994	8-98137-014-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1103-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1103-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1103-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (A)	8-98120-600-0	01	1	1207-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (C)	8-98139-110-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (C)	8-98139-110-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE COLOMBIA EQUIPMENT(CB7) (B)	8-98139-111-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B)	8-98139-111-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 100 LITTER<N02> (D)	8-98120-597-0	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (D)	8-97389-796-0	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-796-0	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-796-0	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1103-1206	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-97389-772-0	01	1	1207-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B)	8-98098-175-1	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98098-175-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98098-175-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98098-176-1	01	1	1103-1206	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98098-176-1	01	1	1207-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98098-176-1	01	1	1207-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-97389-790-0	01	1	1103-1206		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. COLOMBIA EQUIPMENT(CB7) (D)	8-97389-790-0	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (D) L=330 SERVICED BY L=3000	0-01855-300-0	02	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01855-300-0	02	1	1103-1206		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A) L=300 SERVICED BY L=3000	0-01855-300-0	02	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1103-1206	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1207-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C) L=380	8-97389-805-1	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=350 SERVICED BY L=3000	0-01855-300-0	02	1	1103-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1103-1206	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1207-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1207-		●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=500	8-98057-029-0	01	1	1103-1206		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1207-		●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98107-370-0	01	1	1103-1206	●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98107-370-0	01	1	1207-	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98107-370-0	01	1	1207-		●
74	03.901 NUT; BRKT,FUEL PUMP EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	1103-1206	●
74	03.901 NUT; BRKT,FUEL PUMP EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	1207-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1103-	●	●
82	03.163 CLIP; FUEL HOSE 03.162 L=140	5-09707-031-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1103-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1103-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1103-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1103-1206	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1207-	●
147	03.162 CLIP; FUEL PIPE TO HOSE COLOMBIA EQUIPMENT(CB7) (B) ID=16	8-98008-098-0	04	1	1207-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B) ID=16	8-98008-098-0	04	1	1207-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7) (B) ID=16	8-98008-098-0	04	1	1207-		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1103-1108	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1103-1108		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1109-1210		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1103-1108		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0)	8-98064-632-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1109-1210		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0)	8-98064-632-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1103-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1103-	●	●
270	03.900 PUMP ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98018-187-4	01	1	1103-1408	●	●
270	03.900 PUMP ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-97353-668-0	02	1	1103-1206	●
311	03.163 JOINT; HOSE EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-97353-668-0	02	1	1207-	●
311	03.163 JOINT; HOSE COLOMBIA EQUIPMENT(CB7)	8-97353-668-0	02	1	1207-	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. COLOMBIA EQUIPMENT(CB7),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-97353-668-0	02	1	1207-		●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) COLOMBIA EQUIPMENT(CB7)	8-97353-668-0	02	1	1207-		●
426	03.330 BOLT; FUEL PUMP EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●

640 629 627 640 640 629 640 629 313 628

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL	8-98175-112-0	01	1	1103-	●	●
627	03.162 BOLT; FUEL CLR EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-		●
628	03.162 NUT; FUEL CLR 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
629	03.162 BRACKET; FUEL CLR EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (C)	8-98142-067-1	01	1	1511-		●
629	03.162 BRACKET; FUEL CLR (A)	8-98175-093-3	01	1	1103-1206	●
629	03.162 BRACKET; FUEL CLR (A)	8-98175-093-3	01	1	1207-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1207-1308		●
629	03.162 BRACKET; FUEL CLR FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-1 2 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-1 6-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98175-093-3	01	1	1309-1402	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-11 5(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1309-1402		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1309-1402		●
629	03.162 BRACKET; FUEL CLR FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-1 2 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-1 6-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98175-093-3	01	1	1403-1410	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR TIRE 195/7 5R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5F X15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1403-1410		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1403-1410		●
629	03.162 BRACKET; FUEL CLR FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-1 2 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-1 6-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98175-093-3	01	1	1411-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR TIRE 195/7 5R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5F X15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1411-1510		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1411-1510		●
629	03.162 BRACKET; FUEL CLR FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-1 2 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-1 6-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (A)	8-98175-093-3	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR TIRE 195/7 5R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5F X15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1511-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (A)	8-98175-093-3	01	1	1511-		●
629	03.162 BRACKET; FUEL CLR (B)	8-98175-094-2	01	1	1103-1108		●
629	03.162 BRACKET; FUEL CLR RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98175-094-3	01	1	1109-1206		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98175-094-3	01	1	1207-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR TIRE 195/7 5R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5F X15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98175-094-3	01	1	1309-1410		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98175-094-3	01	1	1411-1510		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR TIRE 195/7 5R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5F X15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98175-094-3	01	1	1511-		●
640	03.162 NUT; BRKT,FUEL CLR 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
