◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#82012) — 84 parça

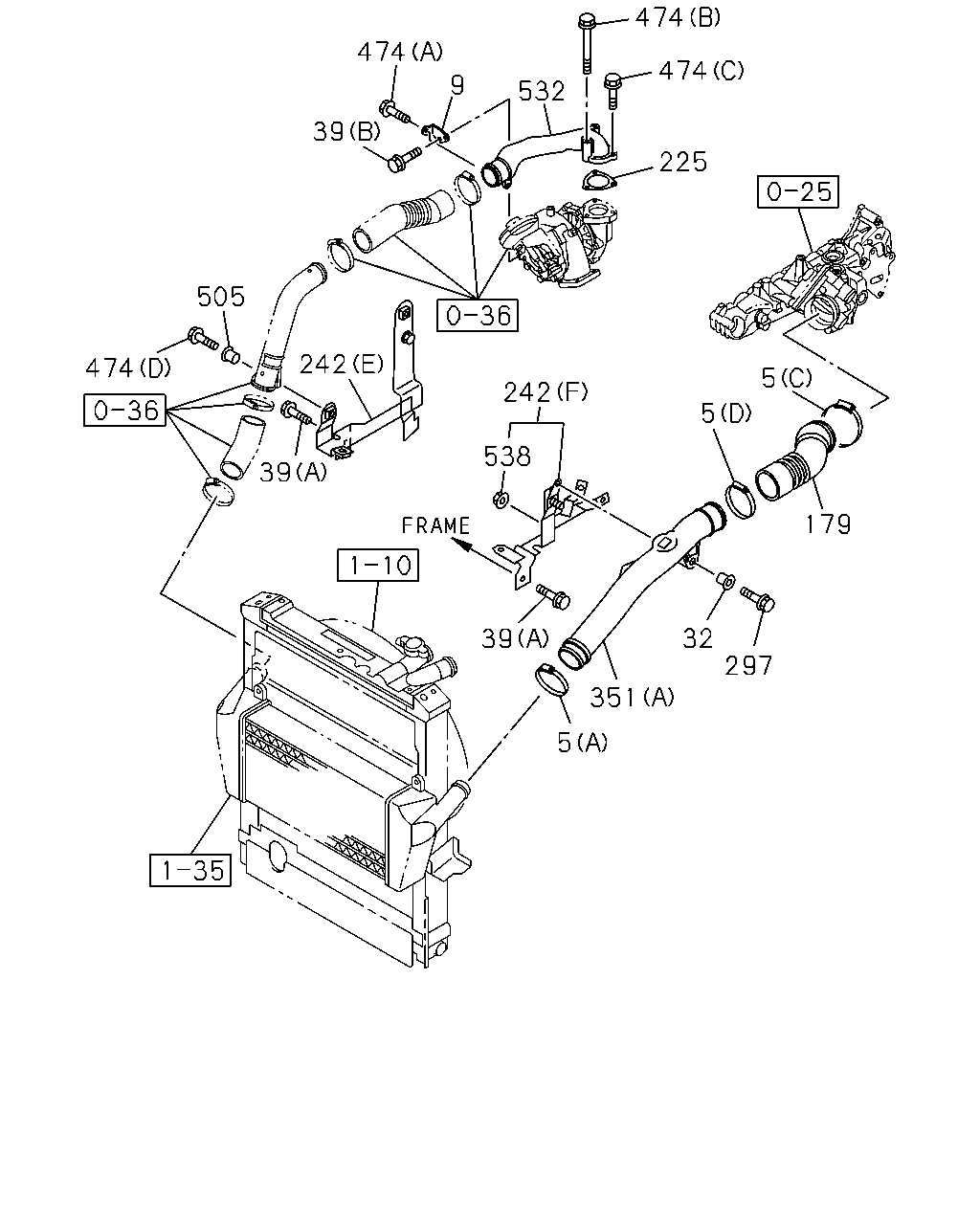

çizim 91847
474 474 225 5 5 179 32 297 351 5 39 538 242 532 9 474 39 505 474 242 39
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=55-75 		8-98133-349-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=58-79 		1-09707-136-0 01 1 1103-1108 ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79 		1-09707-136-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1103- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=60-65 		8-98096-418-0 01 1 1103-1108 ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1103-1108 ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1109- ● ●
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 1103- ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 1103- ● ●
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1103- ● ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1103- ● ●
179 03.417 HOSE; AIR INT 8-98050-920-2 01 1 1103- ● ●
225 03.417 GASKET; AIR PIPE
03.270 ID=47 		8-97202-328-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-2 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1103- ● ●
297 03.417 BOLT; DUCT
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1103- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 1103- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1103- ● ●
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 1103- ● ●
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1103- ● ●
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1103- ● ●
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 1103- ● ●
505 03.406 RUBBER; MTG
03.265 OD=23 		8-97105-689-6 01 1 1103- ● ●
532 03.417 PIPE; INTAKE 8-97385-203-1 01 1 1103-1303 ● ●
532 03.417 PIPE; INTAKE 8-98237-771-1 01 1 1304- ● ●
538 03.417 NUT; PLATE,AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1103- ● ●

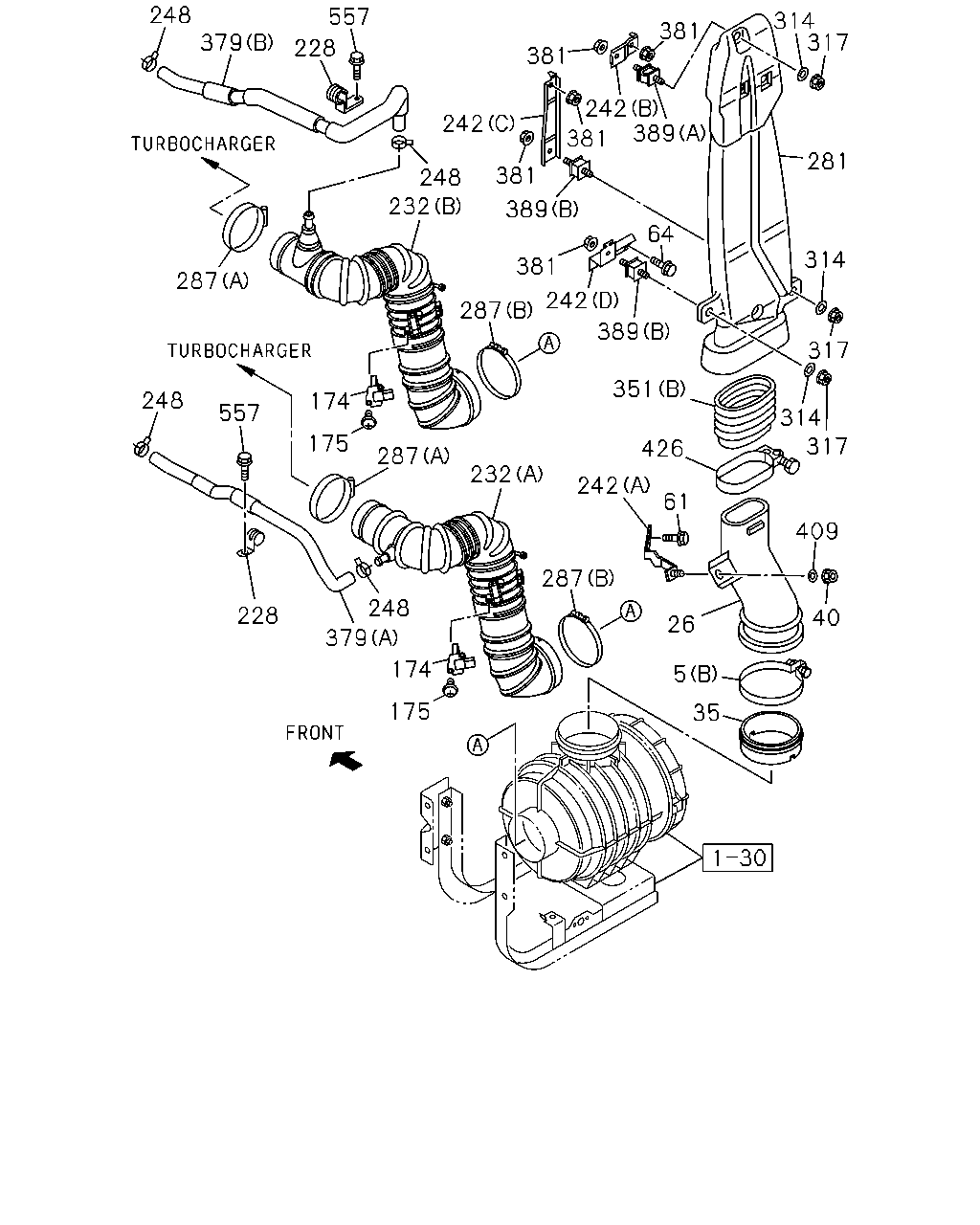

çizim 191501
175 174 379 228 248 287 26 5 35 40 409 61 317 314 317 314 426 351 389 242 232 287 175 174 557 248 287 232 248 381 389 381 287 242 64 281 381 389 242 242 381 381 314 317 228 557 379 248
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=55-75 		8-98133-349-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=58-79 		1-09707-136-0 01 1 1103-1108 ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79 		1-09707-136-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1103- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=60-65 		8-98096-418-0 01 1 1103-1108 ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1109- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1103-1108 ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1109- ● ●
26 03.417 DUCT; AIR INT 8-98023-339-0 01 1 1103- ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1103- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1103- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1103- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1103- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1103- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1103- ● ●
228 03.278 CLIP; PCV HOSE
ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1103- ● ●
232 03.417 HOSE; CONN
RUSSIA EQUIPMENT(B12) EXC. ARGENTINA COUNTRY(CX1) (B) 		8-98180-864-1 01 1 1109- ● ●
232 03.417 HOSE; CONN
(A) 		8-98048-136-1 01 1 1103-1108 ● ●
232 03.417 HOSE; CONN
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98048-136-1 01 1 1109-1503 ● ●
232 03.417 HOSE; CONN
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) (A) 		8-98048-136-1 01 1 1109-1503 ● ●
232 03.417 HOSE; CONN
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98290-770-0 01 1 1504- ● ●
232 03.417 HOSE; CONN
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) (A) 		8-98290-770-0 01 1 1504- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-2 01 1 1103- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1103- ● ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1103- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 1103- ● ●
287 03.417 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1109- ● ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1103-1108 ● ●
287 03.417 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1109- ● ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 1103- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1103- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1103- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 1103- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1103- ● ●
379 03.675 HOSE; RUBBER
RUSSIA EQUIPMENT(B12) EXC. ARGENTINA COUNTRY(CX1) (B) 		8-98180-966-1 01 1 1109- ● ●
379 03.675 HOSE; RUBBER
(A) 		8-98156-950-0 01 1 1103-1108 ● ●
379 03.675 HOSE; RUBBER
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98156-950-0 01 1 1109- ● ●
379 03.675 HOSE; RUBBER
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) (A) 		8-98156-950-0 01 1 1109- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1103- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1103- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1103- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1103- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1103- ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 1103- ● ●
557 03.403 BOLT; HOSE CLIP
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1103- ● ●
