0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#82005) — 20 parça

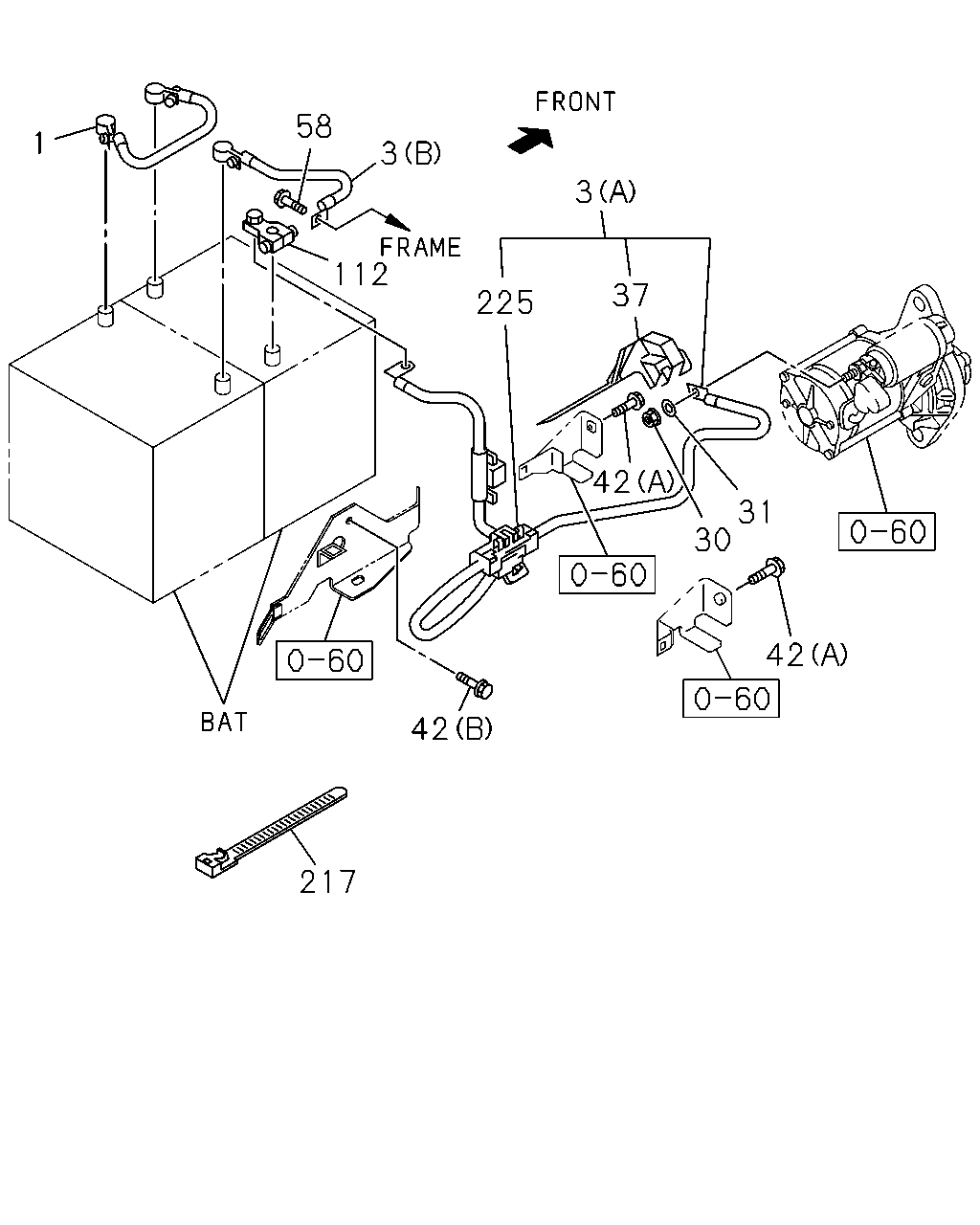

çizim 73393
1 58 3 3 225 112 37 31 30 42 42 42 217
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1103-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR(NM***E) (A) 		8-98048-439-3 01 1 1103-1206
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 1207-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (A) 		8-98293-886-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1103-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR(NM***N) (A) 		8-98048-441-3 01 1 1103-1206
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98048-441-3 01 1 1207-1301
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1302-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1103-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1103-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1103-
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1103-1301
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1103-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1103-
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1109-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1103-1409
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410-
