Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#8200) — 382 parça

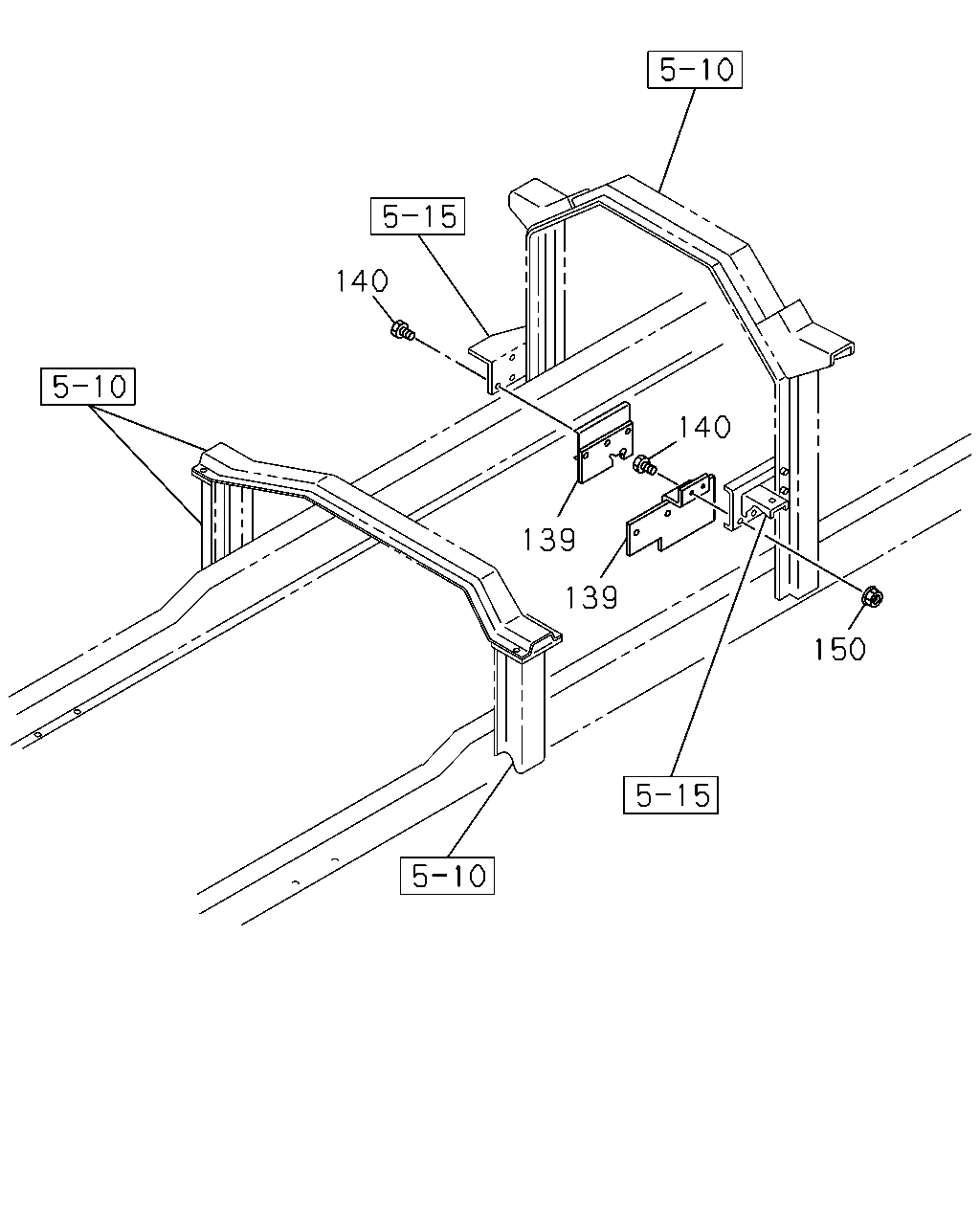

140 140 139 139 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
139	PANEL; SIDE	1-53192-129-1	01	1	0005-	●	●
139	PANEL; SIDE	1-53192-128-0	01	1	0005-	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

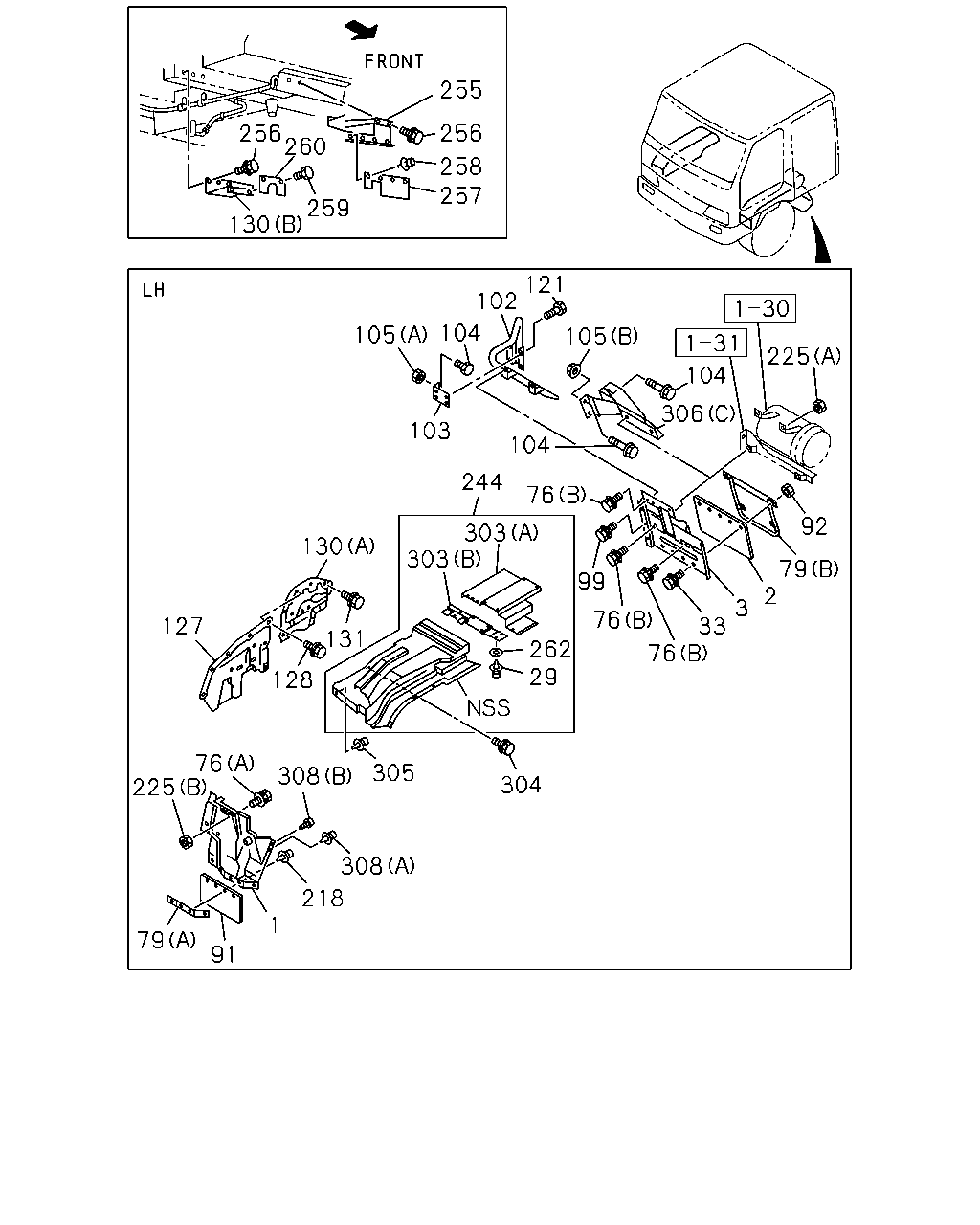

255 256 260 256 258 257 259 130 121 102 104 105 105 225 104 306 103 104 244 76 92 303 303 130 79 2 99 3 33 76 76 127 131 262 29 128 76 225 305 308 304 308 218 1 79 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-	●	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79930-963-1	01	1	0005-0302			●
2	COVER; MUD,TIRE RR	1-79931-415-0	01	1	0303-			●
2	COVER; MUD,TIRE RR	1-79931-230-2	01	1	0005-	●		●
2	COVER; MUD,TIRE RR	1-79931-220-2	01	1	0005-	●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-				●
2	COVER; MUD,TIRE RR	1-79931-254-2	01	1	0005-				●
2	COVER; MUD,TIRE RR	1-79931-229-1	02	1	0005-0210		●
2	COVER; MUD,TIRE RR	1-79930-530-3	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79930-825-1	01	1	0211-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0005-			●
3	GUARD; MUD,RR	1-79938-932-4	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0211-			●
3	GUARD; MUD,RR	1-79938-942-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-945-2	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	0005-				●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210				●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-				●
3	GUARD; MUD,RR	1-79936-025-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-940-1	01	1	0005-		●
29	RIVET	1-09987-240-0	09	1	0005-	●	●
29	RIVET	1-09987-240-0	12	1	0005-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0005-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0005-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-				●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0005-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904	●	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-				●
79	RETAINER; MUD COVER (D)	1-79930-962-1	01	1	0005-			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0005-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-	●	●	●	●
79	RETAINER; MUD COVER (B) L=468	1-79930-487-2	01	1	0005-	●
79	RETAINER; MUD COVER (B)	1-79931-329-1	01	1	0005-	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0005-0210				●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0211-				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0005-				●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	0005-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0005-0602			●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0603-		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-			●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●	●
102	STAY; LWR,MUD GUARD	1-53497-676-0	01	1	0211-	●	●
102	STAY; LWR,MUD GUARD	1-53497-535-0	01	1	0211-			●	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0211-	●	●	●	●
104	BOLT; BRKT M12X30 FLANGE	0-28081-230-0	01	1	0301-0512	●	●
104	BOLT; BRKT M12X30 FLANGE	0-28051-230-0	01	1	0601-	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	03	1	0211-0212	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	02	1	0301-0512	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0211-0512				●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-				●
105	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●	●
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
105	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	02	1	0211-0212	●
105	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	01	1	0301-0602	●	●
105	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
105	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	01	1	0211-0212		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0211-0512	●	●	●	●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●	●	●
127	APRON; FRT	1-53193-222-1	01	1	0005-	●		●
127	APRON; FRT	1-53192-301-3	01	1	0005-	●		●
127	APRON; FRT	1-53193-152-2	01	1	0005-		●		●
127	APRON; FRT	1-53193-150-1	01	1	0005-		●		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-			●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-			●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210			●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-			●	●
130	PANEL; SHUTTER NOISE (B)	1-79938-793-0	01	1	0005-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-3	01	1	0005-0210	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-4	01	1	0211-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-717-3	01	1	0005-0210	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-186-2	01	1	0211-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0005-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-954-2	01	1	0005-0210				●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-			●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-	●	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
225	NUT; MUD GUARD (B) M6 FLANGE	1-09984-141-0	02	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-920-5	01	1	0005-	●
244	GUARD; MUD,SPLASH	1-79938-921-8	01	1	0005-	●	●
244	GUARD; MUD,SPLASH	1-79938-947-3	01	1	0005-		●
255	COVER; SIDE,REAR	1-79938-951-0	01	1	0005-	●	●
255	COVER; SIDE,REAR	1-79938-784-0	01	1	0005-0210	●	●
255	COVER; SIDE,REAR	1-79936-034-0	01	1	0211-	●	●
256	BOLT; SIDE COVER REAR M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-	●	●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-950-0	01	1	0005-0210	●	●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-950-0	02	1	0211-	●	●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-790-0	01	1	0005-0210	●	●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	09	1	0005-0402	●	●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	08	1	0403-	●	●
259	BOLT; NOISE PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
260	SHUTTER; RUBBER,NOISE PANEL	1-79938-792-0	01	1	0005-	●	●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	09	1	0005-	●	●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	12	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-930-3	01	1	0005-	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-923-5	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-929-5	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-922-3	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-928-3	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-948-1	01	1	0005-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	0005-	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904	●	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-		●		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-	●	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-			●	●
306	BRACKET; MUD GUARD (A)	1-53497-618-0	01	1	0211-			●
306	BRACKET; MUD GUARD (C)	1-53497-677-2	01	1	0211-0211	●	●
306	BRACKET; MUD GUARD (C)	1-53497-707-0	01	1	0212-	●	●
306	BRACKET; MUD GUARD (B)	1-53497-702-0	01	1	0211-				●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0210		●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0211-0404		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0210		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0211-0404		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-		●		●

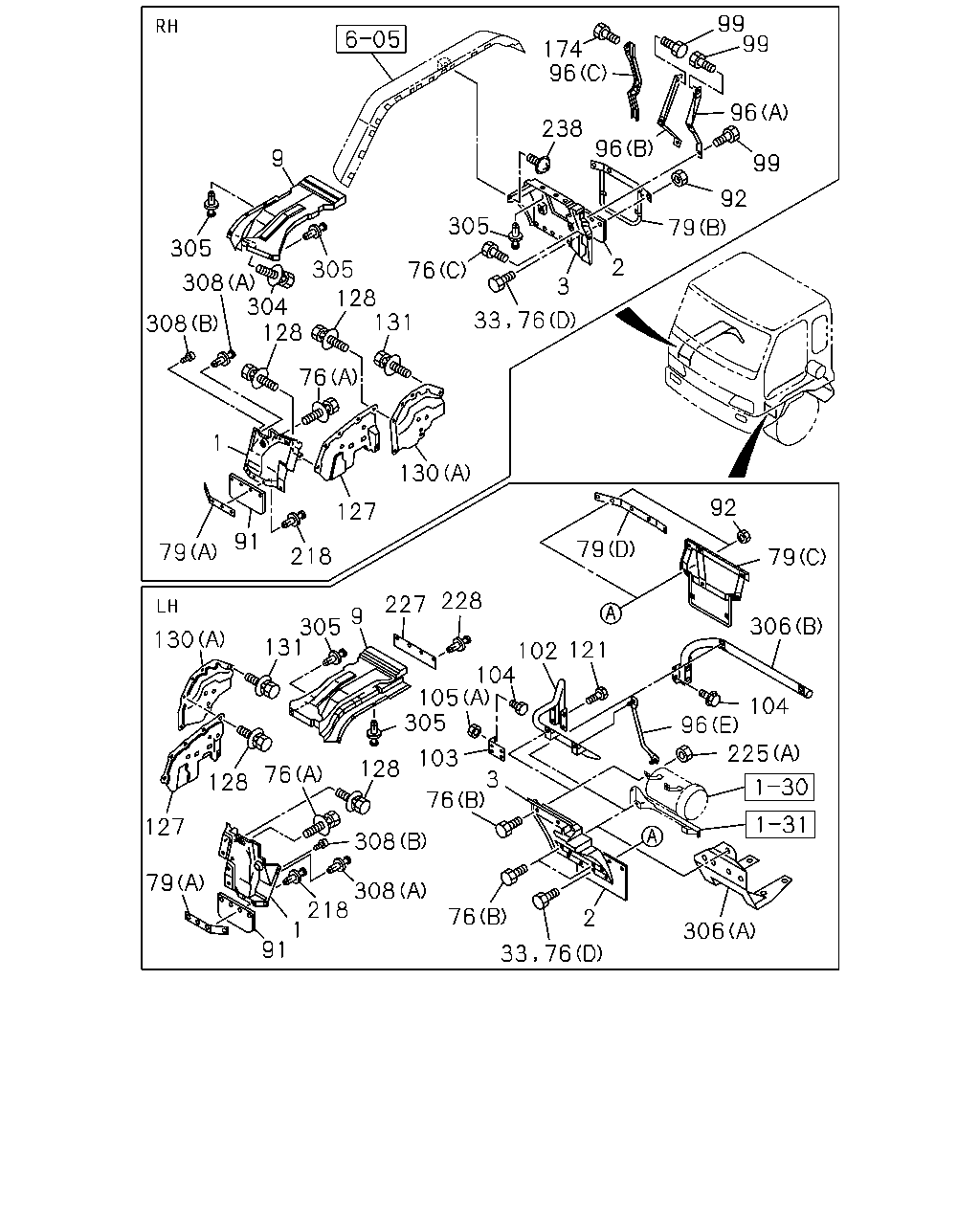

99 99 174 96 96 238 96 9 99 92 305 79 305 304 128 2 305 128 131 76 308 3 308 76 1 130 92 127 91 79 79 218 79 228 227 9 306 305 131 130 121 102 104 105 305 104 96 225 103 128 76 3 76 128 127 308 79 308 218 1 76 2 306 91 33 76 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-	●	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79930-963-1	01	1	0005-0302			●
2	COVER; MUD,TIRE RR	1-79931-415-0	01	1	0303-			●
2	COVER; MUD,TIRE RR	1-79931-230-2	01	1	0005-	●		●
2	COVER; MUD,TIRE RR	1-79931-220-2	01	1	0005-	●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-				●
2	COVER; MUD,TIRE RR	1-79931-254-2	01	1	0005-				●
2	COVER; MUD,TIRE RR	1-79931-229-1	02	1	0005-0210		●
2	COVER; MUD,TIRE RR	1-79930-530-3	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79930-825-1	01	1	0211-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0005-			●
3	GUARD; MUD,RR	1-79938-932-4	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0211-			●
3	GUARD; MUD,RR	1-79938-942-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-945-2	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	0005-				●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210				●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-				●
3	GUARD; MUD,RR	1-79936-025-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-940-1	01	1	0005-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-041-1	01	1	0307-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-042-2	01	1	0307-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-919-6	01	1	0005-0306			●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-919-8	01	1	0307-				●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-2	01	1	0005-0306			●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0307-				●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0005-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0005-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-				●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0005-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904	●	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-				●
79	RETAINER; MUD COVER (D)	1-79930-962-1	01	1	0005-			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0005-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-	●	●	●	●
79	RETAINER; MUD COVER (B) L=468	1-79930-487-2	01	1	0005-	●
79	RETAINER; MUD COVER (B)	1-79931-329-1	01	1	0005-	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0005-0210				●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0211-				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0005-				●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	0005-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0005-0602			●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0603-		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-			●
96	STAY; MUD GUARD (B)	1-79938-925-1	01	1	0005-			●
96	STAY; MUD GUARD (D)	1-79938-859-0	01	1	0005-	●	●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	0005-				●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	0005-				●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	0005-				●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0211-				●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-			●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●	●
102	STAY; LWR,MUD GUARD	1-53497-676-0	01	1	0211-	●	●
102	STAY; LWR,MUD GUARD	1-53497-535-0	01	1	0211-			●	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0211-	●	●	●	●
104	BOLT; BRKT M12X30 FLANGE	0-28081-230-0	01	1	0301-0512	●	●
104	BOLT; BRKT M12X30 FLANGE	0-28051-230-0	01	1	0601-	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	03	1	0211-0212	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	02	1	0301-0512	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0211-0512				●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-				●
105	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●	●
105	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
105	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	02	1	0211-0212	●
105	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	01	1	0301-0602	●	●
105	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
105	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	01	1	0211-0212		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0211-0512	●	●	●	●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●	●	●
127	APRON; FRT	1-53193-222-1	01	1	0005-	●		●
127	APRON; FRT	1-53192-301-3	01	1	0005-	●		●
127	APRON; FRT	1-53193-152-2	01	1	0005-		●		●
127	APRON; FRT	1-53193-150-1	01	1	0005-		●		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-			●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-			●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210			●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-			●	●
130	PANEL; SHUTTER NOISE (B)	1-79938-793-0	01	1	0005-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-3	01	1	0005-0210	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-4	01	1	0211-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-717-3	01	1	0005-0210	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-186-2	01	1	0211-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0005-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-954-2	01	1	0005-0210				●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-			●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-	●	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	0005-				●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-	●	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
225	NUT; MUD GUARD (B) M6 FLANGE	1-09984-141-0	02	1	0005-		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0005-			●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0005-			●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-				●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	0005-	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904	●	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-		●		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-	●	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-			●	●
306	BRACKET; MUD GUARD (A)	1-53497-618-0	01	1	0211-			●
306	BRACKET; MUD GUARD (C)	1-53497-677-2	01	1	0211-0211	●	●
306	BRACKET; MUD GUARD (C)	1-53497-707-0	01	1	0212-	●	●
306	BRACKET; MUD GUARD (B)	1-53497-702-0	01	1	0211-				●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0210		●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0211-0404		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0210		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0211-0404		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-		●		●

131 244 303 303 262 303 304 3 96 29 307 92 84 79 76 2 305 99 128 308 308 76 33 127 1 79 130 91 218 131 96 79 244 303 303 262 303 304 3 2 29 92 312 312 76 99 305 33 128 308 308 76 76 225 127 1 79 130 91 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-	●	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79930-963-1	01	1	0005-0302			●
2	COVER; MUD,TIRE RR	1-79931-415-0	01	1	0303-			●
2	COVER; MUD,TIRE RR	1-79931-230-2	01	1	0005-	●		●
2	COVER; MUD,TIRE RR	1-79931-220-2	01	1	0005-	●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-				●
2	COVER; MUD,TIRE RR	1-79931-254-2	01	1	0005-				●
2	COVER; MUD,TIRE RR	1-79931-229-1	02	1	0005-0210		●
2	COVER; MUD,TIRE RR	1-79930-530-3	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79930-825-1	01	1	0211-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	0005-			●
3	GUARD; MUD,RR	1-79938-932-4	01	1	0005-0210			●
3	GUARD; MUD,RR	1-79936-011-0	01	1	0211-			●
3	GUARD; MUD,RR	1-79938-942-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-945-2	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	0005-				●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210				●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-				●
3	GUARD; MUD,RR	1-79936-025-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-940-1	01	1	0005-		●
29	RIVET	1-09987-240-0	09	1	0005-	●	●
29	RIVET	1-09987-240-0	12	1	0005-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	0005-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0005-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-				●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0005-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904	●	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-				●
79	RETAINER; MUD COVER (D)	1-79930-962-1	01	1	0005-			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	0005-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-	●	●	●	●
79	RETAINER; MUD COVER (B) L=468	1-79930-487-2	01	1	0005-	●
79	RETAINER; MUD COVER (B)	1-79931-329-1	01	1	0005-	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0005-0210				●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0211-				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0005-				●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	0005-		●
84	RIVET; MUD GUARD	1-09987-128-0	02	1	0005-	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	0005-0602			●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0603-		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-			●
96	STAY; MUD GUARD (B)	1-79938-925-1	01	1	0005-			●
96	STAY; MUD GUARD (D)	1-79938-859-0	01	1	0005-	●	●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	0005-				●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	0005-				●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	0005-				●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0211-				●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-			●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●	●
127	APRON; FRT	1-53193-222-1	01	1	0005-	●		●
127	APRON; FRT	1-53192-301-3	01	1	0005-	●		●
127	APRON; FRT	1-53193-152-2	01	1	0005-		●		●
127	APRON; FRT	1-53193-150-1	01	1	0005-		●		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-			●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-			●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210			●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-			●	●
130	PANEL; SHUTTER NOISE (B)	1-79938-793-0	01	1	0005-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-3	01	1	0005-0210	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-4	01	1	0211-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-717-3	01	1	0005-0210	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-186-2	01	1	0211-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0005-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-954-2	01	1	0005-0210				●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-			●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-	●	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
225	NUT; MUD GUARD (B) M6 FLANGE	1-09984-141-0	02	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-920-5	01	1	0005-	●
244	GUARD; MUD,SPLASH	1-79938-921-8	01	1	0005-	●	●
244	GUARD; MUD,SPLASH	1-79938-947-3	01	1	0005-		●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	09	1	0005-	●	●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	12	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-930-3	01	1	0005-	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-923-5	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-929-5	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-922-3	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-928-3	01	1	0005-	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-948-1	01	1	0005-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	0005-	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904	●	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-		●		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-	●	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-			●	●
307	RETAINER	1-79938-899-1	01	1	0005-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0210		●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0211-0404		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0210		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0211-0404		●		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-		●		●
312	SEAL; DUMMY HOLE OD=36 T=0.05 BLACK	5-76777-035-0	03	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
