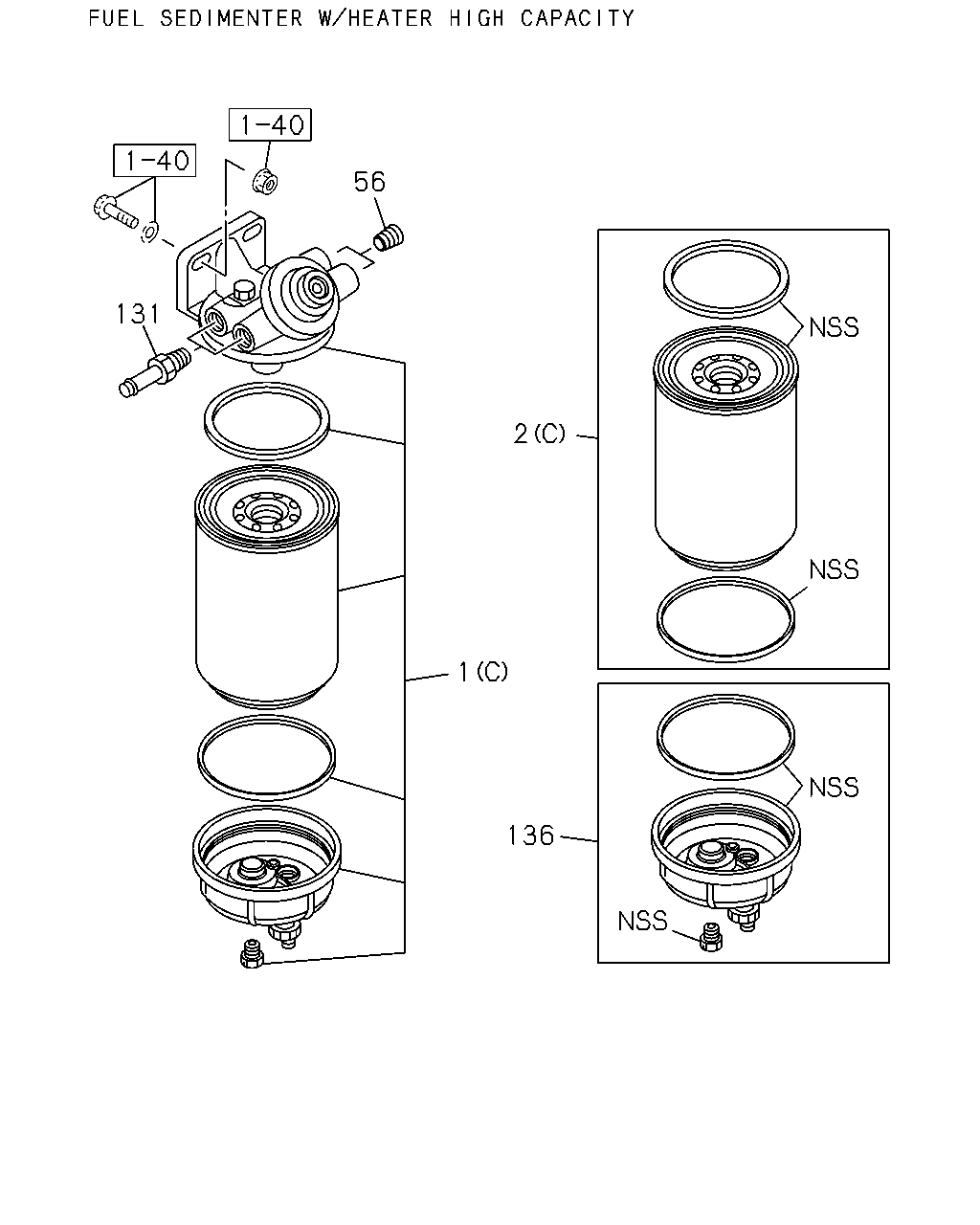

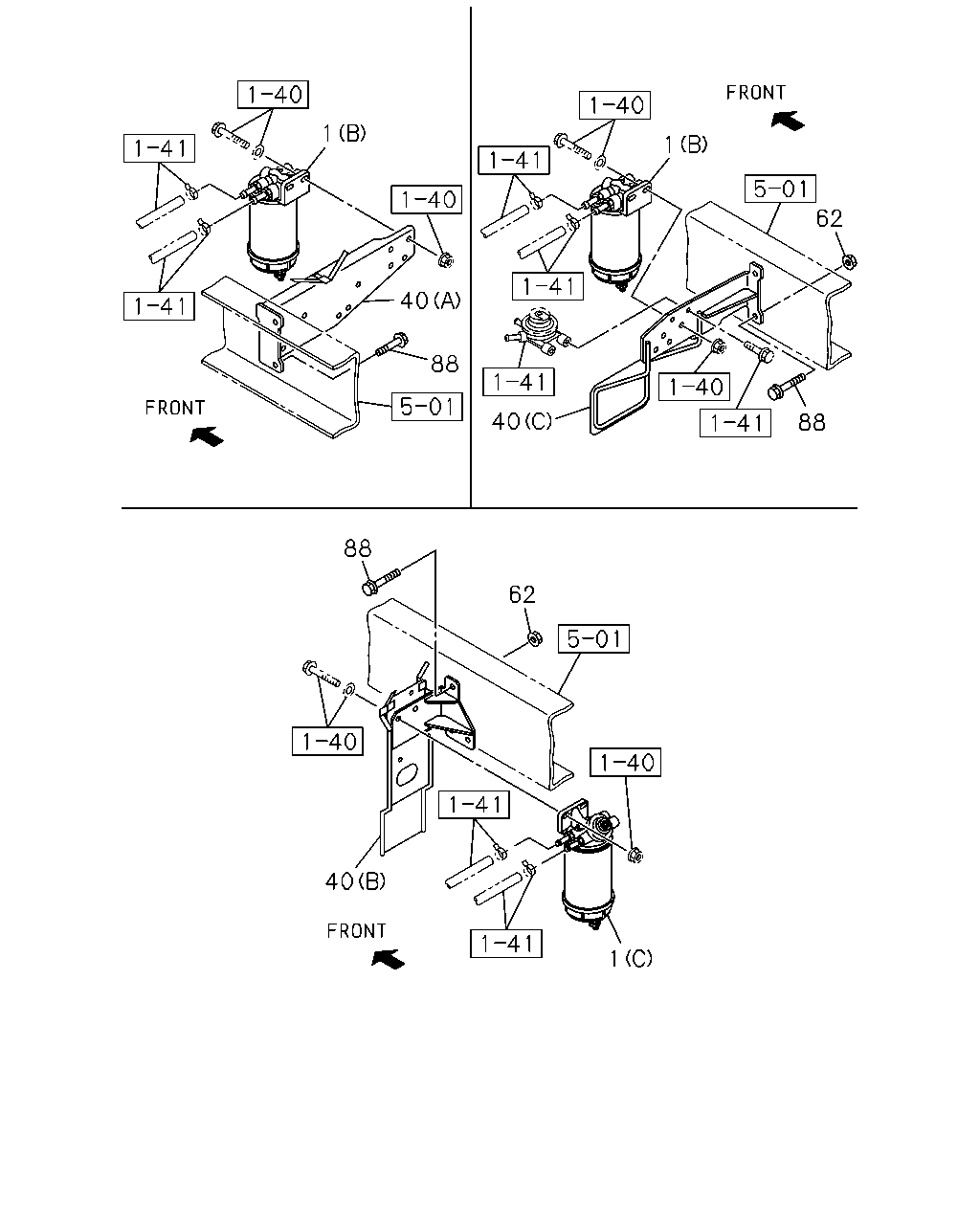

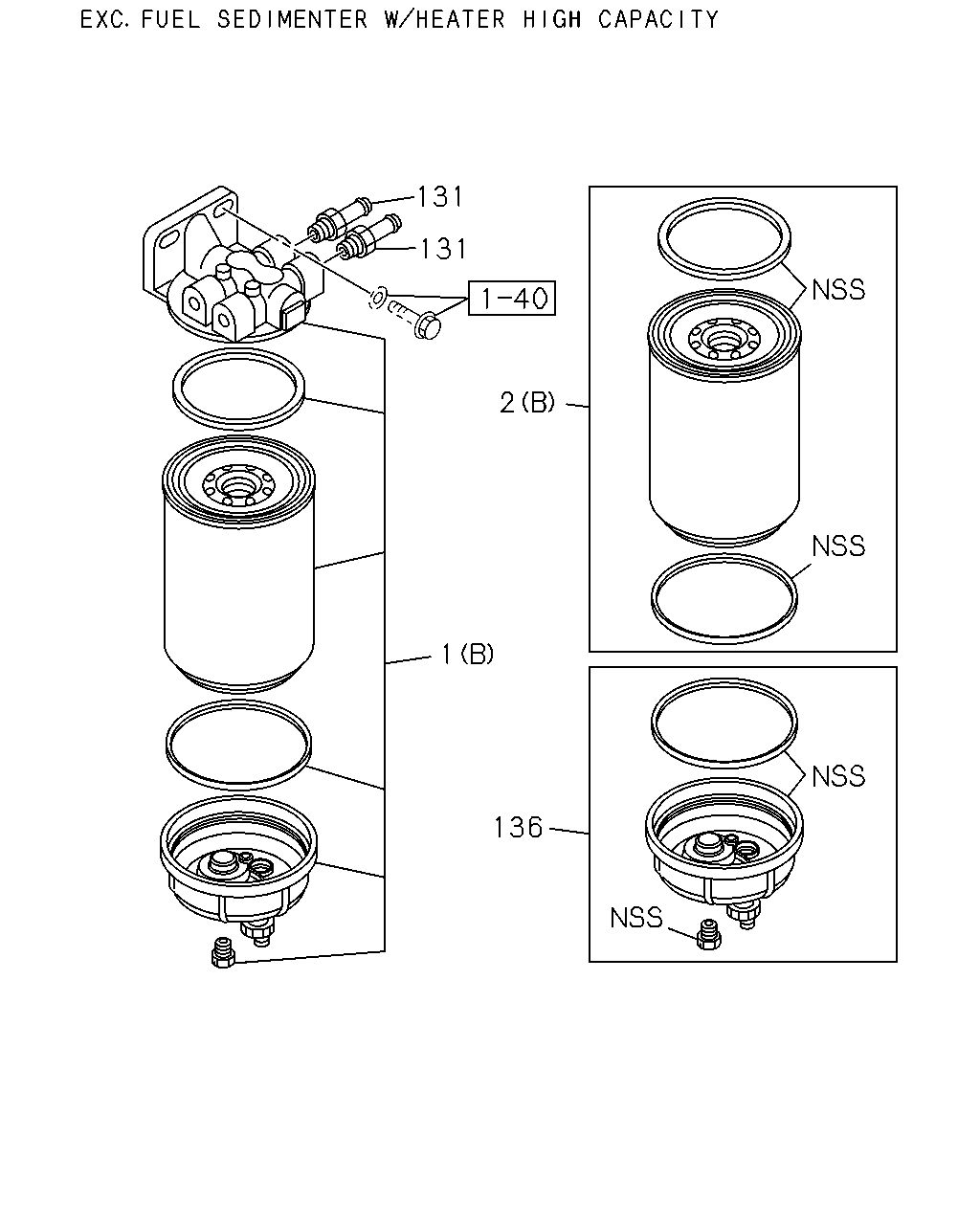

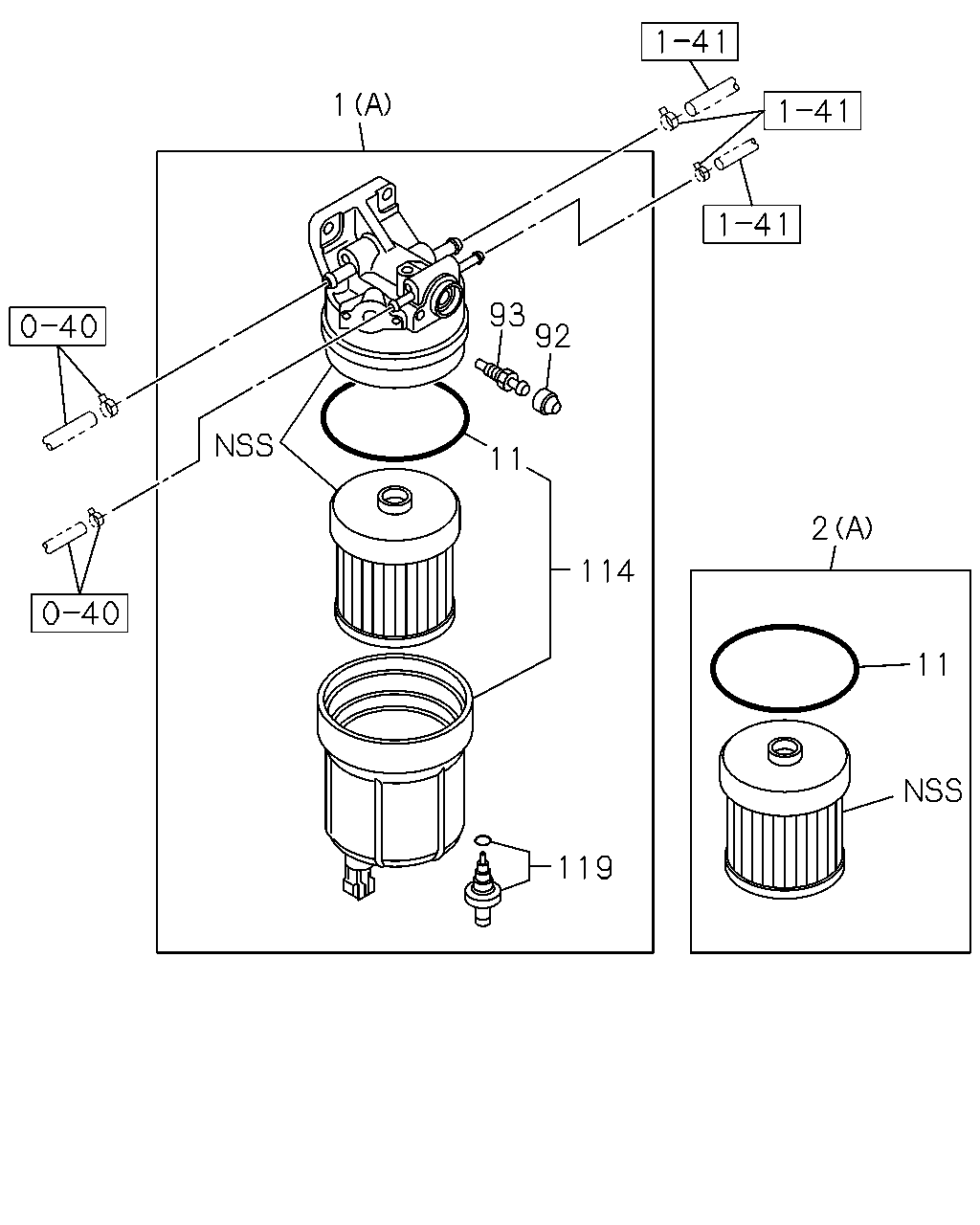

0-41 — FUEL FILTER AND BRACKET (#81999) — 61 parça

40 1 62 88 88 40 88 62 1 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-828-1	01	1	1103-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1103-
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-980-1	01	1	1103-
40	03.890 BRACKET; FUEL FILTER NMR(NM***N) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (C)	8-98147-247-0	01	1	1103-1108
40	03.890 BRACKET; FUEL FILTER NMR(NM***N) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (C)	8-98147-247-0	01	1	1109-1204
40	03.890 BRACKET; FUEL FILTER NMR(NM***N) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (C)	8-98147-247-0	01	1	1205-1206
40	03.890 BRACKET; FUEL FILTER NMR(NM***N) WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (C)	8-98147-247-0	01	1	1207-
40	03.890 BRACKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98180-843-0	01	1	1103-1108
40	03.890 BRACKET; FUEL FILTER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98180-843-0	01	1	1109-1204
40	03.890 BRACKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98180-843-0	01	1	1205-
40	03.890 BRACKET; FUEL FILTER NLR(NM***E) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (A)	8-98107-351-2	01	1	1103-1108
40	03.890 BRACKET; FUEL FILTER NLR(NM***E) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (A)	8-98107-351-2	01	1	1109-1204
40	03.890 BRACKET; FUEL FILTER NLR(NM***E) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (A)	8-98107-351-2	01	1	1205-1206
40	03.890 BRACKET; FUEL FILTER NLR(NM***E) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (A)	8-98107-351-2	01	1	1207-
40	03.890 BRACKET; FUEL FILTER NMR(NM***N) WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (A)	8-98107-351-2	01	1	1207-
62	03.895 NUT; FUEL FILTER NMR(NM***N) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1103-1108
62	03.895 NUT; FUEL FILTER NMR(NM***N) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-1206
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	01	1	1207-
62	03.895 NUT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	03	1	1103-
88	03.895 BOLT; BRKT,FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1103-1204
88	03.895 BOLT; BRKT,FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1205-
88	03.895 BOLT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1103-1108
88	03.895 BOLT; BRKT,FUEL FILTER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-1204
88	03.895 BOLT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1205-

131 131 2 1 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-828-1	01	1	1103-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1103-
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-980-1	01	1	1103-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-830-0	01	1	1103-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1103-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-983-0	01	1	1103-
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1103-
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1103-1408
136	03.890 CAP KIT; FUEL FILTER	8-98279-324-0	01	1	1409-

56 131 2 1 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-828-1	01	1	1103-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1103-
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-980-1	01	1	1103-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-830-0	01	1	1103-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1103-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-983-0	01	1	1103-
56	03.890 PLUG; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.453 NPTF3/8-18	8-97329-623-0	02	1	1103-
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1103-
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1103-1408
136	03.890 CAP KIT; FUEL FILTER	8-98279-324-0	01	1	1409-

1 93 92 11 114 2 11 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-828-1	01	1	1103-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1103-
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-980-1	01	1	1103-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C)	8-98139-830-0	01	1	1103-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1103-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER HIGH CAPA CITY<8NK> (B)	8-98095-983-0	01	1	1103-
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1103-1112
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1103-
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1103-
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1103-
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1103-
