◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#81994) — 8 parça

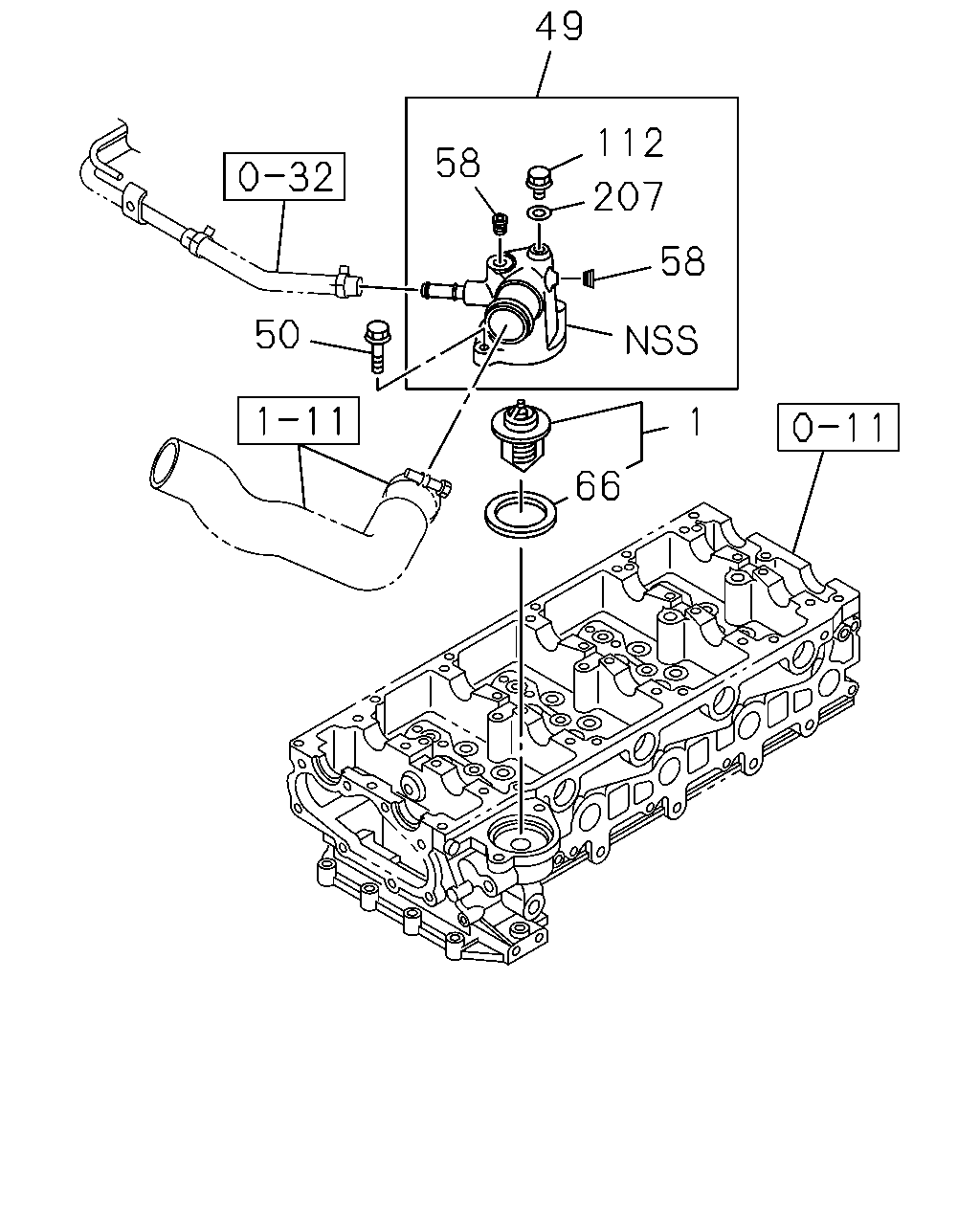

çizim 42861
66 1 58 207 112 49 58 50
BalonParca AdiParca NoAdetTipApplied Date
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1103-
49 01.153 PIPE; WATER OUTLET 8-98074-754-0 01 1 1103-1404
49 01.153 PIPE; WATER OUTLET 8-98159-913-0 01 1 1405-
50 01.252 BOLT; OUTLET PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1103-
58 00.073 PLUG; WATER OUTLET PIPE
01.837 PT1/8 		8-97369-552-1 02 1 1103-
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1103-
112 01.251 PLUG
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1103-
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1103-
