Isuzu WW
▶
TRUCKS
▶
QKR
▶
51353 - QKR-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

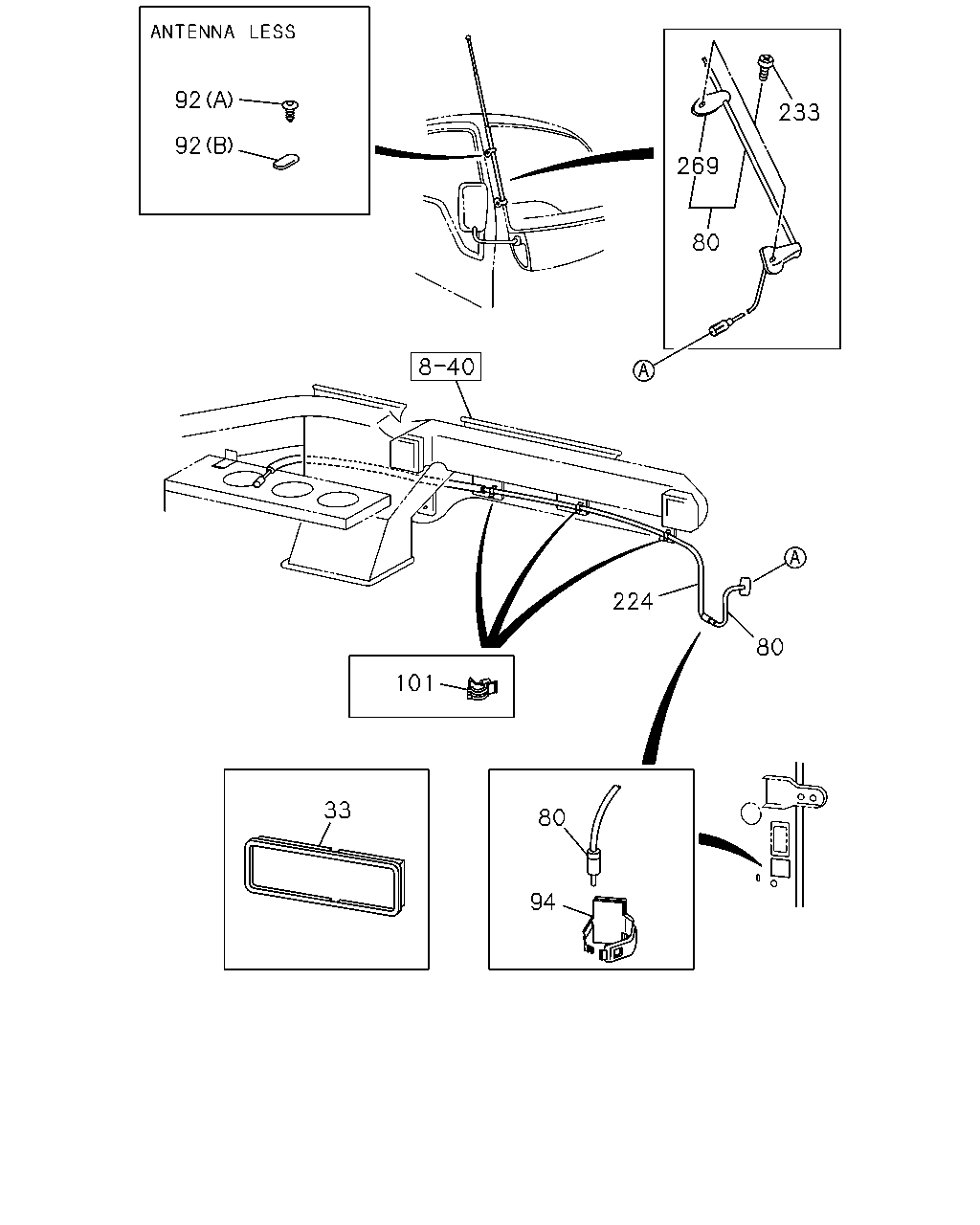

8-90 — RADIO AND TV
(#81979) — 21 parça
Tümü
A - NKR5SE
B - NKR5SN
◀
[890A] NO.2 (10 parça)
[890A] NO.1 (11 parça)
▶
92
233
92
269
80
224
80
101
33
80
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
09.650 COVER; RADIO
8-97856-203-3
01
1
1011-
●
●
80
09.645 ANTENNA
ANTENNA<U73>
8-97211-564-0
01
1
1011-
●
●
92
09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8
8-94279-921-0
01
1
1011-
●
●
92
09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B)
8-97088-275-3
01
1
1011-
●
●
94
09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73>
1-09987-155-3
01
1
1011-
●
●
101
09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 ID=7
5-09707-053-0
03
1
1011-
●
●
224
09.647 CABLE; EXT,FEEDER
ANTENNA<U73>
8-97213-766-0
01
1
1011-
●
●
233
09.647 SCREW
ANTENNA<U73> M6X20
8-97120-686-0
01
1
1011-
●
●
233
09.647 SCREW
ANTENNA<U73> M6X16
8-97123-696-0
01
1
1011-
●
●
269
09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73>
8-97219-079-0
01
1
1011-
●
●
222
116
222
171
222
5
117
48
221
221
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
09.647 HARNESS; EXT
2-SPEAKER SYSTEM BASE<U95>
8-97131-327-0
02
1
1011-
●
●
48
09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95>
8-97317-001-1
02
1
1011-
●
●
49
09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1011-
●
●
116
16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95>
8-97852-324-3
01
1
1011-
●
●
116
16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95>
8-97852-325-3
01
1
1011-
●
●
117
16.165 SCREW; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
1011-
●
●
171
09.650 COVER; SPEAKER
2-SPEAKER SYSTEM BASE<U95>
8-97852-331-4
02
1
1011-
●
●
221
16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (A)
8-97852-327-5
02
1
1011-
●
●
221
16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (B)
8-97852-601-2
02
1
1011-
●
●
222
16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 09.264 (A)
1-09987-144-0
02
1
1011-
●
●
222
16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 01.269 (B) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1011-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
