◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51353 - QKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#81968) — 128 parça

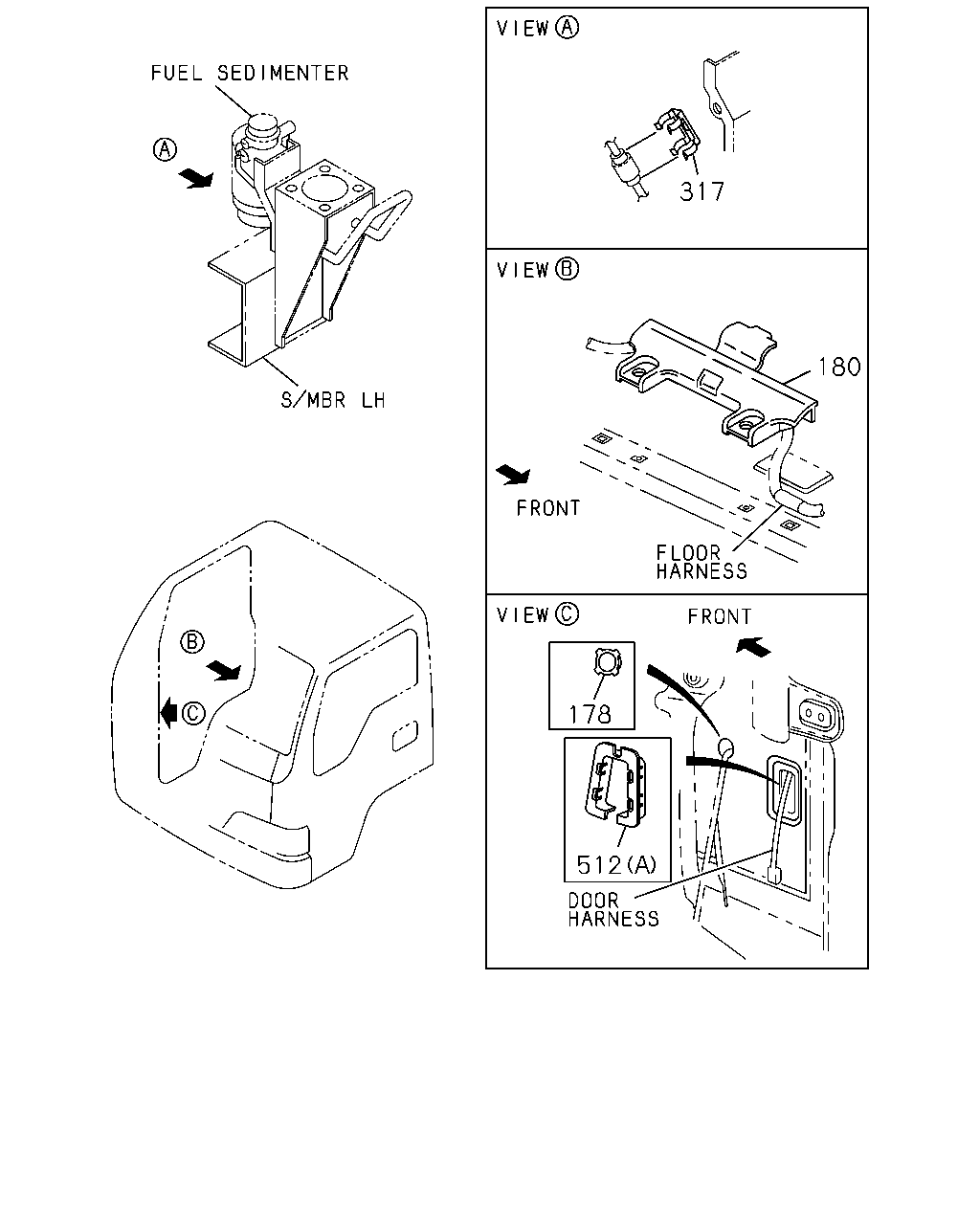

çizim 136926
317 180 178 512
BalonParca AdiParca NoAdetTipApplied Date A B
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 1011- ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 1011- ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94441-365-0 01 1 1011- ● ●
512 02.559 PROTECTOR; HARNESS
2-SPEAKER SYSTEM BASE<U95> (A) 		8-97072-950-0 02 1 1011- ● ●
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1011- ● ●
çizim 137156
48 208 48 48 483 48 48 48 208 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1210-1502 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1210-1502 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1503- ● ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1503- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) 01.240 (C) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1210- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1210- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 		5-09700-319-0 03 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) 01.240 (H) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 07 1 1011- ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=19 H=70 L=25 		1-09700-773-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=33 L=63 		1-09700-807-0 06 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=31 L=30 		1-09700-969-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 13 		5-09709-096-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 01 1 1011- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 09 1 1011- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=5.5 		8-97371-951-0 01 1 1210- ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 1011- ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (B) T=5.5 		5-09709-047-0 01 1 1210- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B) ID=11 L=20 		0-95235-035-0 01 1 1011- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> (B) ID=11 L=20 		0-95235-035-0 01 1 1011- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 04.342 (A) L=197 		1-83574-032-0 01 1 1011- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 04.342 (A) L=197 		1-83574-032-0 01 1 1011- ● ●
çizim 137191
16 22 48 488 14 16 16 16 16 483 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 02.559 CLIP; BAND,HARNESS
03.430 L=200 		8-94464-835-0 01 1 1011- ● ●
16 02.559 CLIP; HARNESS
2-SPEAKER SYSTEM BASE<U95> (C) L=100 		8-94327-067-1 04 1 1011- ● ●
16 02.559 CLIP; HARNESS
2-SPEAKER SYSTEM BASE<U95> (B) L=155 		8-97173-307-0 05 1 1011-1011 ● ●
16 02.559 CLIP; HARNESS
2-SPEAKER SYSTEM BASE<U95> (B) L=155 		8-97173-307-0 04 1 1011- ● ●
16 02.559 CLIP; HARNESS
(F) L=135 		1-09987-143-1 02 1 1011- ● ●
16 02.559 CLIP; HARNESS
16.065 (E) 1 SET=5 PIECE 		1-09987-214-0 02 1 1011- ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 1011-1403 ● ●
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 02 1 1011- ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 01 1 1011- ● ●
16 02.559 CLIP; HARNESS
(D) ID=15-32 		8-97174-404-0 02 1 1011- ● ●
22 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT) 03.162 L=140 		5-09707-031-1 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1210-1502 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1210-1502 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1503- ● ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1503- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) 01.240 (C) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1210- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1210- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 		5-09700-319-0 03 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) 01.240 (H) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 07 1 1011- ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=19 H=70 L=25 		1-09700-773-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=33 L=63 		1-09700-807-0 06 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=31 L=30 		1-09700-969-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 13 		5-09709-096-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 01 1 1011- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 09 1 1011- ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B) ID=11 L=20 		0-95235-035-0 01 1 1011- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> (B) ID=11 L=20 		0-95235-035-0 01 1 1011- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 04.342 (A) L=197 		1-83574-032-0 01 1 1011- ● ●
483 02.559 CLIP; ENG HARNESS
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 04.342 (A) L=197 		1-83574-032-0 01 1 1011- ● ●
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 1011- ● ●
çizim 137230
319 8 38 38 150 242 38 529 242 377 516 159 511 219 519
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.559 BOLT; BRKT,CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1011-1210 ● ●
8 02.559 BOLT; BRKT,CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (C) M6X20 FLANGE 		0-28650-620-0 01 1 1011- ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 1011- ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1011- ● ●
150 02.343 BOLT; CLIP
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) M8X12 FLANGE 		0-28050-812-0 01 1 1011- ● ●
150 02.343 BOLT; CLIP
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> M8X12 FLANGE 		0-28050-812-0 01 1 1011- ● ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 M8X24 W/PL WASHER 		8-98141-256-1 01 1 1011- ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 M5 FLANGE 		5-09440-003-0 01 1 1011- ● ●
242 02.483 BOLT; BRKT,HARNESS
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1011- ● ●
242 02.483 BOLT; BRKT,HARNESS
01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 1011- ● ●
319 02.559 SCREW; CLAMP,HARNESS CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> M5X16 W/LK WASHER 		0-36220-516-0 01 1 1011- ● ●
377 02.559 BOLT; CAB EARTH
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1011- ● ●
511 02.559 SCREW; HARNESS COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1011- ● ●
516 02.559 BOLT; HARNESS
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1011- ● ●
519 02.559 NUT; EARTH CABLE
02.042 M12 FLANGE 		0-91180-112-0 01 1 1011- ● ●
529 02.559 BOLT; RELAY BOX
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1011- ● ●
çizim 138028
53 53 510 507 507 512
BalonParca AdiParca NoAdetTipApplied Date A B
53 02.483 BRACKET; HARNESS
(A) 		8-98003-047-0 01 1 1011- ●
53 02.483 BRACKET; HARNESS
(B) 		8-98003-046-0 01 1 1011- ●
507 02.559 FINISHER
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 1011- ● ●
507 02.559 FINISHER
(A) L=120 SERVICED BY L=500 		1-79937-746-0 02 1 1011- ● ●
507 02.559 FINISHER
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1011- ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 1011- ● ●
512 02.559 PROTECTOR; HARNESS
2-SPEAKER SYSTEM BASE<U95> (A) 		8-97072-950-0 02 1 1011- ● ●
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1011- ● ●
çizim 191434
264 16 16 48 464
BalonParca AdiParca NoAdetTipApplied Date A B
16 02.559 CLIP; HARNESS
2-SPEAKER SYSTEM BASE<U95> (C) L=100 		8-94327-067-1 04 1 1011- ● ●
16 02.559 CLIP; HARNESS
2-SPEAKER SYSTEM BASE<U95> (B) L=155 		8-97173-307-0 05 1 1011-1011 ● ●
16 02.559 CLIP; HARNESS
2-SPEAKER SYSTEM BASE<U95> (B) L=155 		8-97173-307-0 04 1 1011- ● ●
16 02.559 CLIP; HARNESS
(F) L=135 		1-09987-143-1 02 1 1011- ● ●
16 02.559 CLIP; HARNESS
16.065 (E) 1 SET=5 PIECE 		1-09987-214-0 02 1 1011- ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 1011-1403 ● ●
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 02 1 1011- ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 01 1 1011- ● ●
16 02.559 CLIP; HARNESS
(D) ID=15-32 		8-97174-404-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1210-1502 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1210-1502 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1503- ● ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=5.5 		8-97371-951-0 01 1 1503- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) 01.240 (C) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1011-1209 ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1210- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 01.240 (C) T=5.5 		5-09709-047-0 01 1 1210- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 		5-09700-319-0 03 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1-NA ENG(RLF) 01.240 (H) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 07 1 1011- ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=19 H=70 L=25 		1-09700-773-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=33 L=63 		1-09700-807-0 06 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=31 L=30 		1-09700-969-0 02 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 13 		5-09709-096-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 01 1 1011- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 01 1 1011- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 09 1 1011- ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 ID=6 & 10-13 		8-97069-515-0 01 1 1011- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 ID=6.5 		8-94257-639-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
