◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51353 - QKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#81967) — 81 parça

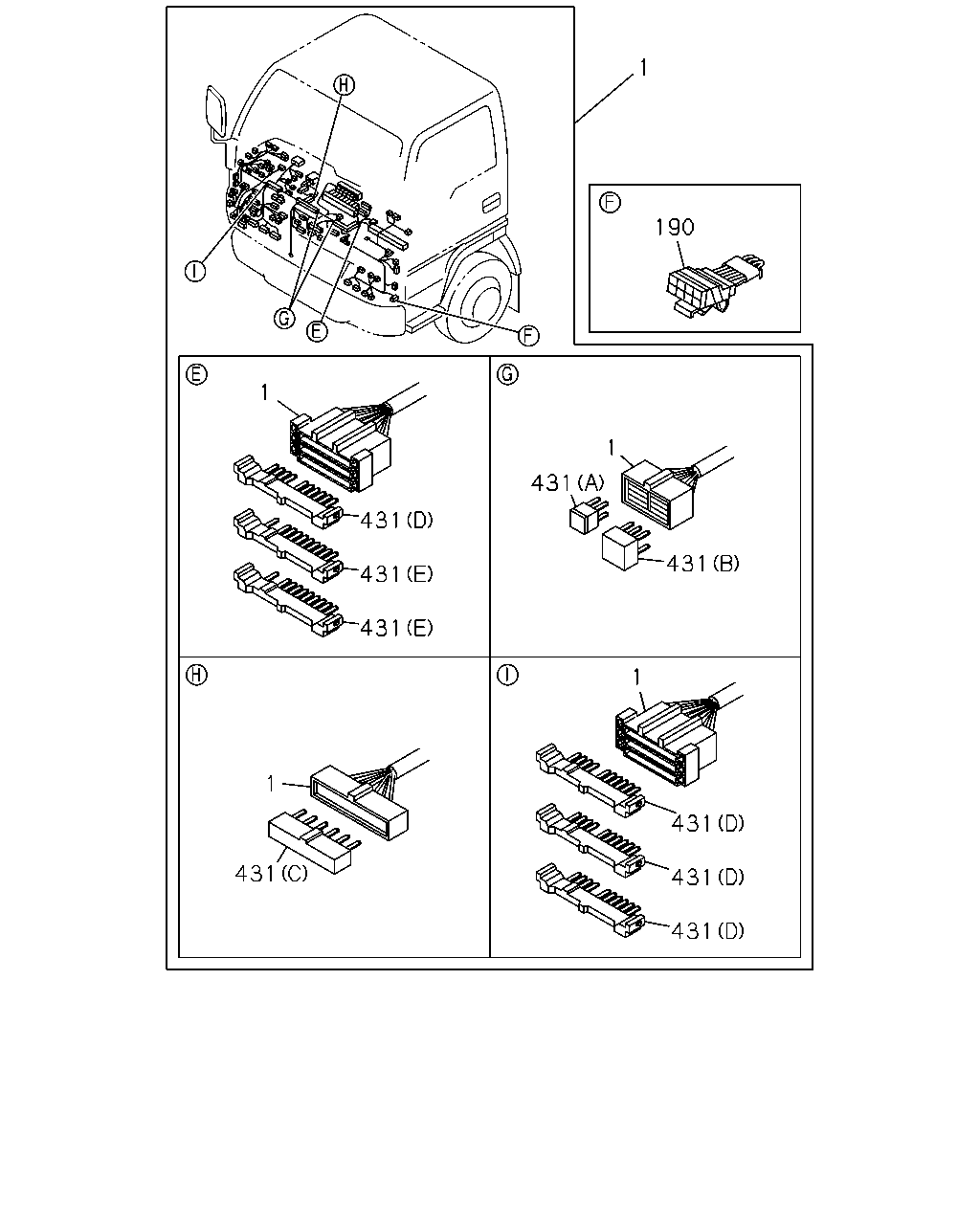

çizim 136096
1 190 1 431 431 431 1 431 431 1 431 1 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC(BCC) 		8-98217-082-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 1011-1206 ● ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-97381-171-3 01 1 1207- ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 1011- ● ●
431 02.530 CONNECTOR; JOINT
(D) 6P 		1-82691-206-0 01 1 1011- ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 04 1 1011- ● ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 1011- ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 1011- ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 1011- ● ●

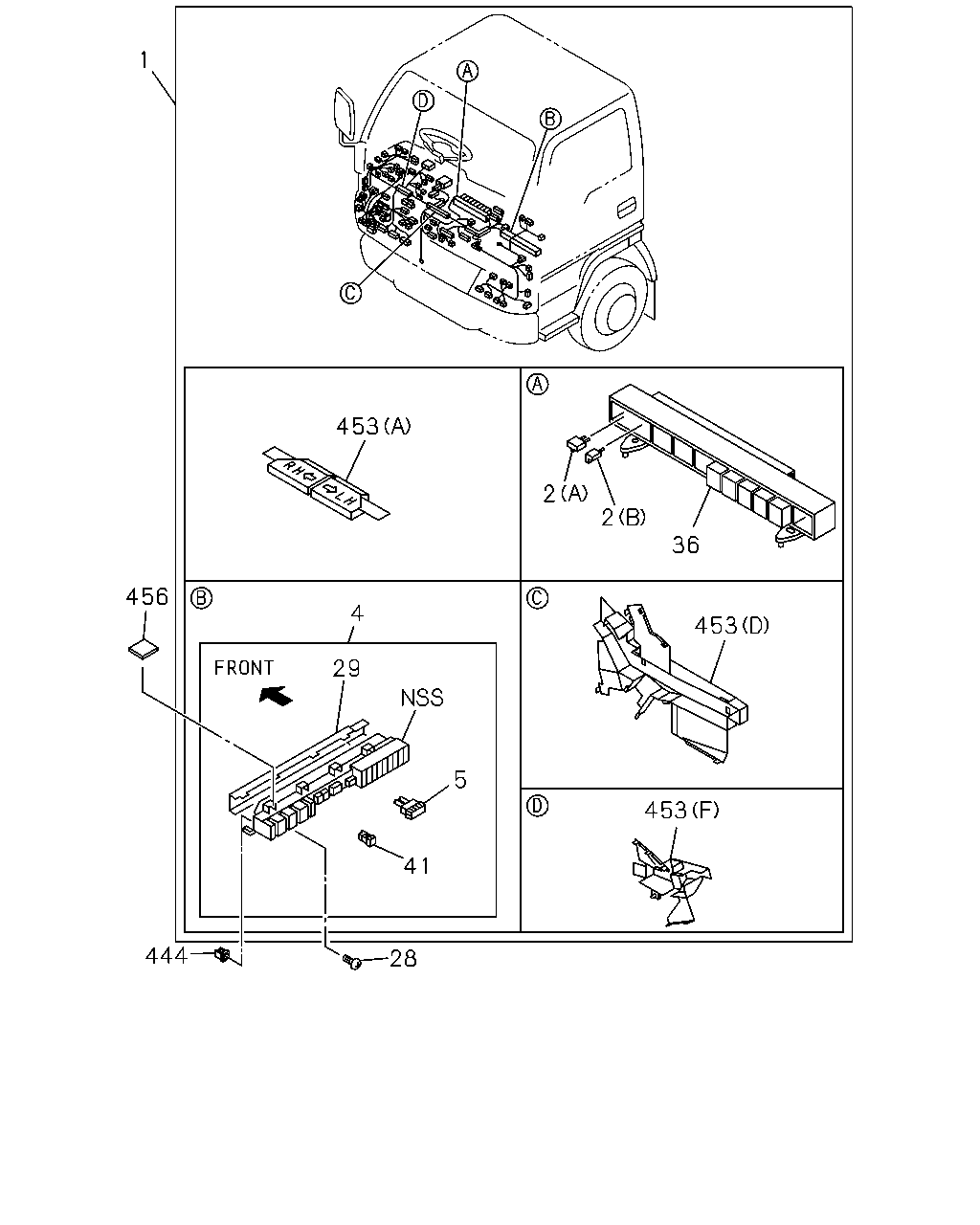

çizim 136381
1 2 2 36 453 453 453 4 29 5 41 28 444 456
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC(BCC) 		8-98217-082-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 1011-1206 ● ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-97381-171-3 01 1 1207- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1011- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1011- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 1011- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 12 1 1011- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 08 1 1011- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 02 1 1011- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1011-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 1011- ● ●
36 02.530 BOX; RELAY 8-97187-918-1 01 1 1011- ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 1011- ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97259-731-2 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 1011- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 1011- ● ●
çizim 136857
171 341 9 337
BalonParca AdiParca NoAdetTipApplied Date A B
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 1011- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 1011- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
02.480 		8-97364-151-0 01 1 1011- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 1011- ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 1011- ● ●

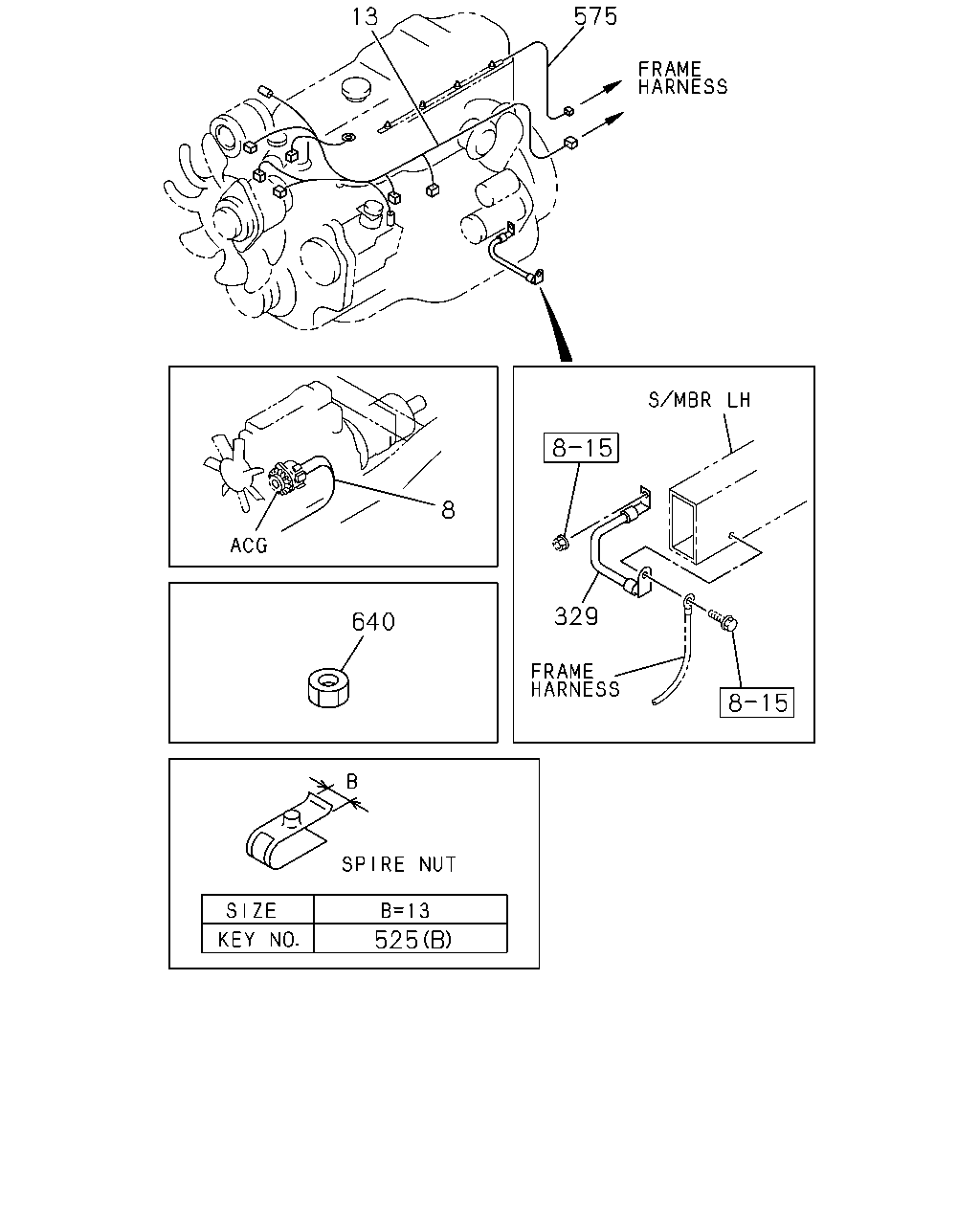

çizim 136909
575 13 8 329 640 525
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98281-747-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98177-613-0 01 1 1011-1502 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-98177-613-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) 		8-97377-875-1 01 1 1011- ● ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-97218-750-1 01 1 1011- ● ●
13 02.525 HARNESS; ENG
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 		8-97173-694-2 01 1 1011- ● ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 1011- ● ●
525 08.919 NUT; CLIP
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
525 08.919 NUT; CLIP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-97212-328-0 01 1 1011- ● ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1011- ● ●

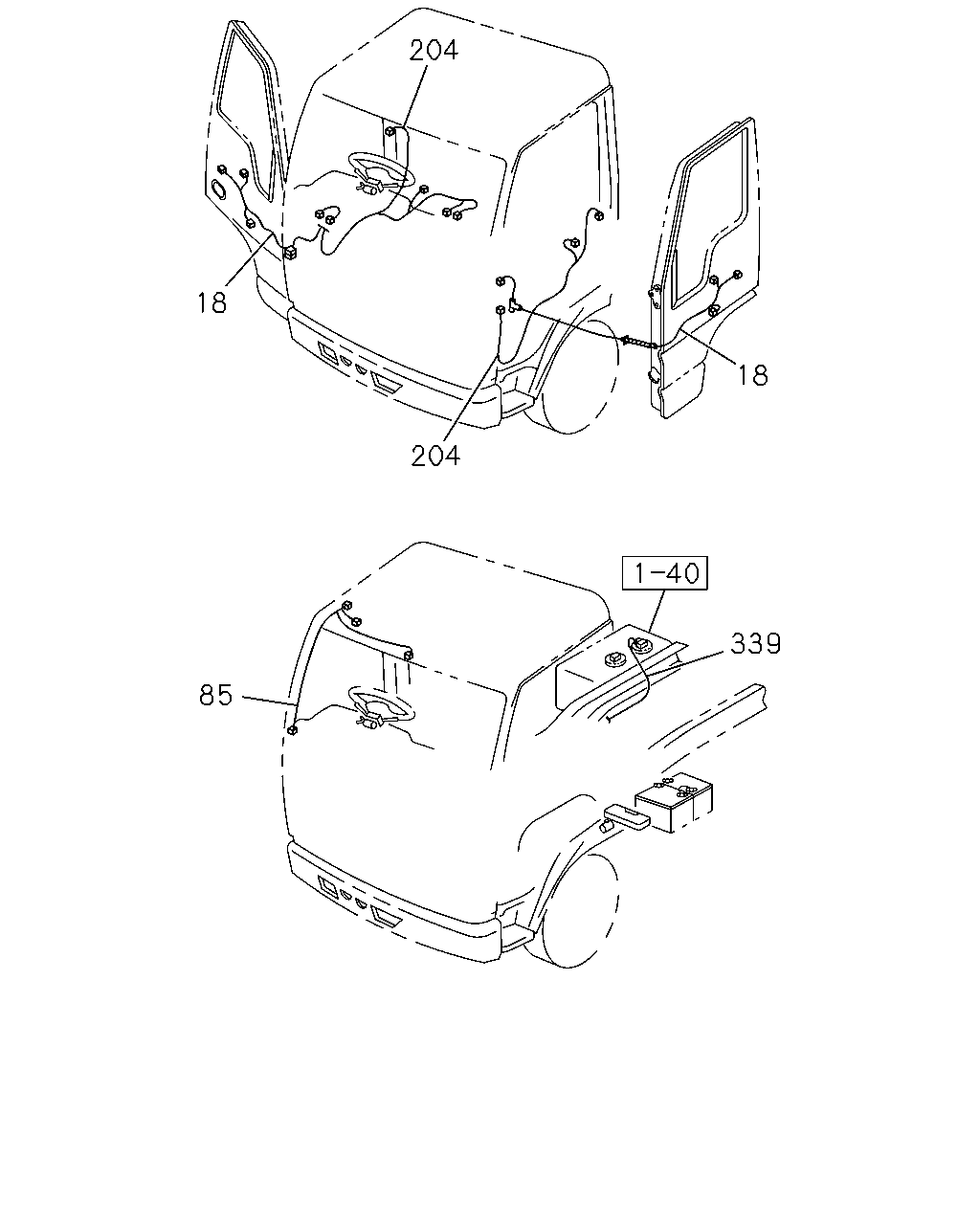

çizim 191430
204 18 18 204 339 85
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97105-571-1 01 1 1011- ● ●
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-98166-819-0 01 1 1011-1011 ● ●
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97226-671-1 01 1 1011- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 1011- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 1011- ● ●
339 02.530 HARNESS; EXT,FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98213-781-0 01 1 1206- ● ●

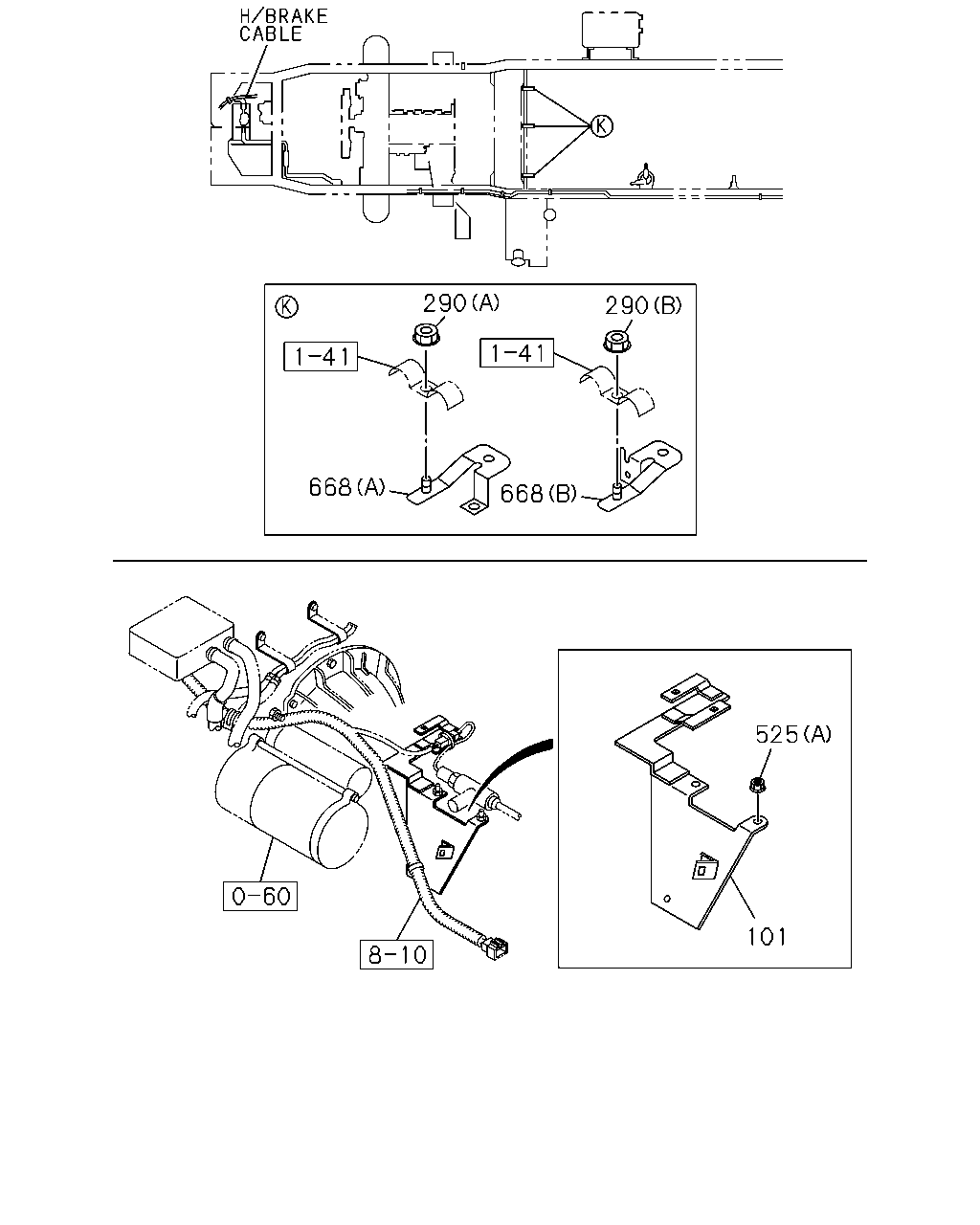

çizim 191431
290 290 668 668 525 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
4JB1-NA ENG(RLF) 		8-97068-801-1 01 1 1011- ● ●
290 02.483 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
525 08.919 NUT; CLIP
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
525 08.919 NUT; CLIP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
668 02.559 BRACKET; HARNESS
(A) L=20 		8-94165-263-1 01 1 1011- ● ●
668 02.559 BRACKET; HARNESS
(B) 		8-97077-845-0 02 1 1011- ● ●

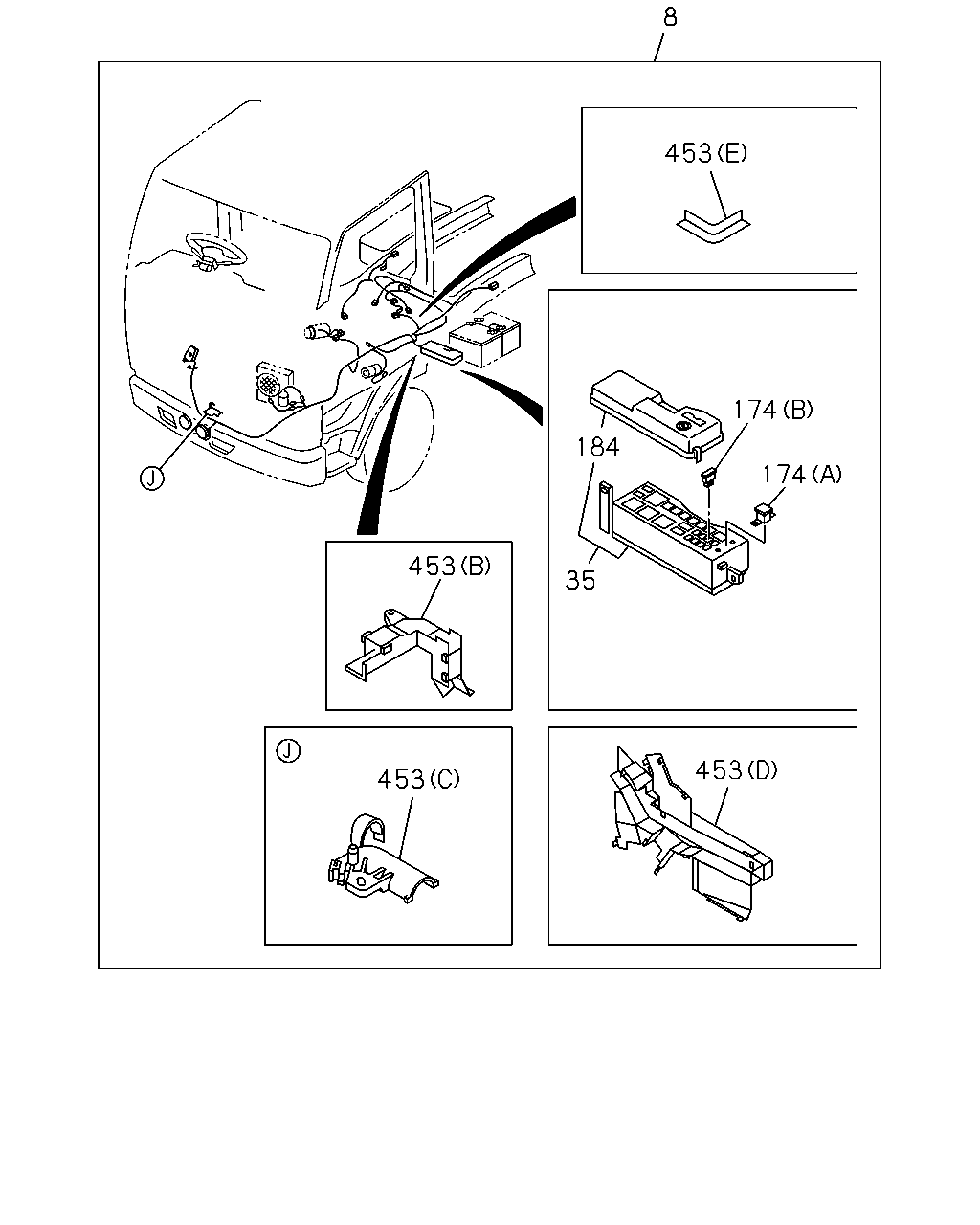

çizim 191432
8 453 174 174 184 35 453 453 453
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98281-747-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98177-613-0 01 1 1011-1502 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-98177-613-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) 		8-97377-875-1 01 1 1011- ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 1011- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 01 1 1011- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 01 1 1011- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 01 1 1011- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 02 1 1011- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97259-731-2 01 1 1011- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97262-956-3 01 1 1011- ● ●
