7-43 — SUN VISOR AND ASSIST GRIP (#81962) — 17 parça

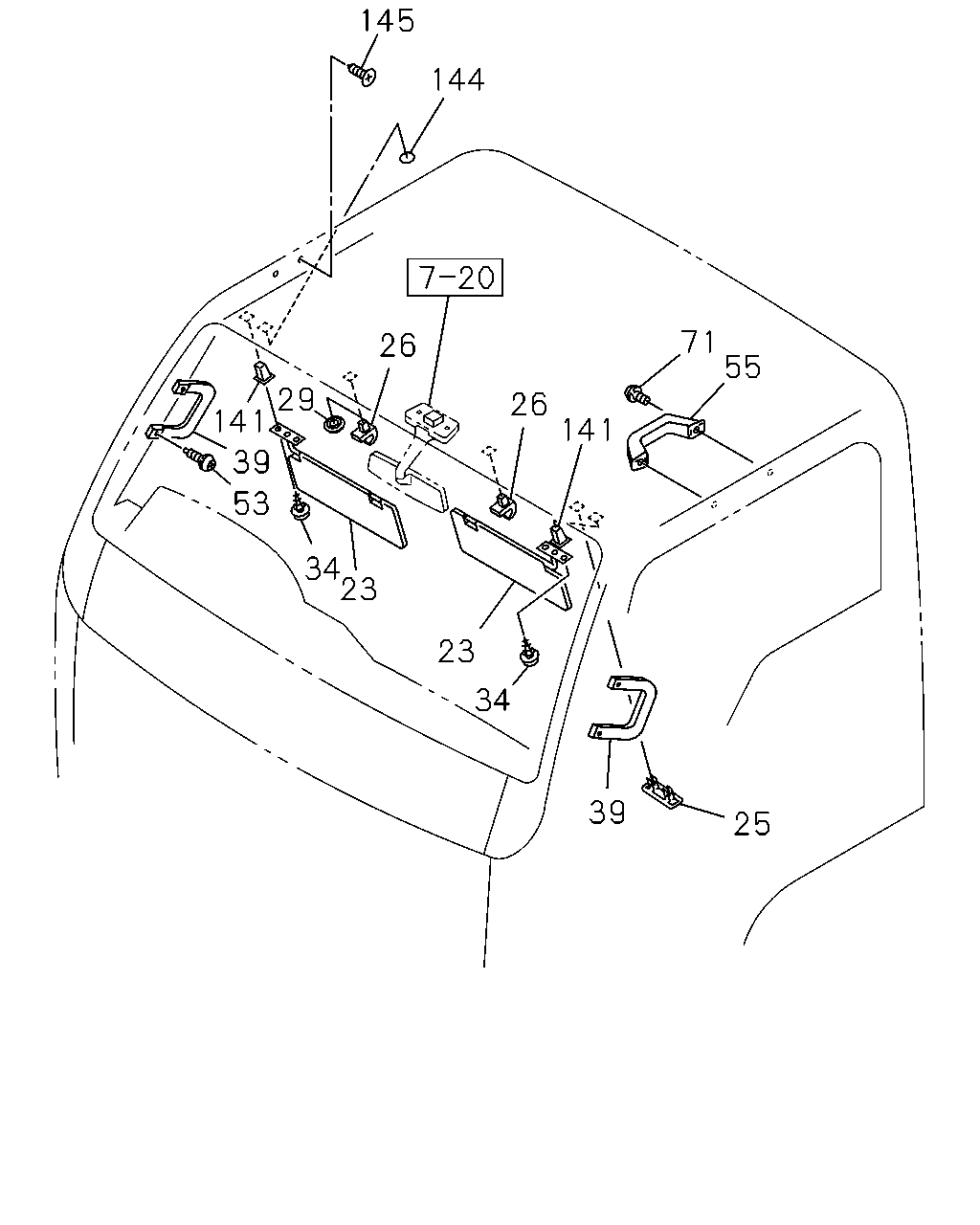

çizim 134107
145 144 71 55 26 29 26 141 141 39 53 34 23 23 34 39 25
BalonParca AdiParca NoAdetTipApplied Date A B
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97404-398-0 01 1 1011- ● ●
23 16.070 SUN VISOR
LIGHT GRAY 		8-97404-450-0 01 1 1011- ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-201-3 01 1 1011- ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97405-171-0 02 1 1011- ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97405-171-0 01 1 1011- ● ●
29 16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0 		8-94279-040-0 01 1 1011- ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING 		0-72180-518-0 04 1 1011- ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING 		0-72180-518-0 02 1 1011- ● ●
39 16.450 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 1011- ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1011- ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1011- ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1011- ● ●
141 16.070 COVER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 1011- ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 02 1 1011- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1011- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1011- ● ●
145 16.070 PLUG; HOLE
16.069 OD=12 L=14.8 		8-94279-921-0 04 1 1011- ● ●
