1 |

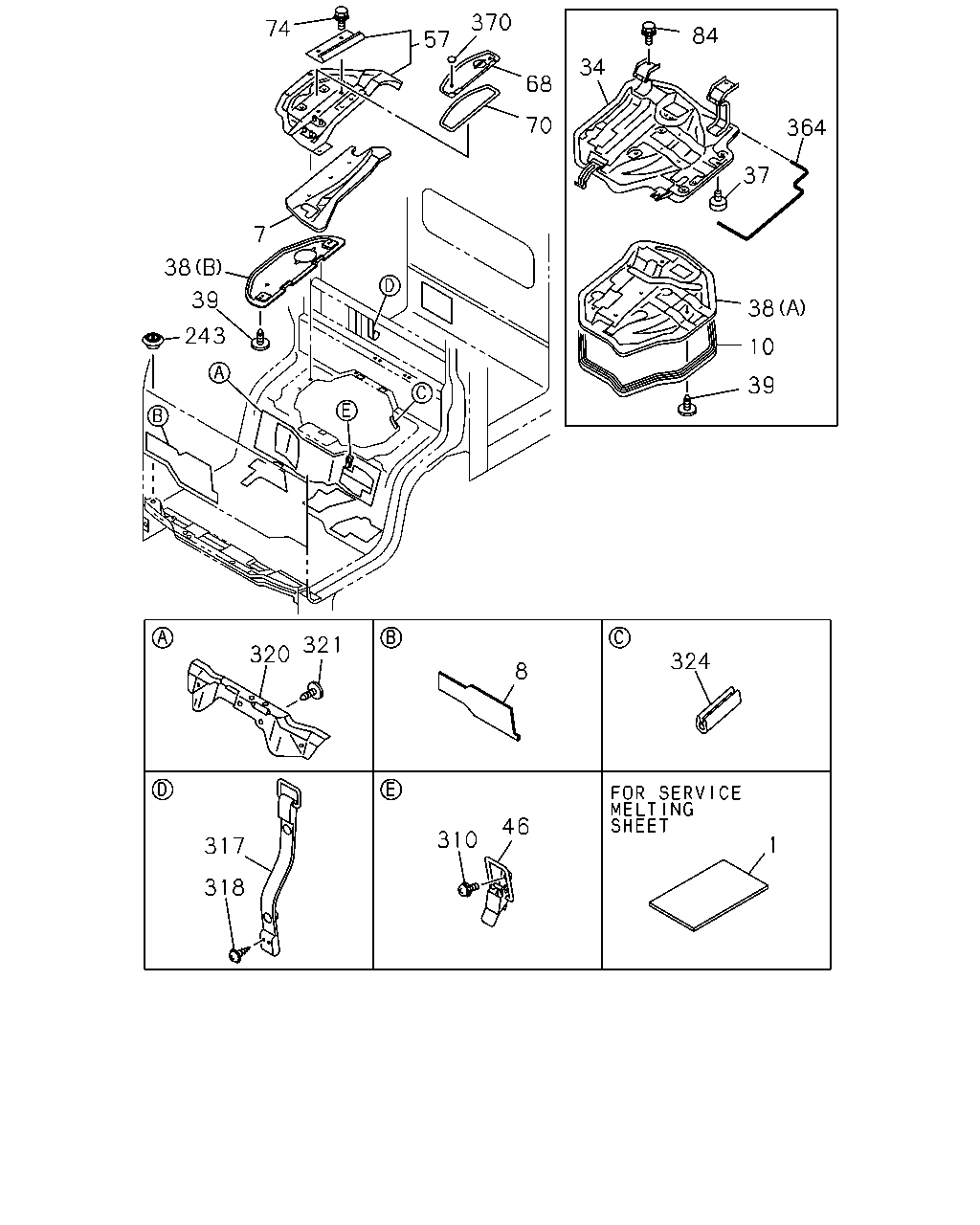

16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
|
8-94262-093-0 |
AR |
1 |
1011- |
● |
● |
| |
7 |
16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ>
|
8-97853-543-3 |
01 |
1 |
1011- |
● |
● |
| |
7 |
16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ>
|
8-97853-544-3 |
01 |
1 |
1011- |
● |
● |
| |
8 |
16.802 MAT; SILENCER,FRT PANEL
|
8-98019-713-2 |
02 |
1 |
1011- |
● |
● |
| |
10 |
16.549 SEAL; ENG COVER
|
8-97853-010-4 |
01 |
1 |
1011- |
● |
● |
| |
34 |
16.549 COVER ASM; ENG,CAB FLOOR
|
8-97850-673-1 |
01 |
1 |
1011- |
● |
● |
| |
37 |
16.549 RUBBER; BUFFER,ENG COVER
16.155
OD=30 T=10
|
5-74917-001-2 |
02 |
1 |
1011- |
● |
● |
| |
38 |
16.549 INSULATOR; ENG COVER
(A)
|
8-97859-917-0 |
01 |
1 |
1011- |
● |
● |
| |
38 |
16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ>
(B)
|
8-97856-803-0 |
01 |
1 |
1011- |
● |
● |
| |
39 |
16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ>
OD=30
|
8-94279-952-0 |
07 |
1 |
1011- |
● |
● |
| |
39 |
16.549 CLIP; INSULATOR,COVER
OD=30
|
8-94279-952-0 |
05 |
1 |
1011- |
● |
● |
| |
39 |
16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ>
OD=30
|
8-94279-952-0 |
05 |
1 |
1011- |
● |
● |
| |
39 |
16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ>
OD=30
|
8-94279-952-0 |
02 |
1 |
1011- |
● |
● |
| |
46 |
16.549 HOOK ASM; ENG COVER
|
8-97853-632-2 |
02 |
1 |
1011- |
● |
● |
| |
57 |
16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ>
|
8-97866-687-1 |
01 |
1 |
1011- |
● |
● |
| |
57 |
16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ>
|
8-97866-688-1 |
01 |
1 |
1011- |
● |
● |
| |
68 |
16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ>
|
8-98040-141-0 |
01 |
1 |
1011- |
● |
● |
| |
70 |
16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ>
|
8-97853-050-1 |
01 |
1 |
1011- |
● |
● |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
1011- |
● |
● |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1011- |
● |
● |
| |
84 |
16.549 BOLT; ENG COVER HINGE
01.531
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
1011- |
● |
● |
| |
243 |
16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1
|
8-97898-423-0 |
01 |
1 |
1011- |
● |
● |
| |
310 |
16.549 SCREW; ENG COVER HOOK
02.343
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
1011- |
● |
● |
| |
317 |
16.549 BAND; ENGINE COVER
L=535 BLACK
|
8-97867-201-1 |
01 |
1 |
1011- |
● |
● |
| |
318 |
16.549 SCREW; BAND
16.570
M5X16 TAPPING HEXALOBULAR
|
0-72380-516-0 |
02 |
1 |
1011- |
● |
● |
| |
320 |
16.549 INSULATOR; FLOOR,FRT
|
8-97856-277-6 |
01 |
1 |
1011- |
● |
● |
| |
321 |
16.549 CLIP; INSULATOR,FLOOR
OD=30
|
8-94279-952-0 |
03 |
1 |
1011- |
● |
● |
| |
324 |
16.545 FINISHER; FLOOR PANEL
L=140
|
8-97892-742-0 |
01 |
1 |
1011- |
● |
● |
| |
364 |
16.545 FINISHER; ENG COVER SIDE
L=1100
|
8-97892-744-0 |
01 |
1 |
1011- |
● |
● |
| |
370 |
16.549 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR WHEATLAND
YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY
COLOR MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
1011- |
● |
● |
| |
370 |
16.549 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
04 |
1 |
1011- |
● |
● |
