Isuzu WW
▶
TRUCKS
▶
QKR
▶
51353 - QKR-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#81942) — 27 parça
Tümü
A - NKR5SE
B - NKR5SN
◀
[632A] NO.1 (17 parça)
[632A] NO.2 (10 parça)
▶

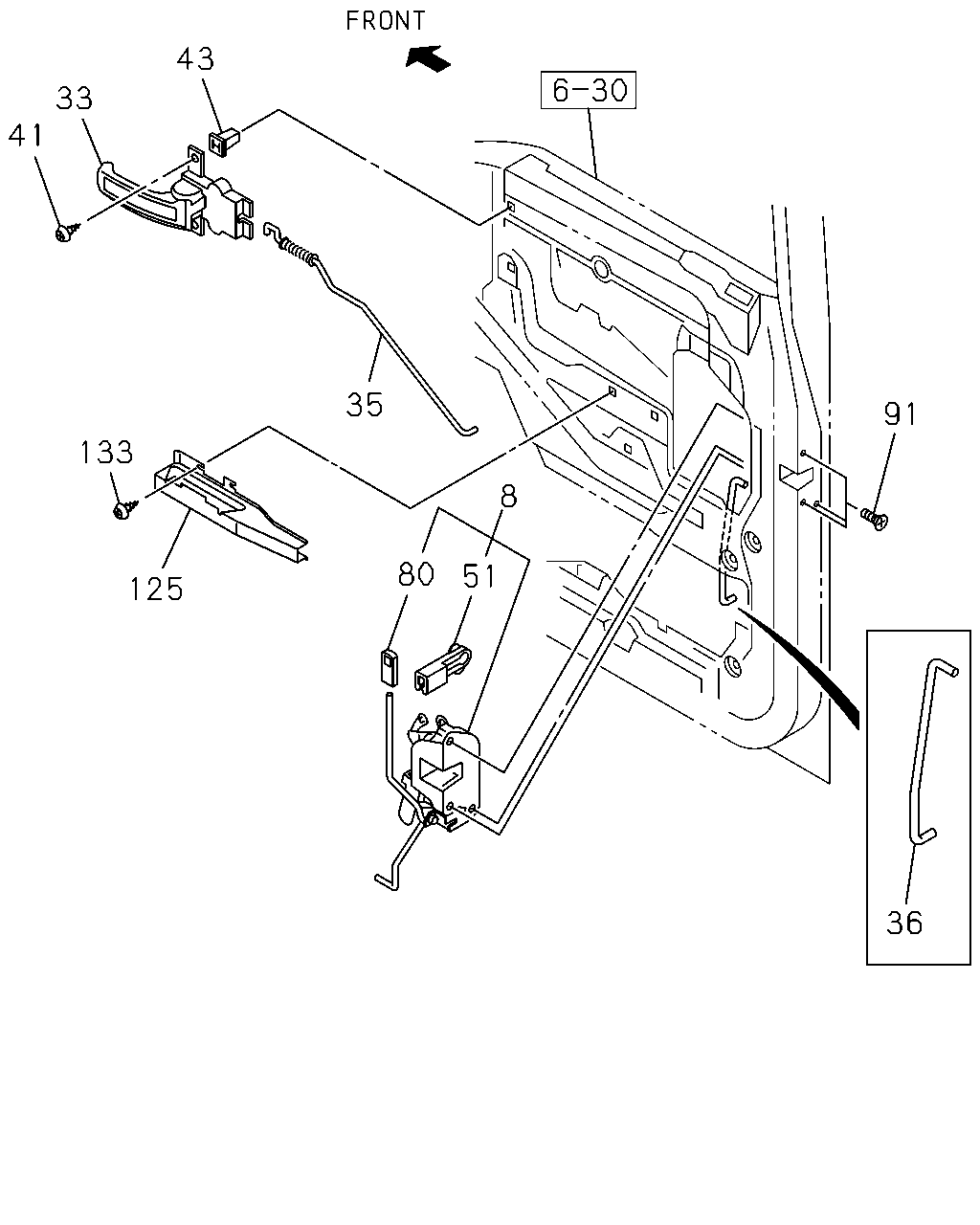

43
33
41
35
91
133
8
80
51
125
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
16.330 LOCK; DOOR,FRT DOOR
GRAY
8-97406-309-2
01
1
1011-
●
●
8
16.330 LOCK; DOOR,FRT DOOR
GRAY
8-97406-310-2
01
1
1011-
●
●
33
16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY
8-97409-388-0
01
1
1011-
●
●
33
16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY
8-97409-389-0
01
1
1011-
●
●
35
16.341 LINK; DOOR LOCK,INSIDE
8-97890-886-3
01
1
1011-
●
●
35
16.341 LINK; DOOR LOCK,INSIDE
8-97890-887-3
01
1
1011-
●
●
36
16.332 LINK; DOOR LOCK,OUTSIDE
8-97890-884-0
01
1
1011-
●
●
36
16.332 LINK; DOOR LOCK,OUTSIDE
8-97890-885-0
01
1
1011-
●
●
41
16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1011-
●
●
43
16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1011-
●
●
51
16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345
8-97852-643-0
01
1
1011-
●
●
51
16.335 SNAP; FRT DOOR LOCK CONT ROD
8-97859-069-0
01
1
1011-
●
●
80
16.157 KNOB; DOOR LOCK
GRAY
8-97406-876-0
02
1
1011-
●
●
91
16.330 BOLT; DOOR LOCK
M6X14.5
8-98004-342-0
06
1
1011-
●
●
125
16.341 BRACKET; DOOR PULL
8-97869-459-1
01
1
1011-
●
●
125
16.341 BRACKET; DOOR PULL
8-97869-460-1
01
1
1011-
●
●
133
16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
1011-
●
●

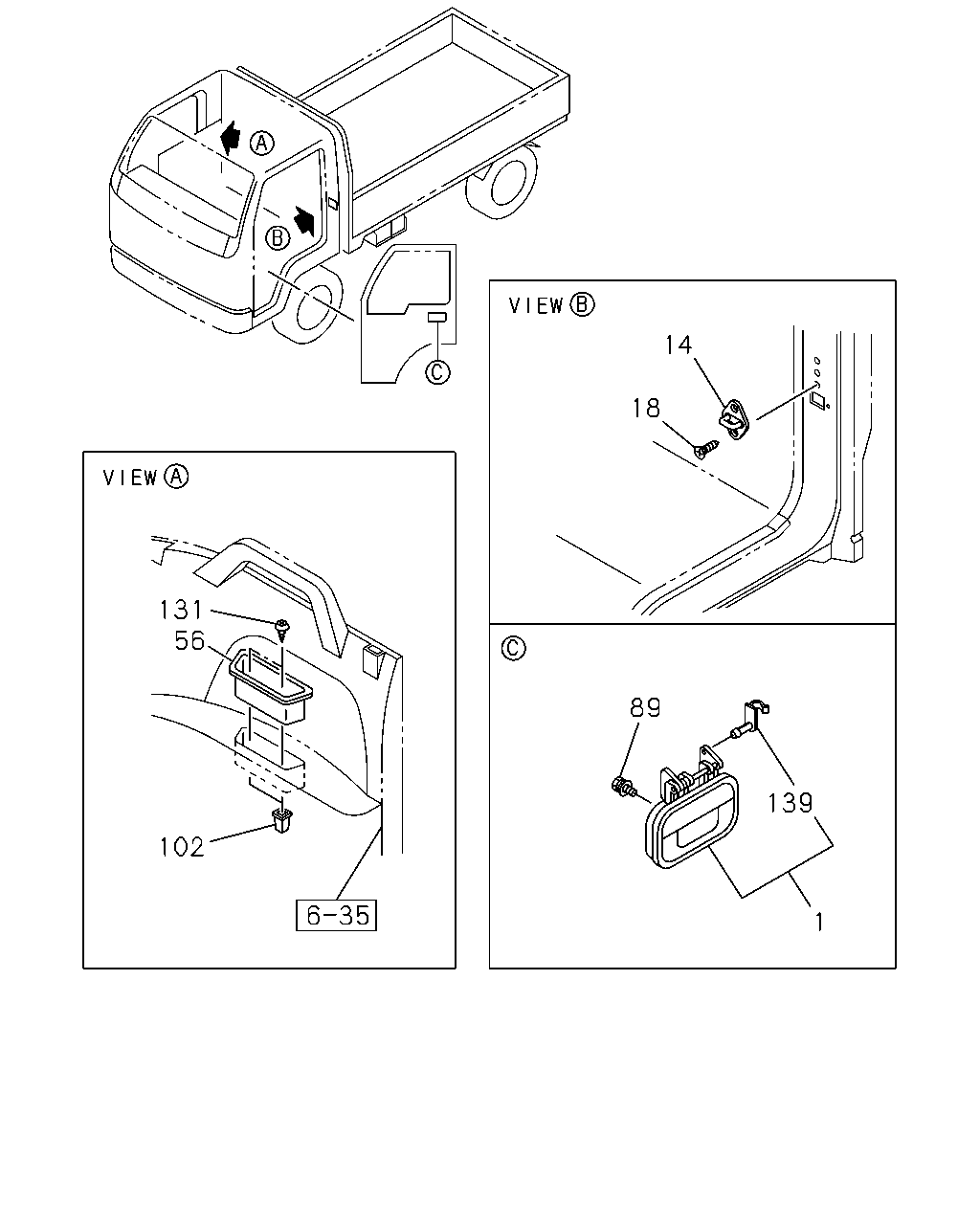

14
18
131
56
89
139
102
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.350 HANDLE; OUTSIDE,FRT DOOR
8-97867-721-1
01
1
1011-
●
●
1
16.350 HANDLE; OUTSIDE,FRT DOOR
8-97867-722-1
01
1
1011-
●
●
14
16.335 STRIKER; FRT DOOR
8-97221-702-1
02
1
1011-
●
●
18
16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD
8-98004-343-2
04
1
1011-
●
●
56
16.157 ESCUTCHEON; LOCK KNOB
GRAY
8-97406-318-3
02
1
1011-
●
●
89
16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES
8-98064-276-1
04
1
1011-
●
●
102
16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1011-
●
●
131
16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET
0-72380-512-0
04
1
1011-
●
●
139
16.350 HOLDER; ROD,DOOR HANDLE
8-97852-651-1
01
1
1011-
●
●
139
16.350 HOLDER; ROD,DOOR HANDLE
8-97852-652-1
01
1
1011-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
