Isuzu WW
▶
TRUCKS
▶
QKR
▶
51353 - QKR-RHD
▶
5 - Frame, Cab Mounting
▶

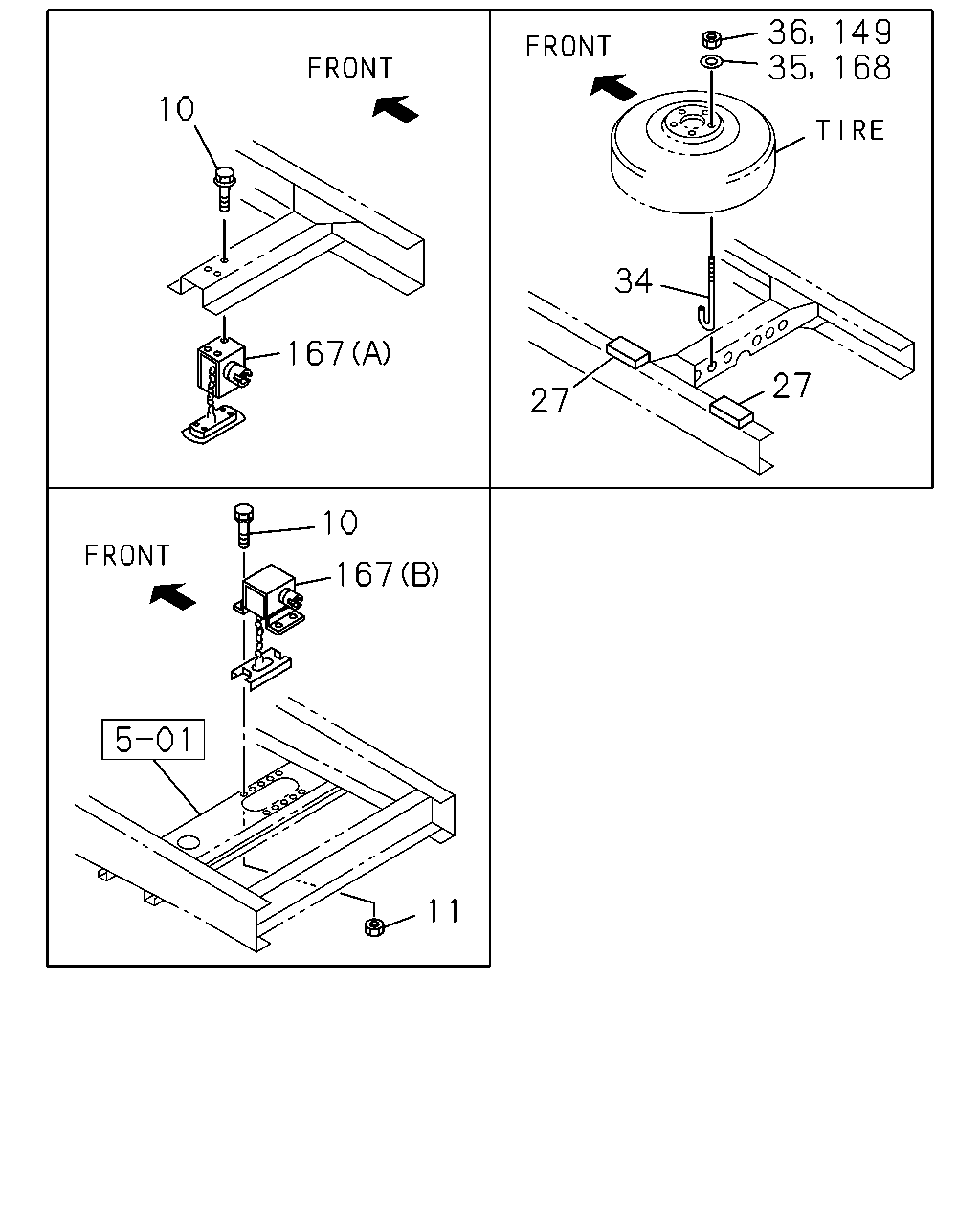

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#81933) — 12 parça
Tümü
A - NKR5SE
B - NKR5SN
36
35
149
168
10
34
167
27
27
10
167
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE
0-28650-820-0
03
1
1011-
●
10
07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1011-
●
11
07.629 NUT; TIRE HANGER
01.062 M8 FLANGE
0-91180-108-0
04
1
1011-
●
27
07.629 CUSHION; FRAME TO SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 125X50X10
8-94341-284-0
02
1
1011-
●
34
07.629 BOLT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X305
8-94441-189-0
02
1
1011-1209
●
34
07.629 BOLT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X330
8-98226-501-0
02
1
1210-
●
35
07.629 WASHER; PL,SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1011-1011
●
36
07.629 NUT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 05.002 M12
0-91110-512-0
02
1
1011-1011
●
149
07.629 NUT; CARRIER
EXC. IDENTIFICATION LABEL FOR KD<6UT> 05.002 M12
0-91110-512-0
02
1
1011-
●
167
07.629 HANGER; TIRE
(A)
8-94380-175-1
01
1
1011-
●
167
07.629 HANGER; TIRE
(B)
8-97182-113-1
01
1
1011-
●
168
07.633 WASHER; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1011-
●
