Isuzu WW
▶
TRUCKS
▶
QKR
▶
51353 - QKR-RHD
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#81929) — 77 parça
Tümü
A - NKR5SN
B - NKR5SE
◀
[501A] RIVET,BOLT,NUT (13 parça)

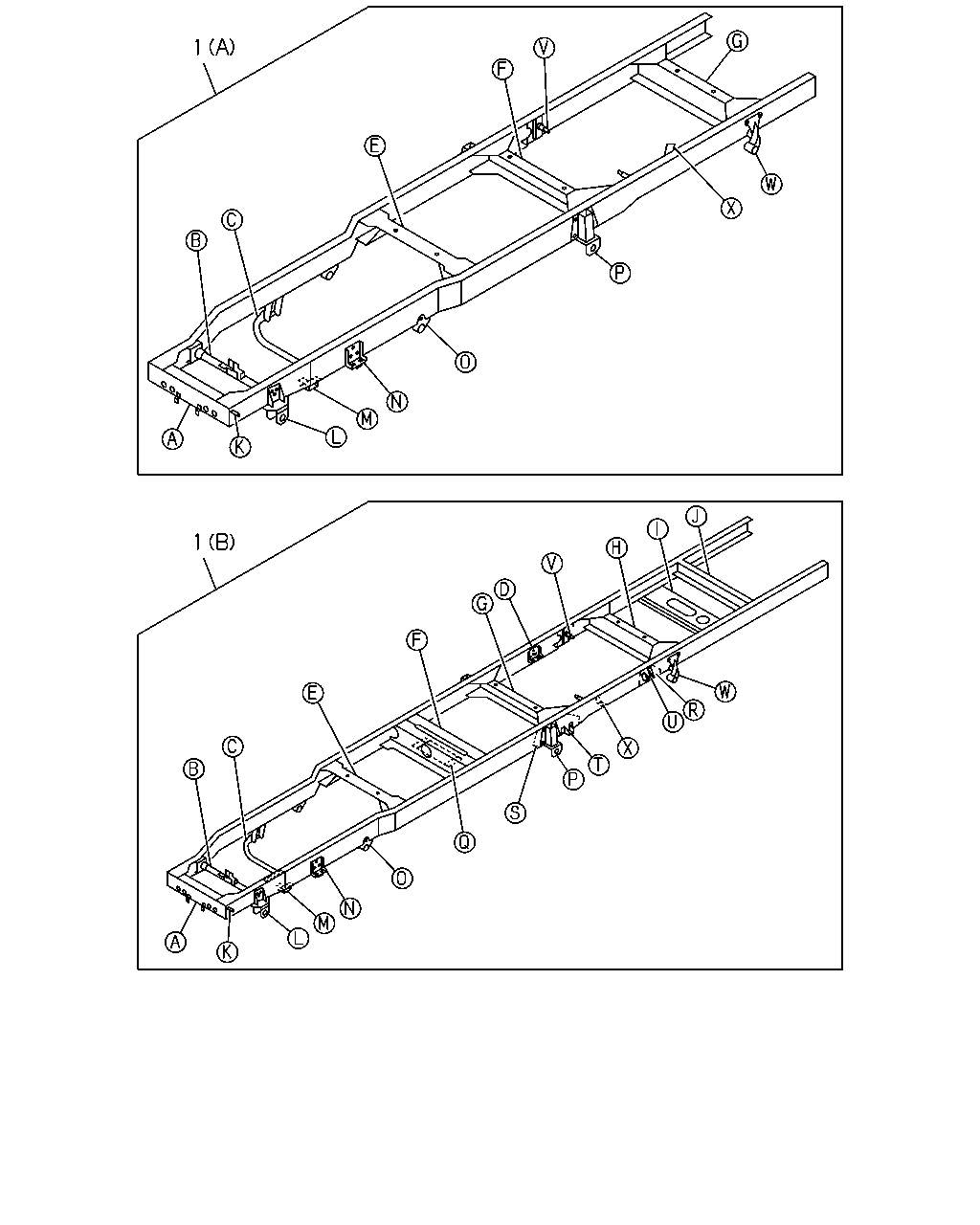

[501A] FRAME ASM(NO.1) (4 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (17 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (23 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (16 parça)

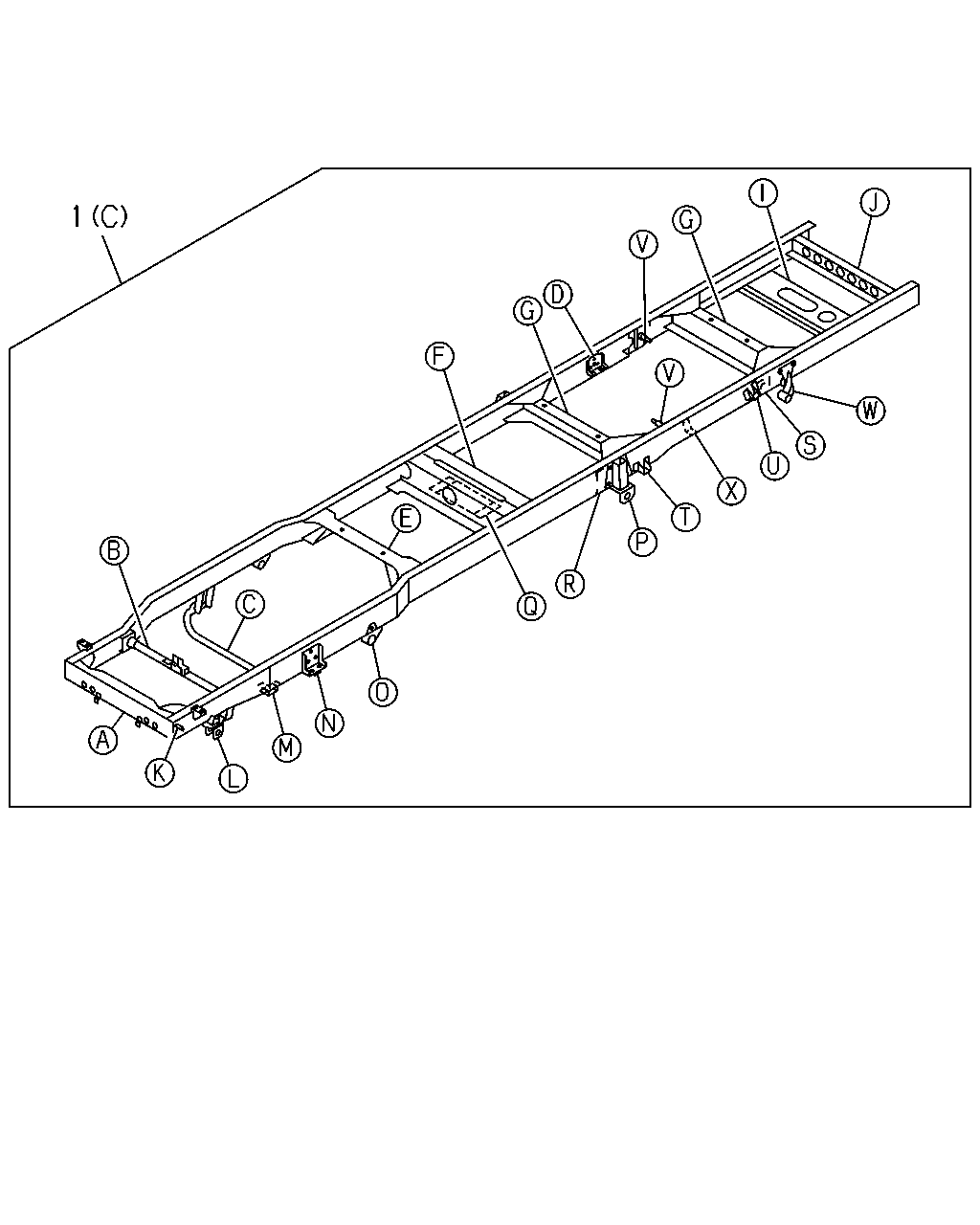

[501A] FRAME ASM(NO.2) (4 parça)
▶
376
376
376
376
376
376
376
376
376
376
376
176
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
04
1
1011-
●
176
04.085 BOLT; C/MBR,ENG MTG
09.171 M10X25 FLANGE
0-28051-025-0
08
1
1011-
●
●
376
07.039 RIVET; FRAME
(A) D8X20 TAPER END
9-06750-820-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END
9-06750-822-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
07.395 (C) D8X28 TAPER END
9-06750-828-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
(D) D10X24 TAPER END
9-06751-024-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
(E) D10X26 TAPER END
9-06751-026-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
(F) D10X28 TAPER END
9-06751-028-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
(G) D10X30 TAPER END
9-06751-030-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
(H) D10X32 TAPER END
9-06751-032-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
(I) D10X36 TAPER END
9-06751-036-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END
9-06751-230-0
AR
1
1011-
●
●
376
07.039 RIVET; FRAME
07.535 (K) D12X34 TAPER END
9-06751-234-0
AR
1
1011-
●
●
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.003 FRAME ASM
(A)
8-97205-852-2
01
1
1011-
●
1
07.003 FRAME ASM
INDONESIA EQUIPMENT(B00) (C)
8-98106-846-0
01
1
1011-1110
●
1
07.003 FRAME ASM
EXC. INDONESIA EQUIPMENT(B00) (B)
8-97205-862-2
01
1
1011-1110
●
1
07.003 FRAME ASM
(B)
8-97205-862-2
01
1
1111-
●
188
173
173
103
103
147
147
140
140
140
105
105
142
142
215
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
02
1
1011-
●
103
07.420 STOPPER; SUB SPR
(B)
8-97223-750-0
02
1
1011-
●
105
07.112 BRACKET; RR SPR,RR
(B)
8-94126-620-1
01
1
1011-
●
105
07.112 BRACKET; RR SPR,RR
(B)
8-94126-621-1
01
1
1011-
●
105
07.112 BRACKET; RR SPR,RR
(A)
8-94459-511-1
01
1
1011-
●
105
07.112 BRACKET; RR SPR,RR
(A)
8-94459-512-1
01
1
1011-
●
140
07.112 BRACKET; S/ABS,RR
(A)
8-94258-103-1
01
1
1011-
●
140
07.112 BRACKET; S/ABS,RR
(A)
8-94258-104-1
01
1
1011-
●
140
07.112 BRACKET; S/ABS,RR
07.395 (C)
8-94101-303-0
01
1
1011-
●
140
07.112 BRACKET; S/ABS,RR
(B)
8-97012-285-0
01
1
1011-
●
142
04.845 BRACKET; FLEX HOSE,BRAKE
(A)
8-97047-775-1
01
1
1011-
●
142
04.845 BRACKET; FLEX HOSE,BRAKE
(B)
8-97035-308-0
01
1
1011-
●
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
1011-
●
173
07.112 STIFFENER; RR SPRING
INDONESIA EQUIPMENT(B00) (A)
8-94372-324-1
02
1
1011-1110
●
173
07.112 STIFFENER; RR SPRING
INDONESIA EQUIPMENT(B00) (B)
8-97213-460-4
02
1
1011-1110
●
188
07.039 BRACKET; SUPPORT,CTR BRG
8-97078-869-1
01
1
1011-
●
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
1011-
●
198
75
198
75
345
139
137
130
358
24
63
51
101
101
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
07.105 BRACKET; FRT SPR,FRT
8-94366-818-1
01
1
1011-
●
24
07.105 BRACKET; FRT SPR,FRT
8-97065-789-1
01
1
1011-
●
24
07.105 BRACKET; FRT SPR,FRT
8-94366-816-1
01
1
1011-
●
24
07.105 BRACKET; FRT SPR,FRT
8-97065-788-1
01
1
1011-
●
39
07.112 BRACKET; FRT SPR,RR
8-94258-091-0
02
1
1011-
●
●
51
07.011 BRACKET; ENG SUPPORT,OUTER
00.029
8-94258-086-1
02
1
1011-
●
●
63
01.270 BRACKET; RAD MTG
8-94257-950-1
01
1
1011-
●
●
75
07.039 GUSSET; 5TH C/MBR
(B)
8-94258-075-3
02
1
1011-
●
75
07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER
8-97062-499-0
02
1
1011-
●
75
07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER
8-97062-500-0
02
1
1011-
●
101
07.112 BRACKET; RR SPR,FRT
(B)
8-94258-093-1
02
1
1011-
●
101
07.112 BRACKET; RR SPR,FRT
(A)
8-97034-156-1
02
1
1011-
●
130
07.014 MEMBER; CROSS,END
8-94257-620-2
01
1
1011-
●
137
07.629 BRACKET; SPARE TIRE
8-97076-885-1
01
1
1011-
●
139
07.012 MEMBER; CROSS,6TH
8-97045-542-2
01
1
1011-
●
139
07.012 MEMBER; CROSS,6TH
8-97062-498-1
01
1
1011-
●
198
07.039 GUSSET; 6TH C/MBR
8-94258-081-1
02
1
1011-
●
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER
8-97062-499-0
02
1
1011-
●
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER
8-97062-500-0
02
1
1011-
●
345
07.012 MEMBER; CROSS,5TH
(A)
8-97081-061-2
01
1
1011-
●
345
07.012 MEMBER; CROSS,5TH
(B)
8-97062-497-3
01
1
1011-
●
358
07.039 BRACKET; CAB EARTH
8-97210-488-0
02
1
1011-
●
358
07.039 BRACKET; CAB EARTH
8-97210-488-0
01
1
1011-
●
17
20
17
2
217
42
74
34
74
75
344
345
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
07.010 MEMBER; CROSS,1ST
8-97034-332-2
01
1
1011-
●
●
17
07.039 GUSSET; 1ST C/MBR
8-97088-205-1
02
1
1011-
●
●
20
07.012 MEMBER; CROSS,2ND
8-97145-718-0
01
1
1011-
●
●
34
07.012 MEMBER; CROSS,3RD
8-97039-670-1
01
1
1011-
●
34
07.012 MEMBER; CROSS,3RD
8-97115-578-0
01
1
1011-
●
42
07.011 MEMBER; CROSS,ENG MTG
8-94246-127-7
01
1
1011-
●
●
74
07.039 GUSSET; 4TH C/MBR
RH-UPPER, LH-LOWER
8-97101-837-1
02
1
1011-
●
74
07.039 GUSSET; 4TH C/MBR
RH-LOWER, LH-UPPER
8-97101-838-1
02
1
1011-
●
75
07.039 GUSSET; 5TH C/MBR
(B)
8-94258-075-3
02
1
1011-
●
75
07.039 GUSSET; 5TH C/MBR
(A) RH-UPPER,LH-LOWER
8-97062-499-0
02
1
1011-
●
75
07.039 GUSSET; 5TH C/MBR
(A) RH-LOWER,LH-UPPER
8-97062-500-0
02
1
1011-
●
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
EXC. INDONESIA EQUIPMENT(B00)
8-94258-963-0
02
1
1011-1110
●
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-94258-963-0
02
1
1111-
●
344
07.012 MEMBER; CROSS,4TH
8-97078-707-3
01
1
1011-
●
345
07.012 MEMBER; CROSS,5TH
(A)
8-97081-061-2
01
1
1011-
●
345
07.012 MEMBER; CROSS,5TH
(B)
8-97062-497-3
01
1
1011-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.003 FRAME ASM
(A)
8-97205-852-2
01
1
1011-
●
1
07.003 FRAME ASM
INDONESIA EQUIPMENT(B00) (C)
8-98106-846-0
01
1
1011-1110
●
1
07.003 FRAME ASM
EXC. INDONESIA EQUIPMENT(B00) (B)
8-97205-862-2
01
1
1011-1110
●
1
07.003 FRAME ASM
(B)
8-97205-862-2
01
1
1111-
●
