4-65 — REAR LEAF SPRING (#81927) — 45 parça

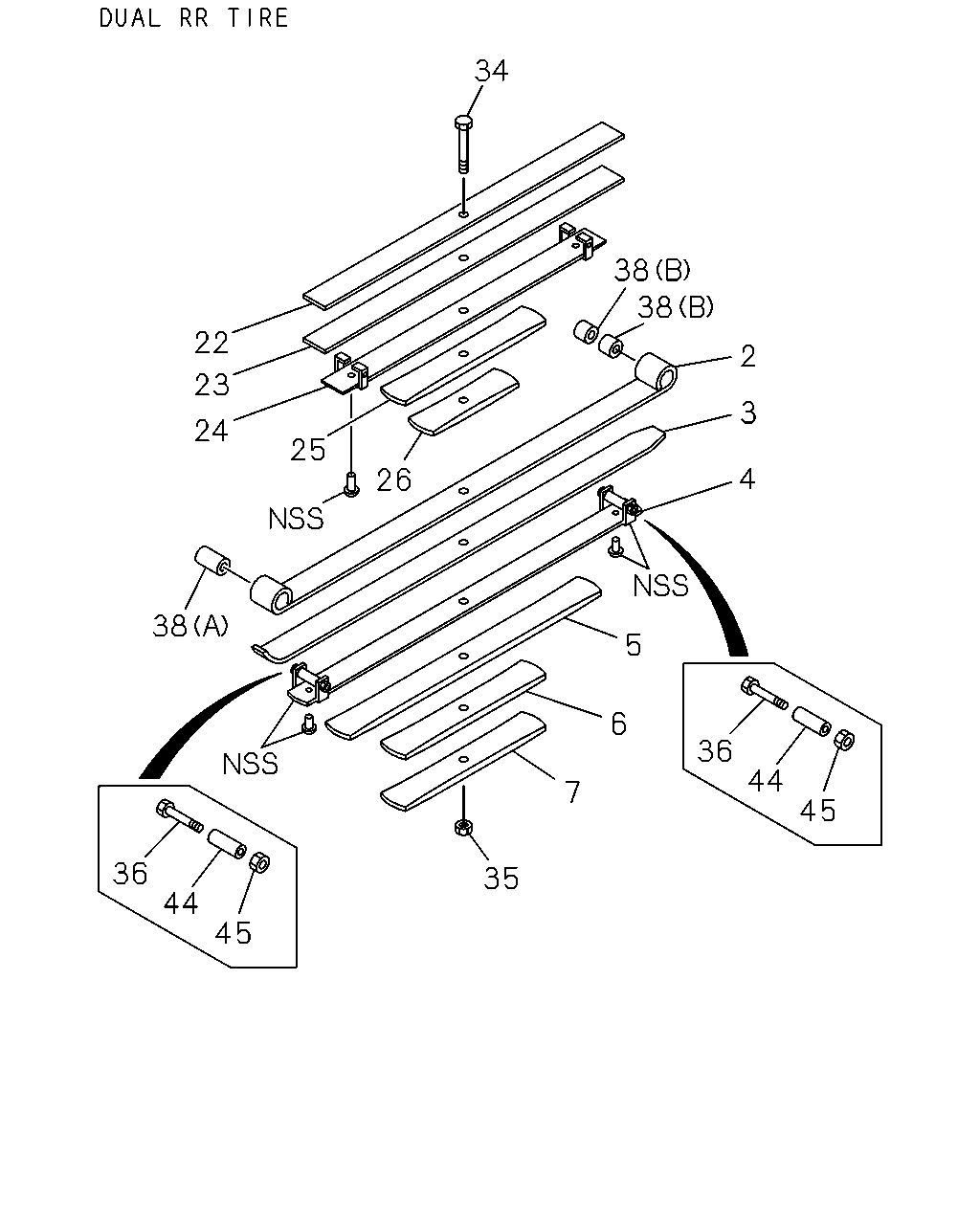

34 38 38 22 2 23 3 24 25 4 26 38 5 6 36 44 7 45 36 35 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-434-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-435-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-436-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-437-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-438-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-439-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-440-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-441-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-442-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97693-008-0, 97693008	5-87220-443-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-444-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97693-008-0, 97693008	5-87220-445-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-446-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-447-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-448-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-449-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-450-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: B = 8-97693-009-0, 97693009	5-87220-451-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR ASM PART: A = 8-97693-008-0, 97693008, B = 8-97693-009-0, 97693009	5-87220-452-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-97693-009-0, 97693009	5-87220-459-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: A = 8-97693-008-0, 97693008	5-87220-454-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: B = 8-97693-009-0, 97693009	5-87220-455-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: A = 8-97693-008-0, 97693008	5-87220-456-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: B = 8-97693-009-0, 97693009	5-87220-457-0	02	1	-
44	07.506 PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-461-0	02	1	-
45	07.529 NUT; CLIP,LEAF SPR,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-460-0	02	1	-

34 38 39 37 2 3 37 38 4 37 37 22 37 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-434-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-435-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-436-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-437-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-438-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97693-009-0, 97693009	5-87220-439-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97693-008-0, 97693008	5-87220-443-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-444-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97693-008-0, 97693008	5-87220-445-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97693-009-0, 97693009	5-87220-446-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-450-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: B = 8-97693-009-0, 97693009	5-87220-451-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR ASM PART: A = 8-97693-008-0, 97693008, B = 8-97693-009-0, 97693009	5-87220-452-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97693-008-0, 97693008	5-87220-462-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: A = 8-97693-008-0, 97693008	5-87220-454-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A) ASM PART: B = 8-97693-009-0, 97693009	5-87220-455-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: A = 8-97693-008-0, 97693008	5-87220-456-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B) ASM PART: B = 8-97693-009-0, 97693009	5-87220-457-0	02	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN ASM PART: A = 8-97693-008-0, 97693008	5-87220-458-0	01	1	-
