4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#81919) — 54 parça

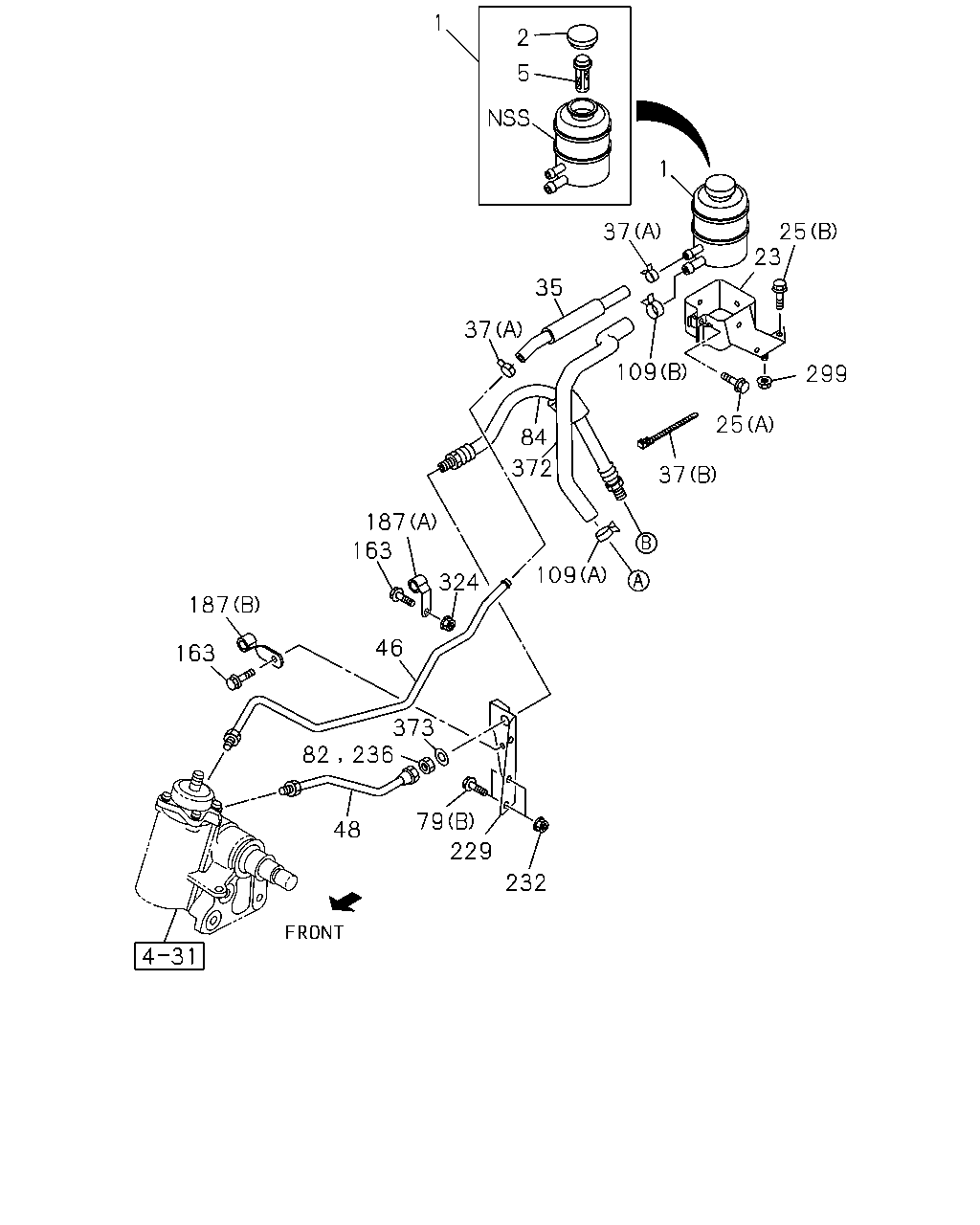

1 5 2 1 25 23 299 37 35 37 84 109 25 37 372 187 163 324 109 46 187 163 82 236 79 229 232 48 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1011-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1011-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1011-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97066-500-3	01	1	1011-1211	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98215-043-0	01	1	1212-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1011-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97081-444-3	01	1	1011-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) L=250	5-09707-030-1	01	1	1011-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1011-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97364-358-0	01	1	1011-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97364-352-0	01	1	1011-	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1011-	●	●
79	06.672 BOLT; BRKT 4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1011-	●	●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 M16	8-94370-339-0	02	1	1011-1401	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 M16	8-94370-339-0	01	1	1402-	●	●
84	06.670 HOSE; FLEX,P/S	8-97358-326-0	01	1	1011-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1011-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1011-	●	●
163	06.671 BOLT; OIL PIPE 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1011-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●	●
187	03.162 CLIP; P/S OIL PIPE 06.672 (B) ID=11 L=40	8-94123-171-1	01	1	1011-	●	●
187	03.162 CLIP; P/S OIL PIPE 06.672 (A) ID=11 L=40	8-94259-342-0	01	1	1011-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-97089-879-0	01	1	1011-	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
236	06.672 NUT; FLEX HOSE,P/S PIPING 06.897 M16	8-94370-339-0	01	1	1402-	●	●
299	06.660 NUT; OIL TANK BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT) 06.672	8-97205-635-0	01	1	1011-	●	●
372	06.673 HOSE; RUBBER 4JB1-NA ENG(RLF) 06.672	8-97062-797-1	01	1	1011-	●	●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	1011-	●	●

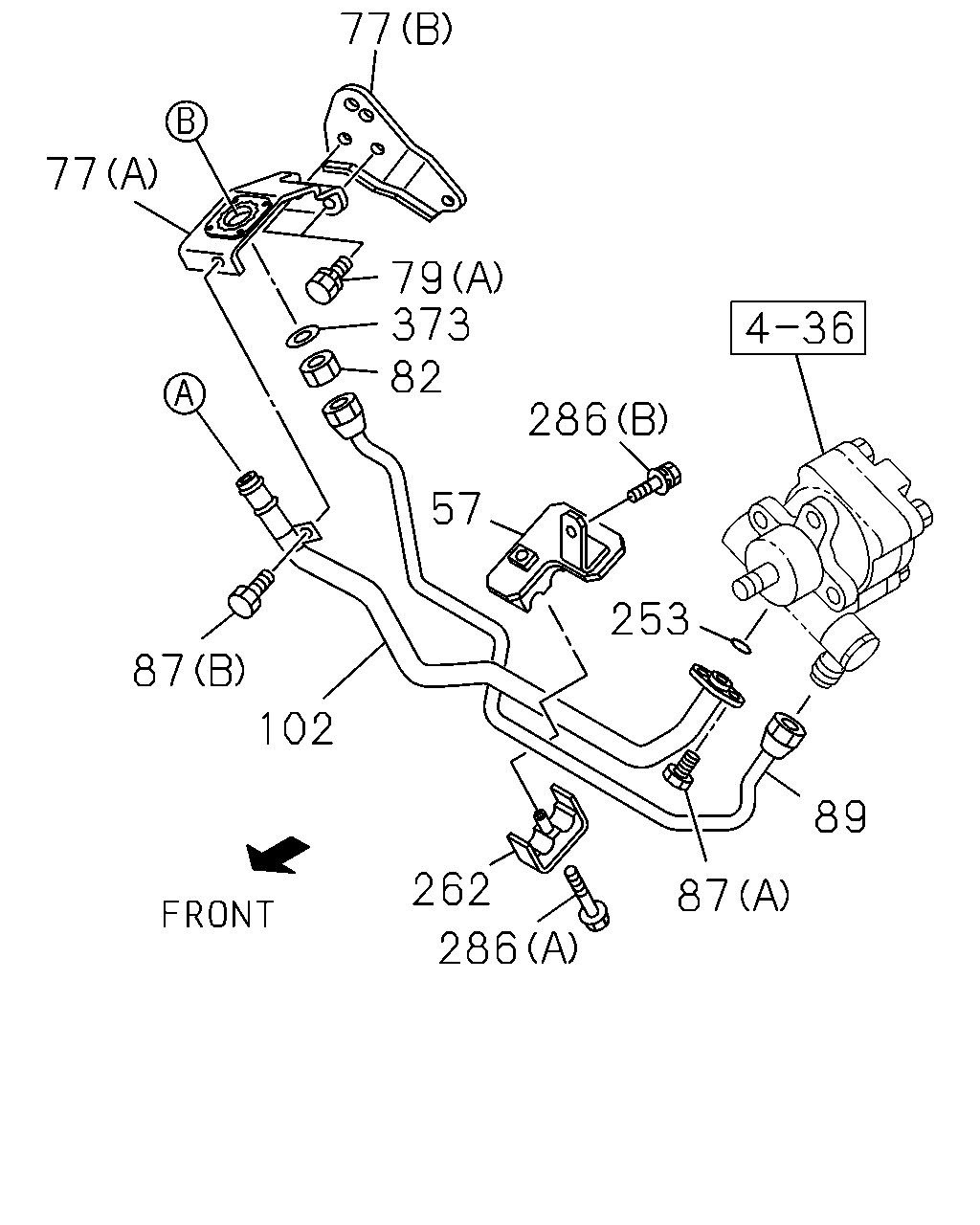

77 77 79 373 82 286 57 253 87 102 89 262 87 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	06.672 BRACKET; POWER STRG PIPE	8-97312-558-3	01	1	1011-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B)	8-97075-615-0	01	1	1011-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> (B)	8-97075-615-0	01	1	1011-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (A)	8-97208-424-0	01	1	1011-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> (A)	8-97208-424-0	01	1	1011-	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1011-	●	●
79	06.672 BOLT; BRKT 4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1011-	●	●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 M16	8-94370-339-0	02	1	1011-1401	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 M16	8-94370-339-0	01	1	1402-	●	●
87	06.672 BOLT; POWER STRG PIPE 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1011-1303	●	●
87	06.672 BOLT; POWER STRG PIPE (A) M8X14 FLANGE	8-98219-171-0	02	1	1304-	●	●
87	06.672 BOLT; POWER STRG PIPE 00.206 (B) M6X20	8-94279-112-0	01	1	1011-	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H	8-97312-556-0	01	1	1011-1303	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H	8-98218-675-0	01	1	1304-	●	●
102	06.671 PIPE; SUCTION,P/S	8-97312-557-1	01	1	1011-1303	●	●
102	06.671 PIPE; SUCTION,P/S	8-98218-669-0	01	1	1304-	●	●
253	06.673 GASKET; OIL PIPE 06.609 ID=11.0	9-09561-111-0	01	1	1011-	●	●
262	06.672 CLIP; P/S PIPE	8-97300-961-1	01	1	1011-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	1011-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1011-	●	●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
