4-25 — REAR FINAL DRIVE (#81915) — 99 parça

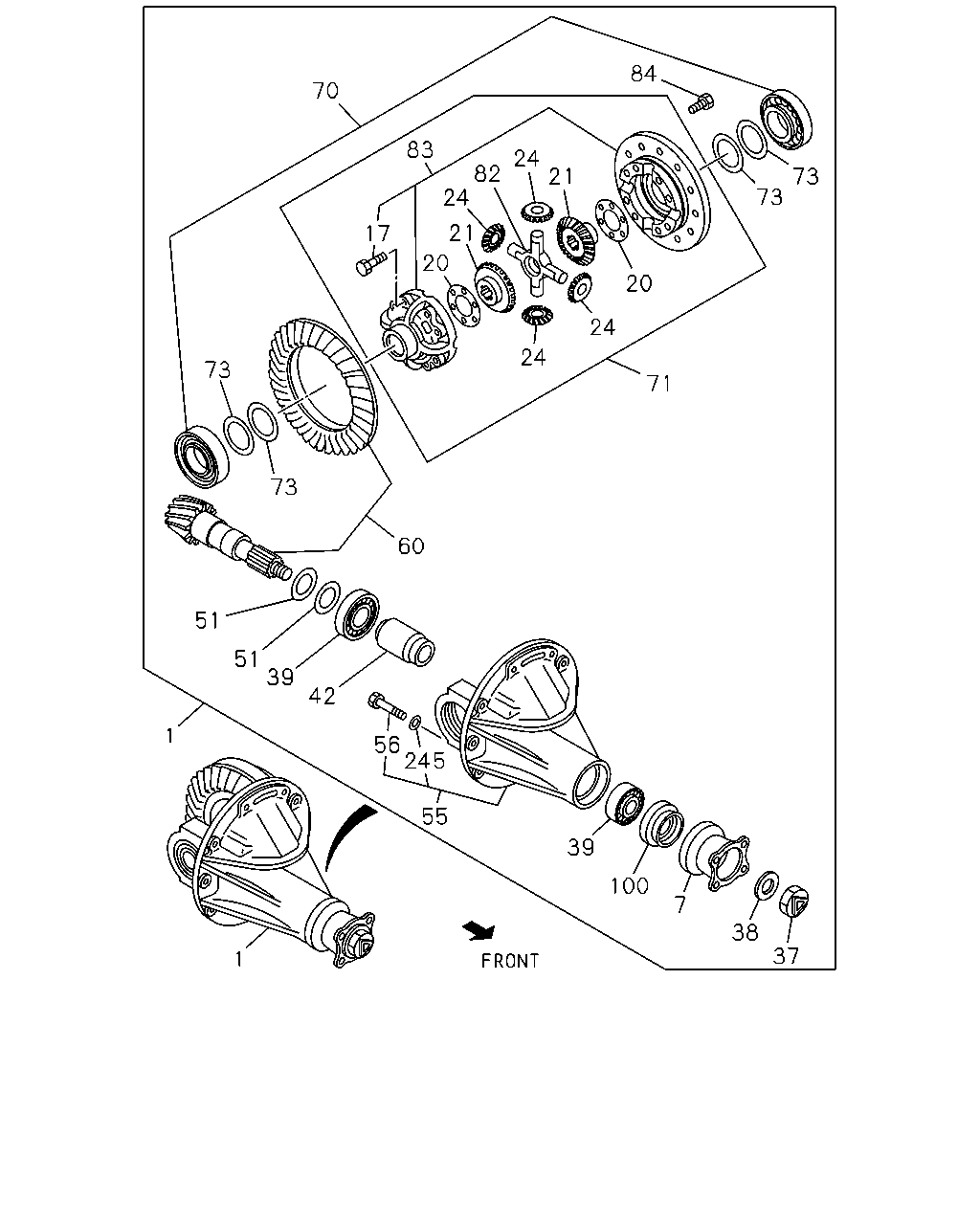

84 73 73 21 24 70 83 24 17 21 82 20 71 24 24 20 73 73 60 51 51 39 42 56 245 55 1 39 100 7 38 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR	5-87220-170-0	01	1	1011-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41)	5-87220-178-0	01	1	1011-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42)	5-87220-177-0	01	1	1011-		●
7	05.545 FLANGE; FINAL	5-87220-183-0	01	1	1011-	●
7	05.545 FLANGE; FINAL	5-87220-241-0	01	1	1011-		●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-208-0	08	1	1011-	●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-180-0	12	1	1011-		●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-213-0	02	1	1011-	●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-203-0	02	1	1011-		●
21	05.528 GEAR; SIDE,DIFF	5-87220-218-0	02	1	1011-	●
21	05.528 GEAR; SIDE,DIFF	5-87220-205-0	02	1	1011-		●
24	05.526 GEAR; PINION,DIFF	5-87220-215-0	04	1	1011-	●
24	05.526 GEAR; PINION,DIFF	5-87220-209-0	04	1	1011-		●
37	05.595 NUT; DRIVING PINION	5-87220-179-0	01	1	1011-	●
37	05.595 NUT; DRIVING PINION	5-87220-242-0	01	1	1011-		●
38	05.595 WASHER; PL,DRIVING PINION	5-87220-181-0	01	1	1011-	●
39	05.484 BEARING; FINAL PINION OUTER	5-87220-192-0	01	1	1011-	●
39	05.484 BEARING; FINAL PINION INNER	5-87220-185-0	01	1	1011-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-188-0	01	1	1011-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-235-0	01	1	1011-		●
51	05.586 SHIM; PINION,FINAL DRIVE	5-87220-190-0	01	1	1011-	●
55	05.505 CARRIER; DIFF	5-87220-194-0	01	1	1011-	●
55	05.505 CARRIER; DIFF	5-87220-223-0	01	1	1011-		●
56	05.506 BOLT; BRG CAP	5-87220-219-0	02	1	1011-	●
56	05.506 BOLT; BRG CAP	5-87220-219-0	04	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR	5-87220-201-0	01	1	1011-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41)	5-87220-200-0	01	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42)	5-87220-199-0	01	1	1011-		●
70	05.536 BEARING; DIFF CAGE 1 SET=2 PIECE	5-87220-196-0	01	1	1011-	●
70	05.536 BEARING; DIFF CAGE	5-87220-195-0	02	1	1011-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-204-0	01	1	1011-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-191-0	01	1	1011-		●
73	05.537 SHIM; DIFF SIDE BRG	5-87220-198-0	02	1	1011-	●
82	05.517 SPIDER; DIFF PINION	5-87220-220-0	01	1	1011-	●
82	05.517 SPIDER; DIFF PINION	5-87220-207-0	01	1	1011-		●
83	05.510 CAGE ASM; DIFF	5-87220-222-0	01	1	1011-	●
83	05.510 CAGE ASM; DIFF	5-87220-189-0	01	1	1011-		●
84	05.531 BOLT; FINAL DRIVE GEAR 1 SET=12 PIECE	5-87220-206-0	01	1	1011-	●	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-184-0	01	1	1011-	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-240-0	01	1	1011-		●
245	05.506 WASHER; PL,BRG CAP	5-87220-226-0	04	1	1011-	●
245	05.506 WASHER; PL,BRG CAP 05.453	5-87220-221-0	04	1	1011-		●

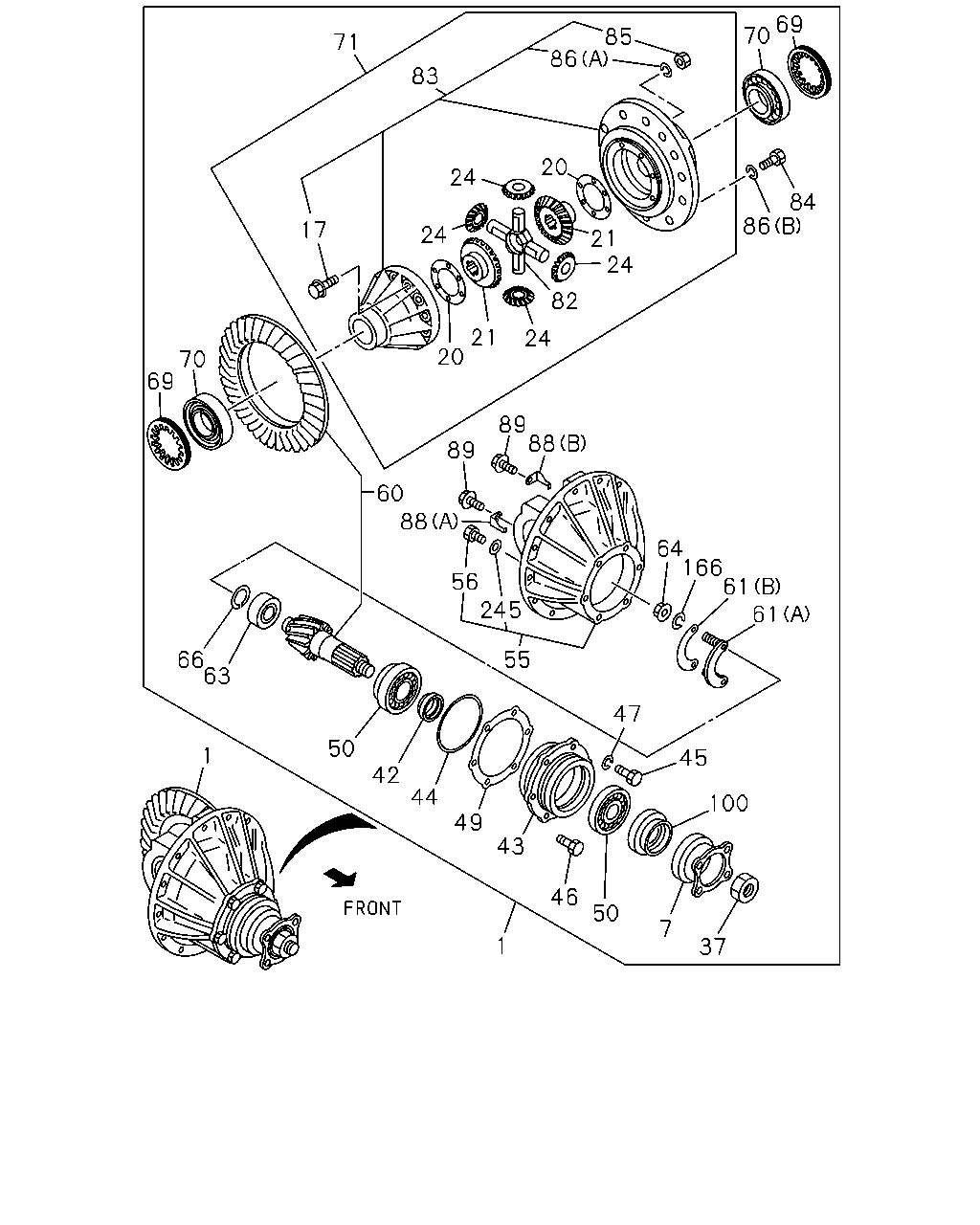

71 17 70 69 24 24 83 86 85 70 69 84 86 20 21 24 82 24 21 20 89 89 88 60 56 245 55 64 166 61 61 47 45 100 43 49 44 42 50 63 66 46 50 7 37 1 1 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR	5-87220-170-0	01	1	1011-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41)	5-87220-178-0	01	1	1011-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42)	5-87220-177-0	01	1	1011-		●
7	05.545 FLANGE; FINAL	5-87220-183-0	01	1	1011-	●
7	05.545 FLANGE; FINAL	5-87220-241-0	01	1	1011-		●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-208-0	08	1	1011-	●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-180-0	12	1	1011-		●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-213-0	02	1	1011-	●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-203-0	02	1	1011-		●
21	05.528 GEAR; SIDE,DIFF	5-87220-218-0	02	1	1011-	●
21	05.528 GEAR; SIDE,DIFF	5-87220-205-0	02	1	1011-		●
24	05.526 GEAR; PINION,DIFF	5-87220-215-0	04	1	1011-	●
24	05.526 GEAR; PINION,DIFF	5-87220-209-0	04	1	1011-		●
37	05.595 NUT; DRIVING PINION	5-87220-179-0	01	1	1011-	●
37	05.595 NUT; DRIVING PINION	5-87220-242-0	01	1	1011-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-188-0	01	1	1011-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-235-0	01	1	1011-		●
43	05.453 CAGE; FINAL PINION	5-87220-238-0	01	1	1011-		●
44	05.476 GASKET; PINION CAGE	5-87220-236-0	01	1	1011-		●
45	05.453 BOLT; FINAL PINION CAGE	5-87220-239-0	01	1	1011-		●
46	05.453 BOLT	5-87220-243-0	05	1	1011-		●
47	05.453 WASHER; LK	5-87220-221-0	01	1	1011-		●
49	05.458 SHIM; FINAL PINION CAGE	5-87220-237-0	AR	1	1011-		●
50	05.447 BEARING; FINAL PINION	5-87220-234-0	02	1	1011-		●
55	05.505 CARRIER; DIFF	5-87220-194-0	01	1	1011-	●
55	05.505 CARRIER; DIFF	5-87220-223-0	01	1	1011-		●
56	05.506 BOLT; BRG CAP	5-87220-219-0	02	1	1011-	●
56	05.506 BOLT; BRG CAP	5-87220-219-0	04	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR	5-87220-201-0	01	1	1011-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41)	5-87220-200-0	01	1	1011-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42)	5-87220-199-0	01	1	1011-		●
61	05.476 RETAINER; PILOT BRG,PINION (B)	5-87220-229-0	02	1	1011-		●
61	05.476 RETAINER; PILOT BRG,PINION (A)	5-87220-231-0	01	1	1011-		●
63	05.447 BEARING; PINION PILOT	5-87220-233-0	01	1	1011-		●
64	05.476 NUT; RET	5-87220-225-0	02	1	1011-		●
66	05.476 RING; SNAP,PILOT BRG	5-87220-232-0	01	1	1011-		●
69	05.506 NUT; ADJ,DIFF CAGE	5-87220-193-0	02	1	1011-		●
70	05.536 BEARING; DIFF CAGE 1 SET=2 PIECE	5-87220-196-0	01	1	1011-	●
70	05.536 BEARING; DIFF CAGE	5-87220-195-0	02	1	1011-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-204-0	01	1	1011-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-191-0	01	1	1011-		●
82	05.517 SPIDER; DIFF PINION	5-87220-220-0	01	1	1011-	●
82	05.517 SPIDER; DIFF PINION	5-87220-207-0	01	1	1011-		●
83	05.510 CAGE ASM; DIFF	5-87220-222-0	01	1	1011-	●
83	05.510 CAGE ASM; DIFF	5-87220-189-0	01	1	1011-		●
84	05.531 BOLT; FINAL DRIVE GEAR 1 SET=12 PIECE	5-87220-206-0	01	1	1011-	●	●
85	05.510 NUT; DIFF CAGE SETTING 06.216	5-87220-063-0	12	1	1011-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING 05.815 (A)	5-87220-021-0	12	1	1011-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING (B)	5-87220-182-0	12	1	1011-		●
88	05.506 PLATE; LK,ADJ NUT (B)	5-87220-216-0	01	1	1011-		●
88	05.506 PLATE; LK,ADJ NUT (A)	5-87220-217-0	01	1	1011-		●
89	05.506 BOLT; LK PLATE	5-87220-214-0	02	1	1011-		●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-184-0	01	1	1011-	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-240-0	01	1	1011-		●
166	05.447 WASHER; PILOT BRG	5-87220-227-0	02	1	1011-		●
245	05.506 WASHER; PL,BRG CAP	5-87220-226-0	04	1	1011-	●
245	05.506 WASHER; PL,BRG CAP 05.453	5-87220-221-0	04	1	1011-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
